Structure: Classification of Matter — Free Chemistry HL Practice Questions

1FoundationMCQIUPAC naming conventions for organic compounds1 markPaper 1~2 min
The compound CH3-CH2-CH(CH3)-CH2-CH3\text{CH}_3\text{-CH}_2\text{-CH(CH}_3\text{)-CH}_2\text{-CH}_3 is to be named using IUPAC nomenclature. What is the correct IUPAC name?
diagram

Solutions

2MasteryMCQIUPAC naming conventions for organic compounds1 markPaper 1~2 min
The structural formula CH3CH2CH(CH3)CH2OH\text{CH}_3\text{CH}_2\text{CH(CH}_3\text{)CH}_2\text{OH} is to be named according to IUPAC rules. A student incorrectly identifies the compound as pentan-3-ol. What is the correct IUPAC name?
diagram

Solutions

3FoundationMCQIUPAC naming conventions for organic compounds1 markPaper 1~2 min
Which IUPAC name correctly identifies the compound CH3CH2CH(CH3)CH2CH3\text{CH}_3\text{CH}_2\text{CH(CH}_3\text{)CH}_2\text{CH}_3?
diagram

Solutions

4FoundationMCQIUPAC naming conventions for organic compounds1 markPaper 1~2 min

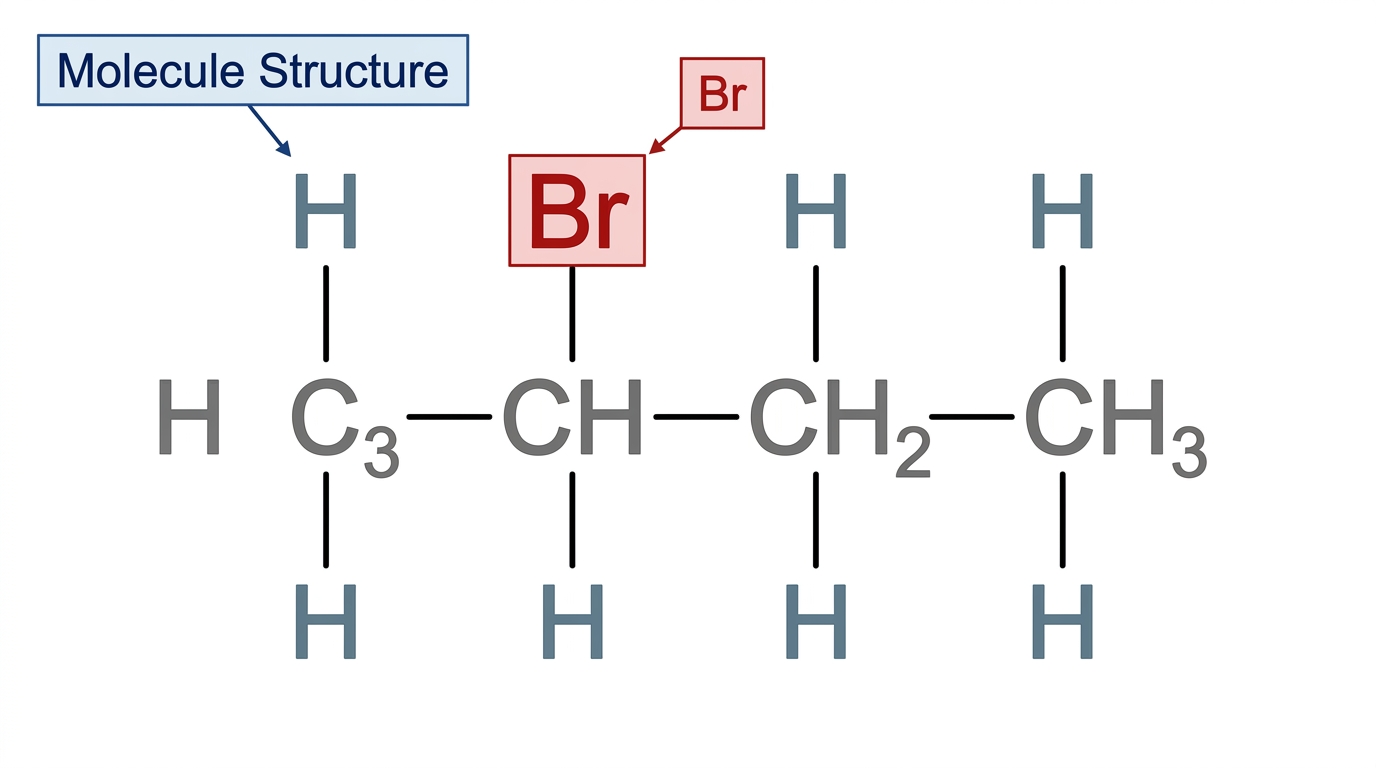

The structure below shows an organic compound. CH3-CH(Br)-CH2-CH3\text{CH}_3\text{-CH(Br)-CH}_2\text{-CH}_3 What is the correct IUPAC name for this compound?
diagram

Solutions

5FoundationMCQPeriodic trends: Atomic radius, ionization energy, electronegativity1 markPaper 1~2 min

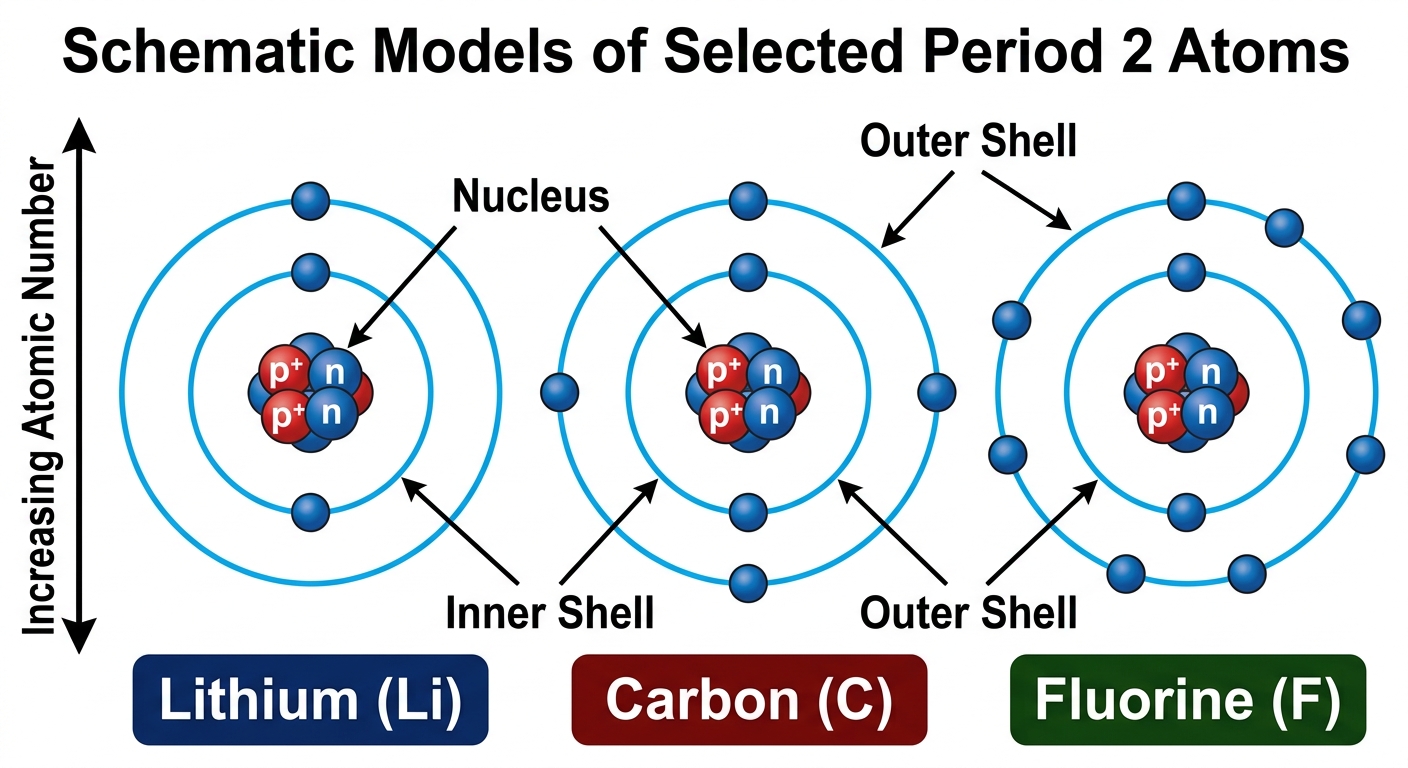

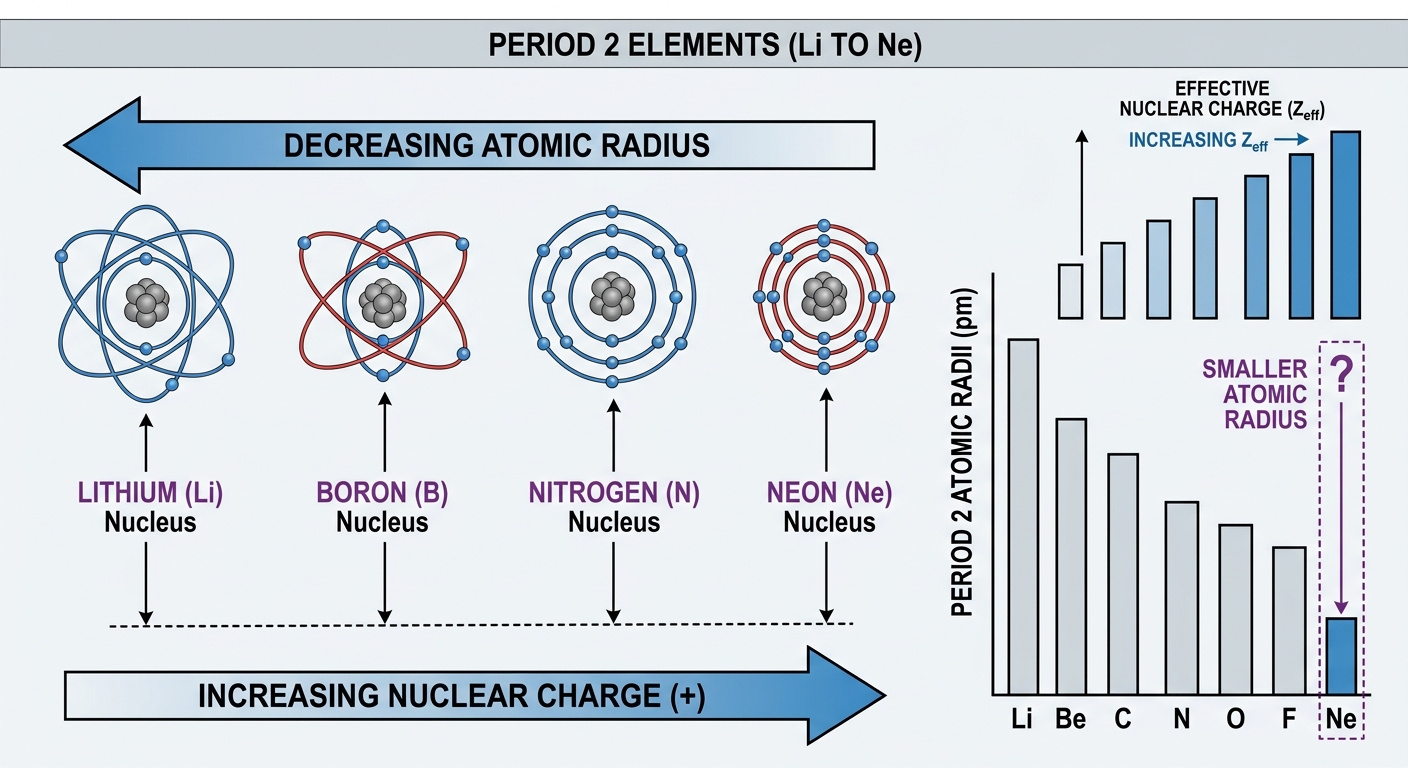

Across Period 2, atomic radius generally decreases from lithium to fluorine. Which of the following correctly explains why neon is excluded from this trend, and what is the smallest atomic radius among the elements Li to F?
diagram

Solutions

6MasteryMCQPeriodic trends: Atomic radius, ionization energy, electronegativity1 markPaper 1~2 min
The first ionization energies of successive elements in Period 3 are given below. Element — Na — Mg — Al — Si — P — S — Cl — Ar IE₁ / kJ mol⁻¹ — 496 — 738 — 578 — 786 — 1012 — 1000 — 1251 — 1520 Which statement best explains why the first ionization energy of Al is lower than that of Mg?
diagram

Solutions

7FoundationMCQPeriodic trends: Atomic radius, ionization energy, electronegativity1 markPaper 1~2 min

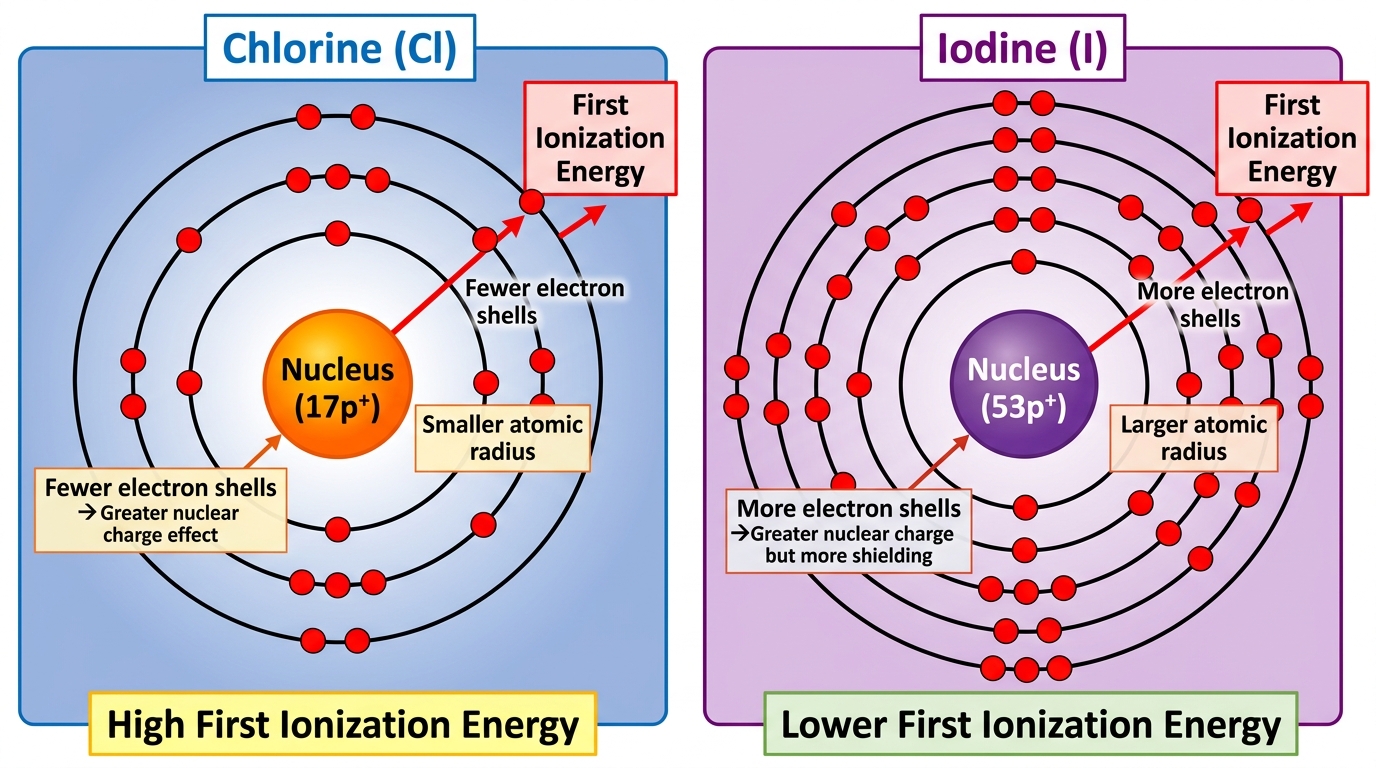

Which statement correctly explains why chlorine has a higher first ionization energy than iodine?
diagram

Solutions

8FoundationMCQPeriodic trends: Atomic radius, ionization energy, electronegativity1 markPaper 1~2 min
Across Period 2, electronegativity generally increases from lithium to fluorine. Which of the following best explains why fluorine has a higher electronegativity than nitrogen?
diagram

Solutions

9ChallengeSAQ-LIUPAC naming conventions for organic compounds7 marksPaper 2~11 min

Data

Proton environment — Typical δ\delta / ppm — Multiplicity rule R–OH — 0.5–5.00.5\text{–}5.0 (broad) — exchangeable R–CH‾(OH)–R\text{R–}\underline{\text{CH}}\text{(OH)–R} — 3.5–4.53.5\text{–}4.5 — n+1n+1 R–CH‾3\text{R–C}\underline{\text{H}}_3 — 0.8–1.20.8\text{–}1.2 — n+1n+1 R–CH‾2–R\text{R–C}\underline{\text{H}}_2\text{–R} — 1.2–1.51.2\text{–}1.5 — n+1n+1 R–CH‾–R\text{R–C}\underline{\text{H}}\text{–R} — 1.5–2.01.5\text{–}2.0 — n+1n+1 Relative atomic masses: Ar(H)=1.01A_r(\text{H}) = 1.01, Ar(C)=12.01A_r(\text{C}) = 12.01, Ar(O)=16.00A_r(\text{O}) = 16.00

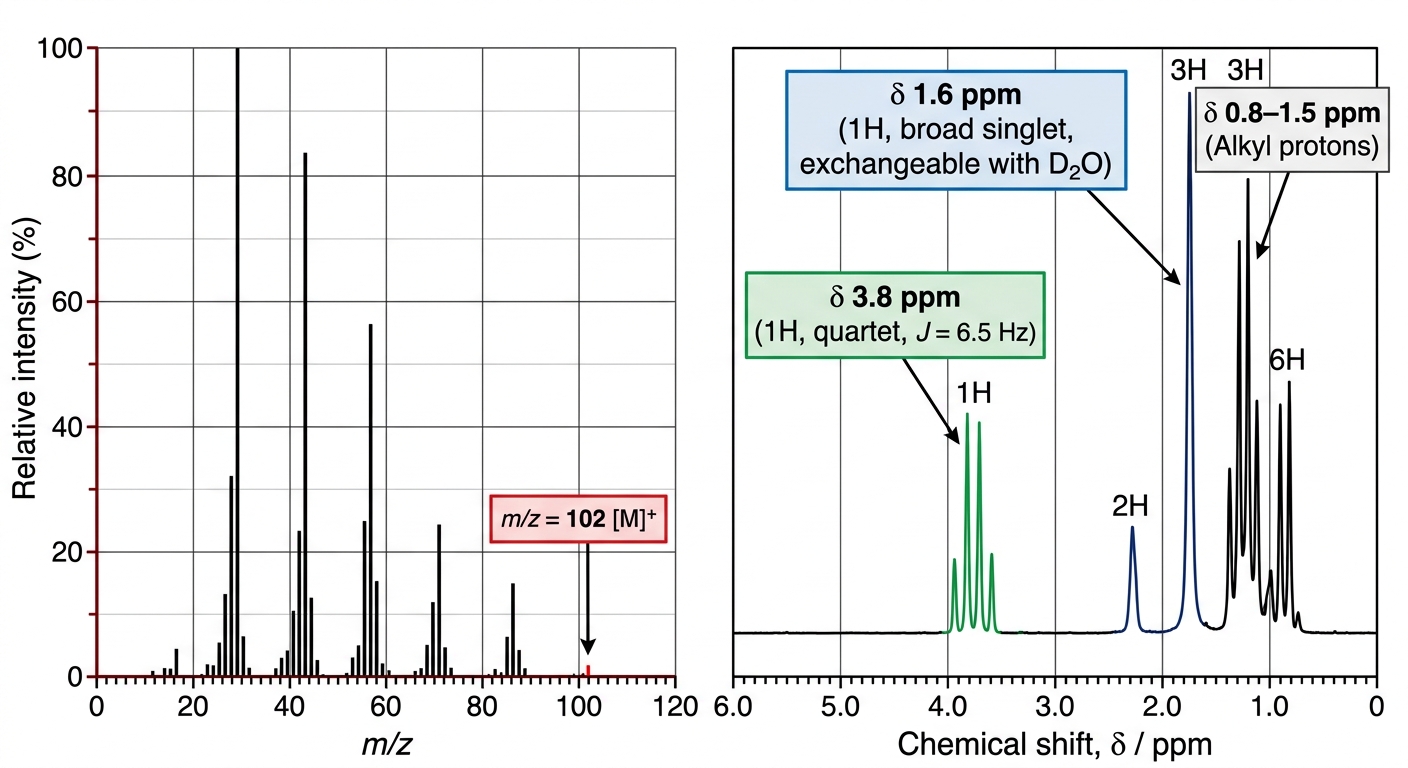

A student attempts to synthesize 3-methylpentan-2-ol via a Grignard reaction. The isolated product is analysed by 1H^1\text{H} NMR spectroscopy and mass spectrometry. Spectral data for the isolated product: - Mass spectrum: molecular ion at m/z=102m/z = 102 - 1H^1\text{H} NMR: δ 0.85 ppm\delta\ 0.85\ \text{ppm} (3H3\text{H}, triplet); δ 1.15 ppm\delta\ 1.15\ \text{ppm} (3H3\text{H}, doublet); δ 1.30–1.55 ppm\delta\ 1.30\text{–}1.55\ \text{ppm} (4H4\text{H}, multiplet); δ 1.60 ppm\delta\ 1.60\ \text{ppm} (1H1\text{H}, broad singlet, exchangeable with D2O\text{D}_2\text{O}); δ 3.80 ppm\delta\ 3.80\ \text{ppm} (1H1\text{H}, quartet, J=6.5 HzJ = 6.5\ \text{Hz}) Reference
(a)
Show that the molecular formula of the isolated product is C6H14O\text{C}_6\text{H}_{14}\text{O}, and determine the degree of unsaturation. Hence state what the degree of unsaturation indicates about the compound. [3 marks]
(b)
Explain why the 1H^1\text{H} NMR data are inconsistent with the proposed structure of 3-methylpentan-2-ol, and deduce the structural fragment directly implied by the signal at δ 3.80 ppm\delta\ 3.80\ \text{ppm}. [3 marks]
(c)
Evaluate whether the combination of 1H^1\text{H} NMR spectroscopy and mass spectrometry is sufficient to distinguish definitively between all structural isomers of C6H14O\text{C}_6\text{H}_{14}\text{O}. [1 mark]
diagram

Solutions

10MasterySAQ-SIsomerism and structural formulas9 marksPaper 2~14 min

Data

1H^1\text{H} NMR — 2-chloro-2-methylbutane: one signal (all H equivalent); 1-chloro-2-methylbutane: four distinct signals.

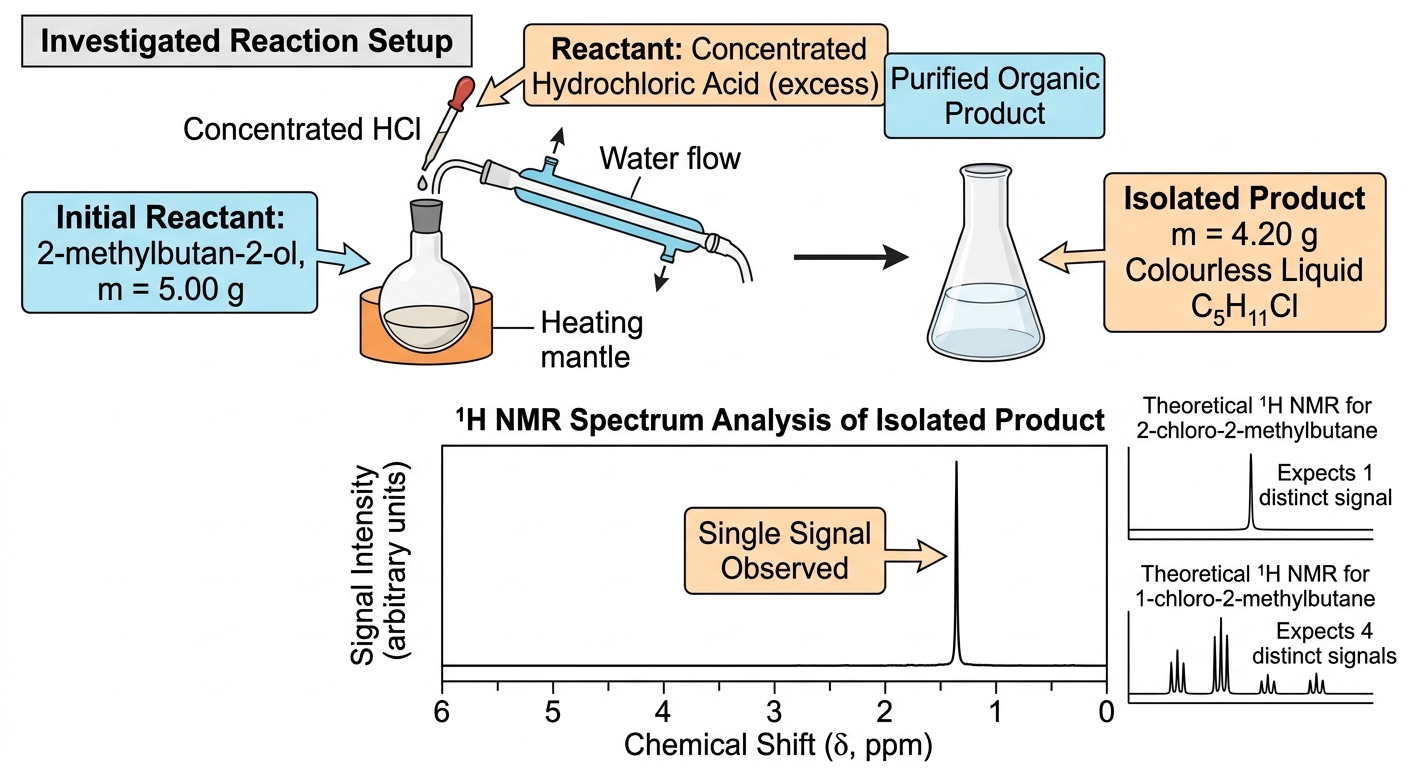

A student investigates the reaction between 2-methylbutan-2-ol and concentrated hydrochloric acid. The student isolates an organic product and, after purification, obtains a colourless liquid with molecular formula C5H11Cl\text{C}_5\text{H}_{11}\text{Cl} that produces a single signal in its 1H^1\text{H} NMR spectrum.
(a)
State the type of mechanism by which 2-methylbutan-2-ol reacts with concentrated HCl, and identify the reactive intermediate formed. [2 marks]
(b)
Explain, with reference to the NMR data, why the product must be 2-chloro-2-methylbutane rather than 1-chloro-2-methylbutane. [2 marks]
(c)
Calculate the percentage yield if 5.00 g5.00\,\text{g} of 2-methylbutan-2-ol (Mr=88.17M_r = 88.17) produces 4.20 g4.20\,\text{g} of 2-chloro-2-methylbutane (Mr=106.60M_r = 106.60). [2 marks]
(d)
The student repeats the experiment using 2-methylbutan-1-ol instead of 2-methylbutan-2-ol and observes a significantly lower yield of the corresponding chloroalkane under identical conditions. Explain this observation in terms of carbocation stability. [3 marks]
diagram

Solutions

11ChallengeSAQ-LIntroduction to organic chemistry and functional groups9 marksPaper 2~14 min

Data

Ka(ethanoic acid)=1.8×10−5 mol dm−3K_a(\text{ethanoic acid}) = 1.8 \times 10^{-5}\,\text{mol}\,\text{dm}^{-3}

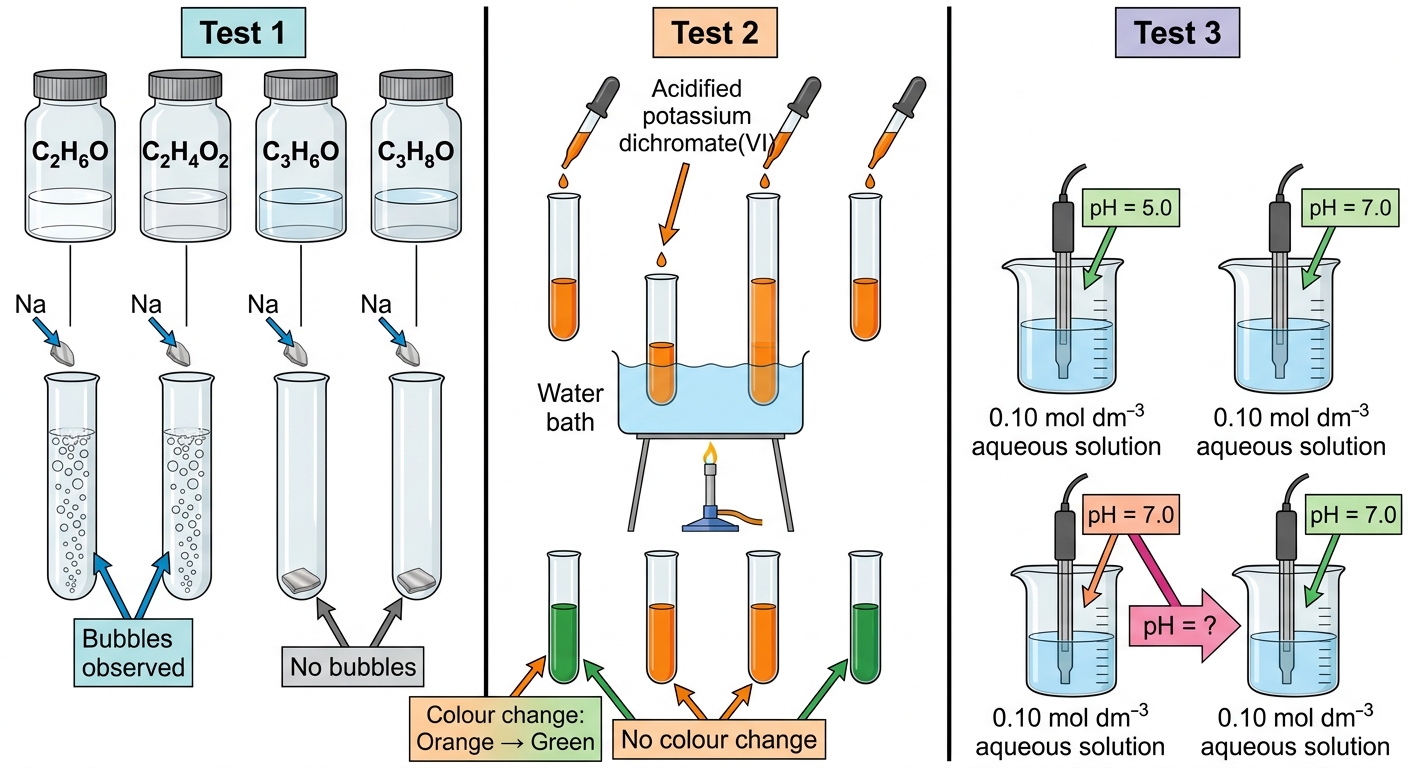

A student investigates the reactivity of four unlabelled pure liquid samples at room temperature. The molecular formulas are C2H6O\text{C}_2\text{H}_6\text{O}, C2H4O2\text{C}_2\text{H}_4\text{O}_2, C3H6O\text{C}_3\text{H}_6\text{O}, and C3H8O\text{C}_3\text{H}_8\text{O}. The student performs three tests: - Test 1: Add a small piece of sodium metal. Bubbles of gas are observed with exactly two samples. - Test 2: Add acidified potassium dichromate(VI) solution and warm. An orange-to-green colour change is observed with exactly two samples. - Test 3: Measure the pH of a 0.10 mol dm−30.10\,\text{mol}\,\text{dm}^{-3} aqueous solution. One sample gives a pH of approximately 2.92.9.
(a)
State the IUPAC name of each compound and identify its functional group class. [1 mark]
(b)
Calculate the pH of a 0.10 mol dm−30.10\,\text{mol}\,\text{dm}^{-3} aqueous solution of C2H4O2\text{C}_2\text{H}_4\text{O}_2, assuming the weak acid approximation holds. Hence identify this compound by name. [3 marks]
(c)
Explain how the combined results of Test 1 and Test 2 allow all four compounds to be identified. [3 marks]
(d)
Evaluate the reliability of using Test 1 alone to distinguish an alcohol from a carboxylic acid. Suggest one additional chemical test that would resolve this limitation. [2 marks]
diagram

Solutions

12ChallengeSAQ-LIntroduction to organic chemistry and functional groups9 marksPaper 2~14 min

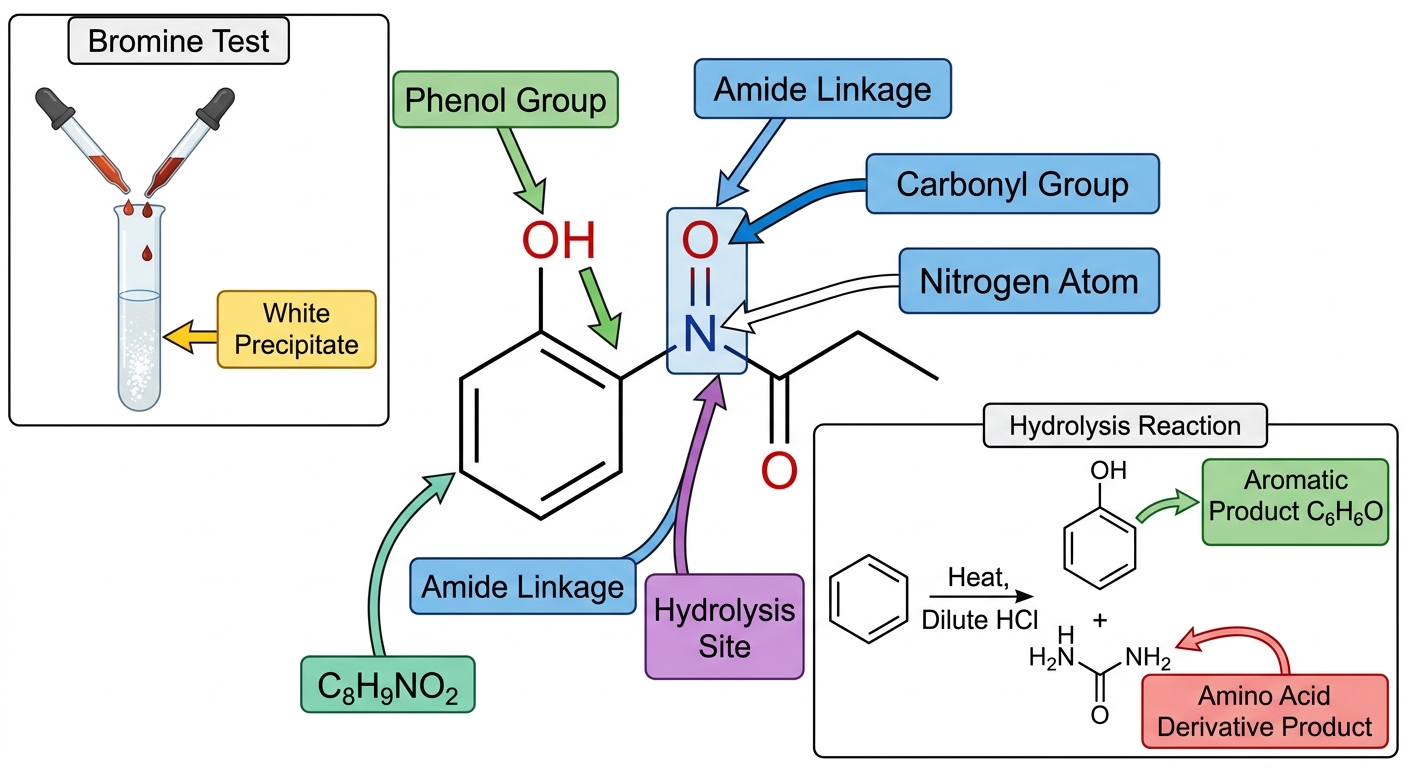

A pharmaceutical company is investigating a lead compound with molecular formula C8H9NO2\text{C}_8\text{H}_9\text{NO}_2. The compound contains: - a benzene ring - an amide linkage (–CONH–) - a phenol group (–OH directly bonded to the benzene ring) - no other functional groups The following experimental data were obtained: - Melting point: 169169–171 ∘C171\,^\circ\text{C} - Sparingly soluble in water; soluble in dilute NaOH - Treated with aqueous bromine: white precipitate forms immediately - Heated with dilute HCl: hydrolysis gives two products — an aromatic compound of formula C6H6O\text{C}_6\text{H}_6\text{O} (phenol) and an organic nitrogen-containing product
(a)
State the IUPAC name of this compound. [1 mark]
(b)
Calculate the pH of a 0.050 mol dm−30.050\,\text{mol}\,\text{dm}^{-3} aqueous solution of phenol (C6H6O\text{C}_6\text{H}_6\text{O}), given Ka(phenol)=1.3×10−10 mol dm−3K_a(\text{phenol}) = 1.3 \times 10^{-10}\,\text{mol}\,\text{dm}^{-3}. [2 marks]
(c)
Explain, with reference to reaction mechanism type, how the bromine test result and the hydrolysis products together confirm the presence of both the phenol group and the amide linkage in the compound. [3 marks]
(d)
Evaluate the suitability of this compound as an oral drug, using its solubility behaviour and the acid–base properties of its functional groups. [2] (e) Suggest one structural modification to the compound that would improve its aqueous solubility, and state the chemical reason for your suggestion. [1 mark]
diagram

Solutions

13MasterySAQ-SPeriodic trends: Atomic radius, ionization energy, electronegativity5 marksPaper 2~8 min

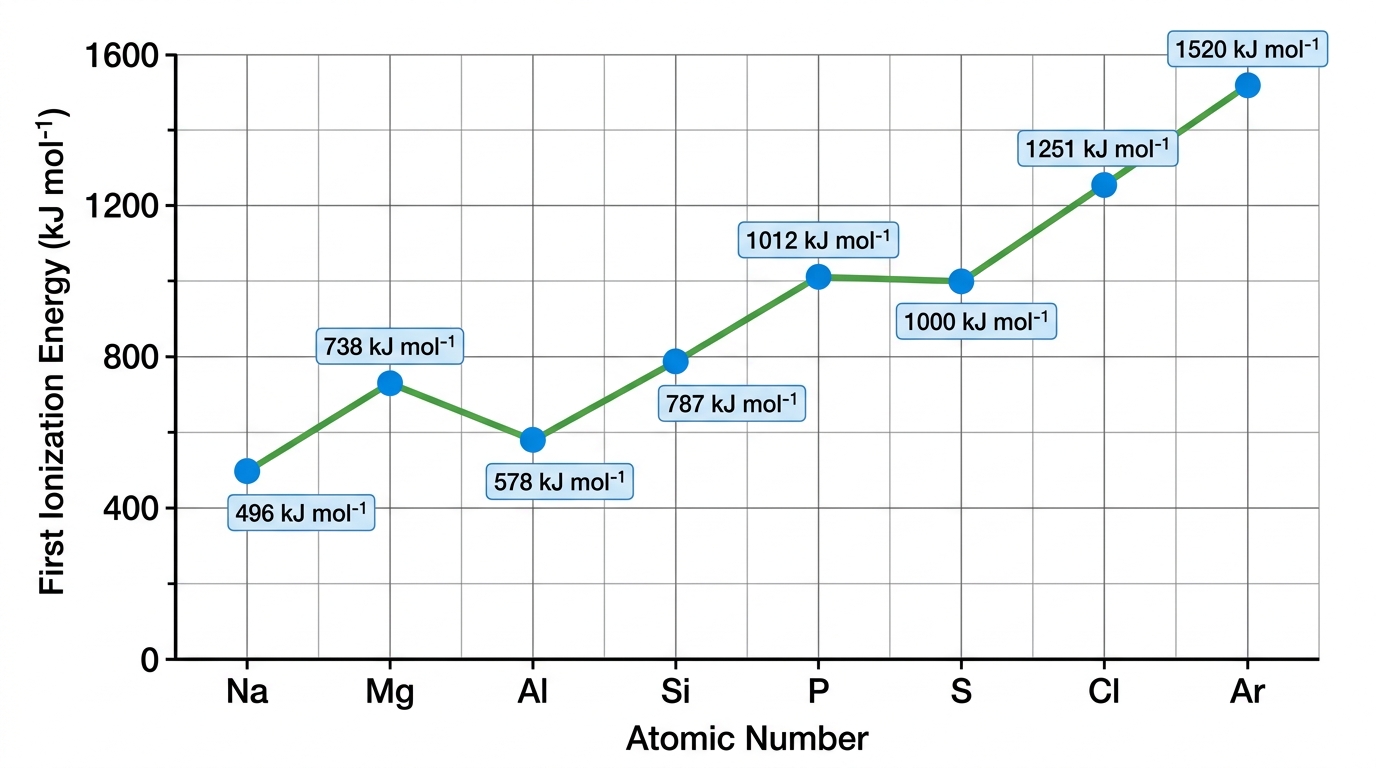

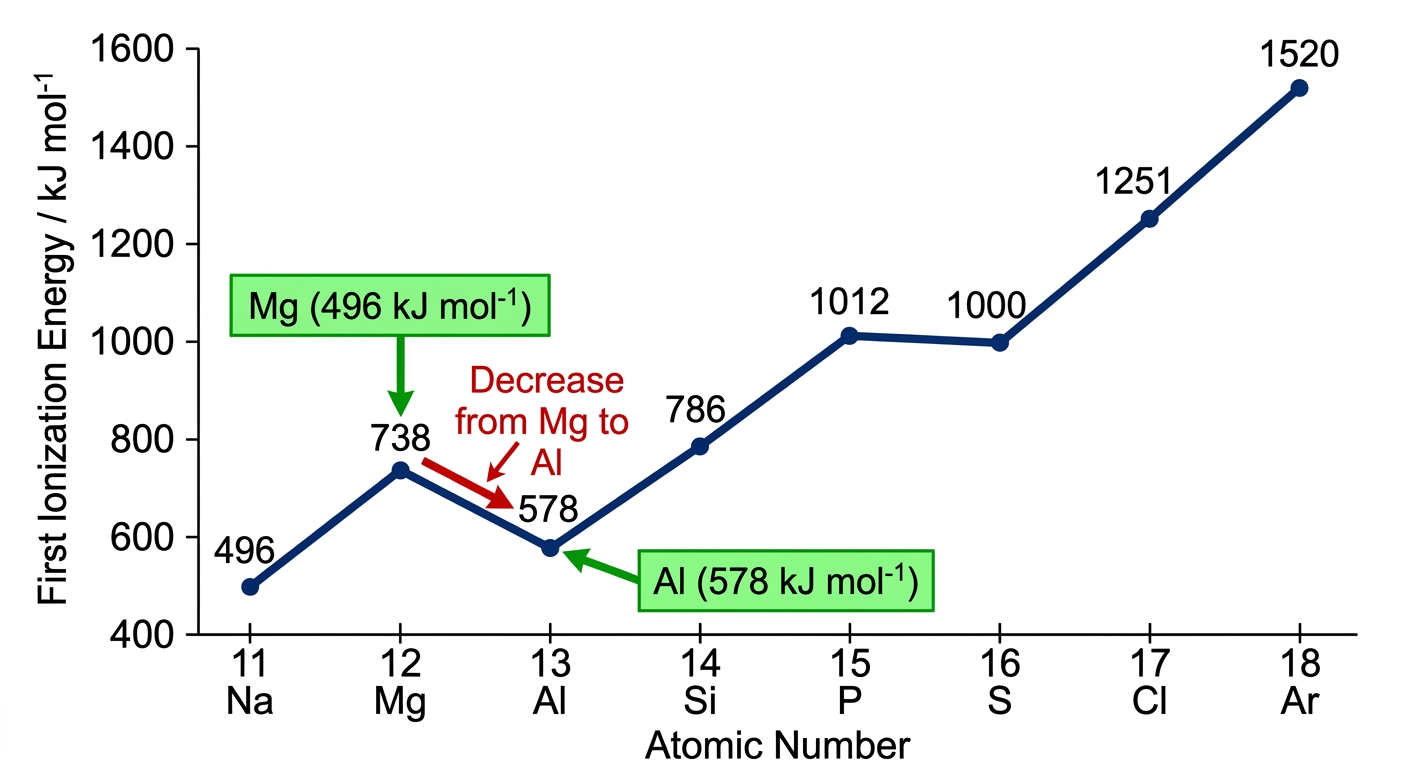

The graph below shows the first ionization energies of the elements across Period 3 (Na to Ar).
(a)
State the general trend in first ionization energy across Period 3 from Na to Ar. [1 mark]
(b)
Explain why the first ionization energy of Al is lower than that of Mg. [2 marks]
(c)
The first ionization energy of S (1000 kJ mol−11000\,\text{kJ mol}^{-1}) is lower than that of P (1012 kJ mol−11012\,\text{kJ mol}^{-1}), despite S having a higher nuclear charge. Explain this anomaly using electron configurations. [2 marks]
diagram

Solutions

14MasterySAQ-SPeriodic trends: Atomic radius, ionization energy, electronegativity6 marksPaper 2~9 min

Data

IE1(Mg)=738 kJ mol−1IE_1(\text{Mg}) = 738\,\text{kJ mol}^{-1}, IE1(Al)=578 kJ mol−1IE_1(\text{Al}) = 578\,\text{kJ mol}^{-1}, IE1(P)=1012 kJ mol−1IE_1(\text{P}) = 1012\,\text{kJ mol}^{-1}, IE1(S)=1000 kJ mol−1IE_1(\text{S}) = 1000\,\text{kJ mol}^{-1}
The graph below shows the first ionization energies of the first 18 elements (H through Ar) plotted against atomic number.
(a)
State the general trend in first ionization energy across Period 3 (Na to Ar). [1 mark]
(b)
The first ionization energy of Al is lower than that of Mg, despite Al having a greater nuclear charge. Calculate the difference in IE1IE_1 between Mg and Al, and explain why this anomaly occurs. [3 marks]
(c)
Explain why the first ionization energy of S is lower than that of P, even though S has a greater nuclear charge. (Reference: Data Booklet Sections 3, 8, 9) [2 marks]
diagram

Solutions

15ChallengeSAQ-LPeriodic trends: Atomic radius, ionization energy, electronegativity7 marksPaper 2~11 min

Data

Element — Atomic radius / pm — First ionization energy / kJ mol−1\text{kJ mol}^{-1} — Pauling electronegativity F — 71 — 1681 — 4.0 Cl — 99 — 1251 — 3.2 Br — 1140 — 3.0 I — 133 — 1008 — 2.7 Additional data: first ionization energy of Ne =2081 kJ mol−1= 2081\,\text{kJ mol}^{-1}; first ionization energy of O =1314 kJ mol−1= 1314\,\text{kJ mol}^{-1}.
The halogens (Group 17) show distinct trends in atomic radius, first ionization energy, and electronegativity. Consider fluorine (F), chlorine (Cl), bromine (Br), and iodine (I).
(a)
Using the data in the table, describe and explain the trend in first ionization energy across the halogens F to I. [2 marks]
(b)
Explain why the first ionization energy of fluorine (1681 kJ mol−11681\,\text{kJ mol}^{-1}) is lower than that of neon yet higher than that of oxygen, even though fluorine has the highest electronegativity of all elements. [3 marks]
(c)
Evaluate the use of Pauling electronegativity differences to predict bond polarity in the interhalogen compounds ClF, BrF3\text{BrF}_3, and IF5\text{IF}_5. In your answer, identify one strength and one limitation of this approach, using specific values from the data. [2 marks]
diagram

Solutions

16ChallengeSAQ-LTransition metals and their unique properties7 marksPaper 2~11 min

Data

- Faraday constant: F=96500 C mol−1F = 96500\,\text{C mol}^{-1} - Half-equation for reduction of MnO4−\text{MnO}_4^- in acidic solution: MnO4−+8H++5e−→Mn2++4H2O\text{MnO}_4^- + 8\text{H}^+ + 5e^- \rightarrow \text{Mn}^{2+} + 4\text{H}_2\text{O}
Vanadium(IV) oxide, VO2\text{VO}_2, exhibits a remarkable switch in electrical conductivity at 340 K340\,\text{K}, transitioning from an insulating to a metallic state. A student investigates the variable oxidation states of vanadium by electrolyzing 100.0 cm3100.0\,\text{cm}^3 of 0.100 mol dm−30.100\,\text{mol dm}^{-3} vanadyl sulfate, VOSO4\text{VOSO}_4, in dilute sulfuric acid using graphite electrodes. The initial solution contains V4+\text{V}^{4+} ions (as VO2+\text{VO}^{2+}). A current of 0.500 A0.500\,\text{A} is passed for 1930 s1930\,\text{s}. After electrolysis, the student titrates the entire resulting solution against 0.0200 mol dm−30.0200\,\text{mol dm}^{-3} potassium manganate(VII), KMnO4\text{KMnO}_4, in acidic conditions. The titration requires 25.0 cm325.0\,\text{cm}^3 of KMnO4\text{KMnO}_4 solution to reach the endpoint.
(a)
Calculate the number of moles of electrons transferred during the electrolysis. [2 marks]
(b)
Determine the oxidation state of vanadium in the solution after electrolysis, using the titration data. [3 marks]
(c)
Explain why vanadium can exhibit a wide range of oxidation states, including the one determined in (b), while scandium cannot. [2 marks]
diagram

Solutions

17ChallengeLAQIntroduction to organic chemistry and functional groups10 marksPaper 3~15 min
A pharmaceutical research group is investigating a synthetic route to Compound X, a potential anti-inflammatory drug candidate with IUPAC name 3-hydroxy-4-methylpentanoic acid. The proposed alcohol precursor is 4-methylpentan-1-ol.
(a)
Analyse the structural features of Compound X. Explain how its functional groups influence its solubility in water compared to a hydrocarbon of similar molar mass, and predict the number of signals expected in its 13^{13}C NMR spectrum, justifying your answer. [4 marks]
(b)
Evaluate the oxidation pathway from 4-methylpentan-1-ol to Compound X. In your answer, identify the aldehyde intermediate, state the reagents and conditions required to isolate it, and explain why these conditions differ from those used to obtain Compound X directly. [3 marks]
(c)
Compound X can exist as two stereoisomers. Identify the structural basis for this isomerism and evaluate the implications of administering a racemic mixture versus a single enantiomer of Compound X as a pharmaceutical agent, with reference to chiral recognition at a biological receptor. [3 marks]
diagram

Solutions

18ChallengeLAQIntroduction to organic chemistry and functional groups10 marksPaper 3~15 min

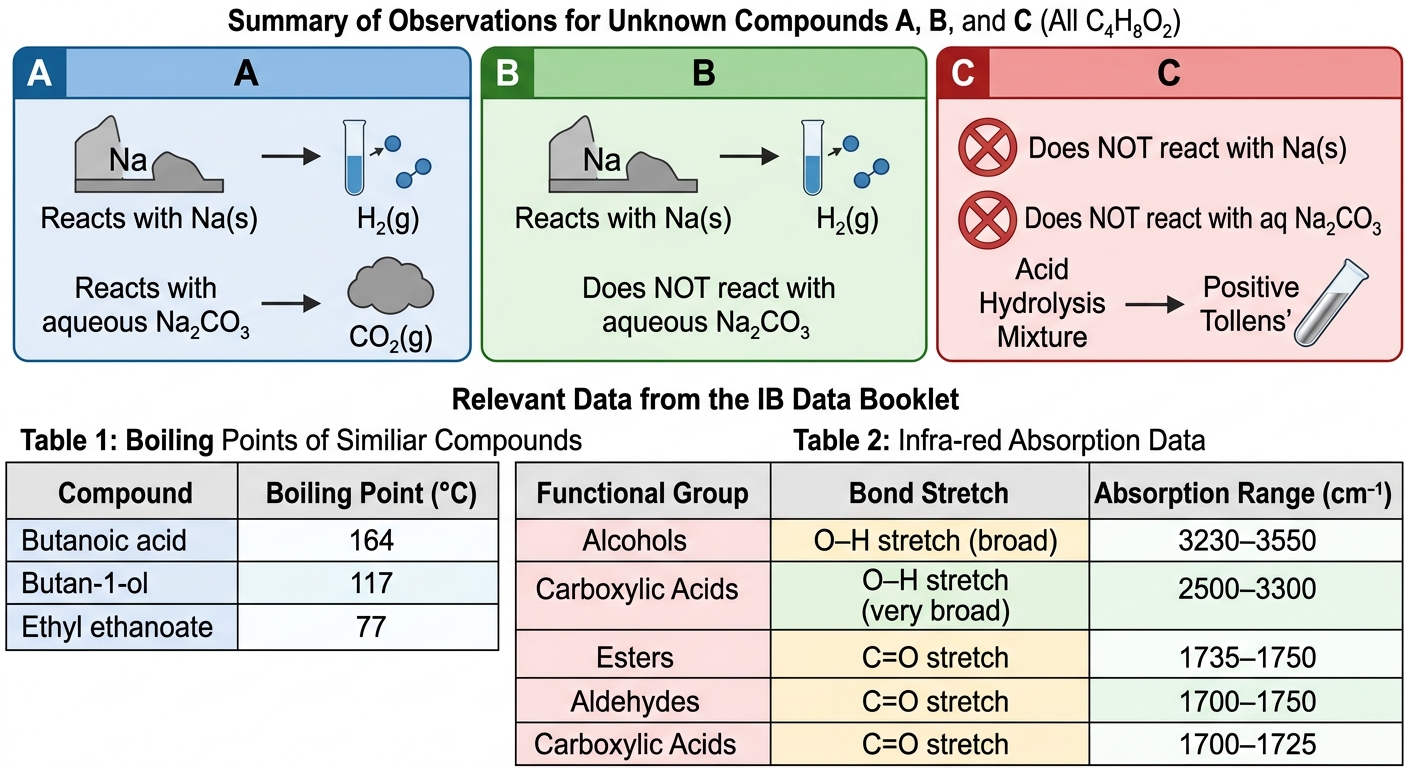

A student is given three unlabelled organic compounds: A, B, and C, all with molecular formula C4H8O2\text{C}_4\text{H}_8\text{O}_2. The following observations are recorded: - Compound A reacts with sodium metal to produce hydrogen gas and also reacts with aqueous sodium carbonate to produce carbon dioxide gas. - Compound B reacts with sodium metal to produce hydrogen gas but does not react with aqueous sodium carbonate. - Compound C does not react with sodium metal nor with aqueous sodium carbonate, but it can be hydrolysed under acidic conditions to produce a mixture that gives a positive Tollens' test.
(a)
(i) State the functional group(s) present in each of compounds A, B, and C. [1]
(ii) Deduce the IUPAC name of each compound and describe its full structural formula. [3 marks]
(b)
Evaluate the relative boiling points of compounds A, B, and C. Justify your ranking by reference to the types and relative strengths of intermolecular forces present in each compound. [3 marks]
(c)
(i) Compound C is reacted with an excess of methanol in the presence of concentrated sulfuric acid. State the type of reaction occurring and give the IUPAC name of the major organic product. [1]
(ii) Outline the mechanism for the reaction in (c)(i), using curly arrow notation. [2 marks]
diagram

Solutions

19ChallengeLAQPeriodic trends: Atomic radius, ionization energy, electronegativity13 marksPaper 3~20 min

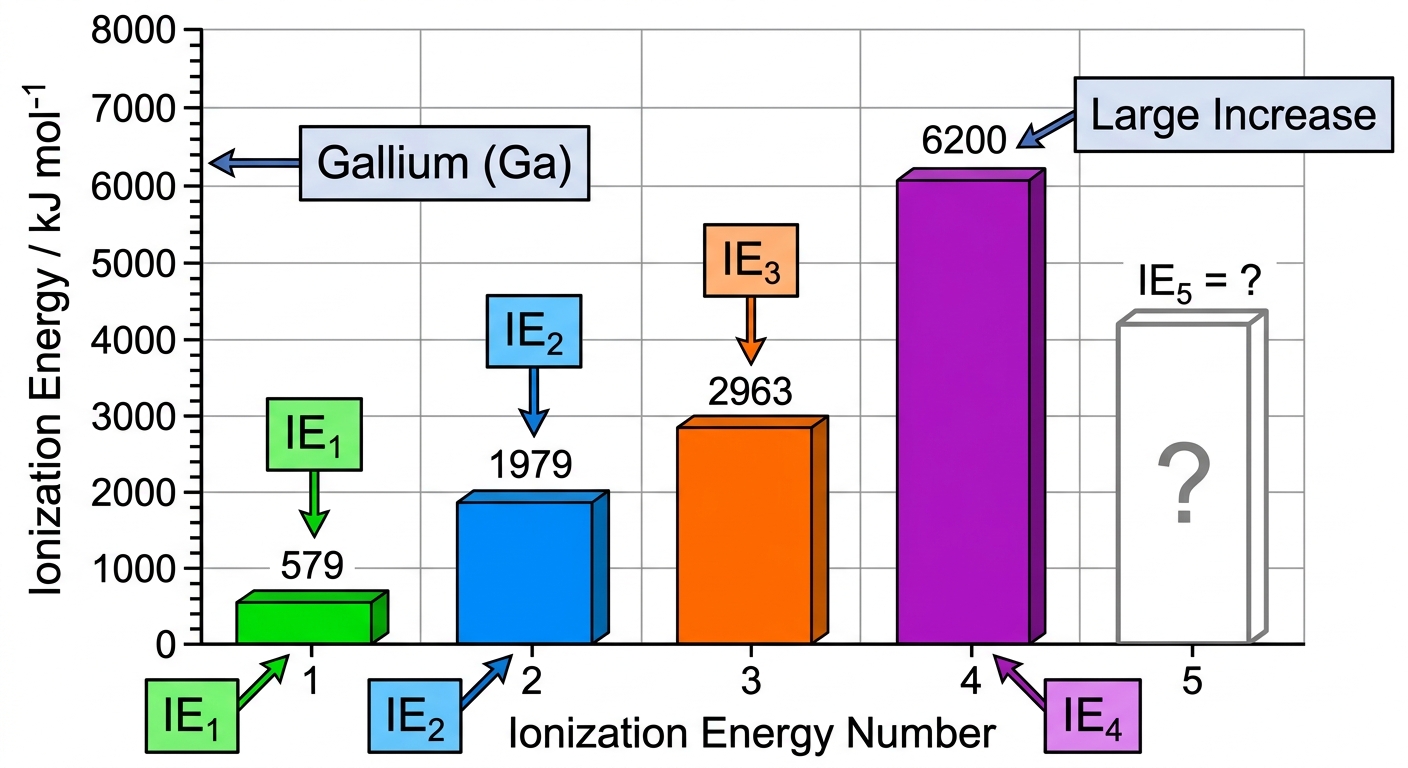

Gallium (Ga) is a soft, silvery metal with a melting point of 29.8 ∘C29.8\,^\circ\text{C}. It is used in semiconductors and as a non-toxic replacement for mercury in thermometers. Gallium is in Group 13, Period 4 of the periodic table. Its first four ionization energies are given below. Ionization energy — Value / kJ mol−1\text{kJ mol}^{-1} First (IE1IE_1) — 579 Second (IE2IE_2) — 1979 Third (IE3IE_3) — 2963 Fourth (IE4IE_4) — 6200
(a)
State why IE1IE_1 of gallium is significantly lower than IE2IE_2. [2 marks]
(b)
Analyse the large increase between IE3IE_3 and IE4IE_4 in terms of electron configuration and nuclear attraction. [3 marks]
(c)
The atomic radius of gallium is 135 pm135\,\text{pm}, while that of aluminium (Group 13, Period 3) is 143 pm143\,\text{pm}. Explain this apparent contradiction of the general trend in atomic radius down a group, with reference to the d-block contraction. [3 marks]
(d)
The Pauling electronegativities of aluminium, gallium, and indium are 1.611.61, 1.811.81, and 1.781.78 respectively. Explain why gallium has a higher electronegativity than both aluminium and indium, using the concepts of effective nuclear charge and atomic radius. [2] (e) Evaluate whether gallium trichloride (GaCl3\text{GaCl}_3) or aluminium trichloride (AlCl3\text{AlCl}_3) is expected to have greater covalent character. Justify your answer by linking the electronegativity data above to Fajans' rules. [3 marks]
diagram

Solutions

20ChallengeLAQPeriodic trends: Atomic radius, ionization energy, electronegativity12 marksPaper 3~18 min

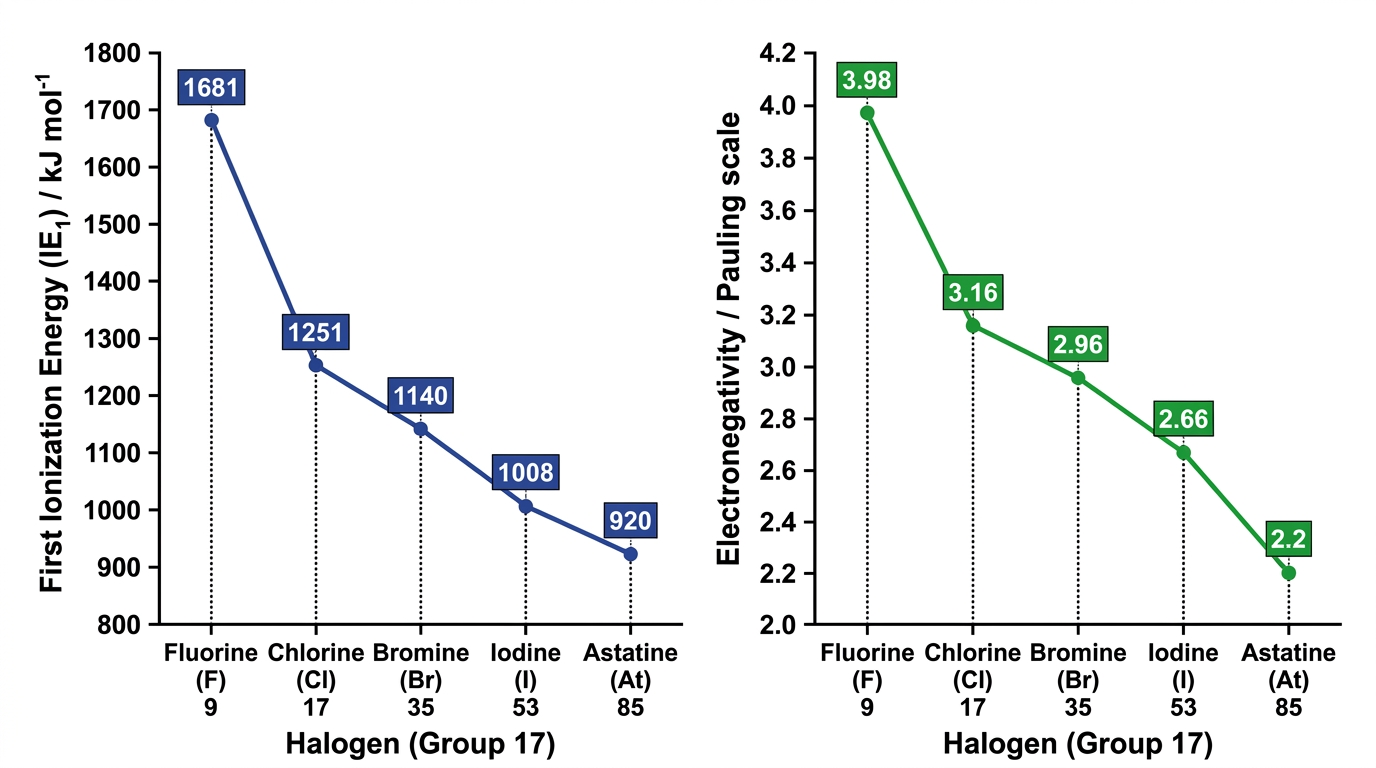

The element astatine (At) is the heaviest member of Group 17 (Period 6). It is extremely rare and radioactive; its longest-lived isotope has a half-life of 8.1 hours8.1\,\text{hours}. Many of its chemical properties are predicted rather than measured directly, but recent experiments have determined its first ionization energy (IE1=920 kJ mol−1\text{IE}_1 = 920\,\text{kJ mol}^{-1}) and its electronegativity (approximately 2.22.2 on the Pauling scale). For comparison, data for the other halogens are given below. Element — IE1 / kJ mol−1\text{IE}_1\,/\,\text{kJ mol}^{-1} — Electronegativity (Pauling) F — 1681 — 3.98 Cl — 1251 — 3.16 Br — 1140 — 2.96 I — 1008 — 2.66 At — 920 — 2.2
(a)
Explain why the first ionization energy decreases from fluorine to iodine down Group 17. [2 marks]
(b)
Analyse why the decrease in IE1\text{IE}_1 from iodine to astatine (88 kJ mol−188\,\text{kJ mol}^{-1}) is smaller than the decrease from bromine to iodine (132 kJ mol−1132\,\text{kJ mol}^{-1}), with reference to relativistic orbital contraction. [3 marks]
(c)
Evaluate whether the electronegativity of astatine (2.22.2) is consistent with the general trend in electronegativity down a group, and justify your answer using the data in the table. [2 marks]
(d)
Deduce one chemical consequence of astatine's electronegativity for the polarity and acid strength of the H—At bond, compared with H—I. [2] (e) Predict, with reasoning, whether the atomic radius of astatine is larger or smaller than the value expected by extrapolating the trend from fluorine to iodine. Use the concepts of relativistic effects and the lanthanoid contraction in your answer. [3 marks]
diagram

Solutions
