Interaction and Interdependence

Cover illustration for Interaction and Interdependence (Biology Standard Level (SL)).
IBDP · Biology SL

Interaction and Interdependence

IB Biology SL — Interaction and Interdependence

34 min readStandardMajor SL theme — feeds Paper 1 data/MCQs and Paper 2 extended response across enzymes, ecology, respiration/photosynthesis and homeostasis

This theme is really one argument told eight times: living systems only work because matter and energy move across boundaries — through an enzyme's active site, a cell membrane, a synapse, a food web. Examiners love hyperbolic and sigmoid graphs here (Michaelis-Menten, population growth, photosynthesis limiting factors) because reading a gradient correctly separates the students who understand the biology from the students who've memorised the shape.

Overview — the shape of this theme

Every subtopic asks the same underlying question: what controls the rate and direction of a transfer? At the molecular level it's enzyme kinetics; at the ecosystem level it's trophic energy loss; at the organism level it's a nerve impulse or a hormone. Command terms like determine, compare and explain recur constantly because the exam wants mechanism, not description.

  • Metabolism, respiration and photosynthesis are enzyme-controlled pathways — the Km/Vmax logic from enzymes reappears everywhere.
  • Defence and neural signalling are both about specific, threshold-based responses to a stimulus (antigen or depolarisation).
  • Populations, communities and energy transfer scale the same interaction ideas up to whole ecosystems.

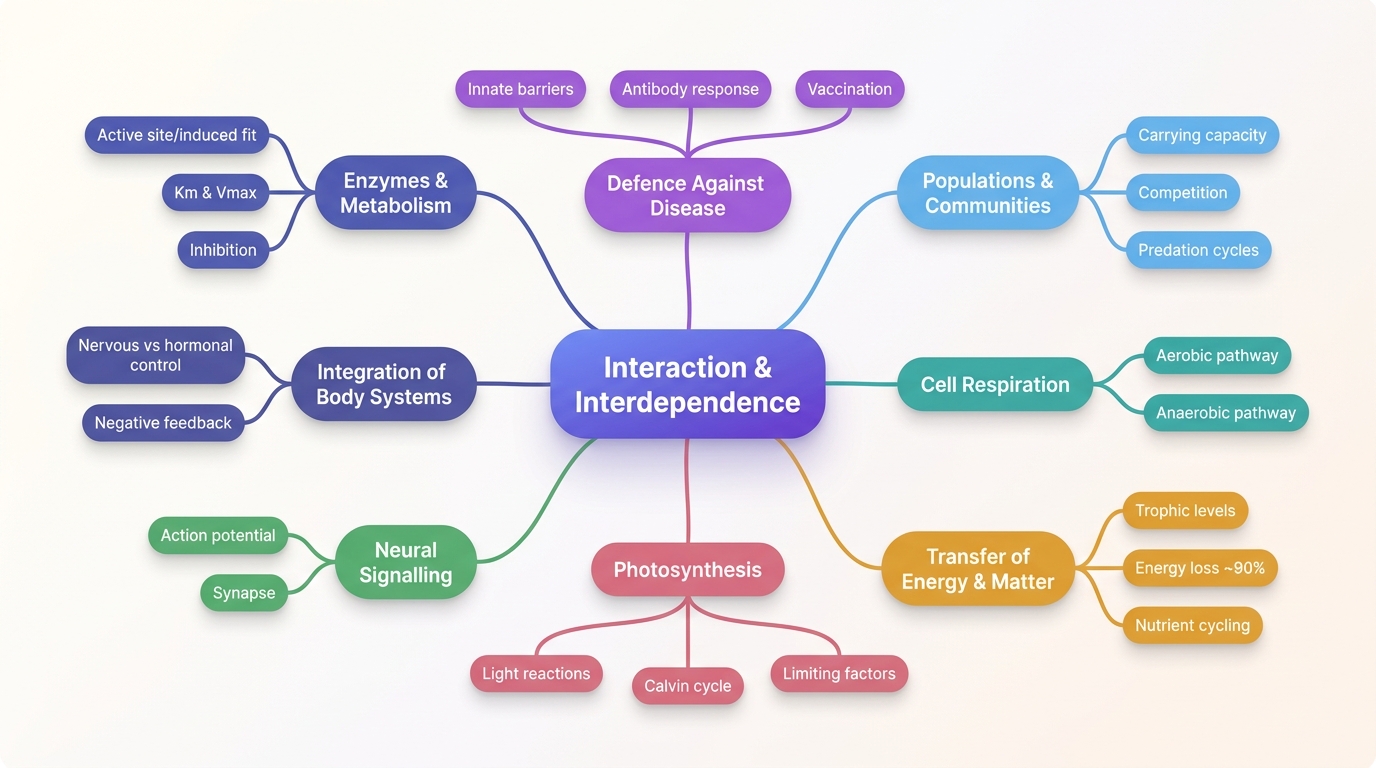

The shape of the chapter

Command terms that dominate this theme

Command termWhat it demandsAOMark-earning move
DetermineFind a numerical or definite value using given data or a formulaAO2Show working and units — a bare correct number without method often loses the method mark
ExplainGive reasons or a mechanism, using biological detailAO2/AO3Description alone (what happens) without the 'because' loses marks
CompareState similarities AND differences explicitlyAO3Two separate descriptions with no linking comparison scores poorly
EvaluateWeigh strengths/weaknesses or judge a claim against evidenceAO3Must reach a reasoned judgement, not just list points for and against
PredictGive a plausible outcome based on a pattern/theory, with justificationAO2Unjustified answer scores 0 even if the value happens to be right

Key point

Whenever a question gives you a curve (enzyme kinetics, population growth, photosynthesis rate), it is testing whether you know that rate = gradient of that curve, not the value on the y-axis itself. Read the shape before you read the axis.

Enzymes and Metabolism

Metabolism is the sum of all chemical reactions in a cell, split into catabolism (breaking bonds, releasing energy — respiration) and anabolism (forming bonds, consuming energy — protein/glycogen synthesis). Every step is enzyme-catalysed: the enzyme's active site binds substrate via induced fit, lowering activation energy so the reaction proceeds far faster than uncatalysed.

  • Rate rises with temperature (more kinetic energy, more successful collisions) up to an optimum, then collapses as heat denatures the tertiary structure and the active site loses its shape.
  • pH shifts change ionic bonds/H-bonds in the active site — most human enzymes have a near-neutral optimum, pepsin is the classic exception (~pH 2).
Active site
The region of an enzyme with a specific 3D shape that binds substrate, formed by the enzyme's tertiary structure.
Km (Michaelis constant)
The substrate concentration at which reaction velocity is half of Vmax; a low Km means high affinity (little substrate needed to reach half-max rate).
Vmax
The maximum reaction rate, reached when the enzyme's active sites are saturated with substrate.
Anabolism / Catabolism
Anabolism = synthesis of larger molecules from smaller ones, requires energy input (ATP). Catabolism = breakdown of larger molecules, releases energy.

Michaelis-Menten curve

Rate rises steeply at low [S] (active sites free) then plateaus at Vmax as all active sites become saturated.

v (reaction velocity)[S] (substrate concentration)VmaxKm1/2 Vmax

Michaelis-Menten equation

— reaction velocity at a given [S]
— maximum velocity at substrate saturation
— [S] giving half-maximal velocity (mM (or mol dm⁻³))

When , — this single fact solves most SL MCQs on the topic.

Worked example

Finding Vmax from a single data point

[2]
Km for an enzyme-substrate pair is 0.5 mM. When , rate is . Find .

Worked example

Evaluating a prediction from the curve's shape

[3]
. At (i.e. ), . A student predicts doubling to 8.0 raises to 90% . Evaluate.

Frequently confused

Concept AConcept BThe distinction that matters
Competitive inhibitionNon-competitive inhibitionCompetitive: inhibitor resembles substrate, competes for the active site → raises apparent Km (more substrate needed for half-max rate), Vmax unchanged (enough substrate outcompetes it). Non-competitive: inhibitor binds elsewhere, distorts active site → Vmax falls, Km unchanged.

Anabolic vs catabolic — the 'glycogen trap'

Calling glycogen synthesis catabolism because 'many small units are combined', or calling gluconeogenesis catabolic because 'ATP is used up'.

Consequence: Loses the mark entirely — the definitions hinge on bond formation/breakage and energy direction, not on molecule size alone.

Fix: Anabolic = smaller subunits joined into a larger molecule, energy consumed (glycogenesis, gluconeogenesis, protein synthesis). Catabolic = larger molecule broken down, energy released (glycogenolysis, respiration).

Examiner tip

For inhibitor MCQs, translate the wording into 'Km up / Vmax same' or 'Km same / Vmax down' before looking at the answer options. Words like 'requires more substrate to reach half-max velocity' always mean Km increased — don't get pulled into distractors about reversibility, which describes binding, not kinetics.

Key takeaways

  • when — the single most-tested numerical fact.
  • Competitive inhibitors raise Km, leave Vmax unchanged; non-competitive inhibitors lower Vmax, leave Km unchanged.
  • Anabolic = synthesis + energy in; catabolic = breakdown + energy out — judge by direction of bond change, never by molecule size alone.

Defence Against Disease

First-line defences (skin, mucous membranes, lysozyme in tears/saliva, stomach acid) stop most pathogens before infection. If breached, innate responses (phagocytosis, inflammation, fever) act fast but non-specifically. Specific immunity is slower but targets exact antigens: B-lymphocytes recognise antigens and differentiate into plasma cells (secrete antibodies) and memory cells (enable a faster, larger secondary response on re-exposure).

  • Antibiotics disrupt bacterial structures (cell wall synthesis, ribosomes) — they have no target in viruses, which is why they're useless against colds/flu/HIV.
  • HIV specifically destroys helper T-cells, crippling the coordination of the specific immune response — this is why AIDS patients die from opportunistic infections, not HIV itself.
Antigen
A molecule (often a surface protein) recognised by the immune system as foreign, triggering an antibody response.
Antibody
A Y-shaped protein produced by plasma cells that binds specifically to one antigen, marking it for destruction or neutralising it.
Memory cells
Long-lived B- or T-cells from a first exposure that allow a faster, stronger response on re-infection with the same antigen.
Active vs passive immunity
Active = your own immune system makes antibodies (infection or vaccination), long-lasting. Passive = antibodies received ready-made (placenta, breast milk, antiserum), short-lived.

Primary vs secondary immune response

Memory cells from the first exposure mean the second response starts sooner, rises faster and reaches a higher peak — the biological basis of vaccination.

Antibody concentrationTime / days1st exposure to antigen X2nd exposure to antigen XPrimary responseSecondary response

Herd immunity thresholds

Measles needs roughly 95% vaccine coverage in a population before transmission chains reliably break, because it's so contagious (R0 ~12-18). Drop coverage below that threshold in a school or region and outbreaks return even though most individuals are still protected — a direct application of the primary/secondary response graph at population scale.

Antibiotics vs antivirals

Stating that antibiotics can treat viral infections, or that antibiotic resistance means the person becomes resistant.

Consequence: Wrong on two counts — factual error about mechanism costs the content mark.

Fix: Antibiotics target bacterial cell walls/ribosomes, structures viruses don't have. Resistance evolves in the bacterial population (natural selection on random mutations), not in the human host.

Key takeaways

  • Innate defences are fast and non-specific; the specific response (B-cells, antibodies, memory cells) is slower but targeted and gives lasting protection.
  • Vaccination works by generating memory cells safely, so a real infection triggers a fast, high secondary-style response.
  • HIV disables helper T-cells, not antibodies directly — that's why AIDS deaths come from secondary infections.

Populations and Communities

A population is all the individuals of one species interbreeding in an area; a community is all the populations of different species interacting there. Population growth in a new environment follows a sigmoid curve: a slow lag phase, a rapid exponential phase, then levelling at the carrying capacity (K) — the maximum population a habitat can sustain given its resources.

  • Density-dependent factors (food, disease, competition, predation) intensify as population rises, slowing growth as it approaches K.
  • Interspecific competition for the same limited resource can lead to competitive exclusion; predator-prey populations often cycle (prey rises → predators rise → prey falls → predators fall → repeat).

Sigmoid population growth curve

Growth rate (the gradient) is near zero in lag, steepest in mid-exponential phase, and back to zero at carrying capacity — even though N itself is highest there.

Population size (N)TimeLag phaseExponential phaseCarrying capacity (K)

Worked example

Reading growth RATE off the sigmoid curve

[2]
At which point on the sigmoid growth curve is population growth rate greatest, and is it the same point where N is greatest?

Mnemonic

Lazy Lions Sleep Daily

Order of phases in a closed-culture population growth curve: Lag → Log (exponential) → Stationary (plateau at K) → Death.

Frequently confused

Concept AConcept BThe distinction that matters
PopulationCommunityPopulation = one interbreeding species in an area. Community = all the different species' populations interacting in that same habitat.

Treating carrying capacity as a fixed species property

Writing K as if it's a constant number for a species regardless of habitat.

Consequence: Loses marks for lacking the 'depends on resources available in that specific environment' qualifier.

Fix: K is set by the resources of the particular habitat (food, space, water) and shifts if the habitat changes — e.g. drought or habitat destruction lowers K.

Key takeaways

  • Sigmoid curve = lag, exponential, plateau at K; the plateau reflects density-dependent limiting factors, not a hard biological ceiling.
  • Growth rate is the gradient of the N-vs-time curve — steepest mid-exponential, ~zero at K despite N being maximal there.
  • Competition and predation regulate community structure; predator-prey numbers typically cycle out of phase.

Cell Respiration

Cell respiration is the controlled release of chemical energy from organic molecules to make ATP. Aerobic respiration proceeds through glycolysis (cytoplasm, small net ATP), the link reaction and Krebs cycle (mitochondrial matrix, CO2 released, reduced carriers made) and oxidative phosphorylation via the electron transport chain (inner mitochondrial membrane, needs O2 as final electron acceptor, produces the bulk of ATP).

  • When O2 is unavailable, anaerobic pathways regenerate NAD+ so glycolysis can continue: lactic acid fermentation in animal muscle, alcoholic fermentation in yeast/plants (ethanol + CO2).
  • Anaerobic respiration yields far less ATP per glucose than aerobic — it's a stopgap, not an efficient alternative.

Aerobic respiration overview

Glycolysis makes a small net ATP without oxygen; the Krebs cycle strips off CO2 and loads electron carriers; the ETC uses those carriers plus O2 to make most of the ATP.

CytoplasmGlycolysisMitochondrial matrixLink reactionKrebs cycleCristae (inner membrane)Electron transport chainATPCO2O2

Aerobic respiration (overall summary equation)

Anaerobic respiration in animal muscle

Anaerobic (alcoholic) fermentation in yeast/plants

Worked example

Respiratory quotient (RQ)

[2]
A respirometer shows an organism produces 24 cm³ CO2 and consumes 24 cm³ O2 in the same time period. Calculate the RQ and identify the likely respiratory substrate.

Key point

Anaerobic respiration doesn't 'save' energy — it's a stopgap letting glycolysis continue without O2, at a huge cost: roughly 2 ATP per glucose versus ~30 from the full aerobic pathway.

Key takeaways

  • Aerobic respiration: glycolysis → link reaction/Krebs cycle → electron transport chain, needs O2, yields far more ATP than anaerobic routes.
  • Anaerobic pathways exist purely to regenerate NAD+ so glycolysis can continue — not an efficient energy source.
  • RQ = CO2 released ÷ O2 consumed; RQ ≈ 1.0 = carbohydrate, RQ ≈ 0.7 = lipid substrate.

Transfer of Energy and Matter

Energy flows one-way through an ecosystem — sunlight captured by producers, passed to consumers, ultimately lost as heat through respiration at every transfer — so it must be constantly resupplied by the sun. Matter (carbon, nitrogen, water) instead cycles: decomposers break down dead organic matter, returning nutrients to be reused, so ecosystems don't run out of atoms even though they'd run out of energy without the sun.

  • Only roughly 10% of energy at one trophic level transfers to the next — the rest is lost as heat (respiration), in faeces/undigested material, or in parts never consumed.
  • Pyramids of energy are always upright (each level must have less usable energy than the one below); pyramids of numbers or biomass can be inverted (e.g. many insects feeding off one tree).

Pyramid of energy through a food chain

Each level holds roughly 10% of the energy available in the level below it.

Producers 20 000 kJ m⁻² yr⁻¹Primary consumers 2 000Secondary consumers 200Tertiary consumers 20

Trophic level energy transfer

Trophic levelEnergy available / kJ m⁻² yr⁻¹% transferred from level below
Producers20 000—
Primary consumers2 00010%
Secondary consumers20010%
Tertiary consumers2010%

Worked example

Calculating transfer efficiency

[3]
Producers hold 20 000 kJ m⁻² yr⁻¹; primary consumers hold 2 000 kJ m⁻² yr⁻¹. Calculate the percentage transfer efficiency and explain why it's so low.

Energy pyramid vs biomass/number pyramid

Assuming all ecological pyramids must be upright.

Consequence: Marks lost for stating an incorrect general rule.

Fix: Pyramids of energy are always upright (energy loss is unavoidable each transfer). Pyramids of numbers/biomass can invert — e.g. one large tree (small number, high biomass) supporting many insects, or a phytoplankton bloom with low standing biomass supporting many zooplankton.

Key takeaways

  • Energy flows one-way and is lost as heat at each transfer (~90% loss, ~10% transferred); matter cycles and is reused via decomposers.
  • Transfer efficiency = (energy in this level ÷ energy in level below) × 100 — always explain the heat/faeces/uneaten-parts losses.
  • Energy pyramids are always upright; biomass/number pyramids are not.

Photosynthesis

Light-dependent reactions occur on the thylakoid membrane: chlorophyll absorbs light energy, splits water (photolysis, releasing O2), and generates ATP and reduced NADP. The light-independent reactions (Calvin cycle) occur in the stroma: CO2 is fixed by RuBisCO and, using the ATP and NADPH from the light reactions, is converted into G3P and ultimately glucose.

  • Chlorophyll a/b and carotenoids absorb strongly in the blue and red regions and reflect green — hence leaves look green.
  • Rate of photosynthesis is limited by whichever factor (light intensity, CO2 concentration, temperature) is furthest from optimal at that moment — the graph plateaus at that point.

Overall photosynthesis equation

Limiting factors of photosynthesis

At low light intensity, both curves rise together — light is limiting. Past the point where they diverge, the higher-CO2 curve keeps rising while the lower one plateaus — CO2 has become the limiting factor for the lower curve.

Rate of photosynthesisLight intensityHigh CO2 concentrationLow CO2 concentrationPlateau (another factor limiting)

Worked example

Identifying the limiting factor from the graph

[3]
In the limiting-factors graph, explain why the low-CO2 curve plateaus at a lower light intensity than the high-CO2 curve.

Frequently confused

Concept AConcept BThe distinction that matters
Absorption spectrumAction spectrumAbsorption spectrum = amount of light absorbed by extracted pigments at each wavelength (measured with a spectrophotometer). Action spectrum = rate of photosynthesis at each wavelength in a whole leaf/plant — closely matches the absorption spectrum but isn't identical, since other factors (light scattering, accessory pigment interactions) also affect it.

Key takeaways

  • Light reactions (thylakoid) make ATP + NADPH + O2 from water and light; Calvin cycle (stroma) fixes CO2 into sugar using that ATP/NADPH.
  • A plateau on a rate-vs-factor graph means a different factor has become limiting — identify which one changed between the two curves.
  • Action spectrum tracks actual photosynthetic rate by wavelength; absorption spectrum tracks pigment light absorption — related but not identical.

Neural Signaling

Resting neurons maintain a membrane potential of about -70 mV via the Na+/K+ pump (3 Na+ out, 2 K+ in, active transport) and leaky K+ channels. A stimulus reaching threshold opens voltage-gated Na+ channels, causing rapid depolarisation; Na+ channels then inactivate and K+ channels open, causing repolarisation (and brief hyperpolarisation) before the pump restores resting potential.

  • All-or-nothing law: once threshold is reached, every action potential has identical amplitude — stimulus strength is coded by impulse frequency, not size.
  • Myelination and saltatory conduction (impulse jumping between nodes of Ranvier) massively speed up transmission along an axon.
Threshold
The minimum depolarisation needed to trigger voltage-gated Na+ channels to open and fire an action potential.
Refractory period
The brief period after an action potential during which Na+ channels are inactivated, preventing (or raising the threshold for) another impulse.
Synapse
The junction between two neurons where neurotransmitter, released from vesicles in the presynaptic terminal, diffuses across the cleft to bind receptors on the postsynaptic membrane.

Action potential

Steepest gradient during depolarisation = fastest Na+ influx; the flat region straddling the peak's descent marks the absolute refractory period.

Membrane potential / mVTime / msResting potential (-70 mV)ThresholdDepolarisationRepolarisationHyperpolarisationRefractory period

Worked example

Why the refractory period blocks a second impulse

[2]
Explain why a second, stronger stimulus arriving during the absolute refractory period fails to trigger another action potential.

All-or-nothing law

Claiming a stronger stimulus produces a bigger or faster action potential.

Consequence: Contradicts the all-or-nothing principle — a definite factual error.

Fix: Every action potential above threshold is identical in size; stimulus intensity is instead encoded by the frequency of impulses fired.

Key takeaways

  • Resting potential (-70 mV) is maintained by the Na+/K+ pump; threshold triggers voltage-gated Na+ channels for depolarisation, then K+ channels for repolarisation.
  • All-or-nothing law: amplitude is fixed once threshold is reached; intensity is coded by impulse frequency.
  • Absolute refractory period blocks a second impulse because Na+ channels are inactivated, independent of stimulus strength.

Integration of Body Systems

Homeostasis needs the nervous system (fast, electrical, brief) and endocrine system (slower, chemical via blood, long-lasting) working together, both organised around negative feedback: a receptor detects a deviation from the set point, a coordinator (brain or gland) processes it, and an effector corrects it, restoring the original value.

  • Blood glucose regulation: pancreatic beta cells release insulin when glucose rises (promotes uptake/glycogenesis); alpha cells release glucagon when glucose falls (promotes glycogenolysis) — a classic dual-hormone negative feedback loop.
  • Type 1 diabetes = autoimmune destruction of beta cells, no insulin produced; Type 2 = target cells become resistant to insulin — both break the integration between detection and correction.

Nervous vs hormonal (endocrine) control

FeatureNervous systemEndocrine system
Signal typeElectrical impulse (action potential)Chemical hormone released into blood
SpeedFast — millisecondsSlow — seconds to hours
Duration of effectBriefLong-lasting
RouteVia neurons and synapsesVia bloodstream to any receptor-bearing target cell
ExampleWithdrawal reflex arcInsulin release after a meal

Worked example

Negative feedback in blood glucose regulation

[3]
Describe the response of the body when blood glucose concentration rises above the set point after a meal.

Insulin therapy in Type 1 diabetes

Type 1 diabetics can no longer link glucose detection to insulin secretion, so recombinant human insulin (engineered in bacteria) must be injected or pump-delivered based on measured blood glucose — an artificial replacement for the broken feedback loop.

Key takeaways

  • Homeostasis = receptor detects change → coordinator (nervous and/or endocrine) processes it → effector corrects it, via negative feedback.
  • Nervous control is fast/brief/electrical; endocrine control is slow/long-lasting/chemical — many responses use both together.
  • Blood glucose regulation is the model example: insulin lowers glucose, glucagon raises it — never confuse the two directions.

Quick Reference

Interaction and Interdependence — exam cheat-sheet

Formulas

  • at ,
  • aerobic respiration
  • photosynthesis (needs light)
  • ≈1.0 carbs, ≈0.7 lipids

Key facts

Resting membrane potential
≈ -70 mV
Energy transfer efficiency per trophic level
≈ 10%
[S] at half-maximal enzyme rate
equals Km
RQ for carbohydrate substrate
≈ 1.0

Mnemonics

  • Lazy Lions Sleep DailyPopulation growth phases: Lag, Log, Stationary, Death

Don't confuse

  • Competitive inhibitor vs Non-competitive inhibitor: Competitive raises Km, Vmax same; non-competitive lowers Vmax, Km same
  • Absorption spectrum vs Action spectrum: Pigment light absorption vs actual photosynthetic rate by wavelength
  • Population vs Community: One species vs all interacting species in a habitat

Command terms

Determine:
Show working, give a numerical answer with correct units
Compare:
State explicit similarities AND differences, not two separate descriptions
Explain:
Give the mechanism/reason, not just what happens

Exam checklist

  • Can you state whether Km or Vmax changes for competitive vs non-competitive inhibition?
  • Can you distinguish anabolic vs catabolic by direction of bond change, not molecule size?
  • Can you find growth rate as the gradient of a sigmoid curve, not read it off the height?
  • Can you explain why energy pyramids are always upright but biomass pyramids aren't?
  • Can you label every phase of an action potential graph and explain the refractory period?
  • Can you state insulin lowers glucose and glucagon raises it, without swapping them?
