MYP · Mathematics MYP Year 1

Data Handling and Representation

MYP Year 1 Mathematics — Data Handling and Representation

15 min readFoundationalCore Criterion B/C strand — tally charts, frequency tables and graph reading appear in almost every data-based assessment this year

This chapter is really just three skills stacked on top of each other: turn messy raw data into a tidy table, pick the correct picture for that table, then read the picture back into words. Almost every mark lost in this topic isn't a maths error — it's a counting slip in the tally, a missing total, or describing a trend in one word when the question wanted a sentence.

Overview — The Shape of the Chapter

What this chapter is actually testing

Every question in this bank does one of three things: asks you to build a table from a list of raw responses, asks you to read a value or trend off a chart, or asks you to say what type of data you're even looking at. The maths is simple — the marks are lost on process (miscounted tallies, forgotten totals, one-word answers where a full sentence was needed).

  • Raw data is the messy original list (colours shouted out, scores written down) — nobody can read a pattern in it directly.
  • A frequency table sorts and counts that list so patterns become visible at a glance.
  • The picture you draw next (bar, line, pie, stem-and-leaf, dot plot) depends entirely on what type of data you have — get this choice wrong and the whole answer is off-track even if your arithmetic is perfect.

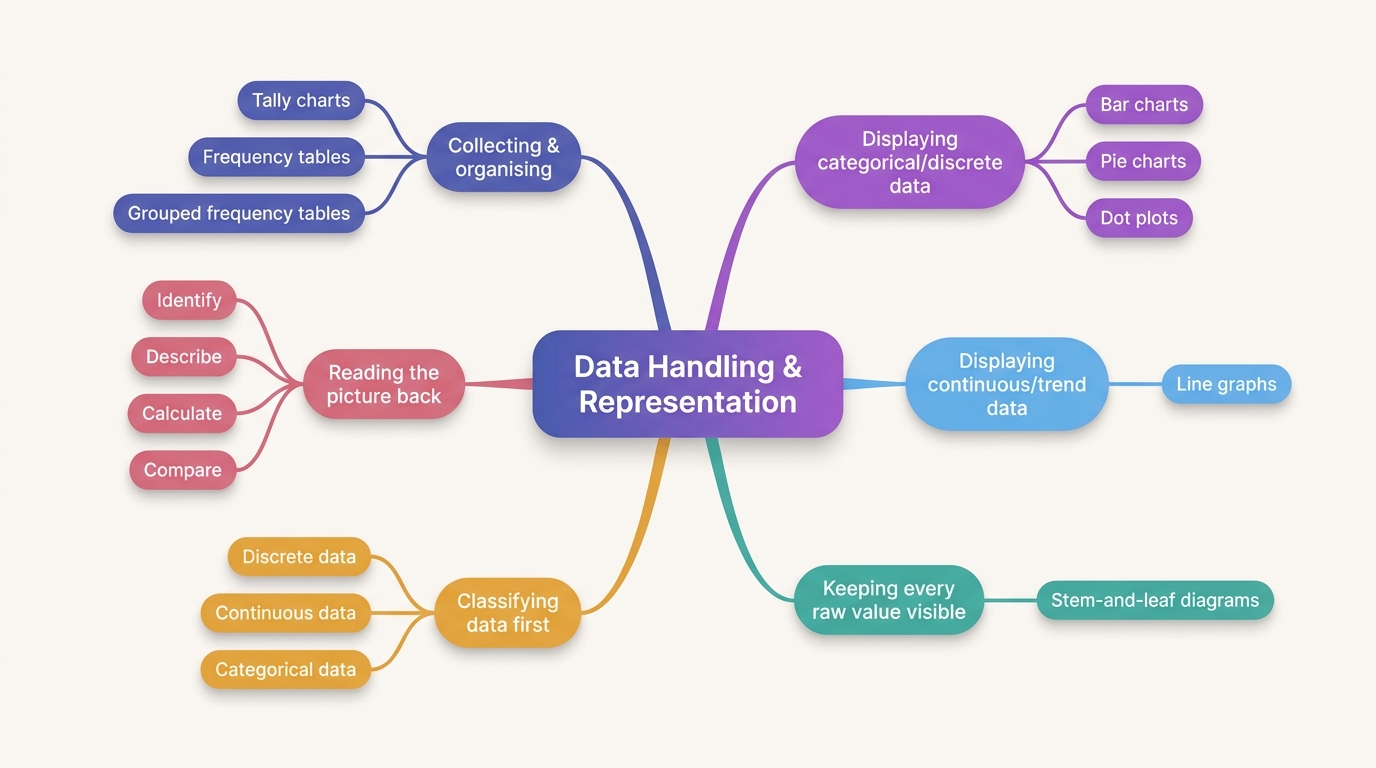

The shape of the chapter

Command terms you'll actually meet in this topic

Command termWhat it demandsAOMark-earning move
IdentifyPick out and name a specific fact directly visible in a table or graph — no explanation needed.AO1A one-word or short-phrase answer wins full marks; a long explanation wastes time but isn't penalised, the marker just ignores the extra.
StateGive a short, precise fact with no justification required.AO1Bare correct value scores full marks — no working expected for 1-mark 'state' questions.
CalculateObtain a numerical answer, with the method shown.AO2Marks usually split between method (e.g. adding the frequency column) and the final correct total — showing working can rescue a mark even if the final number is wrong.
DescribeGive a full-sentence account of a trend or pattern — how one quantity changes as another does.AO2A single word like 'increases' loses the second mark in 2-mark describe questions; you must state the direction AND link it to what's changing.
CompleteFill in missing values in a table or diagram using the data given.AO1Every blank must be filled and totals must be internally consistent — a blank Total row loses a mark even if every individual frequency is right.
Compare / DistinguishState a similarity or difference between two data sets, tables, or graph types.AO3Both things being compared must be named explicitly — describing only one side of the comparison scores zero.

Key point

Every data-handling question reduces to three moves: organise (tally → frequency), display (choose the graph that matches the data type), read back (turn the picture into a sentence). Misclassify the data type at step one and every later mark is at risk.

Frequency Tables and Tally Charts

From raw data to a readable table

A tally chart is the working-out step — you go through the raw data once, making a mark for every occurrence, grouped in bundles of five so long lists don't lose you. The frequency table is the finished product: one clean number per category, with a total row that must equal the number of raw data items you started with.

  • For categorical data (colours, fruits, coin outcomes) each row is a named category with its own tally and frequency — see Q1, Q4–Q6, Q8.
  • For numerical data with only a few repeated values (shoe sizes 3–8 in Q7) each row is a single value.
  • For numerical data spread over a wide range (test scores 8–59 in Q3), grouping every value into a class interval like , , keeps the table to a sensible number of rows — the trade-off is that you lose sight of the exact original values once they're grouped.

Key terms

Raw data
The original list of individual responses or measurements, exactly as collected, before any sorting or counting.e.g. the 20 individual fruit answers in Q4 before they're tallied.
Tally mark
A single stroke recorded each time a value is counted, grouped in bundles of five (four vertical strokes plus one diagonal across them) to make counting large totals fast and less error-prone.
Frequency
The total number of times a value or category occurs — the final count you write down, not the tally marks themselves.
Grouped frequency table
A frequency table where individual numerical values are combined into class intervals so a wide spread of data fits into a manageable number of rows.
Class interval
A range of values used to group numerical data, e.g. '21–40' collects every score from 21 to 40 inclusive into a single row.

The one checksum that saves marks

The sum of every value in the frequency column equals the total number of raw data items.

— frequency of an individual category or class interval
— total number of observations in the original raw data
Memorise

After completing any frequency table, add the frequency column and confirm it equals the number of raw data items stated in the question — this catches almost every tallying error before you submit.

Worked example

Completing a frequency table from a long list (based on Q8)

[2]
Tomas flips a coin 30 times. The results are: H, T, T, H, H, H, T, H, T, T, H, H, T, H, T, H, H, T, T, H, H, H, T, H, T, T, H, H, H, T. Complete a frequency table for Heads and Tails, and check your total.

The tally bundle mistake

Crossing a tally group incorrectly — e.g. writing a diagonal stroke after only three verticals, or losing count partway through a long list and guessing the rest.

Consequence: The frequency for that row ends up off by one or two, which then makes the total row wrong too — this typically costs the 'calculate total' mark in questions like Q1(b) and Q6(b), even though the method (adding up the frequencies) was correct.

Fix: Always bundle in exact groups of five: four vertical strokes, then one diagonal across them. At the end, count in fives ('5, 10, 15...') plus any leftover strokes, rather than counting every stroke individually.

Match your answer length to the command term

Q1(a) says 'Identify' — the answer is just 'Blue', nothing more. Q3(b) says 'Describe what the frequency column tells you' — that needs a full sentence ('the frequency column shows how many scores fall into each interval'), not just the word 'amount'. Writing a one-word answer to a 'describe' question is the single most common way this topic loses easy marks.

Key takeaways

  • Tally is the counting process; frequency is the final number — don't confuse the working with the answer.
  • Always sum the frequency column and check it matches the total number of raw data items given in the question.
  • Group large ranges of numerical data into class intervals to keep the table readable, but remember you lose the exact original values once you do.

Bar Charts, Line Graphs and Pie Charts

Choosing the right picture

Once your frequency table exists, the choice of graph depends on what question the data is answering. Comparing separate categories against each other? Bar chart. Watching something change over an ordered sequence like time? Line graph. Showing how a total splits into shares? Pie chart.

  • Bar charts have equal gaps between bars — the gaps signal that categories are separate and not continuous.
  • Line graphs join data points with straight (or smooth) lines — the steepness (gradient) of the line tells you the rate at which the quantity is changing, not just the amount it changed by.
  • Pie charts turn each category's frequency into a slice of a full circle, where the slice's angle is proportional to its share of the total.

Angles and rates you're asked to calculate

The angle of a pie chart sector for a category.

— frequency of that one category
— total frequency (sum of all categories)
— the sector's angle, in degrees
Memorise

Every sector angle you calculate should sum back to — that's your automatic error check.

The steepness of a section of a line graph, read from the axes.

— change in the vertical quantity between two points
— change in the horizontal quantity (usually time) between the same two points

A bigger gradient means a faster rate of change — always compare gradients, not just raw rises, especially when intervals aren't equal.

Bar chart of favourite colour data

Q1's colour data as a bar chart — height of each bar is read straight off the frequency axis.

Colour (x-axis)Frequency (y-axis)Red = 4Blue = 6Green = 3Yellow = 2

Pie chart of the same colour data

Same data as a pie chart — each slice's angle equals its share of the total 360°.

Red 96°Blue 144°Green 72°Yellow 48°

Line graph with changing gradient

Gradient changes segment by segment — the steepest part of the line is the fastest rate of change, not just the biggest single rise.

Time (hours) — x-axisTemperature (°C) — y-axissteepest segment highlighted between hour 2 and hour 3

Worked example

Calculating pie chart angles (based on Q1)

[3]
Using Q1's colour data (Red 4, Blue 6, Green 3, Yellow 2, total 15 votes), calculate the angle for each sector of a pie chart.

Worked example

Reading rate of change from a line graph

[2]
The graph shows classroom temperature recorded every hour: (hours, °C). During which one-hour interval did the temperature rise fastest, and at what rate?

Bar chart vs line graph vs pie chart

FeatureBar chartLine graphPie chart
Best forComparing frequencies across separate categoriesShowing a trend or change over an ordered variable (usually time)Showing each category's share of a whole
Data type neededCategorical or discrete dataContinuous data collected over an ordered sequenceCategorical or discrete data, converted into angles/percentages
Gaps or joins?Equal gaps between bars — categories are separatePoints joined by a continuous line — values in between are implied to existNo gaps — one full circle split into sectors
What you read off itHeight of the bar = frequencyGradient of the line = rate of changeAngle or area of the slice = proportion of the total

Treating categorical data like continuous data

Drawing a bar chart with the bars touching, with no gaps between them.

Consequence: Examiners read touching bars as a construction error since it implies the categories flow into each other continuously, which loses the drawing/construction mark even when the bar heights themselves are correct.

Fix: Always leave equal, visible gaps between bars when the x-axis represents categorical or discrete separate values — only continuous-scale diagrams (like histograms, not covered here) have touching bars.

Why the media picks the graph it picks

Weather and finance reports use line graphs for temperature and stock prices because the gradient instantly shows whether something is rising fast, rising slowly, or falling — a bar chart of the same daily values would hide that rate information. Election results are almost always shown as pie charts because voters care about a party's share of the total vote, not the raw number of votes, which a bar chart would emphasise instead.

Key takeaways

  • Bar charts compare separate categories (gaps between bars); line graphs track continuous change (points joined, gradient = rate); pie charts show proportion of a whole (angle ).
  • Pie chart angles must always sum to — use that as your automatic error check.
  • Never judge a line graph's steepest section by eye — calculate for each candidate interval before comparing.

Stem-and-Leaf Diagrams and Dot Plots

Keeping every value visible

A grouped frequency table hides the exact original values once they're sorted into class intervals — a stem-and-leaf diagram fixes that. It splits each numerical value into a stem (the leading digit or digits) and a leaf (the remaining digit), so you can see both the overall shape of the data AND every individual value at the same time.

  • Leaves next to each stem must be written in increasing order, left to right.
  • A key (or legend) is compulsory — without one, a reader can't tell whether '3 | 1' means 31, 3.1, or something else entirely.
  • Dot plots are the simplest option for small sets of discrete data with few repeated values — each raw value gets its own dot, and repeats stack directly above that value on the number line.

Key terms

Stem
The leading digit(s) of a data value (e.g. the tens digit), written once in the left-hand column of a stem-and-leaf diagram.
Leaf
The remaining digit(s) of a data value (e.g. the units digit), written in increasing order in the row beside its matching stem.
Key (legend)
A short statement explaining what a stem-leaf pair represents, e.g. '3 | 1 means 31' — without it the diagram cannot be marked because the values are ambiguous.
Dot plot
A diagram where each individual data value is shown as a dot above a number line, with repeated values stacking directly on top of each other so frequency is read as stack height.

Stem-and-leaf diagram of test scores

The same test scores from Q3, shown as a stem-and-leaf diagram instead of a grouped frequency table — every original value is still visible.

Stem columnLeaf columnKey: 3 | 1 means 31

Dot plot of shoe sizes

Q7's shoe size data as a dot plot — stack height above each size is the frequency.

Shoe size (x-axis) 3 to 8stacked dots = frequency

Worked example

Constructing a stem-and-leaf diagram (based on Q3's data)

[3]
Construct a stem-and-leaf diagram for the twelve test scores: 8, 14, 23, 27, 31, 35, 42, 46, 48, 51, 53, 59.

Missing or ambiguous key

Drawing a perfectly ordered stem-and-leaf diagram but leaving out the key, or writing an incomplete key like just '3 | 1'.

Consequence: The diagram loses at least one construction mark even if every stem and leaf is correctly placed and ordered, because '3 | 1' alone is genuinely ambiguous (31? 3.1?).

Fix: Always write the key as a full statement: 'Key: 3 | 1 means 31'.

Key takeaways

  • Stem-and-leaf keeps every original value visible while still showing the overall shape of the data — unlike a grouped frequency table.
  • Leaves must be written in increasing order next to each stem, and a full key is compulsory, not optional.
  • Dot plots suit small sets of discrete data where you want repeated values to visibly stack above each other on a number line.

Types of Data — Discrete and Continuous

Classify before you display

Discrete data is counted — it only ever takes exact, separate values, and there's no meaningful value in between two consecutive ones (you can have 3 siblings or 4, never 3.5). Continuous data is measured — it can take any value within a range, and a decimal in between is always possible in principle (height, weight, time, temperature).

  • Discrete numerical data → display with bar charts, tally/frequency tables, or dot plots (Q3's individual scores, Q7's shoe sizes, Q8's coin outcomes are all counted).
  • Continuous numerical data → display with line graphs, or group it into class intervals for a grouped frequency table if it's a large one-off set of measurements.
  • Careful: the colour and fruit data in Q1, Q4, Q5 and Q6 aren't discrete or continuous at all — they're categorical (or qualitative) data, sorted into named labels with no numerical order between them. 'Discrete' and 'continuous' only ever describe numerical data.

Key terms

Discrete data
Numerical data that can only take exact, separate values, usually obtained by counting — there is no possible value in between two consecutive ones.
Continuous data
Numerical data that can take any value within a range, usually obtained by measuring — decimal values in between are always theoretically possible.
Categorical (qualitative) data
Data sorted into named groups or labels with no numerical value or natural order, such as favourite colour or favourite fruit.

The three mix-ups that cost marks

Concept AConcept BThe distinction that matters
Discrete dataContinuous dataAsk: can you count it exactly (discrete), or must you measure it on a scale where in-between values make sense (continuous)?
TallyFrequencyTally is the counting mark made while reading through the data; frequency is the final total written down once counting is finished.
Bar chartPie chartA bar chart shows the actual frequency count per category on a scaled axis; a pie chart shows each category's proportion of the whole total as an angle.

Discrete vs continuous data at a glance

Data typeHow it's obtainedExampleTypical display
DiscreteCounting — exact, separate values onlyNumber of siblings, shoe size, number of pets, coin flip outcomesBar chart, tally/frequency table, dot plot
ContinuousMeasuring — any value within a range, decimals possibleHeight, weight, time taken, temperatureLine graph, grouped frequency table with class intervals

Stairs vs Ramp

Discrete data moves like stairs; continuous data flows like a ramp.

On stairs you can be on step 3 or step 4, never step 3.5 — that's discrete. On a ramp you can stand at any height in between — that's continuous.

State the reason, not just the label

If a question asks 'is this data discrete or continuous?', naming the type alone often only earns half the marks. The second mark is usually for the reason — e.g. 'continuous, because time can take any value including decimals, not just whole numbers'.

Key takeaways

  • Discrete data is counted, takes exact separate values, and is displayed with bar charts or dot plots.
  • Continuous data is measured, can take any value in a range, and is displayed with line graphs or grouped tables with class intervals.
  • Categorical data (colours, fruits, names) is neither discrete nor continuous — it has no numerical order at all, so neither term applies.

Quick Reference

Data Handling and Representation — everything on one page

Formulas

  • total of the frequency column = total number of raw data items
  • pie chart sector angle; all sectors must sum to
  • rate of change read from a line graph segment

Key facts

Full circle in a pie chart
Tally bundle size
5 (four strokes + one diagonal)

Mnemonics

  • Stairs vs RampDiscrete data steps like stairs (whole values only); continuous data flows like a ramp (any value possible).

Don't confuse

  • Tally vs Frequency: Tally = counting marks made while reading data; Frequency = the final total written down.
  • Discrete data vs Continuous data: Discrete is counted in exact steps; continuous is measured and can fall anywhere in a range.
  • Bar chart vs Pie chart: Bar chart shows actual frequency per category on an axis; pie chart shows each category's share of the whole as an angle.

Command terms

Identify:
one word or short phrase, no explanation needed
Calculate:
show the method, then give the numeric answer
Describe:
full sentence stating the trend or pattern, not a single word
Complete:
fill every blank cell; totals must add up consistently

Exam checklist

  • Frequency column sums to the total number of raw data values given in the question
  • Bar chart bars have equal gaps; pie chart sector angles sum to
  • Stem-and-leaf diagram has leaves in increasing order and an explicit key
  • Data correctly classified as discrete, continuous, or categorical before choosing a display
