Geometry

20 min readFoundationalCore measurement/geometry unit — regularly assessed across Criterion A (Knowing & Understanding) and Criterion C (Communicating), typically 20–25% of a term test

Geometry in Year 1 is really just three questions in disguise: how much surface does a solid have, how much space is inside it, and how do you shrink or describe a real distance accurately on paper or a compass? Every question in this chapter — cubes, prisms, cylinders, maps, bearings, unit conversions, composite shapes — is one of those three questions wearing a different costume. Spot which one, and the formula follows.

Overview: The Big Picture of Geometry

This chapter is about measuring shapes precisely enough that a real job could be done from your numbers — cutting the right amount of wrapping paper, ordering the right amount of concrete, or telling a ship exactly which direction to sail. That's why examiners keep asking you to identify a real job that needs this maths (packaging designer, architect, cartographer) rather than just crunching numbers in isolation.

  • Surface area and volume both start from the same solids (cubes, cuboids, prisms, cylinders) but answer opposite questions — outside skin vs inside space.
  • Scale drawings and bearings are about representing real-world distance and direction accurately at a smaller size.
  • Unit conversion is the glue holding all of it together — get it wrong and a correct method still gives a wrong final answer.
  • Perimeter and area of 2D shapes underpin everything above: a prism's surface area is just several 2D areas added together.

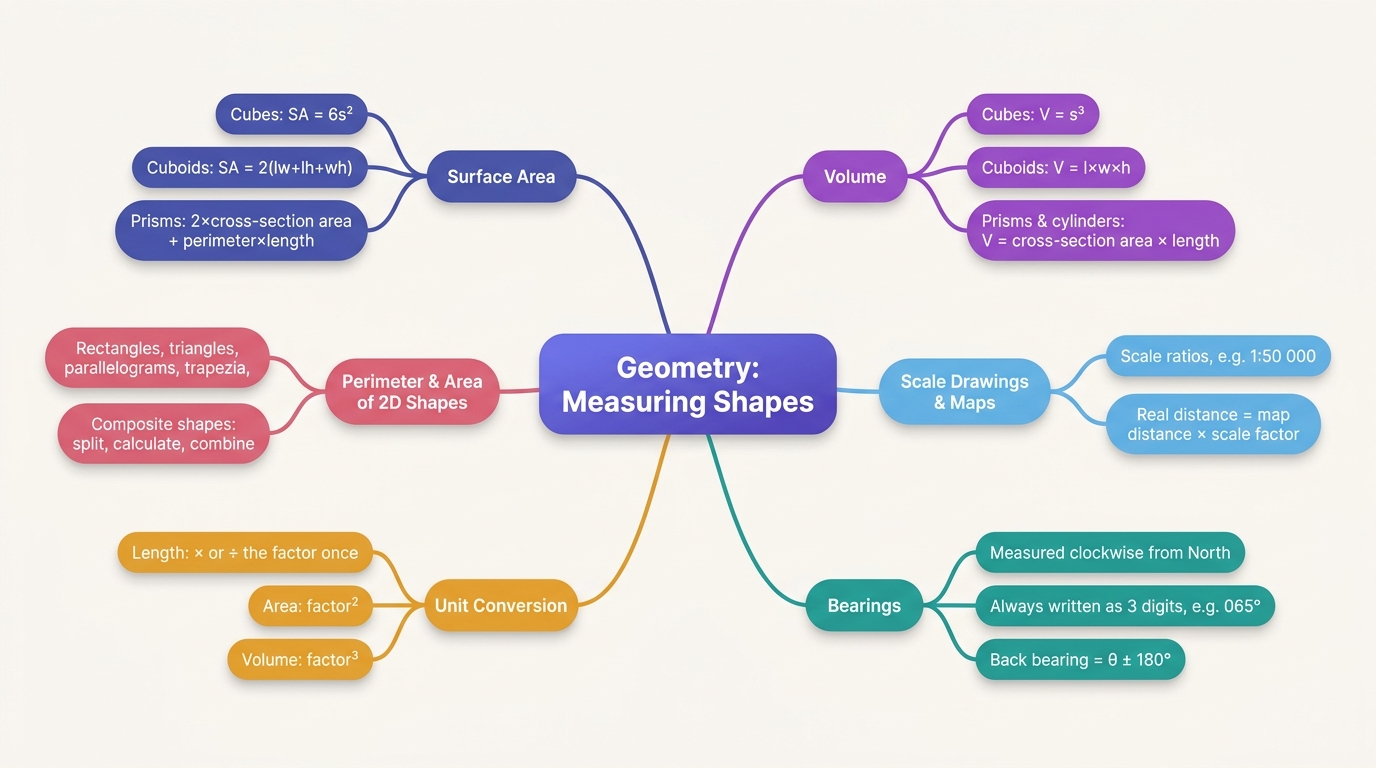

The shape of the chapter

Command terms this chapter loves

Command termWhat it demandsAOMark-earning move
IdentifyGive a specific value, name, or count — no explanation needed.Knowing & Understanding1 mark for the correct fact stated; extra working or explanation is neither required nor rewarded.
StateGive a brief, precise fact or rule.Knowing & Understanding1 mark for a clean, correct statement — vague or partial wording forfeits the mark.
CalculateProduce a numerical answer, showing the method used to get there.Applying & ReasoningMarks split between correct substitution/method and correct final value with units — a right answer with no working can still lose method marks if the answer itself is wrong.
DescribeGive a detailed account in full sentences, using any keywords the question specifies.CommunicatingFor 2-mark 'describe' questions, examiners expect two separate ideas — restating the question in different words earns 0.
ExplainGive reasons or a cause-and-effect link, not just a description.Applying & ReasoningMust contain a 'because' — a correct fact with no reasoning attached only earns partial credit.

Key point

Before touching a formula, ask: am I measuring the OUTSIDE skin (surface area, in units²), the INSIDE space (volume, in units³), or a REAL-WORLD distance/direction (scale/bearings)? That one sorting decision prevents most formula mix-ups in this chapter.

Surface Area of Cubes, Cuboids and Prisms

Surface area is what you'd get if you carefully unfolded a solid flat — every face laid out with no overlaps — and added up the area of each piece. That flattened-out version is called a net, and it's the picture examiners draw when they want you to see all the faces at once instead of guessing which ones are hidden.

  • A cube has 6 identical square faces — miss even one and the total is wrong.
  • A cuboid has 6 faces in 3 matching pairs (top/bottom, front/back, left/right) — that's why the formula has three separate products doubled.
  • A prism's surface area is 2 identical end faces (the cross-section shape) plus rectangular side faces — one rectangle for every side of the cross-section.
  • Because surface area depends on the square of a length, doubling a cube's side length doesn't double the surface area — it multiplies it by . This exact pattern is what 'describe what happens' questions are testing.

Key vocabulary

Face
One flat surface of a 3D solid.A cube has 6 faces, a triangular prism has 5 (2 triangles + 3 rectangles).
Net
The 2D shape formed when a 3D solid is unfolded flat along its edges.Every face appears exactly once with no overlap — perfect for checking you haven't missed a face.
Surface Area
The total area of all the faces of a solid added together, measured in square units.Answers 'how much material to cover the outside?' — this is the exact wording examiners want in 'describe' answers, using the words faces and total area.
Prism
A 3D solid with two identical, parallel end faces (the cross-section) connected by rectangular side faces.A cylinder is essentially a prism with a circular cross-section.

Nets of a cube, cuboid and triangular prism

Unfolding a solid into its net is the fastest way to check you've counted every face — nothing hides at the back.

s (cube side)l, w, h (cuboid)b, h_t (triangle base/height)l (prism length)

Surface area formulas

Surface area of a cube

— side length of the cube (length units)
Memorise

Surface area of a cuboid

— length
— width
— height
Memorise

Surface area of a prism: twice the cross-section area plus the cross-section perimeter times the prism's length

— area of the cross-section (end face)
— perimeter of the cross-section
— length of the prism

This is the general version that a cube/cuboid formula is secretly a special case of.

Worked example

Cube surface area — the squaring trap

[2]
A cube-shaped gift box has a side length of 4 cm. Using , calculate the total surface area.

Worked example

Triangular prism surface area — using the general formula

[4]
A triangular prism has a right-triangle cross-section with legs 3 cm and 4 cm (hypotenuse 5 cm) and a length of 10 cm. Calculate its total surface area.

Common mistake

Assuming surface area scales directly with side length — e.g. predicting that doubling a cube's side length doubles its surface area.

Consequence: Loses the mark on 'describe what happens' questions (e.g. comparing side 2 cm and side 4 cm cubes), because the real relationship is squared, not linear: SA goes up by a factor of 4, not 2.

Fix: Say it in terms of the formula: since , doubling means squaring the multiplier, so SA increases by times, not 2 times.

Examiner tip

When a question says 'Describe what surface area means' and specifies keywords like faces and total area, your sentence must literally contain both — e.g. 'Surface area is the total area of all the faces of a solid added together.' A correct-sounding sentence missing the specified vocabulary can lose a mark even if the maths idea is right.

Who actually uses this?

A packaging designer calculates the surface area of a cereal box to work out exactly how much cardboard sheet to order — too little and the box doesn't close, too much and the company wastes money on every single box produced. A painter does the same thing with a room's walls before quoting how many tins of paint a job needs.

Key takeaways

  • Surface area = total area of every face, found from the net so nothing is missed.
  • Cube: ; Cuboid: ; Prism (general): .
  • Square the side length before multiplying by 6 — the single most common cube-SA error.
  • Surface area scales with the square of side length, so doubling a cube's side quadruples its surface area.

Volume of Cubes, Prisms and Cylinders

Volume measures how much 3D space a solid fills or how much it could hold, in cubic units. Every prism — including a cylinder, which is just a circular prism — follows the same underlying logic: find the area of the flat cross-section shape, then multiply by how far that shape extends.

  • A cube is the special case where every side is equal, so .
  • A cuboid is a rectangular prism, so — really just cross-section area () times height.
  • A cylinder's cross-section is a circle, so — the part is the circular cross-section area.

Volume formulas

Volume of a cube

— side length
Memorise

Volume of a cuboid

—
—
—
Memorise

Volume of any prism: cross-section area times length

— area of the cross-section
— length of the prism

Volume of a cylinder — a circular prism

— radius of the circular face
— height of the cylinder
Memorise

Volume as cross-section area × length

Every prism (and the cylinder) shares the same logic: find the flat shaded area, then stretch it out by the length.

rhcross-section area Al

Worked example

Volume of a triangular-prism tent — using cross-section area first

[3]
A tent has a triangular-prism shape. Its triangular cross-section has a base of 3 m and a height of 2 m. The tent is 5 m long. Calculate the volume of the tent.

Worked example

Volume of a cylinder — radius, not diameter

[2]
A cylindrical water tank has a diameter of 6 cm and a height of 10 cm. Calculate its volume in terms of .

Surface Area vs Volume

Concept AConcept BThe distinction that matters
Surface AreaVolumeSurface area measures the outer skin (units²) — how much material wraps around a solid; volume measures the inside space (units³) — how much it can hold. Check the power on the units to know instantly which one an answer is asking for.

Common mistake

Confusing volume with surface area formulas — e.g. calculating a cube's volume as (the surface area formula) instead of .

Consequence: Gives a completely wrong magnitude of answer, and the units (cm² instead of cm³) should have flagged the error immediately.

Fix: Always check the unit power in the question or your final answer — squared units mean surface area, cubed units mean volume.

Key takeaways

  • Volume of any prism (cube, cuboid, triangular prism, cylinder) = cross-section area × length/height.
  • Cube: ; Cuboid: ; Cylinder: — remember to use radius, not diameter.
  • Check units: cm³/m³ signals volume; cm²/m² signals surface area — a fast self-check against formula mix-ups.

Scale Drawings, Maps and Bearings

A scale drawing shrinks (or enlarges) a real object while keeping every proportion identical — the shape looks exactly the same, just smaller. Maps use a scale ratio like , meaning every 1 cm measured on the map represents 50 000 cm (500 m) in real life. Bearings then describe direction on that map precisely, using an angle rather than vague words like 'north-ish'.

  • A scale of means 1 unit on the drawing equals of the same unit in real life.
  • Bearings are always measured clockwise starting from North, and always written with exactly three digits — 065°, not 65°.
  • A back bearing (the direction back the way you came) is found by adding or subtracting 180° from the original bearing.

Key vocabulary

Scale Factor
The number that a drawing's measurement is multiplied by to get the real-life measurement.In a 1:25 000 scale, the scale factor is 25 000.
Scale Drawing
A drawing that represents a real object at a fixed ratio smaller or larger than actual size, keeping all proportions unchanged.Also called a scale diagram or plan.
Bearing
A direction given as an angle measured clockwise from North, always written as three digits.e.g. 070° means 70° clockwise from North; 005° means only 5° clockwise from North, but the leading zeros are still required.

Reading a bearing

Bearings always start at North and sweep clockwise — never counter-clockwise, and never measured from any other direction.

Npoint Apoint B065° (angle measured clockwise from North)

Scale and bearing relationships

where the scale is written 1:k

— scale factor (the second number in a 1:k ratio)

Add 180° if the original bearing θ is less than 180°; subtract 180° if it is 180° or more

— the original bearing

Worked example

Scale drawing — converting map distance to real distance

[3]
A map has a scale of 1:25 000. The distance between two towns on the map is 4 cm. Calculate the real distance in kilometres.

Worked example

Back bearing — the ±180° rule

[2]
A ship sails from port A to port B on a bearing of 070°. Calculate the bearing of A from B (the back bearing).

Mnemonic

3-C-N: 3 digits, Clockwise, from North

Every bearing answer must satisfy all three at once — three-figure format (e.g. 008° not 8°), measured clockwise (never anticlockwise), starting from North (never from any other direction).

Examiner tip

Writing a bearing as '65°' instead of '065°' commonly loses a mark even when the angle itself is correct — three-figure notation is a strict formatting requirement, not a stylistic choice.

Common mistake

Always adding 180° to find a back bearing, regardless of the original angle's size.

Consequence: Produces an invalid bearing above 359° when the original bearing was 180° or more (e.g. 250°+180°=430°), losing the calculation mark.

Fix: Check first: if original bearing < 180°, add 180°; if original bearing ≥ 180°, subtract 180°.

Key takeaways

  • Scale ratio 1:k means real distance = drawing distance × k — always check the final answer's units match what was asked.
  • Bearings: always 3 digits, always measured clockwise from North.
  • Back bearing = original bearing ± 180°, choosing + or − based on whether the original is below or above 180°.

Conversion of Units — Length, Area, Volume

Converting a length is simple — multiply or divide by the conversion factor once. But area and volume aren't flat multiples of length; they come from length multiplied by itself, so the conversion factor has to be squared for area and cubed for volume. This is the single most exam-tested idea in this subtopic.

  • Length: multiply/divide by the factor once (e.g. cm to m: ÷100).
  • Area: multiply/divide by the factor squared (e.g. cm² to m²: ÷100²=÷10 000).
  • Volume: multiply/divide by the factor cubed (e.g. cm³ to m³: ÷100³=÷1 000 000).

Common conversion factors

QuantityConversionWhy
Length1 m = 100 cm; 1 cm = 10 mm; 1 km = 1000 mBase conversion factor — used once, no powers involved.
Area1 m² = 10 000 cm² (100²); 1 cm² = 100 mm² (10²)Area is length × length, so the factor is squared.
Volume1 m³ = 1 000 000 cm³ (100³); 1 cm³ = 1000 mm³ (10³)Volume is length × length × length, so the factor is cubed.
Capacity1 cm³ = 1 mL; 1000 cm³ = 1 L; 1000 L = 1 m³Useful real-world link between volume and liquid measurements.

General conversion rule

If 1 unit A = k unit B for length, then the same factor must be squared for area conversions and cubed for volume conversions.

— the linear (length) conversion factor
Memorise

Worked example

Converting area — squaring the factor

[2]
Convert 3.5 m² to cm².

Common mistake

Using the plain length conversion factor (×100 or ÷100) when converting an area or volume.

Consequence: The final answer is out by a factor of 100 (area) or 1 000 000 (volume) — even with perfect method elsewhere, this single slip fails the whole calculation.

Fix: Before converting, check the unit power: units² → square the factor; units³ → cube the factor.

Examiner tip

If your converted answer looks suspiciously 'too small' or 'too big' compared to the original number, check whether you squared/cubed the factor — this mental sanity check catches the most common conversion error before you submit.

Key point

Length conversions use the factor once. Area conversions square it. Volume conversions cube it. Say this rule out loud before every conversion question — it's the exact idea examiners test.

Key takeaways

  • Length: apply the conversion factor once.
  • Area: apply the conversion factor squared.
  • Volume: apply the conversion factor cubed.
  • 1 m² = 10 000 cm²; 1 m³ = 1 000 000 cm³ — memorise these two exact values.

Perimeter and Area of 2D Shapes

Perimeter is the total distance around the outside edge of a shape — add up every boundary length. Area is the amount of flat space enclosed inside that boundary, measured in square units. Composite shapes (an L-shape, a shape with a curved edge) are handled by splitting into simple shapes you already know, calculating each piece, then combining — adding for area, but being careful which edges actually still exist for perimeter.

Perimeter and area of common 2D shapes

Rectangle

—
—

Triangle — base times perpendicular height, halved

— base
— perpendicular height

Parallelogram — base times perpendicular height (not the slanted side)

—
—

Trapezium — average of the two parallel sides, times height

— one parallel side
— other parallel side
— perpendicular height between them

Circle area and circumference

— radius
Memorise

Composite shape — rectangle with semicircular top

The top straight edge of the rectangle no longer exists once the semicircle replaces it — a classic perimeter trap.

8 cm (width/diameter)5 cm (height)r = 4 cm (radius, dashed)

Worked example

Composite shape — area and perimeter with a curved edge

[6]
A window is shaped like a rectangle 8 cm wide and 5 cm tall, topped with a semicircle of diameter 8 cm (as shown). Calculate (a) the total area and (b) the perimeter of the shape.

Perimeter vs area formulas by shape

ShapePerimeter formulaArea formula
Rectangle
TriangleAdd all 3 side lengths
ParallelogramAdd all 4 side lengths
TrapeziumAdd all 4 side lengths
Circle

Common mistake

Using a parallelogram or triangle's slanted (slant) side as the height in the area formula.

Consequence: Gives an inflated area, because the formula needs the perpendicular height (the shortest distance between the base and the opposite side/vertex), not the slanted length.

Fix: Always check the height shown is drawn at a right angle to the base — if only a slant side is given, that number can't go directly into or .

Fencing vs turfing a garden

A landscaper calculates perimeter to quote for fencing (the length of material needed around the boundary) and area to quote for turf or paving (the amount of surface to cover) — the same garden needs two completely different calculations for two completely different jobs, using the same two measurements.

Key takeaways

  • Perimeter = distance around the outside; area = space enclosed inside — different units (linear vs squared) and different real-world jobs.
  • For triangles and parallelograms, height must be perpendicular to the base, never a slanted side.
  • Composite shapes: split into known shapes, sum areas, but check carefully which edges genuinely remain on the boundary for perimeter.

Quick Reference

Geometry — everything on one page

Formulas

  • square the side, then ×6
  • 3 pairs of matching faces
  • general prism formula
  • not to be confused with 6s²
  • = cross-section (l×w) × height
  • cylinder: , so
  • height must be perpendicular to base
  • average of parallel sides × height
  • radius, not diameter
  • for scale 1:k
    • if θ<180°, − if θ≥180°

Key facts

Faces on a cube
6
1 m² in cm²
10 000 cm²
1 m³ in cm³
1 000 000 cm³
1 cm³ in mL
1 mL
Bearing format
always 3 digits, clockwise from North

Mnemonics

  • 3-C-N: 3 digits, Clockwise, from NorthHow every bearing must be written and measured.

Don't confuse

  • Surface Area vs Volume: Units² (outer skin) vs units³ (inner space) — check the power on the units.
  • Perimeter vs Area: Linear boundary distance vs enclosed square space — different jobs (fencing vs turfing).

Command terms

Identify/State:
One precise fact or value, no explanation needed.
Calculate:
Show substitution and method, then a final value with correct units.
Describe:
Two distinct sentences/ideas, using any keywords the question specifies.

Exam checklist

  • Squared/cubed the conversion factor for area/volume conversions?
  • Used cross-section area × length for prism/cylinder volume, not just multiplying every number given?
  • Written bearings as exactly 3 digits, measured clockwise from North?
  • Excluded any straight edge replaced by a curve when finding composite perimeter?
  • Checked final answer units match what the question asked (cm² vs cm³)?
