Geometry – Properties of Shape

22 min readFoundationalCore geometry unit — assessed through MYP Criterion A (Knowing & Understanding) and Criterion D (Applying) tasks; typically 15–20% of a Year 1 geometry unit test and a recurring skill in later units on Pythagoras and transformations.

Geometry in Year 1 isn't about spotting a shape by eye — it's about proving what you see with the right vocabulary. Every mark scheme here rewards precision: '4 cm equals 4 cm, so two sides match' beats 'it looks isosceles' every single time. Learn the definitions cold, and the describe/explain questions answer themselves.

Overview

This topic builds the vocabulary that every later geometry unit depends on — Pythagoras, transformations, and trigonometry all assume you can already classify a triangle, name a circle's parts, and justify an angle using a rule rather than a protractor guess. The exam questions almost never ask you to just calculate; they ask you to describe or explain, which means naming the property and quoting the evidence for it.

  • Triangles and polygons: classification by sides and angles, plus interior angle sum rules.
  • Symmetry and tessellation: how shapes reflect, rotate, and tile a plane with no gaps.
  • Congruence and similarity: same shape same size vs same shape different size — and how to prove either.
  • Circle properties: the vocabulary (radius, chord, tangent, sector...) that every circle question is built from.
  • Angle rules: the small set of 180°/360° facts that justify almost every angle calculation you'll ever do.
  • Lines and angles: what happens when a line crosses two parallel lines — corresponding, alternate, co-interior.

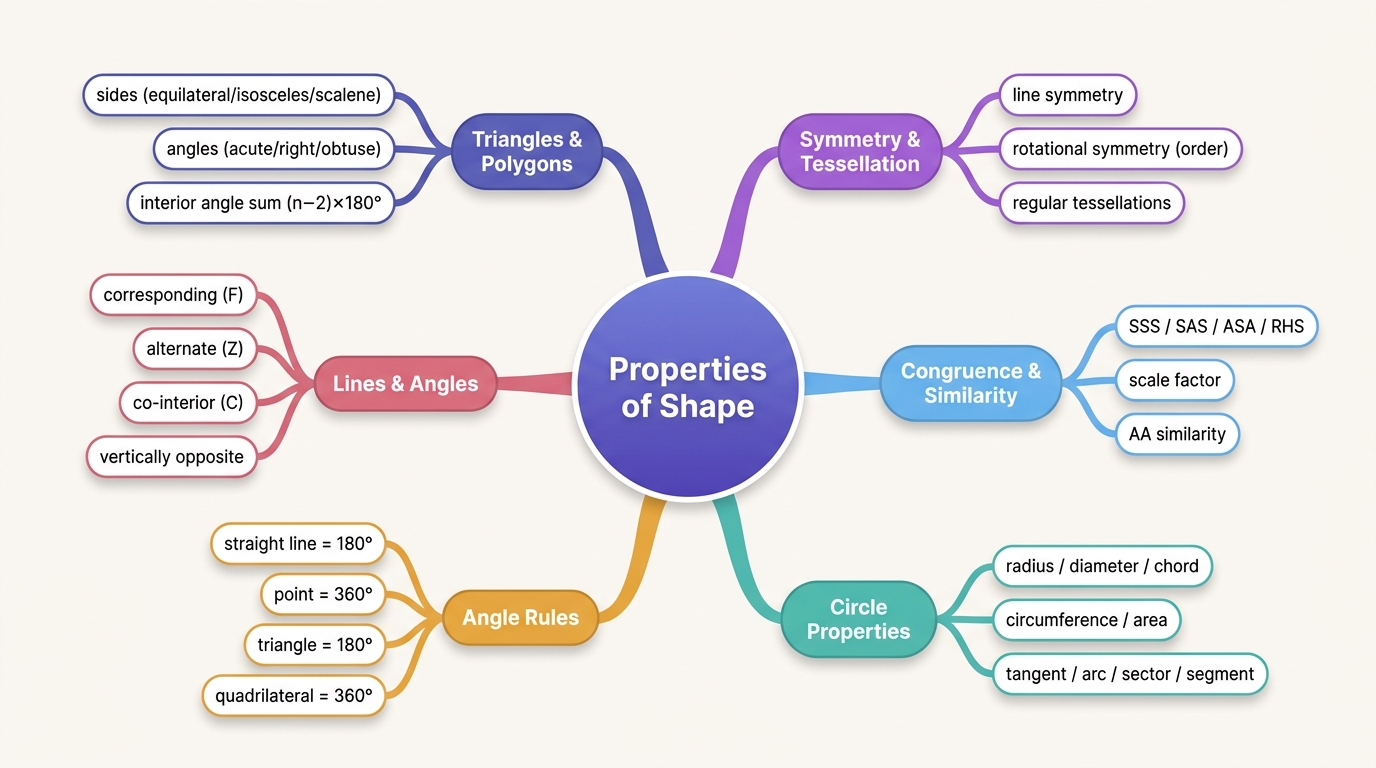

The shape of the chapter

Command terms that drive this topic

Command termWhat it demandsAOMark-earning move
Identify / NameState the single correct classification word — no working needed.Knowing1 mark for the exact term (e.g. 'isosceles'); a description here earns nothing extra.
DescribeState the specific property AND connect it to the given numbers/diagram.Knowing & UnderstandingUsually 1–2 marks: one for the rule, one for linking it to the actual values given.
ExplainGive a reason that shows WHY, using a geometric fact (angle sum, side equality, parallel lines).UnderstandingBare assertion without the underlying rule caps the mark.
CalculateShow the numeric working, not just the final number.ApplyingMethod marks are awarded for the correct equation set up, even if arithmetic slips.
Give an example ofProduce your own valid instance that satisfies the rule.ApplyingMark lost if your invented numbers don't actually satisfy the underlying rule (e.g. angles not summing to 180°).
CompareState a similarity AND a difference between two things.UnderstandingOne-sided answers (only similarity, or only difference) lose half the marks available.

Key point

Every 'describe' or 'explain' answer in this topic needs a NUMBER or NAMED RULE as evidence — 'two sides equal 4 cm' or 'angles on a straight line sum to 180°' — never just 'it looks like it'.

Triangles, Quadrilaterals, and Polygons

Two independent ways to classify a triangle

Every triangle gets classified by its SIDES and, separately, by its ANGLES — both labels can apply to the same triangle at once (a triangle can be right-angled and isosceles simultaneously).

  • By sides — equilateral: all three sides equal (so all angles equal 60°). Isosceles: exactly two sides equal (the two angles opposite those sides are equal too). Scalene: no sides equal, no angles equal.
  • By angles — acute-angled: all three angles under 90°. Right-angled: exactly one angle equal to 90°. Obtuse-angled: exactly one angle over 90° (only one can be, since all three must sum to 180°).
  • Quadrilaterals are named by which sides and angles are forced equal or parallel — a square is really just a rectangle with the extra rule that all sides match.
  • Polygons: 'regular' means all sides AND all angles equal (like a regular pentagon); 'irregular' breaks at least one of those. The interior angle sum only depends on the number of sides, never on regularity.
Equilateral triangle
A triangle with all three sides equal in length.Forces all three interior angles to be exactly 60°.
Isosceles triangle
A triangle with exactly two sides equal in length.The two angles opposite the equal sides are also equal.
Scalene triangle
A triangle with all three sides different lengths.All three angles are also different sizes.
Regular polygon
A polygon with all sides equal AND all interior angles equal.
Interior angle
The angle inside a polygon between two adjacent sides.
Exterior angle
The angle formed outside a polygon between one side and the extension of the adjacent side; interior + exterior = 180° at each vertex.

Six ways to classify a triangle

Side-based and angle-based classifications are independent — always check both.

EquilateralIsoscelesScaleneAcute-angledRight-angledObtuse-angled

Triangle classification at a glance

TypeSide ruleAngle consequenceExample
Equilateralall 3 sides equalall 3 angles = 60°5 cm, 5 cm, 5 cm
Isoscelesexactly 2 sides equal2 angles equal (opposite the equal sides)5 cm, 5 cm, 8 cm
Scaleneno sides equalno angles equal3 cm, 4 cm, 6 cm
Acute-angled—all angles < 90°60°, 60°, 60°
Right-angled—exactly one angle = 90°30°, 60°, 90°
Obtuse-angled—exactly one angle > 90°100°, 40°, 40°

Quadrilateral properties at a glance

ShapeSidesAnglesDiagonals
Squareall 4 equalall 4 = 90°equal length, bisect each other at 90°
Rectangleopposite sides equalall 4 = 90°equal length, bisect each other (not 90°)
Parallelogramopposite sides equal & parallelopposite angles equalbisect each other, not equal length
Rhombusall 4 equalopposite angles equalbisect each other at 90°, not equal length
Trapeziumone pair of sides parallelco-interior pairs sum to 180°not equal, don't bisect
Kitetwo pairs of adjacent sides equalone pair of opposite angles equalintersect at 90°, only one bisected

Polygon angle sums

Sum of interior angles of an n-sided polygon

— number of sides of the polygon
Memorise

Only valid for a REGULAR polygon, where every angle is identical

Exterior angles of any polygon always sum to 360° — a useful check even for irregular shapes

Worked example

Classifying by side length (Q1-style)

[2]
Three triangles have these side lengths. A: 5 cm, 5 cm, 5 cm. B: 4 cm, 4 cm, 7 cm. C: 3 cm, 4 cm, 6 cm. (a) Identify the type of each. (b) Describe how you can tell that Triangle B is isosceles.

Worked example

Spotting a hidden pattern in the numbers (Q6-style)

Triangle A: 3 cm, 4 cm, 5 cm. Triangle B: 5 cm, 12 cm, 13 cm. Triangle C: 6 cm, 8 cm, 10 cm. (a) Identify the type of each triangle by its side lengths. (b) Describe one thing you notice about how the three side lengths of each triangle are related.

Why park designers love isosceles triangles

A city planner lays out a triangular park with sides 50 m, 50 m, 70 m (Q3). The two equal 50 m sides mean the triangle has a line of symmetry running from the 70 m base straight to the opposite corner — so benches placed at matching distances along each 50 m side automatically mirror each other, no extra measuring needed on the second side.

Common mistake

Saying a triangle 'looks isosceles' or 'looks equilateral' without quoting the actual side lengths given.

Consequence: Loses the describe/identify mark even if the classification word is correct — MYP mark schemes require evidence, not impression.

Fix: Always write the numeric comparison explicitly: '4 cm = 4 cm, so two sides are equal.'

Two-part 'describe how you know' answers

For any 2-mark 'describe how you know' question, you need TWO separate ingredients: the specific numeric fact from the question (e.g. two sides both equal 5 cm) AND the named property it satisfies (isosceles has two equal sides). Giving only one of these caps you at 1 mark out of 2.

Key takeaways

  • Classify by sides (equilateral/isosceles/scalene) and by angles (acute/right/obtuse) independently — both labels can apply at once.
  • Isosceles and equilateral both guarantee equal angles opposite equal sides; scalene guarantees nothing matches.
  • Interior angle sum of any polygon is — regularity only matters when dividing to find ONE angle.
  • Quadrilaterals form a hierarchy: square ⊂ rectangle ⊂ parallelogram, and square ⊂ rhombus ⊂ parallelogram.

Symmetry and Tessellations

Symmetry describes how a shape can be moved onto itself. Line (reflective) symmetry: a mirror line splits the shape into two identical halves. Rotational symmetry: the shape maps back onto itself at some rotation angle less than a full 360° turn — the ORDER counts how many times this happens in one complete turn.

  • A square has 4 lines of symmetry and rotational symmetry of order 4.
  • An equilateral triangle has 3 lines of symmetry and order 3.
  • A regular hexagon has 6 lines and order 6 — the pattern is: regular n-sided polygon → n lines of symmetry, order n.
  • A non-square parallelogram has NO line symmetry but does have rotational symmetry of order 2 (180° turn maps it onto itself).

A tessellation is a pattern of shapes that covers a flat surface with no gaps and no overlaps. Regular tessellations (using only ONE regular polygon repeated) only work with equilateral triangles, squares, and regular hexagons — because their interior angles (60°, 90°, 120°) divide evenly into the 360° needed at each meeting point.

Line (reflective) symmetry
A shape has line symmetry if a mirror line divides it into two congruent, mirror-image halves.
Rotational symmetry (order)
The number of times a shape maps exactly onto itself during one full 360° rotation about its centre.
Tessellation
A repeating pattern of one or more shapes that covers a plane with no gaps and no overlaps.

Line symmetry vs rotational symmetry

A shape's line symmetry count and rotational order don't have to match — a parallelogram has 0 lines but order 2.

Line symmetry: 4 linesRotational symmetry: order 4

Why honeycombs are hexagons, not squares or circles

Bees build hexagonal cells because regular hexagons tessellate perfectly (120° interior angle × 3 = 360°, no gaps) while using less wax per unit of storage area than an equivalent tiling of triangles or squares — circles can't tessellate at all, leaving wasted gaps between them.

Common mistake

Writing 'no rotational symmetry' for a shape that maps onto itself only at the full 360° turn.

Consequence: This is marked wrong — every shape technically has rotational symmetry of AT LEAST order 1 (the trivial full turn).

Fix: Say 'rotational symmetry of order 1' instead of 'none' when a shape only matches itself after a complete rotation.

Key takeaways

  • Line symmetry = mirror-image halves; rotational symmetry (order n) = maps onto itself n times in one full turn.
  • A regular n-gon has n lines of symmetry and rotational order n — but irregular shapes break this pattern.
  • Only equilateral triangles, squares, and regular hexagons tessellate alone, because their interior angles divide 360° exactly.

Congruence and Similarity

Congruent shapes are IDENTICAL — same size, same angles, same side lengths — just possibly reflected, rotated, or moved. Similar shapes have the SAME SHAPE but a different SIZE: all angles match, and every pair of corresponding sides is in the same fixed ratio (the scale factor).

  • Congruence tests for triangles: SSS (all 3 sides match), SAS (2 sides + the included angle match), ASA (2 angles + the included side match), RHS (right angle, hypotenuse, and one other side match).
  • Similarity test: AA is enough — if two angles match, the third must match too (angle sum is fixed at 180°), forcing the same shape.
  • Scale factor k relates corresponding lengths: multiply every length in the smaller figure by k to get the larger figure's lengths.
  • Matching vertices IN ORDER (like naming triangle PQR similar to XYZ) tells you exactly which sides correspond — get the order wrong and every ratio is wrong.
Congruent
Identical in shape AND size — every corresponding side and angle is exactly equal.
Similar
Identical in shape but not necessarily size — corresponding angles are equal and corresponding sides are in the same ratio.
Scale factor
The single ratio by which every corresponding length of a similar figure is multiplied.
Corresponding sides/angles
The sides or angles in the SAME relative position in two shapes, matched by the order the vertices are named.

Scale factor and area

Scale factor between two similar shapes

If lengths scale by k, enclosed area scales by k squared — a common trap when comparing similar shapes' areas

Worked example

Finding missing sides in similar triangles

Triangle PQR has PQ = 6 cm, QR = 8 cm, RP = 10 cm. Triangle XYZ is similar to PQR, with XY corresponding to PQ, and XY = 9 cm. Calculate YZ and ZX.

Frequently confused

Concept AConcept BThe distinction that matters
CongruentSimilarCongruent needs equal side lengths AND equal angles; similar only needs equal angles — sides just need the same ratio, not the same length.

Common mistake

Assuming any two triangles with one equal angle and one equal side are automatically congruent.

Consequence: Two shapes can share isolated matching measurements without satisfying a full congruence test (SSS/SAS/ASA/RHS) — this earns no marks in a justify/prove question.

Fix: Name the specific test being satisfied (e.g. 'SAS: 2 sides and the included angle match') rather than listing coincidental matches.

Key takeaways

  • Congruent = same shape AND same size; similar = same shape, sizes scaled by a constant factor.
  • Congruence needs a full test (SSS, SAS, ASA, RHS); similarity only needs AA.
  • If lengths scale by k, area scales by — a frequent trap in area-comparison questions.

Circle Properties and Terminology

Every circle question at this level is really a vocabulary test — you can't calculate anything until you know exactly which part of the circle you're looking at.

  • Radius: distance from centre to the edge. Diameter: a chord through the centre, exactly twice the radius.
  • Chord: any straight line joining two points on the circumference (doesn't have to pass through the centre — the diameter is just the longest possible chord).
  • Arc: a curved piece of the circumference; sector: the 'pizza slice' region between two radii and an arc; segment: the region between a chord and an arc.
  • Tangent: a straight line that touches the circle at exactly ONE point, always perpendicular to the radius drawn to that point.
Radius
A straight line from the centre of the circle to any point on the circumference.
Diameter
A chord passing through the centre; equal to twice the radius.
Chord
A straight line joining any two points on the circumference.
Tangent
A straight line touching the circle at exactly one point, perpendicular to the radius at that point.
Sector
The region enclosed by two radii and the arc between them.
Segment
The region enclosed by a chord and the arc it cuts off.

Parts of a circle

Every one of these terms shows up in circle questions — mixing up chord and tangent, or radius and diameter, is the single most common vocabulary error.

centre Oradiusdiameterchordarcsectorsegmenttangent

Circumference and area

Circumference of a circle

— radius (cm/m)
— diameter (cm/m)
Memorise

Area of a circle — always uses the RADIUS, never the diameter directly

Common mistake

Plugging the diameter straight into without halving it first.

Consequence: Produces an area exactly 4 times too large — this is the single most common circle-formula error.

Fix: Always write as an explicit first line of working before using the area formula.

Key takeaways

  • Diameter = 2 × radius; chord is any line across the circle, diameter is the longest possible chord.
  • Tangent touches at exactly one point and is perpendicular to the radius there.
  • uses radius directly; needs radius squared — never substitute diameter into either without converting first.

Angle Rules and Proofs

A small set of sum-facts justifies almost every angle calculation you'll be asked to do — memorise these and every 'calculate the missing angle' question becomes a one-line equation.

  1. Angles on a straight line sum to 180°.
  2. Angles around a point sum to 360°.
  3. Vertically opposite angles (formed by two crossing lines) are always equal.
  4. Angles in any triangle sum to 180°.
  5. Angles in any quadrilateral sum to 360° (split it into two triangles: ).
  6. Exterior angle theorem: an exterior angle of a triangle equals the sum of the two non-adjacent (opposite) interior angles.

Core angle-sum facts

Angles on a straight line

Memorise

Angles around a point

Angles in a triangle

Memorise

Angles in a quadrilateral

Exterior angle theorem for a triangle

Worked example

Naming, describing, and calculating (Q7-style)

[5]
A triangle has three angles that add up to 180°. The three angles of a scalene triangle are 35°, 55°, and 90°. (a) Name the type of triangle shown. (b) Describe how you know the triangle is scalene, using the word 'angles'. (c) A second scalene triangle has a smallest angle of 40° and a largest angle of 95°. Calculate the missing angle.

'Calculate' still needs the rule named

Even a pure calculation question awards a method mark for stating WHICH angle rule you're using (e.g. 'angles in a triangle = 180°') before the arithmetic — skipping straight to the number risks losing that mark if the final answer is wrong.

Key takeaways

  • Six facts cover almost every angle problem: straight line 180°, point 360°, vertically opposite equal, triangle 180°, quadrilateral 360°, exterior = sum of opposite interiors.
  • Always write the equation using the named rule before solving — this is where method marks live.
  • Check your final answer is consistent with any classification (scalene/isosceles/right-angled) stated in the question.

Lines, Angles, and Their Properties

Angle TYPES first: acute (0°–90°), right (exactly 90°), obtuse (90°–180°), straight (exactly 180°), reflex (180°–360°). Then LINE relationships: what happens when a transversal line crosses two parallel lines.

  • Corresponding angles (F-shape): same position at each intersection — equal.
  • Alternate angles (Z-shape): opposite sides of the transversal, between the parallel lines — equal.
  • Co-interior / allied angles (C-shape): same side of the transversal, between the parallel lines — sum to 180°, NOT equal.
  • Vertically opposite angles: formed where any two straight lines cross — always equal, regardless of parallel lines.
Transversal
A line that crosses two or more other lines, typically two parallel lines.
Corresponding angles
Angles in matching positions at two different intersections of a transversal with parallel lines; always equal.
Alternate angles
Angles on opposite sides of the transversal, between the two parallel lines; always equal.
Co-interior (allied) angles
Angles on the same side of the transversal, between the two parallel lines; sum to 180°.
Perpendicular lines
Two lines that meet at exactly 90°.

Angles formed by a transversal across parallel lines

Same shape as the letter formed by the marked angles: F = corresponding, Z = alternate, C = co-interior.

12345678correspondingalternateco-interior

Mnemonic

F = corresponding, Z = alternate, C = co-interior

Trace the shape the marked angles make with the transversal and parallel lines: an F-shape means the angles correspond (equal), a Z-shape means alternate (equal), a C-shape (or U-shape) means co-interior (sum to 180°).

Worked example

Angle types and everyday examples (Q4/Q5-style)

(i) A triangle has one angle marked greater than 90°. Name the triangle type, describe what makes an angle obtuse, and give an example of an obtuse-angled triangle with three valid angle sizes. (ii) A different triangle has one angle marked 90°. Name the type, describe what a right angle looks like, and give two everyday examples of a right angle, describing how they're similar.

Common mistake

Assuming co-interior angles are equal, just like corresponding and alternate angles.

Consequence: Leads to a wrong angle calculation whenever two lines are on the SAME side of the transversal — the two co-interior angles sum to 180° instead.

Fix: Trace the letter shape first (F/Z/C) before deciding whether the pair is equal or supplementary.

Key takeaways

  • Angle types by size: acute < 90° < right = 90° < obtuse < 180° = straight < reflex < 360°.
  • Corresponding and alternate angle pairs are EQUAL; co-interior pairs sum to 180°.
  • Vertically opposite angles are always equal, with or without parallel lines involved.

Quick Reference

Geometry: Properties of Shape — everything on one page

Formulas

  • Interior angle sum of an n-sided polygon
  • Circumference — uses radius or diameter directly
  • Area of a circle — radius only, halve the diameter first
  • Scale factor between similar shapes; area scales by
  • Angles in a triangle
  • Angles on a straight line

Key facts

Angles in a triangle
180°
Angles in a quadrilateral
360°
Angles around a point
360°
Shapes that tessellate alone
equilateral triangle, square, regular hexagon

Mnemonics

  • F = corresponding, Z = alternate, C = co-interiorMatch the letter shape traced by the transversal and parallel lines to the angle rule (equal, equal, sums to 180°).

Don't confuse

  • Congruent vs Similar: Congruent = equal sides AND equal angles; similar = equal angles only, sides in the same ratio.
  • Alternate angles vs Co-interior angles: Alternate (Z-shape) are equal; co-interior (C-shape) sum to 180°.
  • Radius vs Diameter: Diameter is exactly twice the radius, and passes through the centre as a full chord.

Command terms

Identify/Name:
One correct word, no justification needed.
Describe:
State the rule AND the specific numeric evidence from the question.
Calculate:
Show the equation using the named rule before solving.
Give an example of:
Check your invented numbers actually satisfy the rule before submitting them.

Exam checklist

  • Classified the triangle by BOTH sides and angles where relevant?
  • Quoted actual numbers, not just 'it looks like', in every describe/explain answer?
  • Matched corresponding sides in the correct vertex order for similarity/congruence?
  • Halved the diameter before squaring for circle area?
  • Named the specific angle rule (straight line/point/triangle/quadrilateral) before calculating?
  • Checked alternate vs co-interior by tracing the Z/C shape, not assumed equal?
