MYP Year 2 Mathematics – Geometry strand: Measurement & Calculation

30 min readStandardCore measurement strand — tested in unit tests, criterion-C/D investigations, and on-screen eAssessment tasks throughout the year.

Every solid or shape you meet in this unit reduces to the same two questions: how much surface does it have, and how much space is inside it? Once you can see a cuboid as 'three pairs of rectangles' and a cylinder as 'two circles plus one rolled-up rectangle', you stop memorising formulas and start deriving them. This unit also drags in the real world hard — map scales, compass bearings, unit conversions — because measurement only matters when it connects to something you can actually build, walk, or pour.

Overview — how this chapter fits together

This whole topic is really one idea applied six ways: decompose a shape into pieces you already know the area or volume of, then add, subtract, or multiply sensibly. Surface area is 'add up every flat face'. Volume is 'stack a base area through a height'. Compound shapes and nets are just that decomposition done visually. Scale drawings and unit conversions are the same idea applied to ratios instead of shapes. Nothing here requires a new formula you can't build from a rectangle and a triangle.

  • Two families of quantity: linear (length, perimeter, scale distance — measured in cm, m, km), area (surface area, 2D area — cm², m²), volume (cm³, m³, litres).
  • Every conversion factor gets squared for area and cubed for volume — this single rule causes more lost marks than any other in the whole unit.
  • Bearings and scale drawings are geometry applied to navigation — the maths is identical to the shapes work, just with a compass and a ratio bolted on.

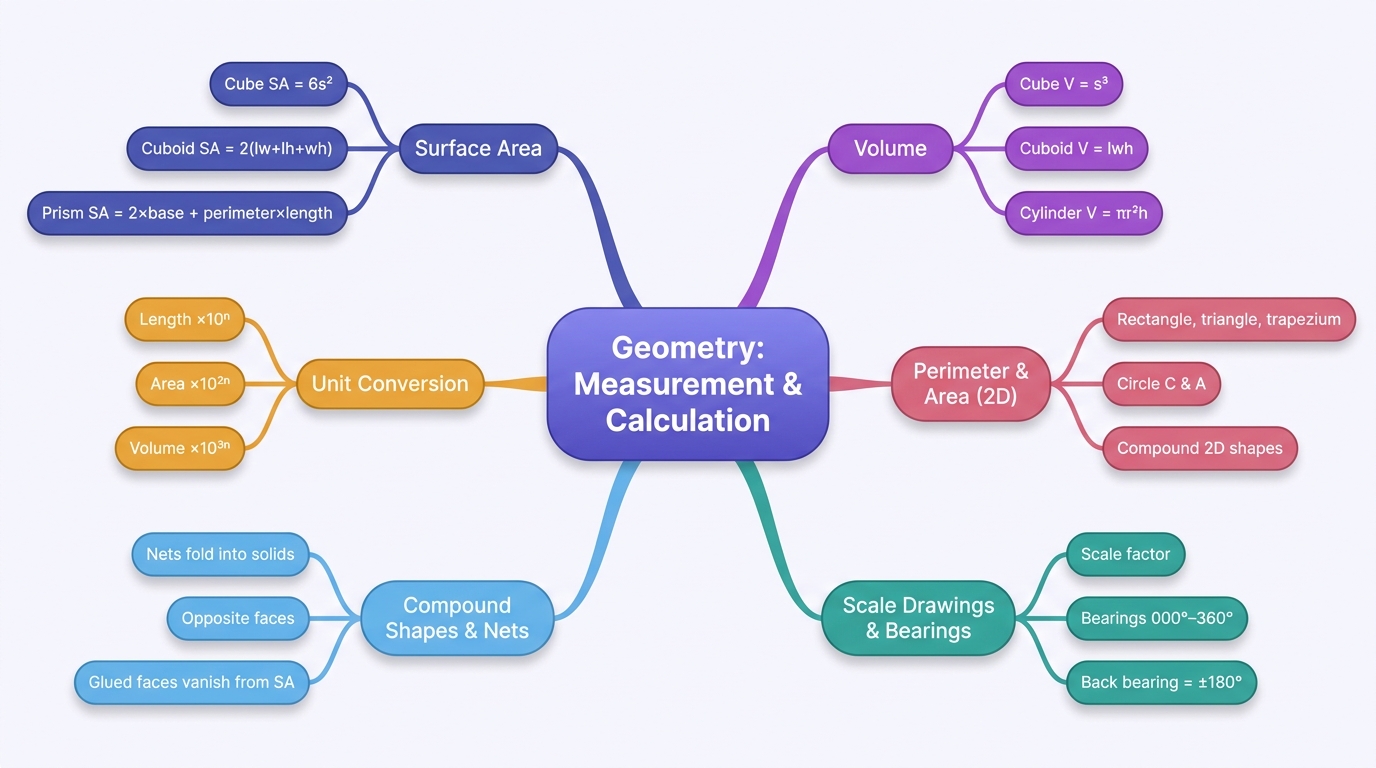

The shape of the chapter

Command terms this topic loves to test

Command termWhat it demandsAOMark-earning move
CalculateProduce a numeric answer with full working shown.AO1/AO2A correct final answer with no working shown often only earns the answer mark, not the method marks — write out each substitution step.
DescribeState what something is or how it behaves, in words.AO2If the question gives you required words (e.g. face, area, total), you must use them — a correct idea in different wording can lose the mark.
IdentifyName or select the correct item — no reasoning required.AO1One word or a short label is enough; adding an explanation earns nothing extra here but also costs nothing.
ExplainGive a reason that links a cause to an effect.AO2A bare fact with no 'because' scores zero — the mark is for the linking reason, not the fact itself.
CompareState similarities AND differences between two or more things.AO3Listing values for each item separately without contrasting them (e.g. 'A is bigger than B') misses the compare mark entirely.
ConstructDraw accurately using a ruler, protractor or compass.AO1Freehand or approximate diagrams lose accuracy marks even if the general shape is right.

Key point

Every formula in this unit is just 'area of a face' or 'area × length' applied sensibly. If you can identify the base and the faces of a solid, you can rebuild any SA or V formula from scratch — you don't need to memorise them blind.

  1. Surface Area of Cubes, Cuboids and Prisms

Surface area answers 'how much material would I need to wrap this solid with no overlap and no gaps?' A cuboid has 6 faces arranged in 3 congruent pairs (top/bottom, front/back, left/right) — you only ever calculate 3 different rectangle areas, then double the sum.

  • A cube is the special case where all three pairs are identical squares — hence the neat .
  • A prism's surface area splits into two identical end faces (the cross-section, e.g. a triangle) plus a set of rectangular 'side' faces that wrap around like a label on a tin.
  • The rectangular side faces of a prism unroll into one long rectangle: width = perimeter of the cross-section, length = the prism's length.
Face
A flat 2D surface forming part of the boundary of a 3D solid.
Surface area
The total area of every face of a solid, added together; measured in square units (cm², m²).
Net
A 2D flat pattern that folds up, edge to edge, to form a 3D solid — every face of the solid appears exactly once.

Surface area formulas

— edge length (cm)
Memorise

— length, width, height (cm)
Memorise

— area of the cross-section (e.g. a triangle)
— perimeter of that cross-section
— length of the prism

The '2A_base' covers the two end faces; the 'P×L' term covers all the rectangular side faces in one go.

Cuboid with three congruent face-pairs

The 6 faces of a cuboid form only 3 distinct shapes — that's why the formula doubles a sum of three products.

l = 5 cmw = 3 cmh = 4 cm

Worked example

Describing surface area (not calculating it)

[2]
The diagram shows a cuboid with length 5 cm, width 3 cm, and height 4 cm. Describe what is meant by the surface area of this cuboid. Use the words face, area, and total in your answer. [2]

Worked example

Calculating SA — and checking a claim rather than trusting it

[4]
A cuboid has l = 5 cm, w = 3 cm, h = 4 cm. (a) How many rectangular faces does it have? (b) Calculate its total surface area. (c) A second cuboid, claimed to have the 'same surface area', has l = 6 cm, w = 2 cm, h = 5 cm. Calculate its surface area.

Surface area formulas across solids

SolidNumber of facesSA formulaComment
Cube6 (all congruent squares)Only one variable — fastest to compute
Cuboid6 (3 congruent pairs)l, w, h are independent of each other
Triangular prism5 (2 triangular + 3 rectangular)Rectangular faces depend on the triangle's side lengths, not just its base
Cylinder3 (2 circular + 1 curved)The curved face 'unrolls' into a rectangle of width

Worked example

Same volume, three different boxes — which uses least card?

[3]
A gift box must hold exactly 1000 cm³. Option A: 10×10×10 cm. Option B: 20×10×5 cm. Option C: 25×8×5 cm. Calculate the surface area of each and decide which needs the least material.

Graph of SA = 6s² for a cube

The curve gets steeper as s increases — SA grows with the square of s, not in proportion to it.

SA = 6s²(2, 24)(4, 96)

Worked example

Reading the SA–s graph correctly

[3]
The graph shows SA = 6s² for a cube. (a) Identify the shape of the graph. (b) Explain why surface area increases faster than side length. (c) Compare the surface area when s = 2 cm and s = 4 cm.

Worked example

Testing the claim: 'double the edges, double the surface area'

[5]
A student claims doubling every edge of a cube doubles its surface area. A cube has side length 3 cm. (a) State the formula for SA of a cube. (b) Calculate SA for side 3 cm and side 6 cm. (c) Is the student correct?

Common mistake

Computing and forgetting the outer '×2', or only finding the area of ONE face instead of all six.

Consequence: This typically loses the final answer mark even when every individual product (lw, lh, wh) was found correctly — it's an arithmetic slip that a marker cannot award method credit for beyond the substitution stage.

Fix: After adding the three products, sanity-check that your final SA is roughly double that sum — cuboids always have 3 congruent pairs of faces, never 3 single faces.

Examiner tip

When asked to 'calculate' a surface area, write , , as three separate lines before adding and doubling. Markers give method marks for correctly identifying the three products even if your final multiplication or addition slips.

Key takeaways

  • ; ; both come from 'sum three face-pairs, double it'.
  • Doubling every linear dimension of a solid always multiplies SA by 4 (a squared quantity) — never by 2.
  • 'Describe the surface area' questions want the concept in words using the exact vocabulary given, not a formula.

  1. Volume of Cubes, Prisms and Cylinders

Volume measures the 3D space enclosed by a solid — think 'how much water would it hold'. Every volume formula in this unit is a variation on one idea: take the area of a repeating cross-section, and multiply by how far that cross-section repeats.

  • A cuboid's cross-section is a rectangle (l×w), repeated through height h — hence .
  • A cylinder's cross-section is a circle (), repeated through height h — hence .
  • A triangular prism's cross-section is the triangle itself; do NOT confuse the triangle's own height (used inside its area formula) with the prism's length (how far that triangle is 'pushed' to make the solid).

Volume formulas

Memorise

Memorise

— area of the repeating cross-section
— prism length (perpendicular distance between the two end faces)

Works for ANY prism, including a cylinder — it's the single most useful idea in this section.

— radius of circular cross-section
— height of cylinder
Memorise

Triangular prism — distinguishing triangle height from prism length

The triangle's own height (h_t) feeds the base area; the prism's length (L) is a completely separate measurement.

bh_tLA = ½ × b × h_t

Worked example

SA:V ratio for cubes of increasing size

[4]
Cubes have side lengths 1, 2, 3 and 4 units. (a) Calculate the surface area and volume of each. (b) Calculate the SA:V ratio for each and describe the trend as side length increases.

Why elephants don't overheat and ice cubes melt slower than crushed ice

The falling SA:V ratio you just calculated is exactly why small animals lose body heat far faster (relative to their mass) than large ones — more surface exposed per unit of volume. It's also why a large block of ice melts more slowly than the same total volume of ice crushed into small cubes: crushing multiplies the total exposed surface area without changing the volume at all.

Common mistake

Confusing a triangular prism's length (the distance between its two triangular ends) with the triangle's own internal height used inside the ½bh area calculation.

Consequence: Using the wrong 'height' silently produces a completely wrong volume — often exactly double or half the correct answer, which is easy to miss if you don't sanity-check the units and shape.

Fix: Always find the cross-sectional area first as its own separate step, label it , then multiply by the prism's length in a second, clearly separate line of working.

Key point

Volume of ANY prism (cylinder included) = area of the repeating cross-section × the length it repeats through. Learn this once and you never need a separate memorised formula for triangular prisms.

Key takeaways

  • covers cuboids, triangular prisms and cylinders — one idea, three shapes.
  • SA:V ratio for a cube simplifies to — it always falls as the cube gets bigger.
  • Never mix up a prism's length with the height used inside its cross-section's own area formula.

  1. Compound Shapes and Nets

A net is the 'unfolded' 2D version of a 3D solid — every face appears exactly once, and edges that will be glued together in 3D must match in length in the net. Compound (composite) solids are built by joining two or more simple solids face-to-face.

  • When two solids are glued together, BOTH of the touching faces disappear from the outside — they're now internal, hidden joints.
  • For compound 2D shapes, split into rectangles/triangles you already know how to handle, then add (pieces joined side-by-side) or subtract (a notch or hole removed).
  • In a net folded into a cube, two faces end up 'opposite' (parallel, never touching) only if exactly one other face sits directly between them along a row of the net.

Cross-shaped net of a cube

Trace along the row: A–B–C means B sits between A and C, so A and C become opposite faces when folded.

ABCDEF

Worked example

Identifying and explaining opposite faces on a net

[2]
The net of a cube has faces labelled A to F (cross-shaped net: row A-B-C-D, with E above B and F below B). Identify which face is opposite face A when folded, and explain how you know.

Common mistake

Calculating the surface area of a compound solid as simply for the two pieces glued together.

Consequence: This overcounts the surface area — the two touching faces are no longer on the outside of the solid at all, so their area shouldn't be counted once, let alone twice.

Fix: Subtract (area of the joining face) from — once for each solid's hidden face — to get the true outer surface area of the compound shape.

Key takeaways

  • A net folds correctly only if every face appears exactly once and matching edges are the same length.
  • Opposite faces on a cube net: exactly one other face sits between them along a row.
  • Joining two solids face-to-face removes 2× that joining area from the total surface area, never adds it.

  1. Scale Drawings, Maps and Bearings

A scale drawing shrinks (or enlarges) reality by a fixed ratio — every length on the page corresponds to the same multiple of a real-world length. Bearings describe direction the same way a clock describes time: always starting from north, always turning clockwise.

  • Scale written as a ratio (e.g. 1 : 25 000) must be converted to a single scale factor before you multiply or divide by it.
  • A bearing is always a three-digit angle measured clockwise from north (000° to 360°) — 7° is written 007°, never 7°.
  • The back bearing (direction to travel back the way you came) is found by adding 180° if the original bearing is less than 180°, or subtracting 180° if it's 180° or more.
Scale
A ratio comparing a length on a drawing/map to the corresponding real-life length, written as drawing : actual (e.g. 1 : 500).
Scale factor
The single number extracted from a scale ratio, used to multiply or divide actual calculations (e.g. the '500' in 1:500).
Bearing
The direction to a point, measured as an angle in degrees clockwise from north, always written using three digits (e.g. 007°, 090°, 315°).

Scale and bearing relationships

Bearing and back bearing between two points

The back bearing is always exactly 180° different from the outward bearing.

N065°245°

Worked example

Map scale and bearing combined

[3]
On a map with scale 1 : 25 000, a hiking trail measures 8 cm between two campsites, on a bearing of 052° from Camp A to Camp B. (a) Calculate the real distance between the camps in km. (b) State the bearing from Camp B back to Camp A.

Mnemonic

N-C-T: North first, Clockwise, always Three digits.

Every bearing is measured starting FROM north, turning CLOCKWISE, and written with THREE digits — so a 7° angle is written 007°, not 7°.

Common mistake

Writing a bearing as '52°' instead of '052°', or measuring the angle anticlockwise from north.

Consequence: Incorrect notation (missing leading zero) commonly loses the final answer mark even when the angle itself is correct — bearings are a strict three-digit convention.

Fix: Always pad bearings under 100° with a leading zero, and double-check the turn direction is clockwise by physically tracing from the north arrow towards the target point.

Frequently confused

Concept AConcept BThe distinction that matters
Scale (ratio)Scale factor (number)Scale is written as a ratio like 1:500 comparing two lengths directly; scale factor is the single number (500) pulled out of that ratio to multiply or divide by — you must convert the ratio into the factor before doing any calculation.

Key takeaways

  • Always convert a scale ratio into a scale factor before multiplying or dividing.
  • Bearings: measured clockwise from north, always written as three digits.
  • Back bearing = original bearing ± 180° (add if under 180°, subtract if 180° or over).

  1. Conversion of Units — Length, Area, Volume

A linear conversion factor gets applied once for length, squared for area, and cubed for volume — because area is length×length and volume is length×length×length. This single rule is responsible for more silently wrong answers than any other in this whole unit.

Why 1 m² is not 100 cm²

1 m² splits into a 10×10 grid of 10 cm squares — that's 100 small squares, not 100 cm².

1 m × 1 m10 cm × 10 cm1 m² = 10 000 cm²

Conversion factors — length, area, volume

ConversionLength factorArea factor (factor²)Volume factor (factor³)
mm ↔ cm×10 / ÷10×100 / ÷100×1 000 / ÷1 000
cm ↔ m×100 / ÷100×10 000 / ÷10 000×1 000 000 / ÷1 000 000
m ↔ km×1 000 / ÷1 000×1 000 000 / ÷1 000 000×1 000 000 000 / ÷1 000 000 000

Metric volume–capacity link

Useful for converting a calculated volume straight into a liquid capacity.

Worked example

Converting a calculated SA and V into different units

[3]
A cube of side 4 cm has surface area 96 cm² and volume 64 cm³ (from earlier). Convert both into m².

Common mistake

Substituting mismatched units directly into a formula (e.g. length in metres, height in centimetres) without converting first.

Consequence: Produces an answer wrong by a factor of 100, 10 000 or more, even though the formula and method were otherwise perfectly correct — usually loses the entire final answer mark.

Fix: Before substituting into any SA or V formula, convert every given measurement into the SAME unit first, and write that converted value clearly as its own line of working.

Examiner tip

When a question mixes units inside one formula, convert everything to a common unit BEFORE substituting — examiners deliberately mix cm and m in multi-part questions specifically to test this step.

Key point

Linear conversion factor → square it for area, cube it for volume. If you ever convert an area or volume by just multiplying/dividing by the linear factor once, the answer is wrong by a factor of 100 or 1000.

Key takeaways

  • Length ×10ⁿ, Area ×10²ⁿ, Volume ×10³ⁿ — always square or cube the linear conversion factor.
  • 1 cm³ = 1 mL and 1000 cm³ = 1 L links volume calculations to real liquid capacities.
  • Convert ALL given measurements to one common unit before substituting into any formula.

  1. Perimeter and Area of 2D Shapes

Perimeter is the distance around a shape's boundary — a 1D linear measurement (cm, m), found by adding side lengths. Area is the amount of 2D space enclosed inside that boundary — measured in squared units (cm², m²). They are calculated completely differently and don't move together.

Standard 2D perimeter and area formulas

— the two parallel sides
— perpendicular height between them

Trapezium with labelled parallel sides and height

h must be the perpendicular distance between the parallel sides, not the length of a slanted edge.

abh

Worked example

L-shaped garden — area vs perimeter after removing a corner

[4]
An L-shaped garden is formed by removing a 5 m × 3 m rectangular corner from a 12 m × 8 m rectangular plot. Calculate (a) the area and (b) the perimeter of the L-shaped garden.

Frequently confused

Concept AConcept BThe distinction that matters
PerimeterAreaPerimeter is the 1D boundary length (linear units, found by adding side lengths); area is the 2D enclosed space (squared units, found by multiplying dimensions) — a shape's area can shrink while its perimeter stays the same or even grows, they are not proportional to each other.

Carpeting a room vs skirting board

When you carpet a room you're paying for AREA (cost per m²); when you fit skirting board around the walls you're paying for PERIMETER (cost per metre run). Builders quote these completely separately for exactly this reason — a long thin room and a square room of the same area need very different amounts of skirting board.

Common mistake

Using a slanted side length instead of the perpendicular height in the trapezium or triangle area formula.

Consequence: Produces a plausible-looking but incorrect area — the mistake is easy to miss because the number still looks like a reasonable measurement.

Fix: Always confirm the height given is measured at a right angle to the base/parallel sides before substituting — look for the right-angle mark in the diagram.

Key takeaways

  • Perimeter adds lengths (linear units); area multiplies dimensions (squared units) — they never move in fixed proportion to each other.
  • Trapezium area needs BOTH parallel sides and the perpendicular height between them: .
  • Removing a corner notch from a rectangle changes area but can leave the perimeter completely unchanged — always trace the actual new boundary.

Quick Reference

Geometry: Measurement & Calculation — everything on one page

Formulas

  • Cube surface area
  • Cuboid surface area
  • Any prism's surface area
  • Cylinder surface area
  • Cube volume
  • Cuboid volume
  • Any prism, including a cylinder
  • Cylinder volume
  • Rectangle perimeter
  • Triangle area
  • Trapezium area
  • Circle circumference and area
  • Scale drawings
  • Add if θ<180°, subtract if θ≥180°

Key facts

SA:V ratio of a cube
— shrinks as the cube grows
Doubling every edge of a solid
multiplies SA by 4, multiplies V by 8
1 m²
10 000 cm²
1 m³
1 000 000 cm³
1 cm³
1 mL

Mnemonics

  • N-C-TNorth first, Clockwise, Three digits — the rule for writing every bearing.

Don't confuse

  • Perimeter vs Area: Linear boundary length (add sides) vs enclosed 2D space (multiply dimensions) — not proportional to each other.
  • Scale (ratio) vs Scale factor (number): 1:500 is the ratio; 500 is the factor you actually multiply/divide by.

Command terms

Calculate:
Show every substitution step — a bare final answer often loses the method marks.
Describe:
Use any specific vocabulary the question requires; explain the concept, not a formula.
Explain:
State a reason with 'because...' — a fact alone earns nothing.
Compare:
State the numeric ratio or difference, not just two separate values.

Exam checklist

  • Squared the conversion factor for area, cubed it for volume?
  • Cuboid SA doubled after summing the three face products?
  • Bearing written with three digits, measured clockwise from north?
  • Height used in a triangle/trapezium area is perpendicular, not a slanted side?
  • All given measurements converted to the same unit before substituting?
  • Traced every edge of a compound shape individually rather than reusing the original perimeter formula?
