MYP Year 2 Mathematics – Geometry: Properties of Shape

24 min readStandardCore geometry strand of MYP Year 2 — assessed mainly under Criterion A (Knowing & Understanding) and Criterion D (Applying to real-life contexts)

This whole topic is really one skill repeated six ways: look at a shape, name a property, then prove you're right using a rule — not a guess, not 'it looks like it'. Examiners give marks for the justification (the angle sum, the tick marks, the Pythagorean check), never for the label alone. Every real exam question below hides a small trap: a classmate's wrong claim, a measurement assumption, or a definition you have to apply exactly as written.

Overview

Properties of Shape is the study of what makes a figure that figure — its side relationships, its angles, its symmetry, and how it compares to other figures. Six ideas run through every question: classify by measurement, prove using a rule, and check your classification survives real-world imperfection (bent wood, sloped land, rounding).

  • Triangles and polygons are classified two independent ways — by sides AND by angles. A triangle can be both scalene and obtuse at once.
  • Symmetry and tessellation are about a shape mapping onto itself — through a mirror line (reflection) or a turn (rotation).
  • Congruence means identical; similarity means same shape, different size, connected by a single scale factor.
  • Circles bring their own vocabulary — mixing up 'radius' and 'diameter' in a formula is the single most common circle error.
  • Angle rules (triangle sum, parallel-line angles, exterior angle) are the proof engine behind almost every classification claim in this topic.

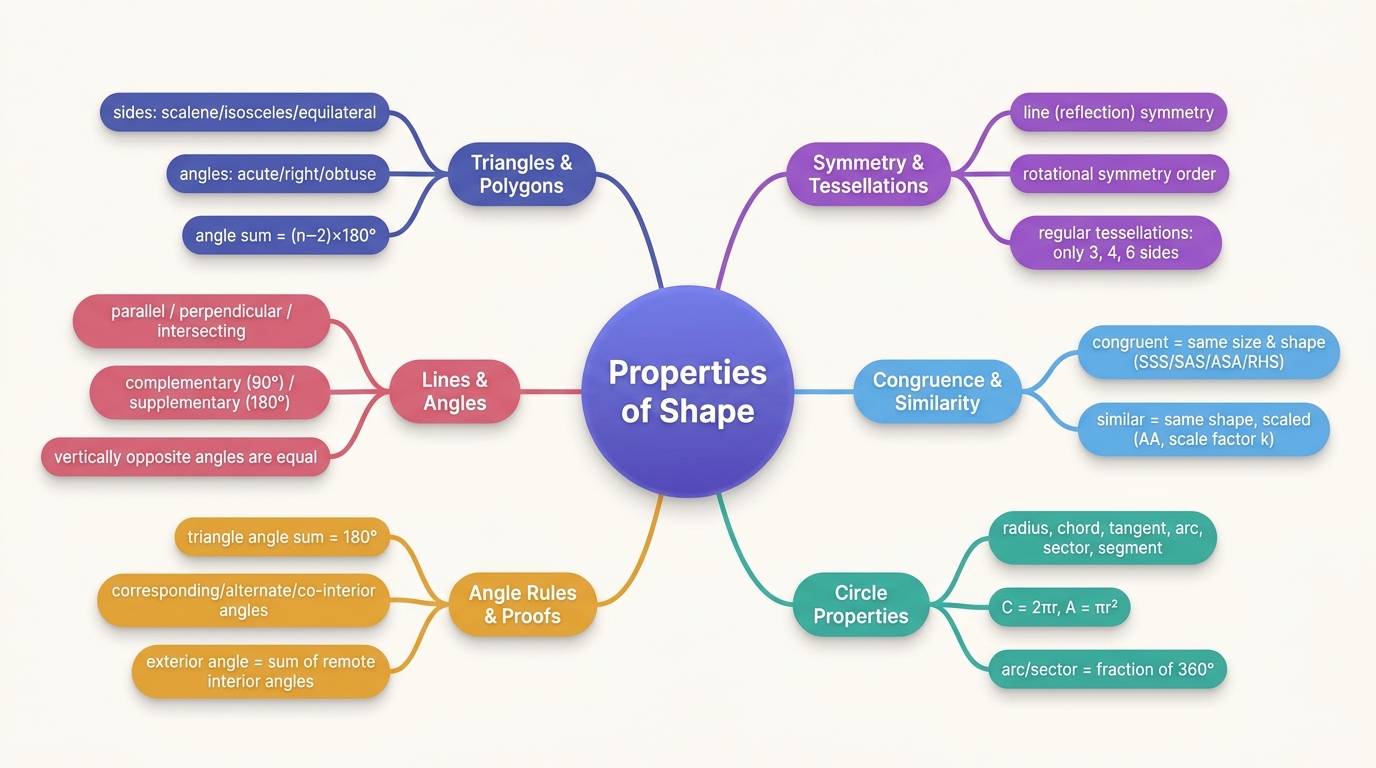

The shape of the chapter

Command terms this topic tests constantly

Command termWhat it demandsAOMark-earning move
IdentifyPick out and name a feature from given informationKnowing & Understanding1 mark for the correct name only — no working needed.
StateGive a fact or rule with no explanationKnowing & Understanding1 mark for the correct statement — extra detail earns nothing more.
CalculateObtain a numerical answer, showing the method usedApplying & ReasoningWorking must be visible — an unsupported final answer that's wrong scores 0, even if close.
DescribeGive a detailed, specific account of a relationship or processCommunicatingVague answers ('they are related') score 0 — name the actual rule.
ExplainGive reasons for why something happens, not just what happensApplying & ReasoningRestating the fact without the 'why' behind it scores 0.
CompareGive similarities AND differences between two thingsApplying & ReasoningDiscussing only one item loses roughly half the marks.
JustifySupport a conclusion with valid evidence or calculationApplying & ReasoningA correct conclusion with no supporting working scores 0 for the justification mark.

Key point

Every classification claim in this topic — isosceles, right-angled, congruent, tessellating — must be backed by the actual rule (equal sides, angle sum, Pythagorean check, a congruence condition). 'It looks like it' is never accepted as justification.

Triangles, Quadrilaterals, and Polygons

Every triangle gets classified two separate ways, and you're often asked for both labels in the same answer.

  • By sides: scalene (all different), isosceles (exactly two equal), equilateral (all three equal — and all angles 60°).
  • By angles: acute (all angles < 90°), right (one angle = 90°), obtuse (one angle > 90°).
  • Quadrilaterals form a family: parallelogram → rectangle/rhombus → square (a square is both); trapezium has exactly one pair of parallel sides; kite has two pairs of adjacent equal sides.
  • The interior angle sum of ANY polygon depends only on the number of sides: split it into (n−2) triangles from one vertex, and each triangle contributes 180°.
  • The exterior angles of any convex polygon always sum to 360° — this is true whether it's a triangle or a 20-gon, and it's independent of the angle sum rule above.

Key terms

Triangle inequality
The sum of any two sides of a triangle must be strictly greater than the third side.This is why 60 cm, 60 cm, 85 cm forms a valid triangle: 60+60=120 > 85.
Convex polygon
A polygon where every interior angle is less than 180° and no vertex points 'inward'.The exterior-angle-sum-to-360° rule only applies to convex polygons.
Pythagorean inequality
For the longest side c: if a²+b²=c² the triangle is right-angled; if a²+b²>c² it's acute; if a²+b²<c² it's obtuse.Always identify the longest side FIRST — squaring the wrong pair flips the answer.

Angle sums and the Pythagorean checks

Angle sum of any triangle

Memorise

Interior angle sum of an n-sided convex polygon

— number of sides

True for every convex polygon, regardless of n

c is the longest side

Triangle classification by sides and by angles

Sides and angles are classified independently — a triangle needs a label from each row.

ScaleneIsoscelesEquilateralAcuteRightObtuse

Worked example

Q3 — Surveyor's triangular plot (5 m, 12 m, 13 m)

[6]
A surveyor measures the three sides of a triangular plot of land as 5 m, 12 m, and 13 m. (a) Identify the type of triangle by its angles, using the Pythagorean theorem to justify your answer. (b) Calculate the perimeter of the plot. (c) The surveyor assumes the land is perfectly flat. Explain one way this assumption could affect the accuracy of the side-length measurements.

Worked example

Q4 — Classifying four triangles with the Pythagorean inequality

[4]
Triangle A: 3, 4, 5 cm. Triangle B: 5, 5, 8 cm. Triangle C: 6, 6, 6 cm. Triangle D: 7, 8, 9 cm. Identify each triangle by its angles using the Pythagorean inequality.

Worked example

Q1 — Carpenter's gate brace (60 cm, 60 cm, 85 cm)

[2]
A carpenter builds a triangular support brace using two wooden pieces of 60 cm and one of 85 cm. (a) Identify one real-world limitation affecting the accuracy of the side lengths. (b) Explain how this limitation could change the classification of the triangle.

Worked example

Q8 — Which triangle is isosceles?

[2]
An isosceles triangle has exactly two equal sides. Triangle A: 5, 5, 8 cm. Triangle B: 4, 7, 9 cm. Triangle C: 6, 6, 6 cm. (a) State which triangle is isosceles. (b) Explain how you know Triangle C is NOT isosceles.

Worked example

Q2 — Reading side-angle correspondence off a diagram

[2]
The diagram shows a triangle with side lengths a, b, c and opposite angles x°, y°, z°, where two sides are marked equal (a = b). (a) Identify the type of triangle shown. (b) Describe the relationship between the side lengths and angles that makes this classification correct.

Common mistake

Treating the triangle inequality (side lengths can form a triangle) and the Pythagorean inequality (angle type from side lengths) as the same rule.

Consequence: Students check a+b>c and then wrongly conclude something about acute/obtuse — these are two completely separate tests and mixing them loses the justification mark.

Fix: Triangle inequality answers 'can this triangle exist?' (a+b>c for every pair). Pythagorean inequality answers 'what angle type is it?' (compare a²+b² to c², using the longest side only).

Examiner tip

Whenever a question gives three side lengths and asks for angle type, write out a² , b² , c² as three separate numbers before comparing — showing the three squared values explicitly is worth the justification mark even if you make an arithmetic slip afterward.

Key takeaways

  • Classify by sides AND by angles — these are independent labels, both often required.
  • Pythagorean inequality: always square the two shortest sides and compare to the longest side squared.
  • Triangle inequality (a+b>c) checks existence; it does not tell you the angle type.
  • Polygon angle sum = (n−2)×180°; exterior angles of any convex polygon always sum to 360°.
  • Real-world measurements (wood, land, tape) carry tolerance — this can shift a triangle from one classification to another.

Symmetry and Tessellations

Symmetry asks: does the shape map onto itself under a reflection or a rotation? Tessellation asks the opposite question at scale: can copies of the shape tile a flat surface with zero gaps and zero overlaps?

  • Line (reflection) symmetry: fold the shape along the line — both halves match exactly. A regular n-sided polygon has exactly n lines of symmetry.
  • Rotational symmetry order: the number of positions (out of a full 360° turn) where the shape looks identical to its start. A regular n-gon has rotational order n.
  • Only three regular polygons tessellate on their own: equilateral triangle (60°), square (90°), regular hexagon (120°) — because only these interior angles divide exactly into 360° at a vertex.
  • Semi-regular tessellations combine two or more regular polygons around each vertex, as long as the angles at that vertex still sum to exactly 360°.

Key terms

Line of symmetry
A line that divides a shape into two mirror-image halves that map exactly onto each other when folded.
Order of rotational symmetry
The number of distinct positions in one full 360° rotation where the shape coincides exactly with its original position.A shape with no rotational symmetry other than the trivial 360° turn has order 1.
Tessellation
A repeating pattern of shapes that covers a flat surface completely, with no gaps and no overlaps.

Symmetry of a square and a hexagonal tessellation

A square has 4 lines of symmetry and rotational order 4; regular hexagons tile with three 120° angles meeting at each vertex.

Line of symmetryRotational order 4120°+120°+120°=360°

Mnemonic

Only 3, 4, 6

Regular triangles (3 sides, 60° angles), squares (4 sides, 90°) and hexagons (6 sides, 120°) are the only regular polygons that tessellate alone — because 60°, 90°, and 120° are the only regular-polygon interior angles that divide exactly into 360° with nothing left over.

Why bees build hexagons

A honeycomb is a hexagonal tessellation because hexagons pack a surface with zero wasted space while using the least amount of wax per unit of storage volume — of the shapes that tile a plane alone (triangle, square, hexagon), the hexagon has the smallest perimeter for a given area. The same 120°-vertex rule that makes hexagons tessellate is why soccer balls, tiled floors, and Islamic geometric art all favour hexagonal or triangular grids over pentagons (which can't tessellate alone — 108° doesn't divide evenly into 360°).

Key takeaways

  • Line symmetry = fold test; rotational symmetry order = how many times it self-matches in one full turn.
  • Regular polygon with n sides → n lines of symmetry, rotational order n.
  • Only equilateral triangles, squares, and regular hexagons tessellate alone — their interior angles (60°, 90°, 120°) divide exactly into 360°.
  • Semi-regular tessellations work as long as the angles meeting at every vertex sum to exactly 360°.

Congruence and Similarity

Congruent shapes are identical copies — same size, same shape, same angles, same side lengths. Similar shapes share the same shape but are scaled up or down by a single scale factor; angles stay equal, but sides are only proportional, not equal.

  • Triangle congruence tests: SSS, SAS, ASA, AAS, RHS (right angle–hypotenuse–side). Any one of these locks the triangle to a single unique size and shape.
  • Triangle similarity test: AA is enough — if two angles match, the third must match too (angle sum = 180°), so the triangle is automatically the same shape.
  • Scale factor k relates every pair of corresponding lengths: multiply the original length by k to get the new length.
  • Area scales by k², volume scales by k³ — this is the single most tested error point in this subtopic.

Key terms

Congruent
Two figures that are exactly the same size and shape — corresponding sides and angles are all equal.
Similar
Two figures with the same shape (equal corresponding angles) but different size (proportional corresponding sides).
Scale factor (k)
The ratio of any length in the new (scaled) figure to the corresponding length in the original figure.

Scale factor relationships

Linear scale factor between corresponding sides

Areas scale with the square of the linear scale factor

Volumes scale with the cube of the linear scale factor (3D solids)

Congruent vs similar triangles

Congruent triangles match exactly; similar triangles match in shape only, scaled by a constant factor.

CongruentSimilarscale factor 2

Worked example

Using a scale factor to find a missing side and an area

[4]
Triangle PQR is similar to triangle XYZ. PQ = 6 cm corresponds to XY = 9 cm, and QR = 8 cm. Find YZ. If the area of PQR is 24 cm², find the area of XYZ.

Congruence vs similarity

FeatureCongruent figuresSimilar figures
SizeIdenticalCan differ (scaled by k)
ShapeIdenticalIdentical
Corresponding anglesEqualEqual
Corresponding sidesEqual (ratio 1:1)Proportional (ratio k:1)
Minimum triangle testSSS, SAS, ASA, AAS, RHSAA is sufficient

Common mistake

Assuming two matching angles (AA) is enough to prove triangles congruent.

Consequence: AA only fixes the SHAPE, not the SIZE — infinitely many different-sized triangles share the same two angles, so 'congruent' is wrong even if the conclusion 'similar' would have been correct. This loses the mark entirely.

Fix: AA proves similarity only. For congruence you need a side condition locked in too: SSS, SAS, ASA, AAS, or RHS.

Key takeaways

  • Congruent = same size and shape; similar = same shape, scaled by factor k.
  • AA is enough for similarity; congruence needs a side condition (SSS, SAS, ASA, AAS, RHS).
  • Linear lengths scale by k, area by k², volume by k³ — always identify which one the question is asking about before multiplying.

Circle Properties and Terminology

Circle questions lose marks over vocabulary as often as over calculation — mixing up radius and diameter, or chord and tangent, is the fastest way to drop a mark on an otherwise easy question.

  • Radius: centre to edge. Diameter: edge to edge through the centre — always exactly twice the radius.
  • Chord: any straight line joining two points on the circle (a diameter is the longest possible chord).
  • Arc: a portion of the circumference — minor arc (shorter) or major arc (longer).
  • Sector: the 'pizza slice' region bounded by two radii and an arc; segment: the region bounded by a chord and an arc (no radii involved).
  • Tangent: a line touching the circle at exactly one point, always perpendicular to the radius drawn to that point.

Circle vocabulary

Radius
A straight line from the centre to any point on the circumference.
Diameter
A chord that passes through the centre, equal to twice the radius.
Chord
A straight line joining any two points on the circle.
Tangent
A line that touches the circle at exactly one point and is perpendicular to the radius at that point.
Sector
The region enclosed by two radii and the arc between them.
Segment
The region enclosed by a chord and the arc it cuts off (does not include the centre unless the chord is a diameter).

Labelled parts of a circle

Every circle question starts by correctly naming which of these parts is involved.

Centre ORadiusDiameterChordArcSectorSegmentTangent

Circle measures

Circumference

— radius
— diameter
Memorise

Area of a full circle

Memorise

Arc length, for sector angle θ at the centre

Sector area, for sector angle θ at the centre

Worked example

Arc length and sector area for a 72° sector

[4]
A circle has radius 10 cm. Calculate the arc length and the sector area for a sector with a central angle of 72°.

Examiner tip

Whenever a tangent appears in a diagram, immediately mark the 90° angle between the tangent and the radius at the point of contact — this single fact unlocks almost every tangent-based question, even ones that look complicated.

Key takeaways

  • Diameter = 2 × radius — always double-check which one a formula or a given value refers to.
  • Sector = bounded by two radii + arc; segment = bounded by a chord + arc — they are not the same shape.
  • Arc length and sector area are both just (angle/360°) × the full circumference or area.
  • A tangent is always perpendicular to the radius at the point of contact — mark this 90° immediately.

Angle Rules and Proofs

This subtopic is the 'proof engine' behind classification claims elsewhere in the topic — algebraic angle problems almost always reduce to one equation from the triangle angle sum or a parallel-line rule.

  • Triangle angle sum: the three interior angles of any triangle always add to 180°, no matter the shape.
  • Exterior angle theorem: an exterior angle of a triangle equals the sum of the two non-adjacent (remote) interior angles.
  • Parallel lines cut by a transversal produce three named angle relationships: corresponding (equal), alternate interior (equal), and co-interior/allied (sum to 180°).
  • Algebraic angle questions (given expressions like 3x+10) always start the same way: write the angle-sum equation first, solve for x, THEN substitute back to get each angle.

Parallel lines cut by a transversal

Corresponding angles equal, alternate angles equal, co-interior angles sum to 180°.

70°110°CorrespondingAlternateCo-interior

The core angle rules

Triangle angle sum

Memorise

Exterior angle = sum of the two remote (non-adjacent) interior angles

F-shape, parallel lines only

Z-shape, parallel lines only

C/U-shape, parallel lines only

Worked example

Q5 — Solving for x and testing a classmate's claim

[3]
In triangle ABC, ∠A = (3x+10)°, ∠B = (2x−5)°, ∠C = 85°. (a) State the angle sum of any triangle. (b) Calculate x and each angle. (c) A classmate claims triangle ABC is an isosceles right triangle. Compare the actual angle measures with the conditions needed and explain whether the claim is correct.

Worked example

Q7 — Same method, different constant

[4]
∠A = (3x+10)°, ∠B = (2x−5)°, ∠C = 50°. (a) State the angle sum, then find x. (b) Find ∠A and ∠B. (c) Classify the triangle by sides and by angles.

Worked example

Q6 — Missing angle and double classification from a table

[4]
Triangle A: sides 3, 4, 5 cm; angles 37°, 53°, ?. Triangle B: sides 5, 5, 8 cm; angles 40°, 40°, ?. Triangle C: sides 6, 6, 6 cm; angles 60°, 60°, ?. Triangle D: sides 4, 5, 7 cm; angles 34°, 44°, ?. (a) Calculate the missing angle for each. (b) Classify each triangle by sides AND by angles.

Angle-pair confusions

Concept AConcept BThe distinction that matters
Alternate anglesCorresponding anglesAlternate angles form a Z-shape and sit on OPPOSITE sides of the transversal, between the two lines; corresponding angles form an F-shape and sit in matching positions at each intersection. Both pairs are equal — the shape/location tells you which name to use.
Co-interior anglesAlternate anglesBoth sit between the parallel lines, but co-interior angles are on the SAME side of the transversal (they sum to 180°), while alternate angles are on OPPOSITE sides (they are equal).

Parallel-line angle rules

Angle pairPositionRule
CorrespondingSame position at each intersection (F-shape)Equal
Alternate interiorOpposite sides of transversal, between the lines (Z-shape)Equal
Co-interior (allied)Same side of transversal, between the lines (C-shape)Sum to 180°
Vertically oppositeAcross from each other at one intersection (X-shape)Equal

Key point

Every algebraic angle question starts with the same first line: write the relevant sum (180° for a triangle, 360° for a quadrilateral, or the parallel-line rule) as an equation BEFORE touching the algebra.

Key takeaways

  • Triangle angle sum = 180° is the equation behind almost every algebraic angle problem — write it first.
  • Exterior angle = sum of the two remote interior angles (a shortcut that skips finding the third interior angle).
  • Corresponding and alternate angles are equal; co-interior angles sum to 180° — only true when the lines are parallel.
  • Side classification and angle classification are independent labels — give both when asked.

Lines, Angles, and Their Properties

Before any of the polygon or angle-rule work, everything rests on a small vocabulary of line and angle relationships that questions assume you already know cold.

  • Lines: parallel (never meet, same direction, marked with matching arrows), perpendicular (meet at exactly 90°, marked with a small square), intersecting (cross at one point, any angle).
  • Angle size categories: acute (0°–90°), right (exactly 90°), obtuse (90°–180°), straight (exactly 180°), reflex (180°–360°).
  • Complementary angles sum to 90°; supplementary angles sum to 180° — these are the two numbers examiners most often swap by accident.
  • Vertically opposite angles (formed where two straight lines cross) are always equal — this holds regardless of the actual angle size.

Key terms

Complementary angles
Two angles whose measures add up to exactly 90°.
Supplementary angles
Two angles whose measures add up to exactly 180°.
Vertically opposite angles
The pair of equal, non-adjacent angles formed directly across from each other when two straight lines intersect.
Linear pair
Two adjacent angles that sit on a straight line together and therefore sum to 180°.

Intersecting lines: vertically opposite angles and a linear pair

Vertically opposite angles are equal; adjacent angles on the same line form a linear pair summing to 180°.

70°110°Vertically oppositeLinear pair

Angle categories at a glance

Angle nameRange / valueNote
Acute0° < θ < 90°Sharper than a right angle
Rightθ = 90°Marked with a small square symbol, never a curved arc
Obtuse90° < θ < 180°Wider than a right angle but less than straight
Straightθ = 180°Forms a straight line
Reflex180° < θ < 360°The 'outside' angle, larger than a straight line
Complementary pairsums to 90°e.g. 30° and 60°
Supplementary pairsums to 180°e.g. 70° and 110°

Common mistake

Confusing complementary (sum to 90°) with supplementary (sum to 180°) when solving for a missing angle in a pair.

Consequence: Using the wrong total (90° instead of 180°, or vice versa) gives a completely wrong missing angle — a very easy mark to lose on an otherwise simple question.

Fix: Remember 'C comes before S in the alphabet, and 90 comes before 180 in size' — Complementary = 90°, Supplementary = 180°. Always check whether the diagram shows a right angle (complementary) or a straight line (supplementary) before choosing.

Key point

Vertically opposite angles are equal no matter what the actual degree values turn out to be — this rule needs no calculation, only correct identification of which pair is directly across from which.

Key takeaways

  • Parallel lines never meet; perpendicular lines meet at exactly 90°.
  • Complementary sums to 90°; supplementary sums to 180° — don't swap them.
  • Vertically opposite angles (formed by two crossing straight lines) are always equal.
  • A linear pair sits on one straight line and always sums to 180°.

Quick Reference

Geometry – Properties of Shape: everything on one page

Formulas

  • Triangle angle sum
  • Interior angle sum of an n-sided polygon
  • Any convex polygon
  • c = longest side
  • k = linear scale factor between similar figures
  • Circumference and area of a circle
  • Arc length and sector area

Key facts

Triangle angle sum
180°
Quadrilateral angle sum
360°
Sum of exterior angles (any convex polygon)
360°
Complementary angle pair
sums to 90°
Supplementary angle pair
sums to 180°
Tangent–radius angle
90° at point of contact
Regular polygons that tessellate alone
triangle, square, hexagon

Mnemonics

  • Only 3, 4, 6Equilateral triangle, square, and regular hexagon are the only regular polygons that tessellate alone (60°, 90°, 120° divide evenly into 360°).

Don't confuse

  • Alternate angles vs Corresponding angles: Alternate = Z-shape, opposite sides of transversal; corresponding = F-shape, matching position at each intersection. Both equal.
  • Complementary vs Supplementary: Complementary sums to 90° (right angle); supplementary sums to 180° (straight line).
  • Congruent vs Similar: Congruent = identical size and shape; similar = same shape, sides scaled by factor k.
  • Sector vs Segment: Sector is bounded by two radii + arc; segment is bounded by a chord + arc (no radii).

Command terms

Identify:
Name the feature only — no working needed for the mark.
Calculate:
Show the method — an unsupported wrong answer scores 0.
Explain:
Give the reason WHY, not just a restatement of the fact.
Compare:
Address both items — one-sided answers lose half the marks.
Justify:
Back the conclusion with actual working or evidence, not just an assertion.

Exam checklist

  • Classified the triangle by BOTH sides and angles, not just one.
  • Identified the longest side before applying the Pythagorean inequality.
  • Checked whether a scale-factor question wants length, area (k²), or volume (k³).
  • Named the specific angle-pair rule (corresponding / alternate / co-interior) rather than just 'they're equal'.
  • Used the definition given IN the question (e.g. 'exactly two equal sides') rather than a general assumption.
  • Considered a real-world limitation (tolerance, slope, warping) when a question asks about measurement accuracy.
