IB Middle Years Programme · Mathematics MYP Year 2

Probability and Outcomes

Cover illustration for Probability and Outcomes (Mathematics MYP Year 2).
MYP · Mathematics MYP Year 2

Probability and Outcomes

22 min readStandardRecurring content across unit tests and end-of-year exams; assessed mainly through MYP Criterion A (Knowing & Understanding) and Criterion D (Applying in real-life contexts)

Probability in MYP2 is really one idea wearing six different costumes: dice, coins, spinners, marbles, trees, Venn diagrams. Every question reduces to counting — how many outcomes are possible, and how many count as a 'win'. Get the total number of outcomes wrong (writing 6 instead of 36 for two dice, or adding instead of multiplying for combined events) and the rest of the answer collapses even with perfect method afterwards.

Overview — The Shape of This Topic

What this chapter is really testing

  • Probability questions always come back to counting: how many total outcomes are there, and how many of them count as favourable.
  • You'll meet in six costumes — dice, coins, spinners, marbles — but the structure never changes.
  • The jump from Year 1 is combining events: a die AND a coin, two dice together, a spinner AND a marble draw. Combined totals multiply, they never add.

Examiners like writing a wrong student claim straight into the question (see the sum-of-7 dice problem) and asking you to judge it. That means you need to defend your counting in words, not just produce a fraction.

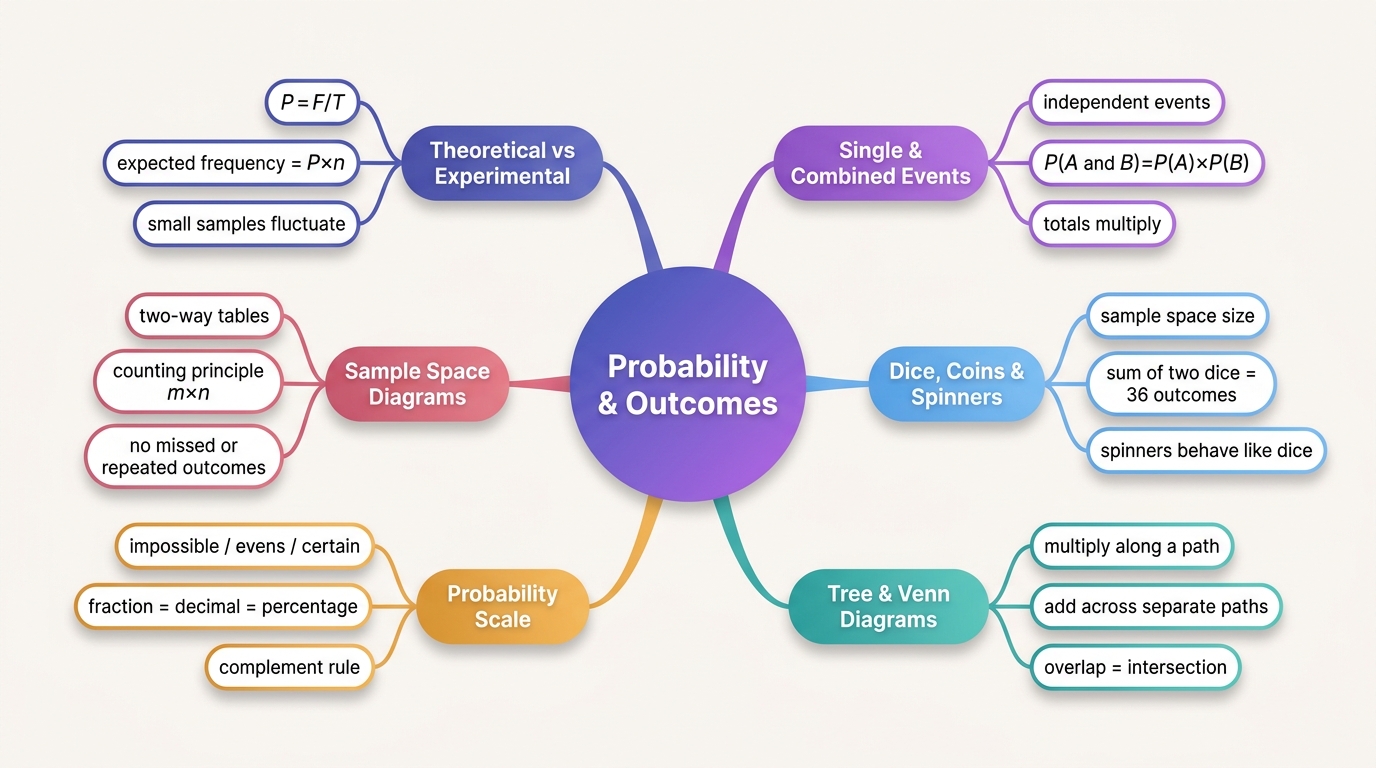

The shape of the chapter

Command terms this topic uses constantly

Command termWhat it demandsAOMark-earning move
StateGive a short answer with no working required.AO11 mark for the correct value/fraction alone — justification not needed, but the value must be correctly written (e.g. as a fraction, not left as a raw ratio like 1:6).
IdentifyPick out or name a specific feature from given information.AO11 mark per correct item named — for combined events this usually means naming both individual sample spaces before anything is calculated.
CalculateShow the method and reach a numerical answer.AO2Marks for correct substitution into AND the final simplified value — an unsimplified fraction can lose the last mark.
ExplainGive reasons connected to the maths, not a restated observation.AO3No credit for 'because it's random' alone — must reference sample size, independence, or the specific rule being tested.
CompareState similarities/differences between two given quantities, with values.AO3Needs BOTH a numerical statement (which is bigger/smaller) and a reason — one without the other usually caps the mark.

Key point

Every mark in this topic depends on correctly counting the TOTAL number of equally likely outcomes first. Get that denominator wrong (36 vs 6 for two dice) and every probability calculated afterwards is automatically wrong, even with perfect method.

Theoretical vs Experimental Probability

Two different questions about the same event

Theoretical probability is what should happen if the world matched the maths exactly — worked out before you touch a die or a bag. Experimental probability is what actually happened when trials were run and results counted. They usually don't match exactly, and that's not an error — it's just how randomness behaves in small samples.

  • Theoretical probability needs no data collection: , based purely on counting what's possible.
  • Experimental probability comes from real trials: (number of times the event occurred) ÷ (number of trials) — it changes if you repeat the experiment.
  • As the number of trials grows very large, experimental probability tends to settle close to the theoretical value — this is why insurers and casinos can rely on probability over millions of events even though any single outcome is unpredictable.
Theoretical probability
The probability of an event calculated from reasoning about equally likely outcomes, with no trials needed.
Experimental probability
The probability estimated from the actual results of repeated trials.
Expected frequency
The number of times an event is predicted to occur in a given number of trials.

Theoretical probability

Memorise

predicted count over n trials

— number of trials

Worked example

Why 'expected 2 sixes, got 1' doesn't mean the die is broken

[6]
A fair die is rolled 12 times; theoretical prediction says 2 sixes, but only 1 six is rolled. In a second 12-roll session: 1 appears 5 times, 2 once, 3 twice, 4 once, 5 twice, 6 once. (a) State P(6). (b) Calculate the expected frequency of 6s in 12 rolls. (c) Explain why the results don't prove the die is unfair.

Theoretical vs Experimental Probability

FeatureTheoretical ProbabilityExperimental Probability
Needs actual trials?No — calculated from reasoning aloneYes — based on real recorded results
Formula (favourable/total outcomes)(observed successes) ÷ (number of trials)
Changes if repeated?Never — fixed by the structure of the eventYes — different trial runs give different results
Best used whenStructure is known (fair die, equal sectors)Fairness is unknown, or a claim needs testing

Common mistake

Assuming an experimental result must exactly equal the theoretical prediction every single time.

Consequence: Leads to wrongly concluding a fair die/coin/spinner is 'unfair' from a tiny sample — loses the explain mark even if the probability calculation itself was correct.

Fix: State explicitly that small samples vary randomly around the theoretical value, and fairness is only meaningfully tested over a large number of trials.

Examiner tip

When given frequencies and asked to 'explain', check the observed total against the expected total number of trials first — then comment on the spread across individual outcomes. This shows understanding of the data before judging it.

Where theoretical probability actually gets used

Insurance companies set premiums using theoretical-style probability built from population statistics (e.g. known accident rates for a given driver age), without running the 'experiment' of insuring millions of people first. Weather forecasters convert historical atmospheric data into a probability like '70% chance of rain' before the day happens — a prediction later checked against what experimentally occurs.

Key takeaways

  • Theoretical probability = calculated from structure (); experimental = measured from real trials.
  • Expected frequency — a prediction, not a guarantee for any single run.
  • Small sample sizes cause natural variation from the expected value — not evidence of unfairness.
  • As trials increase, experimental probability converges toward the theoretical value.

Single and Combined Events

One event vs. two (or more) happening together

A single event has one action and one set of outcomes — rolling one die, drawing one marble. A combined event links two or more actions together — a die AND a coin, a marble draw AND a spin. The moment you combine events, the total number of outcomes multiplies rather than adds, because every outcome of the first action pairs with every outcome of the second.

  • Single events: , with from that one action only.
  • Combined independent events: total outcomes , and .
  • 'Independent' means the outcome of one event has zero effect on the other — a die roll can never influence a coin flip, so those two are always independent of each other.
Independent events
Two events where the outcome of one has no effect on the probability of the other.
Combined event
An event made up of two or more single events considered together, e.g. rolling a die and flipping a coin.
Mutually exclusive events
Two events that cannot both happen at the same time, e.g. rolling a 2 and a 5 on the same roll.Different concept from independence — the vocabulary contrast is commonly tested.

multiplication rule for independent combined events

— two independent events
Memorise

total outcomes for two combined actions

Worked example

Die and coin together — the classic independent pairing

[5]
A fair six-sided die is rolled and a fair coin is flipped. (a) Identify the total outcomes for the die and for the coin. (b) Calculate P(rolling a 4) and P(heads). (c) The events are independent — explain what that means here and find P(4 and heads).

Frequently confused

Concept AConcept BThe distinction that matters
Independent eventsMutually exclusive eventsIndependent = one event doesn't affect the other's probability (multiply probabilities); mutually exclusive = the two events can never happen together at all.

Common mistake

Adding instead of multiplying when finding total combined outcomes (e.g. thinking die+coin gives 8 outcomes, not 12).

Consequence: Every probability calculated afterwards using that denominator is wrong, even if the favourable-outcome count was correct.

Fix: Build or imagine the full grid of combined outcomes first — count rows × columns, don't just add the two totals.

Key takeaways

  • Combined events multiply totals: .
  • Independent events multiply probabilities: .
  • Independent ≠ mutually exclusive — don't mix up the vocabulary in an explain answer.
  • Identify each single sample space before combining — examiners award marks for this step separately.

Probability with Dice, Coins and Spinners

Where the total-outcomes trap usually strikes

Dice, coins and spinners are the classic models because their outcomes are equally likely by design — but combining two dice is where most marks are lost, because the natural (wrong) instinct is to count possible SUMS (2 to 12, i.e. 11 outcomes) instead of possible OUTCOME PAIRS (36).

  • Two dice rolled together: each die still shows 1–6, but because they're rolled separately, and are two different equally likely outcomes, giving total.
  • A sum like 7 can be made multiple ways: — six different outcome-pairs, all giving the same sum.
  • Spinners follow the same rules once you know the number of equal sectors — a spinner with 4 equal sections behaves exactly like a 4-sided die for probability purposes.

Sample space grid for two dice — sums of 7 highlighted

36 equally likely outcomes total; exactly 6 of them sum to 7, giving .

Die 1 (rows 1-6)Die 2 (columns 1-6)Diagonal cells = sum of 7

Worked example

Judging the student's claim about rolling a 7

[6]
Two fair dice are rolled. A student claims: 'The probability of a sum of 7 is 1/6 because there are 6 ways to make 7 out of 36 total outcomes.' (a) List all outcomes giving sum 7. (b) Explain why the total is 36, not 6. (c) Is the claim correct?

total outcomes for two dice rolled together

Examiner tip

When a question gives you someone else's claim to judge, redo the calculation independently first, then explicitly state 'correct' or 'incorrect' with a reason. A right calculation with no final verdict sentence often loses the last mark.

Key takeaways

  • Two dice together always give 36 equally likely outcomes, never 11 (sums aren't equally likely) and never 6.
  • List combined outcomes as ordered pairs — (1,6) and (6,1) are different outcomes.
  • Spinners and dice follow identical rules once you know the number of equally likely sections.

Using Tree Diagrams and Venn Diagrams (Introductory)

Two visual tools for combined events

A tree diagram shows combined events as branching paths — multiply the probabilities ALONG a path to get that path's probability, then add DOWN separate paths if combining several different results. A Venn diagram instead shows how two categories of outcomes overlap within a single sample space — useful for 'and'/'or'/'not' questions, like numbers that are even AND greater than 3.

  • Tree diagrams suit sequential or combined independent events (coin then coin, spinner then die).
  • Venn diagrams suit classifying a single group of outcomes by two overlapping properties.
  • Rule of thumb: along a single branch/path — MULTIPLY. Across separate complete paths — ADD.
Tree diagram
A branching diagram where each branch is a possible outcome of a stage, and each complete path represents one combined outcome with probability equal to the product of its branch probabilities.
Venn diagram
A diagram using overlapping circles inside a rectangle (the sample space) to show how outcomes are grouped and shared between categories.
Intersection
The overlapping region of a Venn diagram — outcomes belonging to BOTH categories.
Union
All outcomes belonging to EITHER category (or both) — the combined area of both circles.

Tree diagram: flipping a fair coin twice

Multiply along each path to get its probability; the four end probabilities sum to 1.

Venn diagram: even numbers and numbers greater than 3 (die faces 1–6)

Overlap (intersection) contains 4 and 6 — numbers that are both even and greater than 3.

Worked example

Reading probabilities off a tree diagram

[3]
A spinner has 3 equal sections: Red, Blue, Green. It is spun, then a fair coin is flipped. Use a tree diagram to find P(Green then Heads).

Common mistake

Adding probabilities along a single tree branch path instead of multiplying.

Consequence: Produces impossible probabilities in some cases, and always loses the calculation mark even if the branch probabilities were correct.

Fix: Say the rule out loud while working: 'along a path, multiply; between different end-paths, add.'

Key takeaways

  • Tree diagrams: multiply along a path, add across separate complete paths.
  • Venn diagrams sort a single sample space by two overlapping properties; overlap = intersection (), total covered area = union ().
  • All end-path probabilities in a tree diagram must sum to 1 — a useful self-check.

Introduction to Probability and the Probability Scale

Probability as a number between 0 and 1

Every probability, however it's calculated, lands somewhere on a fixed scale from 0 (impossible) to 1 (certain). The scale is identical whether you express the value as a fraction, a decimal, or a percentage — they're just three costumes for the same number.

  • means the event genuinely cannot happen (rolling a 7 on a standard die).
  • means the event is guaranteed (rolling a number less than 7 on a standard die).
  • (or , or 50%) sits at 'evens' — exactly as likely to happen as not.
  • Words like 'unlikely' or 'likely' are rough zones, not exact values — always also give the precise fraction/decimal/percentage.

F = number of favourable outcomes, T = total number of possible outcomes

— favourable outcomes
— total possible outcomes
Memorise

every probability lies on this scale, inclusive of both ends

complement rule — a shortcut for 'not' questions

The probability scale, 0 to 1

Fractions, decimals and percentages are the same probability in three formats — check which format the question asks for.

Same probability, three formats

FractionDecimalPercentageLikelihood word
000%Impossible
1/40.2525%Unlikely
1/20.550%Evens
3/40.7575%Likely
11100%Certain

Mnemonic

I Use Every Last Chance

Impossible, Unlikely, Evens, Likely, Certain — the five likelihood zones on the probability scale from 0 to 1, in order.

Worked example

Comparing probabilities between two different bags

[4]
Bag A has 4 red, 3 blue, 5 green marbles. Bag B has 6 marbles: 2 blue, 4 yellow. (a) State the total in Bag A. (b) Calculate P(blue) from Bag A as a simplified fraction. (c) Compare with P(blue) from Bag B.

Examiner tip

'Compare' questions always need a direction word (bigger/smaller/more likely) PLUS a reason — a bare pair of fractions with no comparative sentence typically loses the final mark.

Key takeaways

  • Every probability sits between 0 (impossible) and 1 (certain) — fractions, decimals and percentages are just different formats for the same value.
  • ; complement rule: .
  • Compare probabilities as proportions (fractions), never as raw favourable counts, when totals differ.

Listing Outcomes and Sample Space Diagrams

Systematic listing beats guessing

A sample space is the complete, organised list of every possible outcome of an experiment. The skill tested here isn't the probability calculation — it's whether you can list or table the outcomes systematically enough to be certain nothing was missed or duplicated.

  • For a single action, the sample space is just the list of outcomes: a die's sample space is .
  • For combined actions, use the counting principle: action 1 with outcomes and action 2 with outcomes gives combined outcomes.
  • A two-way table (rows = one action, columns = the other) is the safest way to list a combined sample space without missing any pair — exactly the grid used for two dice.
Sample space
The complete set of all possible outcomes of an experiment.e.g. for a coin
Outcome
One single possible result of an experiment, e.g. rolling a 3.
Event
A collection of one or more outcomes sharing a property, e.g. 'rolling an even number' = .

counting principle — total combined outcomes when action 1 has m outcomes and action 2 has n outcomes

Memorise

Sample space table: rolling a die and flipping a coin

12 equally likely outcomes total () — every one appears exactly once, which is why tables are safer than mental listing.

Worked example

Listing outcomes for a 3-colour spinner and a coin

[3]
A spinner has 3 equal sections (Red, Blue, Green) and is spun once alongside a coin flip. List the full sample space and find P(Green and Tails).

Which listing method to use

MethodBest forRisk if used carelessly
Simple list {..}Single action only (one die, one spinner)None — outcomes are few and obvious
Two-way tableTwo combined actions with small outcome counts (die+coin, two dice)Guarantees every pair shown exactly once — safest for counting totals
Tree diagramCombined/sequential events, especially with unequal branch probabilitiesSlower to draw for large sample spaces, but shows probabilities directly

Common mistake

Missing an outcome or double counting when listing combined sample spaces without a system (e.g. forgetting (6,T) in a die-coin list).

Consequence: The total used as denominator becomes wrong, so every probability calculated from that incomplete list is wrong, even if the favourable count was fine.

Fix: Use a two-way table or a fixed cycling order instead of listing from memory — check rows × columns against the counting principle .

Key takeaways

  • Sample space = complete list of all possible outcomes; event = a subset sharing a property.
  • Counting principle: combined total outcomes — use this to check any list or table.
  • Two-way tables are the safest listing method for two combined actions; trees suit sequential/unequal-probability situations.

Quick Reference

Probability and Outcomes — everything on one page

Formulas

  • theoretical probability
  • prediction over n trials
  • independent combined events
  • counting principle for combined sample spaces
  • complement rule

Key facts

Two dice total outcomes
36
Die + coin total outcomes
12
Probability scale range
0 to 1 inclusive

Mnemonics

  • I Use Every Last ChanceImpossible, Unlikely, Evens, Likely, Certain — the probability scale from 0 to 1

Don't confuse

  • Independent events vs Mutually exclusive events: Independent = multiply probabilities, one doesn't affect the other; mutually exclusive = can't both happen at once.

Command terms

Calculate:
Show substitution into and give a simplified final value
Explain:
Reference sample size, independence, or the specific rule — not just 'it's random'
Compare:
Give a numeric comparison AND a reason, not just two fractions side by side

Exam checklist

  • Have I counted the TOTAL outcomes correctly before dividing? (36 for two dice, not 6 or 11)
  • Have I simplified my final fraction?
  • For combined independent events, did I multiply totals/probabilities, not add them?
  • For a tree diagram, did I multiply along each path and check all end-path probabilities sum to 1?
  • For a 'compare' or 'explain' question, have I written a full sentence with a reason, not just a number?
