Overview

This chapter has two halves that lean on each other. First, you need to read and use coordinates confidently — plotting, measuring distance, finding midpoints, spotting quadrants. Second, you apply four families of transformation rules (translate, reflect, rotate, enlarge) to move or resize shapes described by those coordinates. Almost every exam question is really asking: can you turn a geometric instruction into arithmetic on , and back again?

  • Coordinates give geometry a numerical backbone — you can prove a shape is a rectangle or calculate an exact distance without ever picking up a ruler.
  • Translation, reflection and rotation are 'rigid' — they reposition a shape without changing its size, so object and image stay congruent.
  • Enlargement is the odd one out — it changes size using a scale factor from a fixed centre, producing a similar (not congruent) image.
  • Real problems chain these together: describe one transformation, then combine two, then justify a shape's properties using the resulting coordinates.

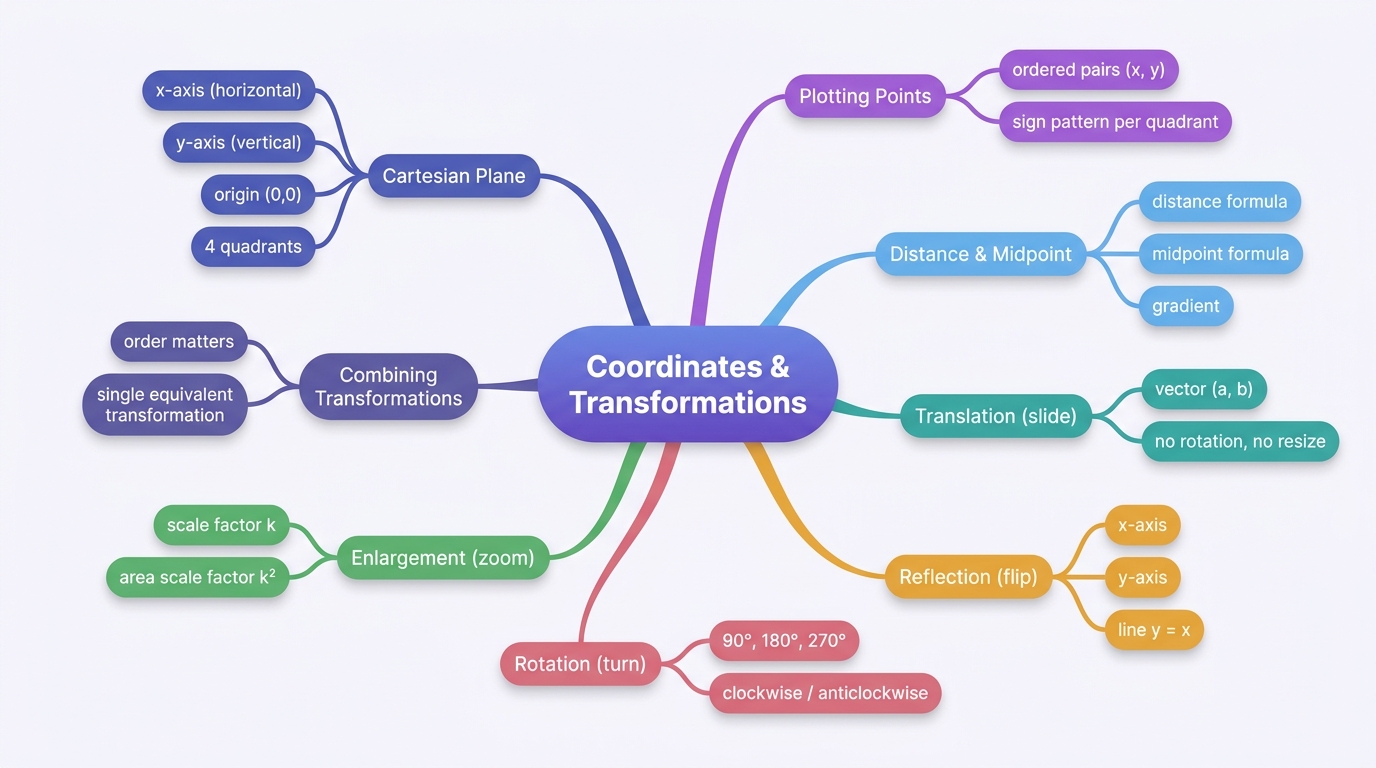

The shape of the chapter

Command terms this topic loves

Command termWhat it demandsAOMark-earning move
CalculateObtain a numerical answer, showing the method/formula used.Knowing and applyingMethod mark for correct substitution even with a small arithmetic slip; final mark needs the correct numeric answer with correct units.
DescribeFor a transformation, name the type AND give the full detail — vector, mirror line, or centre + angle + direction.CommunicatingNaming only the type ('it's a rotation') with no centre/angle typically drops a mark even if partially correct.
ExplainGive a reason or justification, not a restated conclusion.ReasoningMarks sit on the numeric comparison itself — 'claim gives 50 m but calculation gives 72.1 m' scores; 'the claim is wrong' alone does not.
CompareState both a similarity and a difference between two things.ReasoningAn answer with only a similarity or only a difference is incomplete — both are needed for full marks.
ApplyUse a learned rule on new numbers in a similar situation.Knowing and applyingQuoting the rule with no recalculated numbers scores zero — the rule must actually be re-applied.
JustifySupport a conclusion with evidence — lengths, gradients, or coordinate matches.ReasoningA bare assertion ('it looks like a rectangle') without checking angles/lengths scores zero.

Key point

Every transformation is just a rule for turning into a new pair. Learn the four rules — translate, reflect, rotate, enlarge — as functions of , and 'find the image' or 'describe the transformation' questions stop being mysterious.

Plotting Points and Interpreting Coordinates

The Cartesian plane is two number lines glued together at a right angle: the horizontal x-axis and the vertical y-axis, meeting at the origin . Every point's address is an ordered pair — says how far to move horizontally (right if positive, left if negative), says how far to move vertically (up if positive, down if negative).

  • Order matters: and are different points — swap them and you plot in the wrong spot entirely.
  • The plane splits into four quadrants, numbered I to IV anticlockwise from the top-right, each with its own sign pattern for .
  • A point sits exactly on an axis when one coordinate is zero: is on the y-axis, is on the x-axis, and is the origin.
  • Real coordinate grids (park maps, spreadsheets, screen pixels) attach a physical unit to each square — always check what 1 grid unit represents before converting a calculated distance into metres.
Ordered pair
A pair of numbers written in a fixed order that names the exact location of a point on the Cartesian plane.Also called coordinates.
Origin
The fixed reference point where the x-axis and y-axis intersect.
x-coordinate
The first number in an ordered pair; the horizontal distance and direction of a point from the origin.Sometimes called the abscissa.
y-coordinate
The second number in an ordered pair; the vertical distance and direction of a point from the origin.Sometimes called the ordinate.
Quadrant
One of the four regions the axes divide the plane into, each with a distinct sign pattern for .

The Cartesian plane and its four quadrants

Signs of the coordinates flip in a predictable pattern as you move between quadrants.

x-axisy-axisorigin O(0,0)Quadrant I (+,+)Quadrant II (−,+)Quadrant III (−,−)Quadrant IV (+,−)

Distance and midpoint between two points

Distance between two points is Pythagoras applied to the horizontal and vertical differences.

— coordinates of the two points
— straight-line distance between them (grid units (convert using the map/graph scale for real distance))
Memorise

Midpoint is the average of the x-coordinates and the average of the y-coordinates.

— midpoint of the segment joining the two points

Worked example

Distance between the fountain and the bench (park map)

[3]
A city park is mapped on a coordinate grid where 1 unit = 10 m. The fountain is at and the bench is at . (a) Calculate the distance between them in metres. (b) The park manager claims the distance is exactly 50 m. Explain why this claim is not valid.

Worked example

Confirming a rectangle straight from its coordinates

[2]
A rectangle has vertices at , , and . (a) Describe the location of each vertex using correct coordinate notation. (b) Explain how the x- and y-coordinates confirm this shape is a rectangle.

Common mistake

Reading or plotting coordinates as (y, x) instead of (x, y) — treating the pair like a (row, column) grid reference.

Consequence: Every following calculation (distance, midpoint, transformation) uses swapped values, so the whole answer is wrong even though the method is sound — this typically loses all marks on that sub-part.

Fix: Say 'across then up' out loud before plotting, and check the point actually falls in the quadrant its signs predict.

Explain-type questions need a number, not a feeling

When asked why a claim about distance, area or shape is invalid, the mark sits on the numeric comparison — your calculated value versus their claimed value — not on restating 'the claim is incorrect'. State both numbers explicitly.

Why planners use coordinates instead of sketches

City planners mark park boundaries with coordinates rather than freehand drawings because coordinates are exact and reproducible — any two surveyors reading and mark the identical spot, whereas a freehand sketch depends on the drawer's hand and can't be measured or rebuilt precisely from a photo or plan.

Key takeaways

  • An ordered pair always lists horizontal position first, vertical second — never swap the order.
  • Distance formula is Pythagoras in disguise: find and , square, add, root — convert units last.
  • A point lies on an axis exactly when one coordinate is 0; it's the origin only when both are 0.
  • Coordinates beat freehand drawing because they're exact, reproducible, and can be checked by calculation.

Translating, Reflecting, Rotating Shapes

Translation, reflection and rotation are the three 'rigid' transformations — they reposition a shape but never stretch, shrink or distort it. The image is always congruent to the object; only its position (and sometimes its orientation) changes.

  • Translation slides every point by the same vector — nothing rotates, nothing flips, nothing resizes.
  • Reflection flips the shape across a mirror line so the image is the same perpendicular distance from the line as the object, but on the opposite side, with reversed orientation.
  • Rotation turns the shape about a fixed centre through a given angle and direction — every point stays the same distance from the centre.
  • The property all three share: object and image are always congruent — same lengths, same angles, just repositioned.
Translation
A transformation that slides every point of a shape by the same fixed vector .
Reflection
A transformation that flips a shape across a mirror line, reversing its orientation.
Rotation
A transformation that turns a shape about a fixed centre through a given angle and direction.
Invariant point
A point that maps onto itself under a transformation — e.g. any point on the mirror line during a reflection, or the centre during a rotation.
Object and image
The object is the original shape before a transformation; the image is the shape after it, usually labelled with primes (, …).

Coordinate rules for rigid transformations

Translation by vector .

Reflection in the x-axis.

Reflection in the y-axis.

Reflection in the line .

Rotation 90° anticlockwise about the origin.

Memorise

Rotation 180° about the origin (either direction).

Rotation 90° clockwise (= 270° anticlockwise) about the origin.

Reflecting a triangle in the x-axis

Every point and its image are the same perpendicular distance from the mirror line, on opposite sides.

Original triangle PQRImage after reflection in x-axismirror line (x-axis)

Rotating a triangle 90° anticlockwise about the origin

Every point stays the same distance from the centre of rotation; only the angle around it changes.

Original triangle ABCImage after 90° anticlockwise rotation about Oorigin O

Worked example

Translating a square by shifting x-coordinates

[2]
Square has vertices . A second square is formed by adding 3 to each x-coordinate. (a) Describe the change in position. (b) Apply the same rule to predict a third square's coordinates.

Worked example

Rotating a triangle 90° anticlockwise about the origin

[2]
Triangle has vertices . Find the coordinates of the image after a rotation of 90° anticlockwise about the origin.

Common mistake

Confusing clockwise with anticlockwise, or applying the 90° anticlockwise rule when the question specifies clockwise (which is ).

Consequence: Every image coordinate lands in the wrong quadrant — this typically costs all marks for that sub-part even though a rotation rule was correctly applied.

Fix: Before substituting, sketch a rough quarter-turn in the stated direction from one known vertex, and check your formula answer lands in the same quadrant as that rough sketch.

'Describe the transformation' wants every detail

A full reflection description needs the mirror line stated (e.g. 'reflection in the y-axis'); a full rotation description needs the angle, direction AND centre (e.g. 'rotation of 90° anticlockwise about the origin'). Naming only the type scores at most one of the available marks.

Rigid transformations vs enlargement at a glance

TransformationChanges size?Changes orientation?Congruent to object?Reference needed
Translation (slide)NoNoYesVector
Reflection (flip)NoYes (mirror image)YesMirror line
Rotation (turn)NoNo (turns as one piece)YesCentre, angle, direction
Enlargement (zoom)Yes (unless )No (unless )No — similar, not congruentCentre, scale factor

Frequently confused

Concept AConcept BThe distinction that matters
ReflectionRotationReflection reverses orientation — the image is a mirror flip (left and right swap); rotation preserves orientation — the shape simply turns as a rigid whole.
TranslationEnlargementTranslation changes only position (every point moves by the same vector, size untouched); enlargement changes size (points move by different amounts depending on distance from the centre).

Key takeaways

  • Translation, reflection and rotation are all rigid: object and image are congruent.
  • Learn the coordinate rules — translation , axis reflections, 90°/180°/270° rotations about the origin — as functions, not just diagrams.
  • A full 'describe the transformation' answer states type + specific detail (vector / mirror line / centre+angle+direction).
  • Reflection flips orientation; rotation and translation don't.

Enlargement and Scale Factor

Enlargement is the one transformation that changes size. Every point moves along a straight line through a fixed centre, and how far it moves depends on the scale factor : distances from the centre are multiplied by , never added to.

  • When the centre of enlargement is the origin, the rule is simply — multiply both coordinates by the scale factor.
  • makes the image bigger; makes it smaller (still called an enlargement); flips the image through the centre as well as resizing it.
  • Enlarged figures are similar, not congruent — same shape and equal angles, but sides scaled by and area scaled by .
  • When the centre is not the origin, you can't multiply the raw coordinates directly — you must scale each point's displacement from that centre.
Scale factor (k)
The number every distance from the centre of enlargement is multiplied by to produce the image.
Centre of enlargement
The fixed point from which all enlargement rays are drawn; it is the only invariant point of the transformation.
Similar figures
Shapes with identical angles and proportional (but not necessarily equal) side lengths — the result of an enlargement.

Enlargement rules

Enlargement by scale factor centred at the origin.

Memorise

Enlargement by scale factor centred at — scale the displacement from the centre, then add it back.

— centre of enlargement
— scale factor

Lengths scale by ; areas scale by .

Enlarging a triangle from the origin, scale factor 2

Straight rays from the centre of enlargement always pass through each vertex and its image.

Object triangle ABCImage triangle A'B'C'origin O (centre of enlargement)

Worked example

Dilating a triangle from the origin, then dilating again

[4]
Triangle has vertices . It is dilated from the origin with scale factor 2, giving . (a) Compare the coordinates of with and describe the relationship. (b) A further dilation from the origin with scale factor is applied to — predict the coordinates of .

Common mistake

Treating an enlargement from a centre that isn't the origin as if it were directly.

Consequence: The image's position comes out wrong even if its size happens to be correct, losing marks on any coordinate-check part.

Fix: Find each point's displacement from the centre first, multiply the displacement by , then add it back onto the centre's coordinates: .

Scale factor is a photocopier setting

A photocopier set to '200%' is applying scale factor from the centre of the page; a map with scale '1 : 25 000' is stating the reduction factor between drawing and real distances. Architects' blueprints and 3D-printed scale models work identically — everything scales from one fixed reference point by one consistent factor.

Key takeaways

  • Enlargement is the only transformation that changes size — image and object are similar, not congruent.
  • From the origin: . From any other centre: scale the DISPLACEMENT from that centre, then add it back.
  • Area scales by , not — doubling every length quadruples the area.
  • When dilating an already-dilated shape, always start from the most recent image, never the original object.

Combining Transformations

Real problems rarely stop at one transformation — a shape gets reflected, then translated, then rotated, and you're asked either to find the final image or to describe the single overall transformation that would give the same result in one step.

  • Perform combined transformations strictly in the order given — the second transformation acts on the result of the first, never on the original object.
  • Order generally matters: reflecting then translating usually gives a different final image from translating then reflecting by the same amounts.
  • Occasionally two transformations combine into one equivalent transformation of a different type — e.g. two reflections in parallel lines are equivalent to a single translation.
  • Redraw or relabel the shape after each step — trying to do both transformations 'in your head' at once is where most errors creep in.

Worked example

Reflect then translate — and why order changes the answer

[3]
Point is first reflected in the x-axis, then translated by vector . Find the final image of , and compare with the result of doing the translation first and the reflection second.

Common mistake

Applying both transformations to the original object 'in parallel' instead of feeding the first image into the second transformation.

Consequence: Produces a completely different, incorrect final image, even though each individual rule was applied correctly — loses the method and answer marks for the combined step.

Fix: Label the result after each transformation () and always transform the most recently labelled point.

Naming 'the single transformation' means naming an actual type

When asked to describe the single transformation equivalent to a sequence, name one of translation/reflection/rotation/enlargement with its full details — 'a combination of moves' earns no marks even if your final coordinates are correct.

Mnemonic

Slide, Flip, Turn, Zoom

The four transformation types in familiar order: Translation = Slide, Reflection = Flip, Rotation = Turn, Enlargement = Zoom — a quick check that you've correctly identified which type a question describes.

Key takeaways

  • Combined transformations are applied in sequence — the second one acts on the image of the first, never on the original object.
  • Order usually matters: swapping the sequence of a reflection and a translation (or rotation) typically changes the final image.
  • Label each intermediate image explicitly () to avoid the most common combined-transformation error.
  • 'Describe the single transformation' answers must name an actual transformation type with full details, not a vague summary.

Understanding the Cartesian Plane

Coordinates aren't just for plotting — they let you prove geometric facts about a shape using arithmetic instead of a ruler. Matching x- or y-coordinates reveal vertical or horizontal sides instantly, and the gradient formula extends this idea to sides that aren't axis-aligned.

  • Two points with the same x-coordinate lie on a vertical line; two points with the same y-coordinate lie on a horizontal line — vertical and horizontal lines always meet at right angles.
  • For slanted sides, compare gradients: equal gradients mean parallel sides; gradients multiplying to mean perpendicular sides.
  • Fully justifying a shape's classification needs TWO pieces of evidence — an angle statement (parallel/perpendicular) AND a length statement (opposite sides equal, or all sides equal for a square) — one alone is incomplete.
  • The missing vertex of a rectangle or parallelogram can usually be found by matching one coordinate from each of two known adjacent vertices, with no measuring involved.

Gradient, parallel and perpendicular sides

Gradient (slope) of the line through two points.

Equal gradients mean parallel sides.

Gradients multiplying to mean the sides are perpendicular.

Worked example

Finding the fourth vertex of a rectangle and verifying it

[5]
A rectangle has three vertices at . (a) Find the fourth vertex . (b) Explain why and are perpendicular. (c) Calculate the lengths of all four sides and explain whether the shape is a rectangle.

Worked example

Completing a rectangle from three vertices

[2]
are three vertices of rectangle . (a) Find . (b) Explain how you know is a rectangle, referring to the properties of opposite sides.

Coordinate sign patterns by region

Locationx signy signExample
Quadrant I
(3, 4)
Quadrant II−
(−3, 4)
Quadrant III−−(−3, −4)
Quadrant IV
−(3, −4)
On the y-axis0any(0, 5)
On the x-axisany0(5, 0)

Key point

A point lies on the x-axis only when , on the y-axis only when , and at the origin only when both are 0 — these three facts settle almost every 'which axis/quadrant' question instantly.

Key takeaways

  • Matching x-coordinates ⇒ vertical side; matching y-coordinates ⇒ horizontal side — vertical always meets horizontal at 90°.
  • Fully justifying a rectangle needs BOTH a right-angle argument and an equal-opposite-sides argument.
  • The gradient formula extends the same logic to slanted sides: equal gradients = parallel, product = perpendicular.
  • A shape's fourth vertex can be found from coordinate patterns alone — no ruler or protractor needed.

Quick Reference

Coordinates & Transformations — at a glance

Formulas

  • Distance between two points; convert units last.
  • Midpoint of a segment.
  • Translation by vector .
  • Reflection in the x-axis and y-axis.
  • Rotation about the origin.
  • Enlargement scale factor from the origin.
  • Enlargement's effect on area.
  • Gradient; equal gradients = parallel, product = perpendicular.

Key facts

Distance formula
Area scale factor
90° anticlockwise about origin

Mnemonics

  • Slide, Flip, Turn, ZoomTranslation, Reflection, Rotation, Enlargement.

Don't confuse

  • Reflection vs Rotation: Reflection reverses orientation; rotation preserves it.
  • Translation vs Enlargement: Translation only repositions (congruent image); enlargement resizes from a centre (similar image).

Command terms

Describe:
Name the transformation type + full details (vector / mirror line / centre+angle+direction).
Explain:
Give the numeric justification, not just a restated conclusion.
Apply:
Recompute with new numbers, starting from the most recent image in a sequence.
Compare:
State one similarity AND one difference explicitly.

Exam checklist

  • Coordinates always written (x, y) — horizontal first.
  • State units after converting a grid distance to a real-world distance.
  • Rotation/reflection descriptions include centre/line + angle/direction.
  • Enlargement from a non-origin centre: scale the displacement, not the raw coordinate.
  • Justify shape classification with BOTH an angle fact and a length fact.
