22 min readStandardOne of the two or three heaviest units in Year 3 — nearly every unit test, eAssessment and Criterion A/C task in this course draws a question from surface area, volume, or unit conversion.

This chapter is really three skills wearing different costumes: find an area, find a volume, and don't let the units lie to you. Every formula here — cube, cuboid, prism, cylinder, trapezium — is just "multiply the right lengths together," but the marks disappear the moment you substitute the wrong dimension, forget to double a pair of faces, or convert cm² as if it were cm. Learn to substitute slowly and labelled, and this whole unit turns from a formula-memorising exercise into free marks.

Overview — How This Chapter Fits Together

Two families of measurement

Everything in this unit is either a 3D measurement (surface area, volume — how much skin a solid has, or how much space it holds) or a 2D measurement (perimeter, area — how long the boundary of a flat shape is, or how much region it covers). Scale drawings, maps and bearings are the 'real world' layer on top: they take a 2D or 3D measurement and connect it to an actual distance or direction outside the page.

  • Surface area and area are always measured in squared units (cm², m²) — they cover a region.
  • Volume is measured in cubed units (cm³, m³) — it fills a space.
  • Perimeter, length, and scale distances are measured in plain linear units (cm, m, km) — no exponent.
  • The single biggest source of lost marks across this whole chapter is mixing these three up when converting between units.

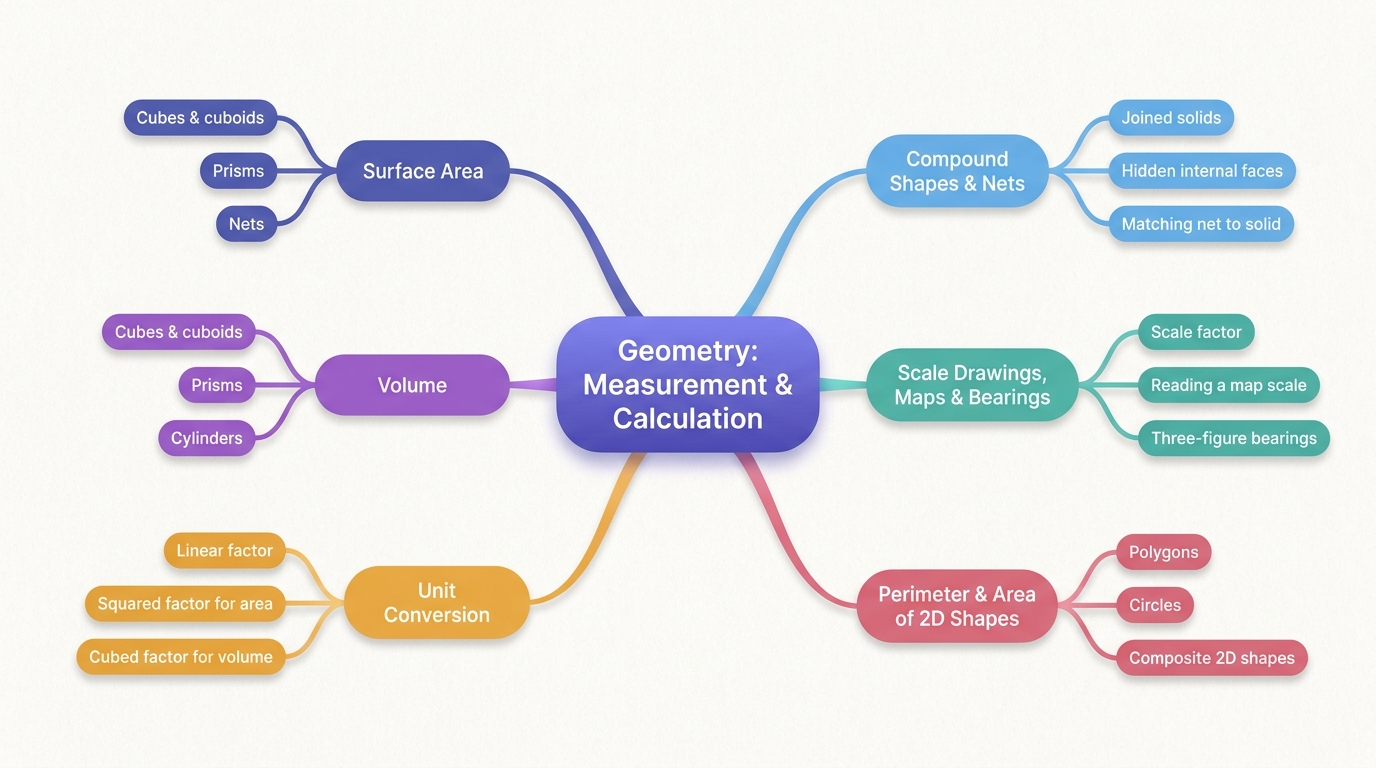

The shape of the chapter

Command terms that show up in this unit's mark schemes

Command termWhat it demandsAOMark-earning move
CalculateObtain a numerical answer, showing all relevant workingApplyingMethod marks awarded for the correct formula/substitution line even if the final arithmetic is wrong
DetermineFind a result using given data, often needing more than one step (e.g. find side length, then use it)Applying / ReasoningMarks split across each stage — losing an early step loses only that step's mark if later work is consistent
ApplyUse a known rule or formula in a new context you haven't seen it in beforeApplyingExaminer checks you selected the correct formula, not just that you calculated something
ExplainGive reasons, supported by a calculation or comparisonReasoning / CommunicatingA bare number with no reasoning sentence scores zero on Explain questions even if correct
DescribeGive a detailed, accurate account — e.g. of a pattern in a tableCommunicatingMust state the pattern in words, not just list more numbers
JustifyGive valid reasons or evidence to support a claim or reject oneReasoningUsed when a question presents a student's claim — you must say why it is right or wrong, not just redo the sum

Key point

Write the formula first, substitute with units attached, then simplify — in that order, every time. That sequence is where the method marks live, and it's the fastest way to catch your own substitution errors before they cost you the final answer mark.

Surface Area of Cubes, Cuboids and Prisms

Surface area
The total area of every face on the outside of a 3D shape, measured in squared units.Think 'how much wrapping paper'
Net
A flat 2D shape that can be folded up to make a 3D solid — every face of the net matches exactly one face of the solid.
Face, edge, vertex
A face is a flat surface; an edge is where two faces meet; a vertex is where edges meet at a point (a corner).

Cuboid net and its faces

Each pair of opposite faces on a cuboid is identical — that's why the formula has three doubled terms.

FrontBackTopBottomLeftRightlwh

Surface area formulas

Six identical square faces of side s

— side length of the cube (cm)
Memorise

Three pairs of opposite rectangular faces

— length
— width
— height
Memorise

Two identical end faces (the cross-section) plus the rectangular side faces, whose combined width is the cross-section's perimeter

— area of the (triangular/other) cross-section
— perimeter of the cross-section
— length of the prism

Worked example

Simplifying an algebraic surface area (cuboid in terms of x)

[6]
A storage box is a cuboid with length cm, width cm, and height 3 cm. (a) Write a simplified expression for the total surface area. (b) Explain what the coefficient of the term tells you about how surface area changes as increases. (c) The box must have a total surface area of at least 190 cm². Determine the minimum value of .

Worked example

Why doubling the side doesn't double the surface area

[4]
A student claims: "A cube with side 4 cm has surface area 96 cm², so a cube with side 8 cm must have surface area 192 cm²." (a) Calculate the surface area of the 8 cm cube. (b) Explain why the student's reasoning is wrong. (c) Determine how many times larger the 8 cm cube's surface area is.

Common mistake

Writing (forgetting to double each pair of opposite faces).

Consequence: Loses the method mark for the correct formula and gives an answer exactly half the true surface area — an easy mark to lose because the arithmetic afterwards can still look 'clean'.

Fix: Say the formula out loud as "two lots of (lw plus lh plus wh)" before you substitute a single number — the word 'two' has to be there from the start, not added at the end.

Examiner tip

For a cuboid question, always name which two faces each product represents (e.g. "lw = top and bottom") in your working. Even if your final number is wrong, this line alone earns you the method mark on an Apply or Calculate question.

Why packaging designers care about the coefficient, not just the answer

A cereal box manufacturer doesn't just calculate one surface area — they minimise it. Shaving even 3 cm² off the surface area of a box, multiplied across a print run of 500,000 boxes, is a measurable saving in cardboard cost. That's exactly the reasoning behind Q1(b) above: understanding how surface area changes as a dimension grows is more valuable commercially than any single calculated value.

Key takeaways

  • Surface area = total area of every face, always in squared units — never forget the ×2 for each pair of opposite faces on a cuboid.
  • Scaling a linear dimension by factor k scales surface area by , not by k — this is tested via 'student claims' questions almost every year.
  • For prisms, surface area = two end faces (the cross-section, counted twice) + the rectangular side faces, whose total width equals the cross-section's perimeter.
  • Algebraic surface area expressions (in terms of x) are simplified using the same formula — substitute first, simplify second, and read the coefficient of as the 'quadratic growth' term.

Volume of Cubes, Prisms and Cylinders

One idea, three shapes

Every volume formula in this section is a version of the same idea: volume = area of the cross-section × the length (or height) that cross-section is 'pushed through'. A cuboid is a rectangular cross-section pushed through a height; a cylinder is a circular cross-section pushed through a height; a triangular prism is a triangular cross-section pushed through its length.

  • Cube: — all three dimensions equal, so cubing the side is enough.
  • Cuboid: — three different dimensions, all multiplied.
  • Cylinder: — the circular cross-section's area, , times the height.
  • General prism: — works for triangular, trapezoidal, or any-shaped cross-section, which is why it's the formula worth memorising over the specific ones.

Triangular prism cross-section

Volume = area of the shaded triangle × the prism's length l.

bh_tl

Volume formulas

Memorise

Memorise

Works for ANY prism, whatever shape the cross-section is

Memorise

— radius of the circular cross-section
— height (length) of the cylinder
Memorise

Worked example

Working backwards from volume to surface area

[4]
A cube-shaped storage box has a volume of 216 cm³. A sheet of wrapping paper measures 30 cm × 25 cm. (a) Calculate the side length of the cube. (b) Find the total surface area. (c) Explain whether one sheet of wrapping paper is enough.

Don't let these two blur together

Concept AConcept BThe distinction that matters
Surface areaVolumeSurface area measures the 2D 'skin' of a solid in cm²/m² (how much material covers it); volume measures the 3D space enclosed in cm³/m³ (how much it can hold) — a shape can have a large volume but relatively small surface area, or vice versa.

Common mistake

Using the slant length or a diagonal edge instead of the perpendicular height in .

Consequence: Overestimates the volume, sometimes significantly, because the slant length is always longer than the true perpendicular height.

Fix: For any prism, mark the perpendicular (right-angle) height on your sketch before substituting — if there's no right-angle mark on the dimension you're about to use, it's probably the wrong one.

Examiner tip

When a question gives you a volume and asks for a linear dimension, check the power on the formula first: needs a cube root, needs a square root before dividing by . Applying the wrong root is one of the most common 'silent' errors — the working looks fine until the final line.

Key takeaways

  • Every prism volume (including cylinders) reduces to cross-sectional area × length — memorise this one relationship rather than five separate formulas.
  • Undoing needs a cube root, not a square root — this trips up students working backwards from volume to side length.
  • Volume (cm³/m³) and surface area (cm²/m²) answer different questions about the same solid — never assume one tells you the other.

Compound Shapes and Nets

Break it apart, then add carefully

A compound (composite) solid is built from two or more simple solids joined together. Volume always just adds — no matter how the pieces join, the total space they enclose is the sum of their individual volumes. Surface area is different: wherever two solids are glued together, both of the touching faces disappear from the outside — they're internal now, so you must subtract them from the sum of the two separate surface areas.

  • Nets: to check a net folds into a given solid, count the faces and match each net-piece to exactly one face — a common test-question trap is a net with one face missing or one extra.
  • For compound solids, list each individual solid's dimensions in a small table before calculating anything — it stops you double-counting or missing a face.

Compound solid with a hidden joining face

The 3×3 patch where the two cuboids touch is hidden on both sides — it must be subtracted twice from the combined surface area.

842333hidden face — not counted in surface area

Worked example

Volume and surface area of a compound solid

[5]
A larger cuboid (8 cm × 4 cm × 2 cm) has a small cube (side 3 cm) sitting exactly on top of it, sharing a 3 cm × 3 cm contact face. Determine (a) the total volume and (b) the total surface area of the compound solid.

Common mistake

Adding the two solids' surface areas without subtracting the hidden contact faces (giving 166 cm² instead of 148 cm² in the example above).

Consequence: Overstates the true exposed surface area by exactly twice the contact area — a very predictable, examiner-recognisable error worth checking for.

Fix: Before adding, ask: 'is there anywhere these two solids touch?' If yes, subtract that contact area twice (once per solid) from the sum.

Examiner tip

For any compound shape or solid question, build a two-column table first — 'Piece' and 'Area/Volume' — and total it at the end. Examiners award method marks for each correctly calculated piece even if your final total is wrong, but only if the individual pieces are visible in your working, not buried inside one long calculation.

Key takeaways

  • Volume of a compound solid = sum of each piece's volume — no subtraction needed.
  • Surface area of a compound solid = sum of each piece's surface area MINUS twice the area of every hidden contact face.
  • A net only folds correctly into a solid if every face is present exactly once — check face count against the solid before assuming a net works.

Scale Drawings, Maps and Bearings

Scale
A ratio comparing a length on a drawing/map to the corresponding real length, written as e.g. 1 : 50,000 (1 unit on paper = 50,000 of the same unit in reality).
Scale factor
The single number you multiply a drawing measurement by to get the real measurement (or divide to go the other way).
Bearing
A direction given as an angle measured clockwise from North, always written using three figures (e.g. 065°, 090°, 245°).

Reading a three-figure bearing

The bearing from A to B is measured clockwise from the North line at A, never from any other direction.

North065°Point APoint B

Scale and back-bearing relationships

Same units on both sides before you multiply

The bearing you'd read going the opposite direction along the same line

Worked example

Map scale to real distance

[3]
A map has a scale of 1 : 50,000. The distance between two towns on the map is 4 cm. Determine the real distance between the towns, in kilometres.

Worked example

Finding a back bearing

[2]
The bearing from Point A to Point B is 065°. Determine the bearing from Point B back to Point A.

Remembering back bearings

Small bearing? Add. Big bearing? Subtract.

If the given bearing is less than 180°, add 180° to find the back bearing; if it's 180° or more, subtract 180° instead — this avoids ever landing outside the 0°–360° range.

Common mistake

Writing a bearing as '65°' instead of the required three-figure form '065°'.

Consequence: Loses a communication/accuracy mark even when the angle itself is correct — bearings must always show three digits.

Fix: Pad any bearing under 100° with a leading zero automatically — 65° becomes 065°, 8° becomes 008°.

Why bearings are still used over GPS

Ship navigators and mountain rescue teams still communicate direction as three-figure bearings from true North, because it's unambiguous over a crackly radio: '090' can only mean due east, whereas a spoken word like 'east' can be misheard. The same three-figure convention tested in this unit is the exact system used on real nautical charts.

Examiner tip

Always sketch the North line and the angle arc when answering a bearings question, even if not asked to draw one — a labelled sketch is often explicitly credited in the mark scheme for 'Determine' questions, and it catches obvious errors like measuring anticlockwise.

Key takeaways

  • Real distance = map distance × scale factor — always match units before multiplying.
  • A bearing is always a three-figure angle measured clockwise from North — 65° must be written as 065°.
  • Back bearings differ from the original bearing by exactly 180°: add if the original is under 180°, subtract if it's 180° or over.

Conversion of Units — Length, Area, Volume

The power rule for conversions

If a linear conversion factor is (e.g. 1 m = 100 cm, so ), then the SAME conversion for area uses , and for volume uses . This is because area is length × length, and volume is length × length × length — every dimension you convert needs its own copy of the conversion factor.

  • Length: multiply/divide by .
  • Area: multiply/divide by .
  • Volume: multiply/divide by .
  • Special case worth memorising outright: litres, since 1 litre is defined as exactly cm³ and m³ = cm³.

Conversion factors by dimension

ConversionLength factorArea factorVolume factor
m ↔ cm×100 / ÷100×10,000 / ÷10,000×1,000,000 / ÷1,000,000
cm ↔ mm×10 / ÷10×100 / ÷100×1,000 / ÷1,000
km ↔ m×1,000 / ÷1,000×1,000,000 / ÷1,000,000×1,000,000,000 / ÷1,000,000,000
m³ ↔ litres——×1,000 / ÷1,000

Worked example

Converting area and volume — same source number, different power

[4]
(a) Convert 3.5 m² into cm². (b) Convert 2.4 m³ into litres.

Common mistake

Converting cm² to m² by dividing by 100 (using the linear factor) instead of 10,000 (the squared factor).

Consequence: Gives an answer 100 times too large — a very recognisable error to examiners, and usually worth zero on the calculation mark even though the method 'direction' (dividing) was right.

Fix: Before converting an area or volume, write out the linear factor first, then square it (for area) or cube it (for volume) as a separate line of working — don't try to do it in your head.

Metric prefix order (for length conversions)

King Henry Died Unusually Drinking Chocolate Milk

kilo – hecto – deca – (base unit) – deci – centi – milli — each word's first letter gives the prefix order, which tells you how many places to shift the decimal point when converting length units.

Key point

Linear → ×k. Area → ×k². Volume → ×k³. Write which one you're doing before you multiply — this single habit prevents almost every unit conversion error in this course.

Key takeaways

  • Never reuse a linear conversion factor for area or volume without squaring or cubing it first.
  • 1 m³ = 1000 litres is a fixed fact worth memorising, not deriving from scratch every time.
  • Always state which factor (k, k², or k³) you're applying as a visible line of working — it's the single fastest self-check against the most common mistake in this section.

Perimeter and Area of 2D Shapes

Boundary vs region

Perimeter is the total length of a shape's boundary — add every outer side, in linear units. Area is the amount of flat region enclosed — always in squared units. Composite (compound) 2D shapes are handled the same way as 3D compound solids: split into simple pieces, calculate each, then add (or subtract, if one piece is a cut-out hole).

Trapezium area formula

Area = average of the two parallel sides × the perpendicular height between them.

abh

Area formulas for common 2D shapes

Memorise

— base
— perpendicular height to that base
Memorise

Memorise

— the two parallel sides
— perpendicular distance between them
Memorise

Memorise

Circumference — the circle's perimeter

Memorise

Worked example

Trapezium area from a non-rectangular sketch

[2]
A trapezium has parallel sides of 8 cm and 14 cm, with a perpendicular height of 5 cm between them. Calculate its area.

Perimeter vs area formulas at a glance

ShapePerimeter formulaArea formula
RectangleP = 2(l + w)A = lw
TriangleP = sum of 3 sidesA = ½bh
ParallelogramP = 2(a + b) — a, b the two side lengthsA = bh
TrapeziumP = sum of all 4 sidesA = ½(a+b)h
CircleC = 2πrA = πr²

The two mix-ups that follow you into every topic

Concept AConcept BThe distinction that matters
PerimeterAreaPerimeter is a single linear measurement (cm) around the outside; area is a squared measurement (cm²) covering the inside — a shape's perimeter tells you nothing about its area without also knowing its dimensions individually.
Surface areaVolumeCarried over from the 3D case: surface area (cm²) is the 'skin' of a solid; volume (cm³) is the space it encloses — never assume a bigger volume means a bigger surface area, or vice versa.

Common mistake

Using a slanted or diagonal side as the 'height' in the triangle or parallelogram area formula.

Consequence: Gives an area that's too large, because the slant length is always longer than the true perpendicular height between base and opposite vertex/side.

Fix: Only use a length that meets the base at a right angle (often shown dashed in a diagram) — if no right-angle mark exists on the height you're about to use, redraw the perpendicular first.

Examiner tip

For composite 2D shapes, state in words which method you're using — 'I will add the rectangle and the triangle' or 'I will subtract the circular hole from the square' — before calculating. This single sentence is often exactly what an 'Explain your method' mark is looking for.

Key takeaways

  • Perimeter (linear units) measures the boundary; area (squared units) measures the enclosed region — never confuse the two, even though both use the same shape's dimensions.
  • Every area formula needs a perpendicular height, never a slanted side.
  • Composite 2D shapes are solved exactly like compound solids: split into simple shapes, calculate each, then add or subtract as appropriate.

Quick Reference

Geometry: Measurement & Calculation — everything on one page

Formulas

  • Cube surface area
  • Cuboid surface area
  • Any prism surface area
  • Cube volume
  • Cuboid volume
  • Any prism volume, including cylinders (A_cross = πr²)
  • Cylinder volume
  • Triangle area
  • Trapezium area
  • Circle area
  • Circle circumference
  • Scale drawings

Key facts

1 m³ in litres
1000 L
Scale factor effect on area
×k²
Scale factor effect on volume
×k³
Bearing range
000° to 360°, always three digits

Mnemonics

  • King Henry Died Unusually Drinking Chocolate Milkkm – hm – dam – m – dm – cm – mm, the metric length prefix order
  • Small bearing? Add. Big bearing? Subtract.Back bearing = original ±180°, depending on whether the original is under or at/over 180°

Don't confuse

  • Surface area vs Volume: Skin (cm²) vs space enclosed (cm³) — one never implies the other
  • Perimeter vs Area: Boundary length (cm) vs enclosed region (cm²)

Command terms

Calculate:
Method + final numeric answer with units required for full marks
Explain:
Needs a reasoning sentence, not just a number
Justify:
Must respond directly to a claim, stating why it's right or wrong

Exam checklist

  • Formula written BEFORE substitution, every time.
  • Units attached at every line, not just the final answer.
  • Squared linear factor for area conversions; cubed for volume conversions.
  • Perpendicular height used, never a slant length.
  • Bearings written as three figures (e.g. 065°, not 65°).
  • Compound shapes: hidden/contact faces subtracted twice for surface area; volumes just added.
