MYP Mathematics Year 3 – Geometry: Properties of Shape (Global Context: Form)

24 min readStandardRecurring strand — appears in every MYP Year 3 Math assessment task under 'Shape and Space' (roughly 20–25% of criterion-based geometry tasks)

Geometry in MYP Year 3 is really one skill wearing six different costumes: can you name a shape precisely, apply the correct rule to it, and defend your answer when a classmate makes a lazy claim? Every question in the exam bank for this topic follows the same shape — measure or classify, then justify. Get comfortable stating a rule out loud (angle sum, the Pythagorean inequality, a congruence condition) before you touch a calculator, because half the marks in this strand live in the sentence, not the number.

Overview: The Shape of This Topic

Why this topic keeps showing up

  • Six strands, one repeated skill: describe a shape → justify with a named rule → apply it to actual numbers.
  • Classification questions test precision of language — 'isosceles' needs a stated reason (two equal sides identified), not just the label written down.
  • Real instruments (laser rangefinders, surveying tools, tape measures) always carry measurement error — expect at least one question per paper asking you to reason about how that error could change a classification.

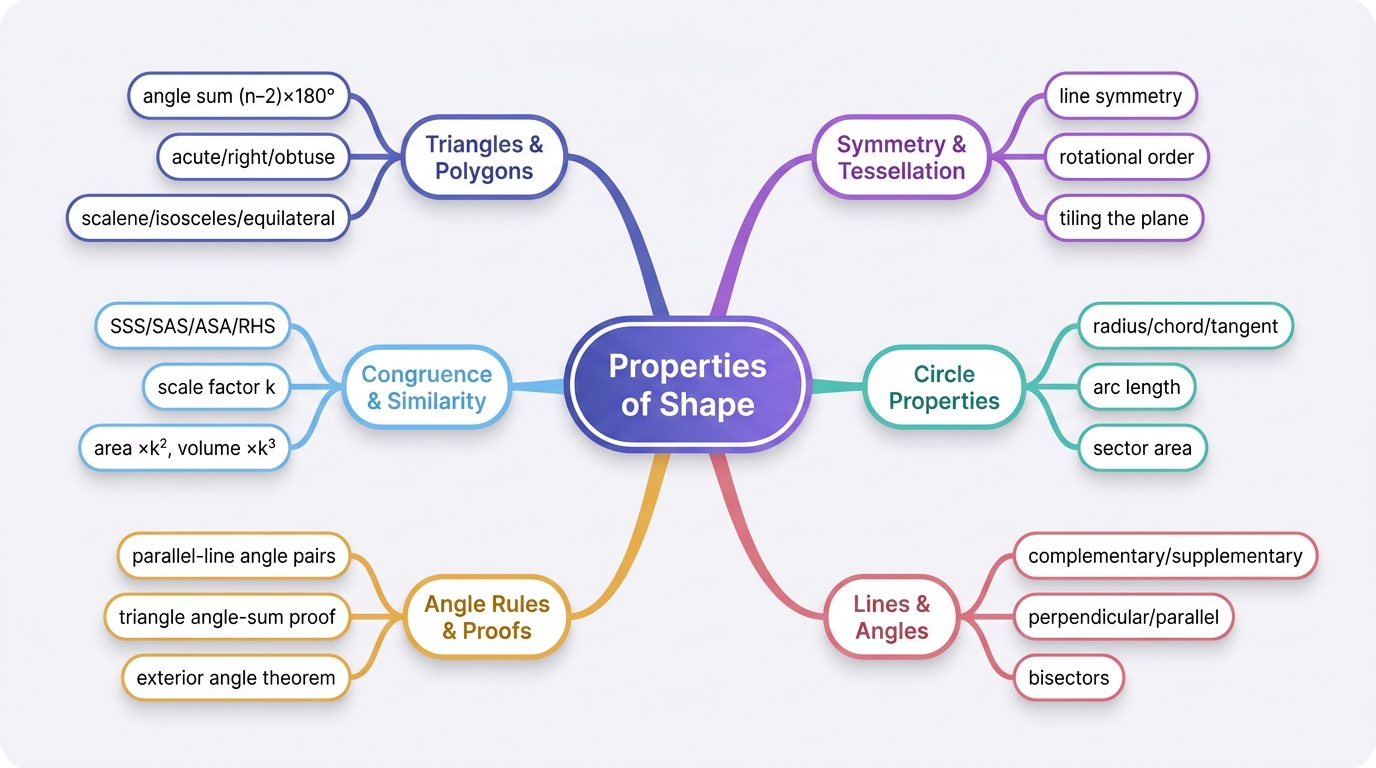

The shape of the chapter

Command terms this topic actually tests

Command termWhat it demandsAOMark-earning move
StateGive a short, precise answer with no justification neededKnowing & understanding1 mark for the fact stated in full — '180' alone can lose the mark if the property name is missing.
ClassifySort into a stated category using an explicit ruleKnowing & understandingYou must name the category (e.g. 'isosceles') — restating the given numbers back is not a classification.
DescribeGive a detailed account — name a feature AND its characteristicsKnowing & understandingMarks split between naming the feature and explaining why it applies — a one-word answer earns half credit only.
ExplainShow the logical link between two facts, not just state both factsApplying & reasoningThe connective ('because', 'therefore') carries the mark — a correct fact with no link earns nothing.
JustifyGive valid reasons to support or reject a stated claimReasoning & communicatingMust reference the actual numbers/rule involved, not just assert 'yes' or 'no'.
ApplyUse a known rule or formula in a new numeric situationApplying mathematicsShow the substitution step explicitly — a bare correct answer can still lose the method mark.
ProveBuild a logical chain from given facts to a conclusion using accepted rulesReasoning & communicatingEvery line needs its own named reason — an unexplained jump loses that line's mark even if later lines are correct.

Key point

Every classification claim in this topic scores full marks with three ingredients: the category name, the numeric rule it satisfies, and the actual numbers substituted into that rule. 'It's isosceles because two sides measure 5 cm' beats 'it's isosceles' every single time.

Triangles, Quadrilaterals, and Polygons

Classifying triangles

  • By angles: acute (all three angles under 90°), right (exactly one angle equal to 90°), obtuse (exactly one angle over 90°).
  • By sides: equilateral (three equal sides, and automatically three 60° angles), isosceles (exactly two equal sides, and the two angles opposite them are equal too), scalene (no equal sides, no equal angles).
  • A full classification needs BOTH labels — 'right isosceles' is a complete, commonly-tested answer (it's exactly the 90°-45°-45° triangle in the surveyor's plot question).
  • The two systems are independent, so check them separately: a triangle can be obtuse AND scalene, or right AND isosceles — but it can never be equilateral and anything other than acute, since equilateral forces every angle to exactly 60°.

Quadrilaterals and polygons

  • The interior angle sum of a convex -gon is — it comes from splitting the polygon into triangles from one vertex.
  • Exterior angles of ANY convex polygon always sum to , no matter how many sides it has — this is what makes the tessellation check in the next section so quick.
  • Each interior angle of a REGULAR -gon is .

Polygon terms worth knowing cold

Convex polygon
Every interior angle is less than 180°; no vertex points inward.
Regular polygon
All sides equal AND all interior angles equal.
Diagonal
A line segment joining two non-adjacent vertices of a polygon.

Core formulas for this section

Sum of interior angles of a convex n-gon

— number of sides

Each interior angle of a REGULAR n-gon

Pythagorean inequality test — c must be the LONGEST side

Memorise

Classifying triangles by angle and by side

Angle-based and side-based classification are independent — always check both.

Right isoscelesObtuse scaleneEquilateralAcute scalene

Quadrilateral family tree

A square is a rectangle AND a rhombus at the same time — never classify it as 'just a square' when both properties are being tested.

Quadrilateral properties at a glance

ShapeSidesAnglesDiagonals
ParallelogramOpposite sides parallel & equalOpposite angles equalBisect each other
RectangleOpposite sides parallel & equalAll angles = 90°Bisect each other, equal length
RhombusAll four sides equalOpposite angles equalBisect each other at 90°
SquareAll four sides equalAll angles = 90°Bisect each other, equal length, at 90°
TrapeziumExactly one pair parallelNo general ruleNo general rule
KiteTwo pairs of adjacent equal sidesOne pair of opposite angles equalPerpendicular; only one diagonal bisected

Triangle classification rules

BasisTypeRule
By angleAcuteAll three angles < 90°
By angleRightExactly one angle = 90°
By angleObtuseExactly one angle > 90°
By sideEquilateralAll three sides equal (and all angles = 60°)
By sideIsoscelesExactly two sides equal (base angles opposite them equal)
By sideScaleneNo sides equal (no angles equal)

Worked example

Angle sum and an isosceles claim

[3]
A triangle has angles measuring , , and . (a) State the angle sum property of a triangle. (b) Calculate . (c) A classmate claims this triangle could be isosceles. Justify whether this claim is correct.

Worked example

Classifying a triangle from side lengths — and what a measurement error does to it

[4]
A civil engineer measures a triangular steel truss as 5.0 m, 5.0 m, and 7.1 m using a laser rangefinder accurate to ±0.1 m. (a) Calculate whether the triangle is acute, right, or obtuse using the measured values. (b) Explain how the ±0.1 m uncertainty affects your conclusion.

Isosceles does not mean 'nice round angles'

Assuming that because a triangle is isosceles (e.g. sides 5 cm, 5 cm, 7 cm), its angles must be neat values like 45° or that it must be right-angled.

Consequence: Loses the justify mark in questions like 'a classmate claims this must be a right isosceles triangle' — the specific numbers must be tested, not assumed from the shape family.

Fix: Apply the Pythagorean inequality every time: for 5, 5, 7 → vs , so means acute, not right. A right isosceles triangle needs the longest side to be exactly cm, not 7 cm.

Show the comparison, not just the label

For any 'acute/right/obtuse from side lengths' question, write and as separate numbers before stating the conclusion. Mark schemes award the method mark for the two numbers appearing side by side (e.g. '50 vs 49') — a bare final answer like 'acute' with no numbers shown can lose that mark even when it's correct.

Adding the full tolerance to every angle

When asked for a 'possible actual set of angles' within a stated ±2° tolerance, students add +2° to every measured angle (turning 90°, 45°, 45° into 92°, 47°, 47°), giving a set that sums to 186° — impossible for any triangle.

Consequence: The method loses the mark even though each individual angle is within tolerance, because the examiner is checking that the three chosen angles still sum to exactly 180°.

Fix: Pick values within each ±2° band that sum to exactly 180° — e.g. 88°, 47°, 45° (each within tolerance, summing to 180°) gives a scalene, non-right triangle, showing the measurement error genuinely changed the triangle type.

Key takeaways

  • Classify triangles on two independent axes — angle type and side type — and state both when a full classification is asked for.
  • Polygon interior angle sum is ; exterior angles of any convex polygon always total 360°.
  • The Pythagorean inequality ( vs , with the longest side) classifies acute/right/obtuse from side lengths — always show both numbers.
  • Measurement tolerances can shift a triangle across a classification boundary — check whether falls inside the stated error range before claiming certainty.

Symmetry and Tessellations

Line and rotational symmetry

  • Line (reflective) symmetry: a shape maps onto itself when folded along a line — count how many such lines exist.
  • Rotational symmetry: a shape maps onto itself after a rotation of less than 360° about its centre; the order is how many times it matches during one full turn.
  • A regular polygon with sides has lines of symmetry AND rotational symmetry of order — this pairing is worth memorising, since irregular shapes rarely match up this neatly.
  • Don't confuse 'no lines of symmetry' with 'no rotational symmetry': a non-rectangular parallelogram has zero fold lines but rotational symmetry of order 2, because rotating it 180° maps it exactly onto itself even though no crease works.

Tessellations

  • A tessellation tiles a flat plane with no gaps and no overlaps.
  • A single regular polygon tessellates alone only if its interior angle divides 360° exactly — true for equilateral triangles (60°), squares (90°), and regular hexagons (120°); false for regular pentagons (108°×3=324°, a 36° gap remains).
  • Semi-regular tessellations mix two or more regular polygons at each vertex, provided the angles meeting at that single point still sum to exactly 360°.

Tessellation condition

Condition for one regular polygon to tessellate alone — n copies must exactly fill the point with no gap or overlap

Line symmetry vs rotational symmetry

A shape can have rotational symmetry with zero lines of symmetry, and vice versa — always test both properties separately.

Regular tessellation check

Regular hexagons tile perfectly (3×120°=360°); regular pentagons never tile alone — the leftover 36° gap is the standard reason asked for.

Why hexagons, not pentagons, in a honeycomb

Bees build hexagonal cells because 120° interior angles pack with zero wasted wall material and use the least wax per unit enclosed area of any shape that tiles perfectly — pentagons leave gaps, and squares or triangles use more total perimeter for the same enclosed area. A football is actually stitched from hexagons AND pentagons in a curved, non-flat pattern — only possible because the surface curves; flat pentagon tessellation genuinely cannot work.

Confusing 'looks balanced' with 'has rotational symmetry'

Seeing a shape that 'looks symmetric' (like a generic kite or trapezium) and assuming it has rotational symmetry of at least order 2.

Consequence: Marking a shape as having rotational symmetry when it only maps onto itself after a full 360° turn (order 1 — effectively 'no rotational symmetry') loses the identification mark.

Fix: Physically test it: rotate the shape and find the smallest angle under 360° where it looks identical again. If only the full turn works, state 'no rotational symmetry' rather than order 1.

Key takeaways

  • Test line symmetry and rotational symmetry separately — a shape can have one without the other.
  • Regular n-gon: n lines of symmetry AND rotational symmetry order n, always paired.
  • A regular polygon tessellates alone only if its interior angle divides 360° exactly — true for triangles, squares, hexagons; false for pentagons (108°×3=324°, 36° short).
  • Semi-regular tessellations just need angles meeting at EACH vertex to total 360°, even using different polygons.

Congruence and Similarity

Congruence — same size, same shape

  • Congruent shapes are identical in every measurement: matching sides equal, matching angles equal.
  • Minimum-information tests for triangle congruence: SSS (all three sides), SAS (two sides + included angle), ASA (two angles + included side), AAS (two angles + a non-included side), RHS (right angle, hypotenuse, one other side — right triangles only).
  • Corresponding vertex order matters: writing claims , , specifically — get the letter order wrong and you've matched the wrong sides.

Similarity — same shape, scaled size

  • Similar shapes have equal corresponding angles and corresponding sides in a fixed ratio, the scale factor .
  • Minimum tests for triangle similarity: AA (two equal angle pairs — the third is automatic), SAS (two sides in the same ratio with the included angle equal), SSS (all three sides in the same ratio).
  • Scale factor doesn't just stretch length — area scales by and volume by , because area is a two-dimensional measurement (length × length) and volume is three-dimensional (length × length × length).

Scale factor relationships

Scale factor between similar shapes

Area scales with the SQUARE of the linear scale factor

Memorise

Volume scales with the CUBE of the linear scale factor

Memorise

Congruence tests vs a similar (scaled) triangle

Congruent shapes: identical tick-marked sides. Similar shapes: same tick-mark PATTERN but different lengths in a fixed ratio.

Worked example

Using a scale factor to find a missing length and an area

[3]
Triangle is similar to triangle . cm corresponds to cm. If cm, find . If the area of is , find the area of .

Congruent vs similar

Concept AConcept BThe distinction that matters
CongruentSimilarCongruent shapes have IDENTICAL corresponding sides (scale factor ); similar shapes have PROPORTIONAL corresponding sides (any scale factor ) but identical corresponding angles either way.

Ignoring vertex order in the congruence/similarity statement

Writing when the matching pairs are actually , , , just because the shapes 'look the same' on the page.

Consequence: Even with a correct final numeric answer, stating the wrong correspondence loses the accuracy mark in proof-style questions, because it identifies the wrong sides as equal or proportional.

Fix: Match vertices by their marked equal angles (or equal/proportional sides) FIRST, then write the statement in that matched order — never copy the order the vertices happen to be labelled on the diagram.

Key takeaways

  • Congruence needs one of SSS, SAS, ASA, AAS, or RHS — any one fully fixes the triangle, so no more information is needed.
  • Similarity only needs AA (or SAS/SSS with a ratio) — equal angles are enough because equal shape doesn't require equal size.
  • Scale factor multiplies lengths once, areas by , volumes by — the single most tested numerical trap in this strand.
  • Vertex correspondence order in a similarity/congruence statement is not decorative — it defines exactly which sides and angles are being claimed equal.

Circle Properties and Terminology

Naming the parts of a circle

  • Radius: centre to any point on the circle. Diameter: the full width through the centre, .
  • Chord: any straight line joining two points on the circle (the diameter is simply the longest possible chord).
  • Arc: a curved part of the circumference; a sector is the pizza-slice region between two radii and an arc; a segment is the region between a chord and an arc.
  • A tangent touches the circle at exactly one point and is always perpendicular to the radius drawn to that point — this single fact underpins most circle-and-tangent proof questions.

Circumference, area, arcs, and sectors

  • A sector or arc is just a fraction of the whole circle — the fraction is always , applied directly to the circumference or area formula.
  • Don't apply the fraction to the radius — the radius stays full length; only the arc length and sector area shrink by the angle fraction, because they measure 'how much of the round trip' you're taking, not the size of the circle itself.

Circle terminology

Radius (r)
Distance from the centre to any point on the circle.
Diameter (d)
A chord that passes through the centre; .
Chord
A straight line segment joining any two points on the circle.
Tangent
A straight line touching the circle at exactly one point, always perpendicular to the radius at that point.
Sector
Region enclosed by two radii and the arc between them (a 'slice').
Segment
Region enclosed by a chord and the arc it cuts off — not through the centre unless the chord is a diameter.

Circle formulas

Circumference of a circle

— radius (cm/m)

Area of a circle

Arc length as a fraction of the full circumference

— central angle subtended by the arc (degrees)

Sector area as a fraction of the full circle's area

Circle terminology

Tangent is always perpendicular to the radius at the point of contact — mark this right angle explicitly in any proof.

Worked example

Arc length and sector area from a central angle

[4]
A circular garden bed has radius 6 m. A sprinkler sweeps out a sector with a central angle of . Find the arc length and area watered, to 1 decimal place (use ).

Why running tracks stagger the start line

On a 400 m track, runners in outer lanes start further forward because they're running a larger-radius circle on the bends — the arc length of their curved section (using with a bigger ) would otherwise be longer than the inside lane for the exact same central angle, so the stagger corrects for the extra distance added purely by the bigger radius.

Key takeaways

  • Learn the six named parts (radius, diameter, chord, tangent, sector, segment) cold — terminology-recall questions are pure knowledge marks, easy to lose through vague language.
  • Tangent ⟂ radius at the point of contact is the single most-used circle fact in proofs.
  • Arc length and sector area are both just applied to the whole-circle formula — same fraction, different base formula.
  • The radius itself never gets multiplied by the angle fraction — only the circumference/area built from it does.

Angle Rules and Proofs

The basic angle facts

  • Angles on a straight line sum to 180°; angles at a point sum to 360°; vertically opposite angles (formed by two crossing lines) are always equal.
  • When a transversal crosses a pair of PARALLEL lines, three special pairs appear: corresponding angles (equal, same relative position at each intersection), alternate angles (equal, opposite sides of the transversal, between the lines), and co-interior angles (supplementary, same side, between the lines).
  • These parallel-line rules only apply because the lines are parallel — a proof question that hasn't stated or shown parallelism cannot use 'alternate angles are equal' as a reason; parallelism must be established first (e.g. via equal corresponding angles).

Proving the triangle angle sum and the exterior angle theorem

  • The angle sum of a triangle (180°) is proved by drawing a line through one vertex parallel to the opposite side, then using alternate angles twice to show the three angles at that vertex form a straight line.
  • Exterior angle theorem: an exterior angle of a triangle equals the sum of the two non-adjacent (remote) interior angles — a direct shortcut derived from the angle sum rule plus the straight-line rule.

Proof toolkit

Exterior angle theorem for a triangle

Memorise

Foundational angle facts used in every proof

Angle pairs formed by a transversal crossing parallel lines

Corresponding = equal (same position); alternate = equal (opposite sides, between the lines); co-interior = sum to 180° (same side, between the lines).

Mnemonic

F, Z, C/U — Corresponding, Alternate, Co-interior

Trace the angle pair shapes: corresponding angles trace an 'F' shape; alternate angles trace a 'Z' shape (or backwards Z); co-interior angles trace a 'C' or 'U' shape hugging between the parallel lines. Spot the letter and you know both the name AND whether the angles are equal (F, Z) or supplementary (C/U).

Worked example

Proving an angle using parallel-line reasons

[4]
Line is parallel to line . A transversal crosses both, creating an angle of at on the upper-left. Find the co-interior angle at on the lower-left, and the alternate angle at on the lower-right, giving a reason for each.

Never write 'obviously equal' as a reason

Every line of a geometry proof needs a named rule (e.g. 'vertically opposite angles are equal', 'angle sum of a triangle = 180°'), not a description of what you see. Mark schemes list specific accepted reason-phrases — an answer with correct working but only 'these angles look the same' loses the reasoning mark even with the right final number.

Key takeaways

  • Straight line = 180°, point = 360°, vertically opposite = equal — these three facts underpin almost every other proof.
  • Parallel lines + transversal give corresponding (equal), alternate (equal), co-interior (sum 180°) — remember F/Z/C to recall which is which.
  • The triangle angle-sum proof uses a parallel construction line and alternate angles TWICE — know this proof, it's regularly asked to be reproduced.
  • Exterior angle of a triangle = sum of the two remote interior angles — faster than doing 180° minus the adjacent interior angle.

Lines, Angles, and Their Properties

Types of lines and angles

  • Parallel lines never meet, stay the same perpendicular distance apart forever, and are marked with matching arrowheads. Perpendicular lines cross at exactly 90°, marked with a small square.
  • Angle types by size: acute (0°–90°), right (exactly 90°), obtuse (90°–180°), straight (exactly 180°), reflex (180°–360°).
  • Complementary angles sum to 90° (fit together to make a right angle); supplementary angles sum to 180° (fit together to make a straight line) — these are pair definitions, not size categories, so any two angles adding to the right total count, even if neither individual angle looks like 45° or 90°.

Bisectors and constructions

  • An angle bisector splits an angle into two equal halves; every point on it is equidistant from the two arms of the angle.
  • A perpendicular bisector of a line segment crosses it at 90° through its exact midpoint; every point on it is equidistant from the two endpoints of the segment.
  • These two bisector types answer different questions — angle bisector locates points equidistant from two LINES, perpendicular bisector locates points equidistant from two POINTS — mixing them up is the single most common construction error.

Complementary vs supplementary angle pairs

Complementary fits inside a right angle (90°); supplementary fits along a straight line (180°) — the shape they complete tells you which rule applies.

Angle pair sums

Complementary angle pair

Supplementary angle pair

Worked example

Solving for an unknown using a complementary/supplementary equation

[3]
Two angles are supplementary. One angle is and the other is . Find and both angles.

Complementary vs supplementary

Concept AConcept BThe distinction that matters
ComplementarySupplementaryComplementary pairs sum to 90° (think 'c' for the 'corner' of a right angle); supplementary pairs sum to 180° (think 's' for a 'straight' line).

Mixing up angle bisector and perpendicular bisector in constructions

Using the perpendicular bisector construction (arcs from both endpoints of a segment) when the question asks to bisect an ANGLE, or vice versa.

Consequence: In construction-and-justify questions, the wrong construction answers the wrong equidistance question entirely — even a perfectly neat compass arc earns 0 for the wrong method.

Fix: Ask what you're finding points equidistant FROM: two straight lines (arms of an angle) → angle bisector; two fixed points (endpoints) → perpendicular bisector. The steps look similar but the arc centres differ (angle bisector: arcs from the vertex, then from the two arm-intersections; perpendicular bisector: arcs from each endpoint of the segment).

Key takeaways

  • Angle size categories (acute/right/obtuse/straight/reflex) describe ONE angle; complementary/supplementary describe a PAIR that adds to 90°/180° — don't conflate the two ideas.
  • Perpendicular lines meet at exactly 90°; parallel lines never meet — mark both correctly on diagrams (arrowheads vs right-angle square).
  • Angle bisector = equidistant from two lines; perpendicular bisector = equidistant from two points — different construction, different purpose.
  • Complementary/supplementary word problems are just linear equations — the mark is in the correct translation (90 or 180) before you even start solving.

Quick Reference

Geometry: Properties of Shape — quick reference

Formulas

  • Interior angle sum of a convex n-gon
  • c = longest side
  • Similarity scale factor k applied to area/volume
  • Same angle fraction, applied to circumference or area
  • Angle pair sums

Key facts

Exterior angles of any convex polygon sum to
360°
Regular polygon tessellates alone only if its interior angle divides
360° exactly
Tangent meets radius at
90°

Mnemonics

  • F, Z, C/UCorresponding (F-shape, equal), Alternate (Z-shape, equal), Co-interior (C/U-shape, sum 180°)

Don't confuse

  • Congruent vs Similar: Congruent = identical size (); similar = proportional size (any ), same angles.
  • Complementary vs Supplementary: Complementary sums to 90°; supplementary sums to 180°.

Command terms

Classify:
Name the category using the stated rule — never just repeat the given numbers.
Justify:
State the rule, substitute the actual numbers, then give the conclusion in one linked sentence.
Apply:
Show the substitution step explicitly, even when the final number is obvious.

Exam checklist

  • Classified the triangle by BOTH angle type and side type when a full classification was asked for
  • Compared to with as the longest side, showing both numbers
  • Named the angle rule (corresponding/alternate/co-interior/vertically opposite) alongside every angle found in a proof
  • Squared (not just multiplied) the scale factor when converting to area, cubed it for volume
  • Checked whether a stated measurement tolerance crosses a classification boundary before claiming certainty
