IB Middle Years Programme · Mathematics MYP Year 3

Patterns, Sequences & Algebraic Thinking

Cover illustration for Patterns, Sequences & Algebraic Thinking (Mathematics MYP Year 3).
MYP · Mathematics MYP Year 3

Patterns, Sequences & Algebraic Thinking

22 min readStandardAssessed under MYP Mathematics Criterion B (Investigating Patterns) and Criterion C (Communicating) — a core strand in every Year 3 unit test and the eAssessment on-screen exam

Every question in this topic is really asking one thing: is the gap between terms constant (arithmetic), the ratio constant (geometric), or is it something else entirely? Get that classification right first and the formula, the graph, and the real-world story all fall into place. Get it wrong and every later mark bleeds away — so this is where you slow down, not speed up.

Overview: How This Topic Fits Together

A pattern is just a rule you can predict. In MYP Year 3 you meet that rule in three disguises: as a list of numbers (a sequence), as a picture (dots, tiles, matchsticks), and as a real situation (savings, seating, growth). The algebra — an nth-term rule — is the tool that lets you jump from 'term 20' to an answer without writing out 20 terms by hand.

  • Arithmetic sequences grow by addition — same amount every step.
  • Geometric sequences grow by multiplication — same factor every step.
  • Some patterns (squares, triangular numbers) aren't linear at all — they need a second look at the differences of the differences.
  • Every spatial or real-life pattern eventually reduces to one of these number behaviours — your job is to spot which one.

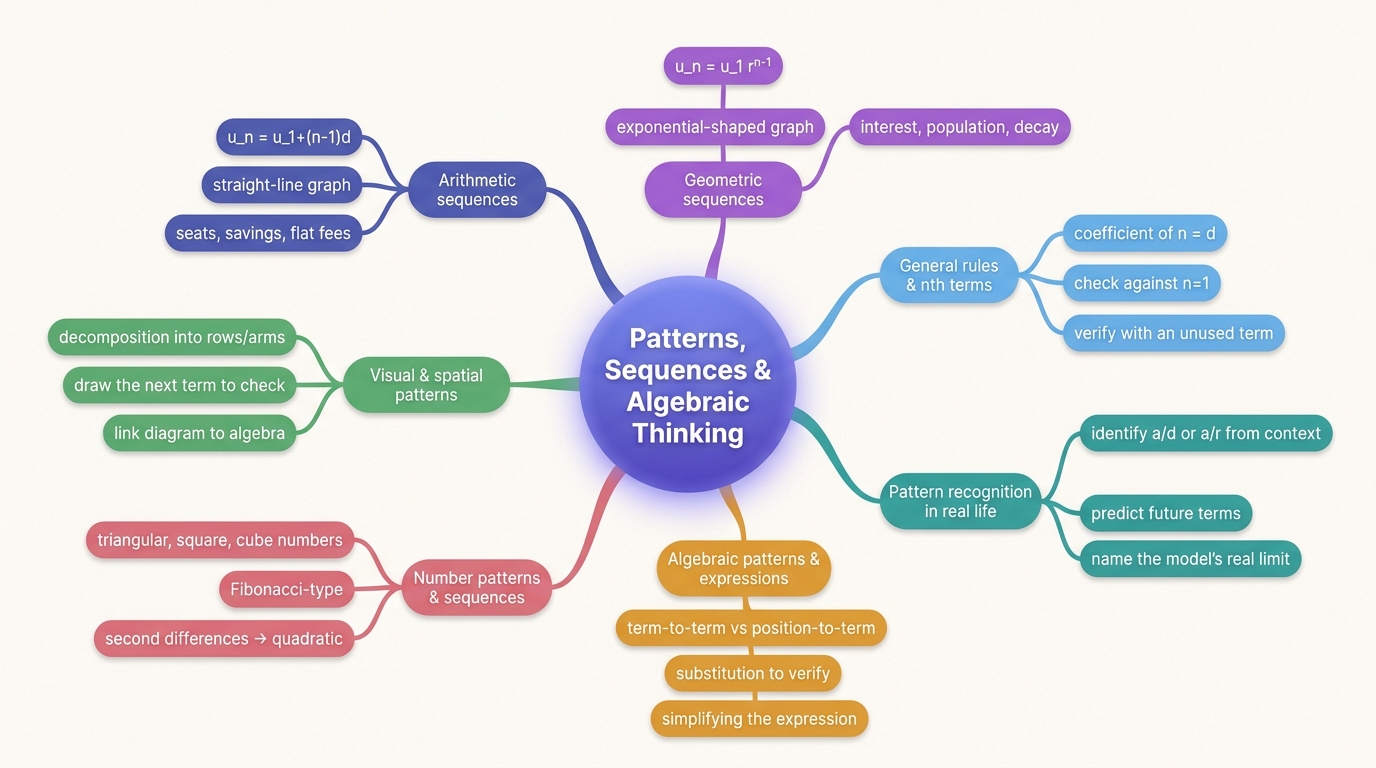

The shape of the chapter

Command terms you'll actually meet in this topic

Command termWhat it demandsAOMark-earning move
CalculateObtain a numerical answer, showing the relevant working stages.ApplyingA bare correct number with no visible subtraction/substitution step can still lose the process mark — always show the line of working.
DescribeGive a detailed, worded account of a rule or feature of the pattern.Communicating'Add 3' alone is incomplete — say what is increasing and by how much, in a full sentence.
ExplainGive a reason, backed by evidence from the actual numbers or diagram given.Communicating/ApplyingRestating the claim ('it's arithmetic because it has a common difference') without pointing at the real values scores 0.
JustifyGive reasoning that proves a conclusion, usually via a check calculation.ReasoningYou must compute and compare, not just assert — 'no, it's wrong' with nothing written down earns nothing.
CompareState similarities AND differences between two or more items.ReasoningGiving only similarities (or only differences) caps the mark at roughly half.
StateGive a specific answer or formula with no explanation required.KnowingSome 'state' items are worth their own mark for writing the formula symbolically before you substitute anything.

Key point

A sequence is arithmetic ⇔ constant difference between consecutive terms; geometric ⇔ constant ratio. Decide which one you're dealing with before reaching for a formula — mis-classifying the sequence is the single biggest cause of lost marks in this whole topic.

Arithmetic and Geometric Sequences

An arithmetic sequence adds the same fixed number every step; a geometric sequence multiplies by the same fixed number every step. That's the entire distinction — everything else (formulas, graphs, real-world matches) follows from it.

  • To test for arithmetic: subtract consecutive terms. If the result is the same every time, you have .
  • To test for geometric: divide consecutive terms (later ÷ earlier). If the result is the same every time, you have .
  • Plotted as , an arithmetic sequence sits on a straight line — the common difference is literally the gradient.
  • A geometric sequence plotted the same way curves away from the axis, getting steeper (growth, ) or flattening toward zero (decay, ).
Arithmetic sequence
A sequence in which each term is found by adding a fixed number to the previous term.e.g. 4, 7, 10, 13, ... adds 3 each time
Common difference (d)
The fixed amount added between consecutive terms of an arithmetic sequence.
Geometric sequence
A sequence in which each term is found by multiplying the previous term by a fixed number.
Common ratio (r)
The fixed factor multiplied between consecutive terms of a geometric sequence.

nth term of an arithmetic sequence

— value of the nth term
— first term
— term number (position)
— common difference
Memorise

finding the common difference from any two consecutive terms

nth term of a geometric sequence

— common ratio
Memorise

finding the common ratio from any two consecutive terms

Graph of an arithmetic sequence: term number vs term value

Every arithmetic sequence sits on a straight line when plotted — the common difference IS the gradient.

n (term number)a_n (term value)(1,4)(2,7)(3,10)(4,13)rise +3run +1

Arithmetic vs Geometric sequences

FeatureArithmetic sequenceGeometric sequence
How consecutive terms relateAdd the same fixed number Multiply by the same fixed number
nth term formula
Graph shape of Points lie on a straight linePoints curve away exponentially
Typical real contextFixed weekly savings, seat rows, flat-rate billingCompound interest, population growth, halving/decay
Quick testSubtract consecutive terms — constant resultDivide consecutive terms — constant result

Worked example

Reading an arithmetic sequence from a table of values

[1]
The first four terms of an arithmetic sequence are plotted as points : , , , . (a) Calculate the common difference. (b) Explain how these values confirm the sequence is arithmetic. (c) A student claims the fifth term will be 15. Justify whether the student is correct.

Worked example

Setting up simultaneous equations from two given terms

[1]
An arithmetic sequence has and . (a) State the formula for the nth term. (b) Using your formula, set up two equations and calculate the common difference . (c) Justify why dividing the difference between two terms by the number of steps between them always gives .

Common mistake

Subtracting terms in the wrong order (e.g. instead of ), or dividing consecutive terms of an arithmetic sequence looking for a ratio.

Consequence: Gives instead of , or produces a meaningless non-constant 'ratio' — loses the mark even if the rest of the method is sound.

Fix: Always compute (later term) − (earlier term); check the same difference holds for at least two consecutive pairs before stating .

Examiner tip

For 'Justify whether the student is correct' questions, you must show the actual calculated value (e.g. ) and then explicitly compare it to the claim in words — a bare 'no, it's 16' with no comparison sentence often only scores half.

Key takeaways

  • Arithmetic = add a fixed ; geometric = multiply by a fixed — test by subtracting, then by dividing, consecutive terms.
  • and are the two core formulas; know which one the pattern of numbers points to.
  • 'Justify' always needs a calculated comparison written down, never just a verdict.

General Rules and nth Terms

An nth-term rule (position-to-term rule) lets you find any term directly from its position , without knowing any earlier terms — essential once a question asks for 'term 50' or 'term 20'.

  • For a linear (arithmetic) rule, the coefficient of always equals the common difference .
  • The constant term is found by making sure the rule gives the correct value when .
  • Always double-check your rule against a term you did NOT use to build it — that's the safety check examiners expect to see.

general linear (arithmetic) nth-term rule built directly from and

the bracketed part is just the constant you add once the coefficient of is fixed

Worked example

Finding the nth-term rule from a spatial pattern

[1]
Arrangement 1: 3 dots, Arrangement 2: 5 dots, Arrangement 3: 7 dots, Arrangement 4: 9 dots. (a) Calculate the common difference. (b) Describe the rule for finding the number of dots in arrangement .

Worked example

Comparing two sequences generated from verbal rules

[1]
A sequence begins at 3 and increases by 5 each time. (a) Calculate the first five terms. (b) Explain how the verbal rule directly determines the common difference. (c) A second sequence has terms 4, 9, 14, 19, 24. Compare the two sequences and identify one similarity and one difference.

Common mistake

Writing the nth-term rule as just (e.g. ) with no correction constant, because the coefficient of is spotted correctly but the starting point is ignored.

Consequence: The rule gives wrong values for every term except by coincidence — e.g. gives when the actual first term is 4.

Fix: Substitute into your draft rule and check it equals the real first term; adjust the constant until it matches, using .

Key point

The coefficient of in a linear nth-term rule always equals the common difference ; the constant term is whatever makes give the true first term.

Examiner tip

'State the formula' is worth its own mark — write symbolically before you touch any numbers; skip it and you can lose that mark even if the final numeric answer is correct.

Key takeaways

  • The coefficient of in a linear nth-term rule is always the common difference.
  • Always test a draft rule against , and ideally one more term, before finalising it.
  • Writing the formula symbolically before substituting is often a separate mark on its own.

Pattern Recognition in Real Life

Most 'real-life' exam questions are just an arithmetic or geometric sequence wearing a costume. The skill being tested is (1) spotting and (or ) inside a word problem, and (2) recognising that real situations rarely stay perfectly patterned forever.

  • Fixed-amount contexts (flat fee + constant add-on) → arithmetic.
  • Fixed-percentage contexts (interest rate, doubling/halving) → geometric.
  • 'Explain why the model might not hold' questions always want a named, concrete limiting factor from the actual context — never a vague 'things change'.

Worked example

Extending a real-world arithmetic model and questioning it

[2]
A theatre has 20 rows. Row 1: 8 seats, Row 2: 11, Row 3: 14, Row 4: 17 (arithmetic, , ). (a) Calculate the number of seats in Row 20. (b) Explain one real-world reason why this model may not accurately predict every row.

Worked example

Predicting the next term and critiquing the model

[1]
Mia saves $5 in week 1, $8 in week 2, $11 in week 3, $14 in week 4. (a) State the common difference and predict week 5's saving. (b) Explain one reason a real savings plan may not follow a perfect arithmetic sequence.

Same formula, different disguise

Compound interest, population growth and viral spread are all modelled with geometric sequences — multiply by a fixed growth ratio every period. Fixed weekly savings, a taxi fare that adds a flat rate per km, or a printing cost per extra page are arithmetic — add a fixed amount every step. A phone contract with a flat monthly fee plus a per-GB charge is literally hiding inside a bill.

Common mistake

Assuming a real-world pattern will continue forever with the exact same constant difference or ratio — e.g. claiming a theatre has unlimited seats or a bank balance grows without limit.

Consequence: 'Explain' marks are lost because the answer doesn't name an actual limit — it just says 'it might change'.

Fix: Name a concrete constraint specific to the context: theatre walls/fire exits capping row length, income dropping some weeks, a room's physical dimensions, etc.

Examiner tip

'Explain one real-world reason' wants ONE specific, named constraint — giving two weak, vague reasons instead of one strong specific one wastes time without earning extra credit.

Key takeaways

  • Arithmetic models fixed-rate real situations (savings, seat rows, flat billing); geometric models fixed-percentage/ratio situations (interest, population, decay).
  • Every 'why might the model fail' question needs one specific, contextual limiting factor — never a vague generalisation.

Algebraic Patterns and Expressions

Generalising a pattern means replacing the specific numbers you counted with a single algebraic expression in that works for every term at once. This is the bridge between 'noticing' a pattern and being able to prove/use it.

  • A term-to-term rule tells you how to get the next term from the one before it (e.g. 'add 2').
  • A position-to-term rule (the nth-term expression) lets you skip straight to any term using only .
  • Always verify a generalised expression by substituting back in and matching it against the original numbers or diagram.
Variable
A letter (commonly ) representing the position of a term, or an unknown quantity in general.
Algebraic expression
A combination of numbers, variables and operations with no equals sign, e.g. .
Substitution
Replacing a variable in an expression with a specific number to check or calculate a value.
Generalisation
Writing a rule that works for every term of a pattern at once, using a variable instead of specific numbers.

Mnemonic

D–R–S: Difference first, Ratio next, Second-differences last

The order to test an unfamiliar sequence: subtract consecutive terms first (constant → arithmetic); if not constant, divide consecutive terms (constant → geometric); if still not constant, try second differences (constant → quadratic).

Common mistake

Substituting the wrong value for — e.g. using the term's VALUE instead of its POSITION when checking a generalised expression.

Consequence: The 'verification' step gives a false match or false mismatch, so a correct rule gets rejected (or a wrong rule gets accepted).

Fix: Always substitute the position number (), never the term's actual value, when checking your expression.

Key takeaways

  • An algebraic pattern rule is just the position-to-term rule written with a variable instead of specific numbers.
  • Always verify a generalised expression by substituting back in and matching it against the original pattern.

Number Patterns and Sequences

Not every sequence has a constant first difference. Some famous 'special' sequences need a different test before you can find their rule.

  • If first differences aren't constant, take the differences OF the differences (second differences) — constant second differences signal a quadratic rule ().
  • Fibonacci-type sequences have no constant difference or ratio at all — each term is the sum of the two before it.
  • Learn to recognise triangular numbers, square numbers and powers of 2 on sight — they appear constantly disguised inside word problems.
Second difference
The difference between consecutive first differences of a sequence; constant second differences indicate a quadratic (n²) rule.
Quadratic sequence
A sequence whose nth term includes an term, identifiable by a constant second difference.

Special sequences worth knowing on sight

Sequence nameFirst termsnth term ruleDifference pattern
Triangular numbers1, 3, 6, 10, 151st differences 2,3,4,5 (increase by 1); constant 2nd difference = 1
Square numbers1, 4, 9, 16, 251st differences 3,5,7,9; constant 2nd difference = 2
Fibonacci-type1, 1, 2, 3, 5, 8no constant difference or ratio — each term sums the two before it
Powers of 21, 2, 4, 8, 16constant ratio
Cube numbers1, 8, 27, 64, 1251st differences 7,19,37,61 — not constant even at 2nd difference

Frequently confused

Concept AConcept BThe distinction that matters
Arithmetic sequenceQuadratic (second-difference) sequenceArithmetic has a constant FIRST difference; a quadratic sequence only shows a constant SECOND difference — check twice before assuming there's no rule at all.
Geometric sequenceFibonacci-type sequenceGeometric multiplies the previous term by one fixed ratio; Fibonacci-type ADDS the previous two terms together — there's no single common ratio or difference to find.
Term-to-term rulePosition-to-term rule (nth term)Term-to-term tells you how to get the next term from the previous one ('add 3'); position-to-term jumps straight to any term using only its position , no earlier terms needed.

Worked example

Spotting a quadratic pattern using second differences

Find the nth-term rule for the sequence 2, 5, 10, 17, 26, ...

Common mistake

Testing only the first differences of a sequence like 2, 5, 10, 17, 26 and concluding 'no pattern exists' because 3, 5, 7, 9 aren't constant.

Consequence: Misses a valid quadratic pattern — loses marks on 'identify the rule' style questions.

Fix: If first differences aren't constant, take the differences of the differences (second differences); a constant result means the rule involves .

Key takeaways

  • Check pattern type in order: first differences (arithmetic), then ratios (geometric), then second differences (quadratic) before declaring 'no pattern'.
  • Know the four classic special sequences (triangular, square, Fibonacci, powers) — they turn up constantly disguised as 'real' problems.

Visual and Spatial Patterns

Dot patterns, tile arrangements and matchstick diagrams are just sequences drawn as pictures. The exam skill is counting the picture correctly, THEN treating it exactly like any other sequence — differences, ratio test, nth-term rule.

  • Break a complex shape into simple, separately countable parts (rows, arms, a central corner) — this is the standard MYP 'decomposition' method.
  • Always draw or predict the NEXT term and check it fits your rule before trusting the rule.
  • If your visual counting and your calculated common difference disagree, the numbers always win — recount the picture.

Dot pattern sequence: Term 1, 2, 3 and the predicted Term 4

Each new term adds one dot to each of the four arms of the cross — a common difference of 2.

Term 1 = 3 dotsTerm 2 = 5 dotsTerm 3 = 7 dotsTerm 4 (predicted) = 9 dots

Worked example

Building an nth-term rule by decomposing a spatial pattern

An L-shaped tile pattern has Term 1 made of 4 tiles, Term 2 of 7 tiles, Term 3 of 10 tiles. Find the nth-term rule.

Common mistake

Miscounting dots or tiles in overlapping/shared regions of a diagram — e.g. counting a shared corner twice, or missing a dot hidden behind another row.

Consequence: The starting term value is wrong, so every later nth-term calculation built on it is wrong even with flawless algebra.

Fix: Count systematically by splitting the shape into separate rows/arms and adding, or literally circle each dot as you count it.

Examiner tip

Before generalising to an nth-term rule from a diagram, draw or predict term 4 and check it against your rule — examiners often penalise a rule that fits only the terms shown and fails on the next one.

Key takeaways

  • Decomposing a spatial pattern into simple countable parts (rows, arms, corners) is more reliable than trying to see the whole shape's rule at once.
  • If diagram-based reasoning disagrees with the calculated common difference from the actual counts, trust the numbers.

Quick Reference

Patterns, Sequences & Algebraic Thinking — everything on one page

Formulas

  • arithmetic nth term
  • common difference from consecutive terms
  • geometric nth term
  • common ratio from consecutive terms
  • general linear rule from d and u_1

Key facts

Arithmetic graph shape
straight line
Geometric graph shape
exponential curve
Triangular numbers nth term
n(n+1)/2
Square numbers nth term
n²

Mnemonics

  • D–R–SDifference first, Ratio next, Second-differences last — the order to test an unfamiliar sequence

Don't confuse

  • Arithmetic vs Quadratic (2nd-difference): Arithmetic = constant 1st difference; quadratic = only constant 2nd difference
  • Geometric vs Fibonacci-type: Geometric multiplies by one fixed ratio; Fibonacci adds the previous two terms
  • Term-to-term rule vs Position-to-term rule: Term-to-term needs the previous term; position-to-term jumps straight to any term from alone

Command terms

Calculate:
Show the working line, not just the final number
Explain:
Point at the actual numbers/diagram as evidence, don't just restate the claim
Justify:
Compute the true value and compare it to the claim in writing
Compare:
Give both a similarity AND a difference

Exam checklist

  • Subtract consecutive terms first — constant? → arithmetic, use
  • Not constant? Divide consecutive terms — constant? → geometric, use
  • Still not constant? Take second differences — constant? → quadratic, involved
  • For an nth-term rule: coefficient of = common difference; fix the constant using
  • Always verify the rule against an unused term before finalising
  • For real-life 'why might this fail' questions: name ONE concrete, contextual limit
