Cells and Biological Processes
MYP Sciences Framework — Living Systems strand: Cells and Biological Processes (Year 5)
Every question in this unit is really asking the same thing in six different costumes: does a molecule, membrane, or cell have the right shape/gradient/genetic instructions to do its job right now? Enzymes work because their active site shape fits a substrate. Membranes let things through (or don't) because of gradients and pore size. Cells divide accurately because chromosomes get copied and shared with genetic precision. Stem cells become anything because they haven't yet switched off the genes for other tissues. Once you see the shape-and-gradient thread running through it, the graphs and calculations in this chapter stop being separate topics to memorise.

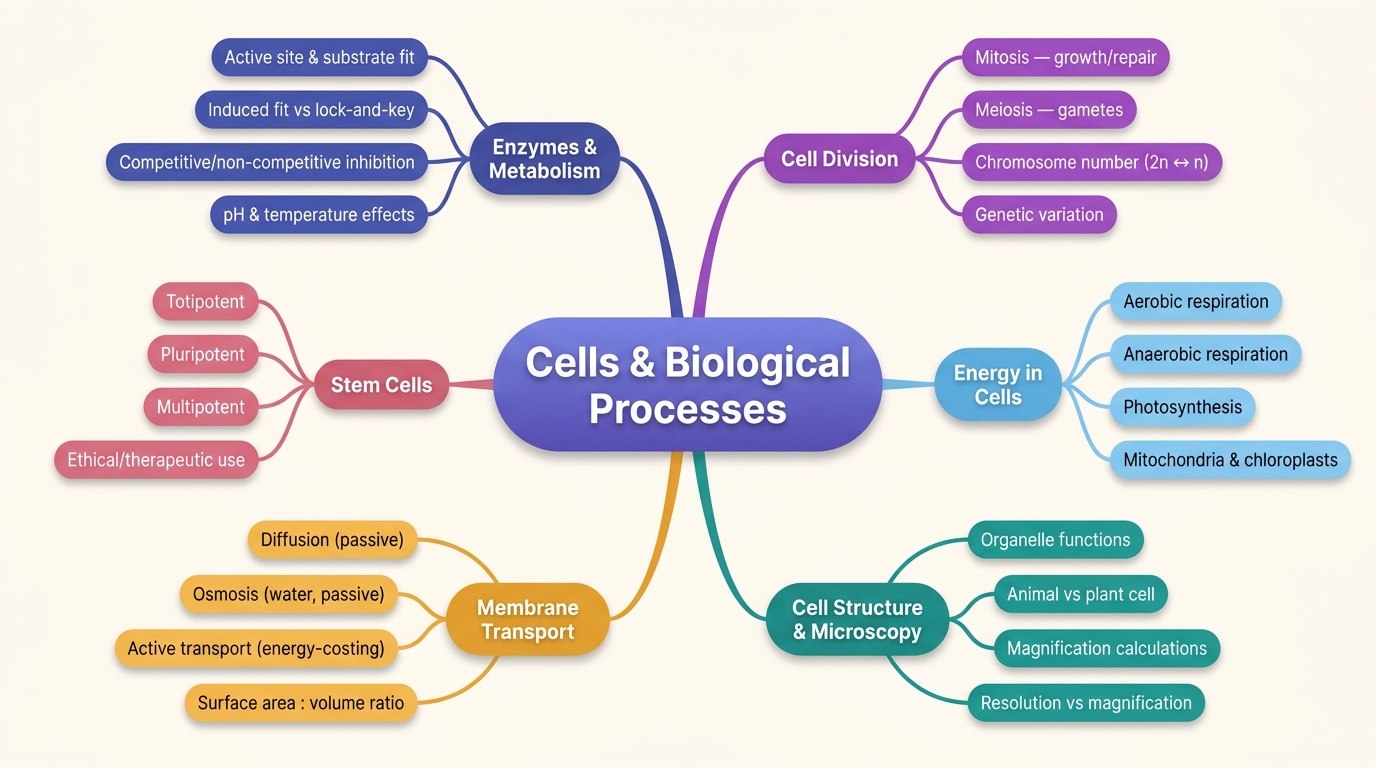

Overview: How This Unit Fits Together
Cells are chemical factories running on catalysts (enzymes), power supplies (respiration/photosynthesis), a copying department (mitosis/meiosis), a delivery network (diffusion/osmosis/active transport), a workforce with fixed job roles (organelles), and a reserve of unassigned staff who can be trained for any job (stem cells). Examiners test whether you can read a graph, do a calculation, or explain a mechanism for each of these — not just recite definitions.
- Enzymes and metabolism sit underneath everything else — respiration and photosynthesis are both just controlled sequences of enzyme-catalysed reactions.
- Cell division (mitosis/meiosis) explains growth, repair, and how genetic variation is generated for reproduction.
- Energy transfer (respiration/photosynthesis) links directly to cell structure — you can't explain a mitochondrion or chloroplast without the equation it runs.
- Transport processes (diffusion, osmosis, active transport) explain how substances actually reach the enzymes and organelles that need them.
- Stem cells connect back to mitosis — they divide by mitosis but can also differentiate, which ordinary body cells cannot do.
The shape of the chapter
Command terms this unit tests hardest
| Command term | What it demands | AO | Mark-earning move |
|---|---|---|---|
| State / Identify | One fact, name, or value — no explanation needed or wanted. | Criterion A | Extra explanation earns zero extra marks and wastes time; a labelled value from a graph counts as 'stated'. |
| Describe | Give a detailed account with no reasoning — what happens, in what order, by how much. | Criterion A | Must include a trend or direction (e.g. 'activity increases then plateaus'), not just 'it changes'. |
| Explain | Give reasons — the mechanism that causes the described pattern. | Criterion A/D | Needs a causal link word ('because', 'as a result') connecting structure to function or cause to effect. |
| Analyse | Break down data or a mechanism to show relationships between parts. | Criterion C | Must reference specific data values or specific structural features, not a generic mechanism. |
| Compare | Give similarities AND differences between two named things. | Criterion A | A one-sided answer describing only one item loses half the marks even if the content is accurate. |
| Construct | Build a graph, table, or diagram from given data, following convention. | Criterion C | Missing axis labels, units, or a suitable scale costs marks even if points are plotted correctly. |
Key point
Enzymes and Metabolism
Metabolism is every chemical reaction happening in a cell — catabolic reactions break big molecules down (releasing energy, e.g. respiration), anabolic reactions build big molecules up (using energy, e.g. protein synthesis). Almost none of these reactions would happen fast enough to sustain life without a catalyst: an enzyme. Enzymes are globular proteins folded into a precise 3D shape that includes an active site — a pocket whose shape and chemical properties match one specific substrate. Binding lowers the activation energy needed for the reaction, so it proceeds far faster than it would uncatalysed, and the enzyme comes out unchanged, ready to catalyse again.
- Specificity comes purely from shape — one enzyme, one type of substrate (usually), which is why a mutation or a drug that changes active-site shape can shut a reaction down completely.
- Temperature and pH both work through the same mechanism: change either too much and hydrogen/ionic bonds holding the protein's tertiary structure collapse — the enzyme denatures and the active site shape is destroyed permanently.
- Rate of reaction rises with substrate concentration only up to a point — once every active site is occupied, adding more substrate can't speed things up further (the enzyme is saturated).
Core vocabulary
- Enzyme
- A biological catalyst — a protein that speeds up a specific reaction without being used up itself.Q8-style — the answer must mention 'protein', 'catalyst/speeds up', and 'specific'.
- Substrate
- The molecule an enzyme acts on and binds to at its active site.
- Active site
- The region of the enzyme, formed by its folded 3D shape, where the substrate binds.Answer must reference shape/3D structure, not just 'the part that binds'.
- Induced fit
- The model where the active site is flexible and changes shape slightly as the substrate binds, tightening around it to form a snug enzyme–substrate complex.
- Lock-and-key model
- The older, simpler model where the active site is a rigid shape that only one substrate shape fits exactly, with no flexing.
- Competitive inhibitor
- A molecule similar in shape to the substrate that binds directly to the active site, blocking the substrate — its effect can be reduced by adding more substrate.
- Non-competitive (allosteric) inhibitor
- A molecule that binds elsewhere on the enzyme, distorting the active site shape so the substrate no longer fits — adding more substrate cannot reverse this.
- Denaturation
- Permanent loss of an enzyme's specific 3D shape (usually from heat or extreme pH), destroying the active site so it can no longer bind substrate.
Induced fit and inhibitor binding at the active site
The active site tightens around the substrate as it binds (induced fit); a competitive inhibitor's similar shape lets it occupy the same site and block the real substrate.
Rate of enzyme reaction
Enzyme reaction rate is always measured as a quantity change per unit time.
- — mass, volume, or concentration of product/substrate (e.g. cm³, mg, mM)
- — duration over which the amount was measured (s or min)
Units on the y-axis of an enzyme graph should always be a rate (per second/minute), not a raw amount — a common construction error.
Worked example
Reading a substrate-concentration graph for inhibitor type (based on Q3/Q4 data)
Worked example
Locating a mutation from activity data (based on Q7)
Common mistake
Describing a non-competitive inhibitor as one that 'blocks the active site directly', or claiming adding more substrate can overcome a non-competitive inhibitor.
Consequence: Loses the explanation mark on questions like Q4 because it describes competitive inhibition's mechanism while labelling it non-competitive (or vice versa).
Fix: Fix the mechanism to the binding location: competitive = binds active site, beatable by excess substrate; non-competitive = binds elsewhere, distorts active site shape, not beatable by excess substrate.
pH/temperature enzyme graphs (Q5, Q6)
Enzyme mix-ups
| Concept A | Concept B | The distinction that matters |
|---|---|---|
| Lock-and-key model | Induced fit model | Lock-and-key = rigid active site, no shape change on binding; induced fit = active site flexes and tightens around the substrate as it binds. |
| Competitive inhibitor | Non-competitive inhibitor | Competitive occupies the active site itself and can be out-competed by more substrate; non-competitive binds elsewhere and distorts the active site, so more substrate makes no difference. |
Key takeaways
- Enzyme specificity, denaturation, and inhibition are all the same idea applied differently: active-site shape must match substrate shape, or the reaction can't happen.
- On a rate vs [S] graph, the plateau = saturation of active sites; the shrinking gap between inhibited/uninhibited curves at high [S] = competitive inhibition.
- Optimum pH/temperature questions always need the word 'denature' linked explicitly to active-site shape, never just 'the enzyme stops working'.
Cell Division: Mitosis and Meiosis
Before any division, a cell copies its entire genome during the S phase of interphase, so each chromosome now consists of two identical sister chromatids joined at a centromere. What happens next depends on the job: mitosis produces two genetically identical diploid cells for growth and repair; meiosis produces four genetically different haploid gametes for sexual reproduction, halving the chromosome number so fertilisation restores the full set.
- Mitosis: one division, chromosome number stays the same (2n → 2n, 2n), daughter cells are clones of the parent.
- Meiosis: two divisions (meiosis I separates homologous pairs, meiosis II separates sister chromatids), chromosome number halves (2n → n), and crossing over plus independent assortment generate genetic variation.
- Variation matters because it's the raw material natural selection acts on — without meiosis, every offspring of sexual reproduction would be an identical clone of a single parent's gamete line.
Vocabulary
- Chromosome
- A tightly coiled structure of DNA and protein carrying genetic information.
- Sister chromatid
- One of two identical copies of a chromosome, joined at the centromere after DNA replication.
- Diploid (2n)
- Containing two full sets of chromosomes — one from each parent (body cells).
- Haploid (n)
- Containing one full set of chromosomes (gametes).
- Homologous pair
- Two chromosomes (one from each parent) carrying genes for the same traits at the same positions.
- Crossing over
- Exchange of DNA segments between homologous chromosomes during meiosis I, creating new gene combinations.
The stages of mitosis
Each cell shows the position and state of chromosomes through the mitotic cell cycle (IPMAT order).
Order of the cell cycle stages
IPMAT
Interphase → Prophase → Metaphase → Anaphase → Telophase — the fixed order chromosomes move through in every mitotic division.
Mitosis vs meiosis
| Feature | Mitosis | Meiosis |
|---|---|---|
| Number of divisions | One | Two (meiosis I and II) |
| Daughter cells produced | 2, genetically identical | 4, genetically different |
| Chromosome number | Stays diploid (2n → 2n) | Halves (2n → n) |
| Genetic variation | None — clones of parent cell | High — crossing over + independent assortment |
| Purpose | Growth, repair, asexual reproduction | Producing gametes for sexual reproduction |
Worked example
Chromosome number and combinations
Common mistake
Saying mitosis 'reduces' or 'halves' the chromosome number.
Consequence: Direct contradiction of the definition — automatic loss of the mark, since halving is the defining feature of meiosis, not mitosis.
Fix: Mitosis keeps chromosome number constant (2n → 2n); only meiosis halves it (2n → n).
Answering 'Compare mitosis and meiosis'
Key takeaways
- Mitosis = 1 division, identical diploid daughters, for growth/repair. Meiosis = 2 divisions, 4 genetically different haploid gametes, for reproduction.
- Chromosome number only halves in meiosis, never in mitosis.
- Genetic variation in meiosis comes from two separate sources: crossing over (new gene combinations within a chromosome) and independent assortment ( combinations of whole chromosomes).
Energy in Cells: Respiration and Photosynthesis
Photosynthesis captures light energy and stores it as chemical energy in glucose — only chloroplast-containing cells do this. Respiration releases that stored chemical energy as ATP that every living cell (plant, animal, fungal, bacterial) can use to do cellular work. Every cell respires; only some cells photosynthesise. Aerobic respiration (with oxygen) releases far more energy per glucose than anaerobic respiration (without oxygen), which happens when oxygen supply can't keep up with demand.
- Aerobic respiration happens continuously in mitochondria — it's the default energy pathway in the presence of oxygen.
- Anaerobic respiration in human muscle cells produces lactic acid (causing the 'burn' during intense exercise); in yeast it produces ethanol and CO₂ (the basis of brewing and baking).
- Photosynthesis happens only in the light-dependent then light-independent reactions inside chloroplasts, and only in cells that contain them.
The three core equations
Photosynthesis: carbon dioxide and water combine using light energy to form glucose and oxygen.
Aerobic respiration: glucose is fully oxidised using oxygen, releasing carbon dioxide, water, and usable energy.
Anaerobic respiration in human muscle cells — incomplete breakdown, far less energy released than aerobic.
Anaerobic respiration in yeast (fermentation) — produces ethanol and carbon dioxide.
Chloroplast and mitochondrion structure
Both organelles have folded internal membranes that massively increase the surface area available for their reactions.
Respiration vs photosynthesis
| Feature | Aerobic respiration | Photosynthesis |
|---|---|---|
| Where it occurs | Mitochondria, in all living cells | Chloroplasts, only in cells with them |
| Energy change | Chemical energy released as ATP | Light energy stored as chemical energy |
| Reactants | Glucose + oxygen | Carbon dioxide + water (+ light energy) |
| Products | Carbon dioxide + water + energy | Glucose + oxygen |
| When it happens | Continuously, day and night | Only when light is available |
Worked example
Reading a light-intensity vs photosynthesis-rate curve
Common mistake
Stating that plants photosynthesise instead of respiring, or only respire in the dark.
Consequence: Contradicts the biology directly — this misconception routinely costs the explanation mark on 'do plants respire' style questions.
Fix: Plant cells respire all the time, exactly like animal cells; they additionally photosynthesise, but only when light is available. Net gas exchange (CO₂ in/out) simply reflects whichever process is currently dominating.
Mitochondrial disease and altitude training
Key takeaways
- All living cells respire; only chloroplast-containing cells also photosynthesise — these are not opposite processes happening in alternation, both can run simultaneously.
- On a light-intensity graph, the initial gradient identifies the current limiting factor (light); a flattening gradient signals a different factor (CO₂ or temperature) has taken over as the limit.
- Anaerobic respiration is a fallback when oxygen is insufficient, and produces different end products in humans (lactic acid) versus yeast (ethanol + CO₂).
Cell Structure and Microscopy
Cell theory states that all living things are made of cells, the cell is the basic unit of life, and all cells come from pre-existing cells. Eukaryotic cells (plant, animal, fungal) have membrane-bound organelles, each doing a specific job — the cell is essentially a factory with departments in fixed locations. Prokaryotic cells (bacteria) lack these membrane-bound organelles; their DNA floats free in the cytoplasm rather than being enclosed in a nucleus.
- Magnification is how much bigger the image looks compared to the real object; resolution is how much fine detail you can actually distinguish — a photo can be magnified hugely and still look blurry if resolution is low.
- Light microscopes magnify up to roughly ×1500 with limited resolution; electron microscopes reach far higher magnification and resolution but can't view living cells.
Animal cell vs plant cell
Plant cells have three structures animal cells lack: a cell wall, a large central vacuole, and chloroplasts.
Organelle roles
- Nucleus
- Contains DNA; controls the cell's activities by controlling which genes are switched on.
- Mitochondrion
- Site of aerobic respiration; produces ATP for the cell.
- Ribosome
- Site of protein synthesis; may be free in cytoplasm or attached to rough ER.
- Chloroplast
- Site of photosynthesis; contains chlorophyll; found only in plant/algal cells.
- Cell wall
- Rigid outer layer of cellulose that supports and protects plant cells; freely permeable, unlike the membrane.
- Vacuole
- Fluid-filled sac; in plant cells, one large permanent vacuole maintains turgor pressure and stores substances.
Magnification calculations
Magnification equals the size of the image divided by the actual (real) size of the object — rearrange to find whichever quantity is missing.
- — magnification (no units — it's a ratio, written as ×n)
- — size of the image as measured (e.g. with a ruler) (mm or µm)
- — actual size of the real structure (same unit as I, but usually converted to µm for final answer)
Worked example
Calculating actual cell size from an image
Organelle quick-reference
| Organelle | Main function | Found in |
|---|---|---|
| Nucleus | Controls cell activity; stores DNA | Plant & animal |
| Mitochondrion | Aerobic respiration / ATP production | Plant & animal |
| Ribosome | Protein synthesis | Plant & animal |
| Chloroplast | Photosynthesis | Plant only |
| Cell wall | Structural support, shape | Plant only |
| Large permanent vacuole | Maintains turgor, storage | Plant only (animal cells have small temporary vacuoles) |
What makes a plant cell different
"WVC" — Wall, Vacuole, Chloroplast
The three structures a plant cell has that an animal cell lacks: cell Wall, large permanent Vacuole, Chloroplasts.
Common mistake
Dividing image size by magnification the wrong way round, e.g. , or forgetting to convert mm to µm in the final answer.
Consequence: Produces an actual size larger than the image — physically impossible, and it's an easy check examiners expect you to make before writing a final answer.
Fix: Always sanity-check: actual size must be smaller than image size. Use , and match units before dividing.
Key takeaways
- Cell theory: all life is made of cells; cells are the basic unit of life; cells arise only from existing cells.
- Only plant cells have a cell wall, large permanent vacuole, and chloroplasts — that's the entire list examiners expect for 'differences'.
- Magnification calculations always divide image size by magnification to get actual size — check the answer is smaller than the image before submitting it.
Diffusion, Osmosis, and Active Transport
Substances cross cell membranes by three routes, distinguished by whether they need a concentration gradient and whether they cost energy. Diffusion is the net movement of any particles from high to low concentration, down their gradient, needing no energy input. Osmosis is a special case of diffusion — specifically water moving across a partially permeable membrane from a region of higher water concentration (dilute solution) to lower water concentration (concentrated solution). Active transport moves substances against their concentration gradient (low to high), which is thermodynamically 'uphill', so it always requires energy from ATP (respiration).
- Small non-polar molecules (O₂, CO₂) diffuse directly through the phospholipid bilayer; larger or charged molecules need protein channels/carriers.
- Surface area to volume ratio matters because diffusion only works efficiently over short distances — as a cell (or organism) gets bigger, its volume (which needs supplying) grows faster than its surface area (which does the supplying), which is why cells stay microscopically small.
- Active transport is essential wherever a cell needs to accumulate something against its gradient — e.g. root hair cells absorbing mineral ions from soil that is more dilute than the root cell's cytoplasm.
Vocabulary
- Diffusion
- Net movement of particles from an area of higher concentration to lower concentration, down a concentration gradient, requiring no energy.
- Osmosis
- Net movement of water molecules from a region of higher water concentration to lower water concentration, across a partially permeable membrane.
- Active transport
- Movement of particles against their concentration gradient (low to high), using energy released from respiration (ATP).
- Partially permeable membrane
- A membrane that allows some molecules (e.g. water) through freely but restricts others (e.g. large solutes).
- Turgid
- A plant cell that has absorbed water by osmosis until the cell wall prevents further swelling — firm and rigid.
- Plasmolysed
- A plant cell that has lost so much water by osmosis that the cell membrane pulls away from the cell wall.
Osmosis in animal and plant cells
Animal cells lyse in strongly hypotonic solutions (no wall to resist swelling); plant cells only become turgid, protected by the cell wall.
Percentage mass change (osmosis practicals)
Used to standardise osmosis practical results (e.g. potato strips) so different-sized samples can be compared fairly.
- — final mass of the tissue sample (g)
- — initial mass of the tissue sample (g)
Worked example
Finding the isotonic point from a potato osmosis graph
Transport process mix-ups
| Concept A | Concept B | The distinction that matters |
|---|---|---|
| Diffusion | Active transport | Diffusion moves particles down their concentration gradient and needs no energy; active transport moves particles against their gradient and always needs ATP. |
| Diffusion | Osmosis | Osmosis is diffusion specifically of water across a partially permeable membrane — any other particle moving down its gradient is just called diffusion. |
Common mistake
Stating that diffusion 'requires energy' or that active transport moves substances 'down' a gradient.
Consequence: Directly reverses the defining feature of each process — an automatic mark loss regardless of how well the rest of the answer is written.
Fix: Diffusion: passive, no energy, down the gradient. Active transport: costs ATP, against the gradient. Memorise the pairing, not just the individual facts.
Direction of movement
Key takeaways
- Diffusion and osmosis are passive (no energy, down a gradient); active transport is the only one of the three that costs energy and moves substances against their gradient.
- Surface area to volume ratio limits cell size because diffusion only supplies materials efficiently over short distances.
- Reading the isotonic point off a mass-change graph requires interpolation between data points, not just picking the nearest plotted value.
Stem Cells
Stem cells are unspecialised cells that can both divide by mitosis to renew themselves and differentiate into specialised cell types. What separates a stem cell from an ordinary body cell isn't just 'being able to divide' — differentiated cells can often still divide (skin cells, for example) — it's the ability to switch on genes for entirely different cell types, something a fully differentiated cell has lost.
- A fertilised egg (zygote) is totipotent — it can become any cell type, including the placenta and extra-embryonic tissues.
- Embryonic stem cells are pluripotent — they can become almost any body cell type, but not the placenta.
- Adult (tissue) stem cells, e.g. in bone marrow, are multipotent — restricted to becoming a limited range of related cell types (e.g. only blood cell types).
Stem cell potency hierarchy
Potency narrows at each stage: totipotent cells can form any tissue including placenta; pluripotent cells form body tissues only; multipotent cells are restricted to one cell lineage.
Vocabulary
- Differentiation
- The process by which an unspecialised cell develops specific structures and functions to become a specialised cell type.
- Totipotent
- Able to differentiate into any cell type, including extra-embryonic tissue (e.g. placenta) — only the zygote and very early embryonic cells.
- Pluripotent
- Able to differentiate into almost any body cell type, but not extra-embryonic tissue — embryonic stem cells.
- Multipotent
- Able to differentiate into a limited range of related cell types — most adult/tissue stem cells.
Bone marrow transplants and ethical debate
Common mistake
Calling any cell that can divide a 'stem cell', or describing a stem cell's potential without naming its potency level (totipotent/pluripotent/multipotent).
Consequence: Loses the precision mark — many differentiated body cells (e.g. skin, liver) can also divide by mitosis, so 'can divide' alone doesn't define a stem cell.
Fix: Define a stem cell by two combined features: (1) can self-renew by mitosis, AND (2) can differentiate into other cell types — then specify which potency level applies.
Key takeaways
- A stem cell is defined by two features together — self-renewal by mitosis AND the ability to differentiate — not just the ability to divide.
- Potency narrows in a fixed order: totipotent (zygote) → pluripotent (embryonic stem cells) → multipotent (adult stem cells) → fully differentiated.
- Stem cell therapies (e.g. bone marrow transplant) are well-established for multipotent adult cells; embryonic pluripotent stem cell use remains ethically contested.
Quick Reference
Cells and Biological Processes — everything on one page
Formulas
- Enzyme reaction rate
- Photosynthesis
- Aerobic respiration
- Magnification = image size ÷ actual size
- Osmosis practical calculation
- Possible chromosome combinations from independent assortment, n = haploid number
Key facts
- Human diploid chromosome number
- 46 (23 pairs)
- 1 mm in µm
- 1000 µm
- Enzymes are catalysts made of
- Protein, folded into a specific 3D shape
- All living cells respire; only some also...
- Photosynthesise (chloroplast-containing cells only)
Mnemonics
- IPMATOrder of mitotic cell cycle stages: Interphase, Prophase, Metaphase, Anaphase, Telophase
- WVCWhat a plant cell has that an animal cell doesn't: Wall, (large permanent) Vacuole, Chloroplast
Don't confuse
- Lock-and-key vs Induced fit: Rigid vs flexible active site shape on substrate binding
- Competitive inhibitor vs Non-competitive inhibitor: Binds active site (beatable by excess substrate) vs binds elsewhere and distorts active site (not beatable)
- Mitosis vs Meiosis: Identical diploid daughters vs genetically different haploid gametes
- Diffusion vs Active transport: Down gradient, no energy vs against gradient, needs ATP
- Pluripotent vs Multipotent: Almost any body cell type vs a limited related range of cell types
Command terms
- State/Identify:
- One fact only — no reasoning
- Describe:
- Trend/pattern with detail, no cause
- Explain:
- Cause-and-effect reasoning, linking mechanism to outcome
- Compare:
- Both similarities AND differences, named explicitly
- Analyse:
- Use specific data values or structural features to justify a conclusion
Exam checklist
- Named the optimum pH/temperature with a value, and used 'denature' + active-site shape reasoning for any drop-off.
- Identified inhibitor type from curve behaviour (converging = competitive; parallel gap = non-competitive), not just 'rate is lower'.
- Kept mitosis (identical, diploid) and meiosis (variable, haploid, two divisions) fully separate in every comparison answer.
- Divided image size by magnification (not the reverse) and converted units to match what the question asked for.
- Stated direction of movement explicitly for diffusion/osmosis answers (high → low concentration).
- Specified the exact potency level (totipotent/pluripotent/multipotent) whenever describing a stem cell, not just 'can divide'.
