Rates of Reaction and Energy Changes
MYP Year 4 Sciences — Rates of Reaction and Energy Changes
Two things are always being tested in this topic: how fast a reaction goes, and which way energy moves while it happens. Examiners love giving you a table of temperatures or a graph and asking you to read it correctly — most marks are lost not from bad chemistry but from quoting the wrong number (final instead of peak temperature, wrong subtraction order for , reading a curve's average slope instead of its tangent). Get the reading habits right and the theory underneath is genuinely simple.

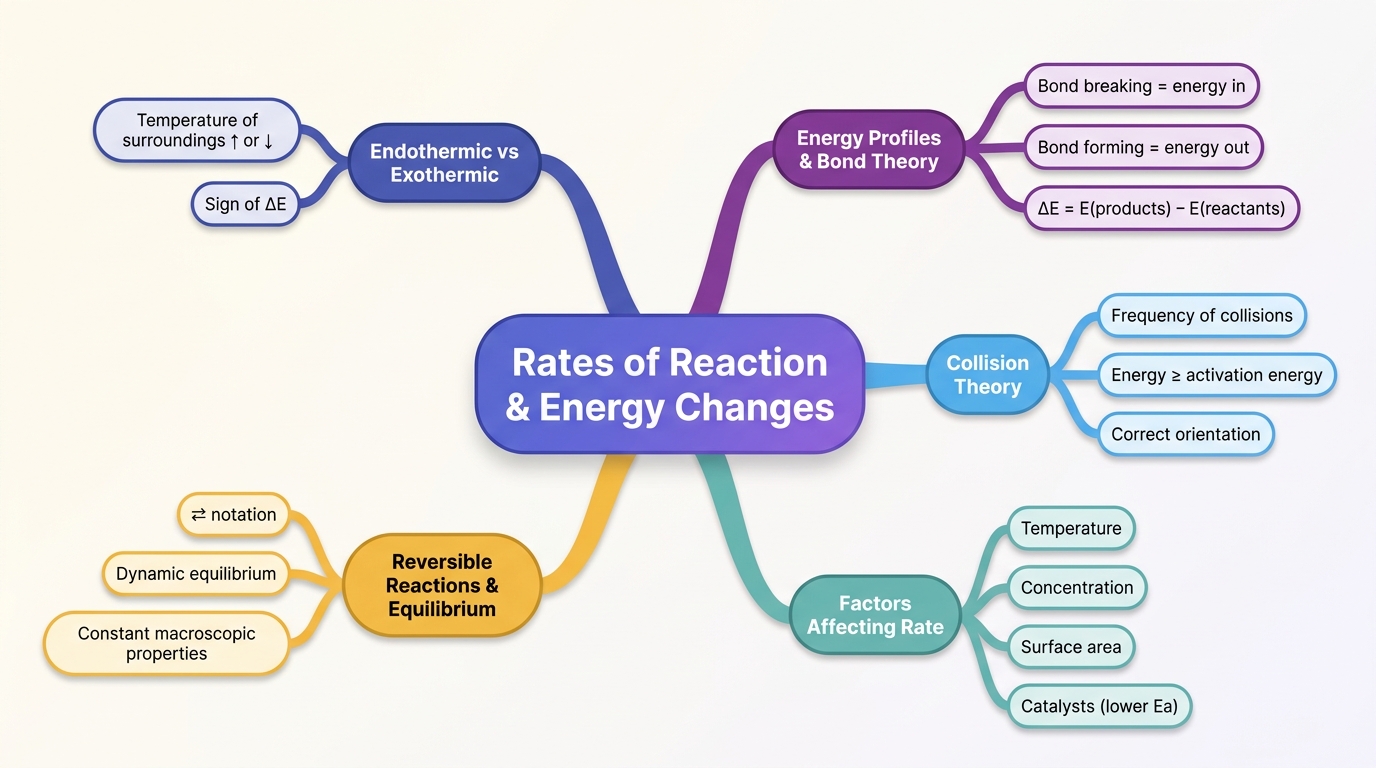

Overview — how this topic fits together
The two questions this topic answers
Question 1: does the surroundings get hotter or colder while this reaction happens (energy changes)? Question 2: what makes the reaction go faster or slower (rates)? Every subtopic below is really just building the vocabulary and diagrams to answer one of those two questions properly.
- Energy changes are explained at the particle level using bond breaking (costs energy) and bond forming (releases energy).
- Rate is explained using collision theory — particles have to meet, hard enough, the right way round.
- Energy-profile diagrams and rate-time graphs are the two pieces of 'graph literacy' examiners test hardest in this unit.
- Reversible reactions and equilibrium sit at the end because they combine both ideas: a system where forward and reverse rates matter, and where energy still flows both ways.
The shape of the chapter
Command terms this topic is actually examined with
| Command term | What it demands | AO | Mark-earning move |
|---|---|---|---|
| Justify | Give reasons/evidence for a stated claim, tied to the specific data given | Criterion A/C | Quote the actual number from the table (e.g. the exact ΔT) — a correct label with no number typically loses a mark. |
| Deduce | Reach a conclusion using a visible logical or numerical step | Criterion C | Show the calculation/reasoning step before the final answer — a bare conclusion loses the reasoning mark even if correct. |
| Explain | State what happens AND why, using the underlying mechanism | Criterion A | Observation alone (e.g. 'it got hot') without bond energy/collision reasoning caps the mark. |
| State | A short, precise answer, no reasoning required | Criterion A | Missing the exact term or value costs the mark; extra explanation isn't penalised but wastes time. |
| Identify | Name the specified number of relevant points from context | Criterion A | Only the number of points asked for is credited — pick the clearest one if only one is required. |
| Formulate | Construct a testable prediction with a scientific reason | Criterion B | A prediction with no reason usually earns only half the available marks. |
| Calculate | Produce a numerical answer with correct sign, working and unit | Criterion A | Right number, wrong sign (e.g. −30 instead of +30) can still lose the final mark. |
Key point
Endothermic and Exothermic Reactions
Where the energy actually goes
Energy is never created or destroyed in a reaction — it just moves between the chemical system and its surroundings. The thermometer in the surroundings tells you which way it moved.
- Exothermic: energy is released FROM the reacting chemicals INTO the surroundings — surroundings get warmer, sometimes with light or sound too (combustion, neutralisation, rusting, respiration).
- Endothermic: energy is absorbed FROM the surroundings INTO the reacting chemicals — surroundings get colder (thermal decomposition, photosynthesis, dissolving NH4Cl, most dissolving of ionic solids).
- The size of the temperature change (not just the direction) tells you roughly how much energy moved — a 20°C rise is a much stronger exothermic signal than a 2°C rise.
- "It got hot" is evidence, not a full explanation — a complete answer links the observation to what's happening to chemical bonds (covered in the next section).
Core definitions
- Exothermic reaction
- A reaction that releases energy (usually as heat) to the surroundings; the surroundings warm up and the products end up with less chemical energy than the reactants.ΔE is negative
- Endothermic reaction
- A reaction that absorbs energy from the surroundings; the surroundings cool down and the products end up with more chemical energy than the reactants.ΔE is positive
Exothermic vs Endothermic at a glance
| Exothermic | Endothermic | |
|---|---|---|
| Energy: products vs reactants | Products LOWER than reactants | Products HIGHER than reactants |
| Sign of ΔE | Negative | Positive |
| Temperature of surroundings | Increases | Decreases |
| Bond energy balance | Bond forming releases MORE than bond breaking absorbs | Bond breaking absorbs MORE than bond forming releases |
| Typical examples | Combustion, neutralisation, respiration, rusting/iron oxidation | Photosynthesis, thermal decomposition, NH4Cl dissolving, citric acid + NaHCO3 |
Worked example
Reading a temperature-change table (Q1 style)
Worked example
Peak vs final temperature (Q6 style)
Worked example
Formulating a hypothesis with a reason (Q4 style)
Worked example
Extracting a gradient from a linear energy-vs-mass graph (Q5 style)
Common mistake
Concluding a reaction is exothermic just because 'something visibly happened' (fizzing, colour change) with no reference to temperature at all.
Consequence: Loses the evidence mark entirely — mark schemes require an actual temperature reading, not an assumption based on visible change.
Fix: Always locate the initial and final (or peak) temperatures in the data and quote the difference as your evidence.
Examiner tip
Hand warmers vs cold packs
Key takeaways
- Exothermic = energy released to surroundings (ΔE negative, surroundings warm up); endothermic = energy absorbed from surroundings (ΔE positive, surroundings cool down).
- Always justify using the actual numbers in the table — both the direction and the size of the temperature change.
- Feeling hot or cold is evidence, not proof on its own — state it explicitly as your evidence, and link to bonds where asked.
Energy Profiles and Bond Theory
Reading an energy profile diagram
An energy profile plots energy (y-axis) against how far the reaction has progressed (x-axis). It always has three key heights: where reactants start, the peak (transition state), and where products end up.
- Bond breaking always needs energy in — it's endothermic on its own, no matter what the overall reaction turns out to be.
- Bond forming always gives energy out — it's exothermic on its own.
- The overall is just which of those two processes 'wins': if more energy is released forming new bonds than was absorbed breaking old ones, the whole reaction is exothermic, and vice versa.
- The hump's height above the REACTANTS is the activation energy for the forward reaction — this is the barrier every particle must clear, regardless of whether the reaction ends up releasing or absorbing energy overall.
Energy profile diagrams: exothermic and endothermic reactions
Same shape, opposite outcome — compare where reactants and products sit relative to each other.
Energy-change relationships
Overall energy change of the reaction
- — total energy of the product particles (kJ mol⁻¹)
- — total energy of the reactant particles (kJ mol⁻¹)
Negative ΔE = exothermic; positive ΔE = endothermic. Always products minus reactants, in that order.
Relationship between the forward and reverse activation energies on the same profile
Extension relationship for checking a diagram is internally consistent — e.g. if Ea(forward) = 120 kJ/mol and ΔE = +30 kJ/mol, then Ea(reverse) = 90 kJ/mol.
Worked example
Calculating ΔE from an energy profile (Q3 style)
Worked example
Linking observation to bond theory (Q8 style)
Worked example
Bond theory + a real device (Q2 style)
Don't mix these up
| Concept A | Concept B | The distinction that matters |
|---|---|---|
| Activation energy (Ea) | Overall energy change (ΔE) | Ea is the height of the barrier from reactants to the transition state (always positive); ΔE is the net difference between products and reactants (can be either sign) — a reaction can have a huge Ea and still be exothermic overall. |
| Exothermic reaction | Reaction that just feels hot | Feeling hot IS valid evidence for exothermic, but a complete answer links it back to bond energy (more released forming bonds than absorbed breaking them), not just 'it got hot so exothermic'. |
Common mistake
Writing ΔE = E(reactants) − E(products), i.e. subtracting in the wrong order.
Consequence: Flips the sign of ΔE, so an endothermic reaction gets wrongly labelled exothermic (or the reverse) even though the magnitude is correct — this usually costs the 'deduce' mark too, since it follows on from the wrong sign.
Fix: Memorise the order as PRODUCTS minus REACTANTS, every single time.
Key takeaways
- ΔE = E(products) − E(reactants); the sign tells you endo (+) or exo (−) directly.
- Bond breaking always costs energy; bond forming always releases energy — the overall sign depends on which process 'wins' by more energy.
- Activation energy and ΔE are independent quantities — don't assume a high Ea means an endothermic reaction.
Collision Theory and Activation Energy
Why most collisions don't do anything
Particles in a reacting mixture are colliding constantly — but almost none of those collisions actually cause a reaction. Collision theory explains exactly which ones do.
- Two conditions must BOTH be met: the colliding particles need energy at least equal to the activation energy, AND they need to hit each other with the correct orientation (the reactive parts of the molecules facing each other).
- Fail either condition and the particles just bounce apart unchanged — no bonds break, nothing new forms.
- At any given temperature, only a fraction of particles are moving fast enough to clear the activation energy barrier at the moment of collision.
- Raising temperature does two things at once: particles move faster (so they collide more often), AND a greater proportion of them now have enough energy to react when they do collide — both effects add up to make rate rise sharply, not just slightly.
Key terms
- Collision theory
- The idea that a chemical reaction can only occur when reacting particles collide with (1) energy at least equal to the activation energy and (2) the correct relative orientation.
- Effective collision
- A collision that satisfies both the energy and orientation conditions and therefore results in a reaction.
- Transition state / activated complex
- The unstable, high-energy arrangement of atoms that exists momentarily at the peak of the energy profile, partway between reactants and products.
Successful vs unsuccessful collisions
Same two particles, three different outcomes — energy and geometry both have to be right.
Mnemonic
EXOthermic EXits heat, ENdothermic ENters heat.
Exothermic reactions push heat OUT to the surroundings (feels warm); endothermic reactions pull heat IN from the surroundings (feels cold).
Common mistake
Explaining a rate increase with temperature using ONLY 'particles collide more often'.
Consequence: Explain-level questions expect the energy-distribution point too; citing collision frequency alone typically caps the answer at half marks.
Fix: Always state both effects: (1) faster-moving particles collide more frequently, AND (2) a greater proportion of those collisions now have energy ≥ Ea.
Examiner tip
Key takeaways
- A collision only leads to a reaction if particles meet with energy ≥ Ea AND the correct orientation — both conditions, not just one.
- Most collisions in a reacting mixture are unsuccessful — that's exactly why reactions take measurable time instead of happening instantly.
Factors Affecting Rate — Temperature, Concentration, Surface Area, Catalysts
Four levers, one mechanism
All four factors speed up a reaction by changing how often particles collide, how much energy they carry when they do, or both — collision theory is the explanation behind every single one of them.
- Temperature: particles move faster — more frequent collisions AND more particles clear the Ea barrier.
- Concentration (or pressure, for gases): more particles packed into the same volume means collisions happen more often, simple as that.
- Surface area: breaking a solid into smaller pieces or powder exposes far more particles at the surface, so more collisions can happen per second even though the total amount of solid hasn't changed.
- Catalysts are the odd one out: they don't add energy or increase collision frequency at all — they provide an alternative reaction pathway with a LOWER activation energy, so a bigger share of existing collisions succeed. A catalyst is not used up and doesn't change ΔE or the final amount of product.
Catalyst
- Catalyst
- A substance that increases the rate of a reaction by providing an alternative pathway with lower activation energy, without itself being permanently used up.e.g. MnO2 for H2O2 decomposition; enzymes in living cells
Catalysed vs uncatalysed energy profile
Same start, same end, same ΔE — only the height of the hump changes.
Effect of concentration, temperature and surface area on rate
Steeper curve = faster rate; same final plateau = same total amount of product, because rate and yield answer different questions.
Rate from a graph
Working definition of rate used to read graphs
- — time interval over which the change is measured (s)
On a volume/time or concentration/time graph, the rate AT AN INSTANT equals the gradient of the TANGENT at that point — never the straight line from the origin to that point unless the whole graph is linear.
Worked example
Extracting the initial rate from a curved graph
Factors affecting rate — cause and effect
| Factor | Effect on rate | Collision theory reason | Example |
|---|---|---|---|
| Increase temperature | Rate increases | Particles move faster — more frequent collisions AND a greater proportion have energy ≥ Ea | Food spoils faster at room temperature than in a fridge |
| Increase concentration (or pressure for gases) | Rate increases | More particles per unit volume — collisions happen more often | Marble chips react faster in 2.0 mol dm⁻³ HCl than in 0.5 mol dm⁻³ |
| Increase surface area (smaller pieces/powder) | Rate increases | More particle surface exposed — more collisions can occur per second | Powdered antacid reacts faster with acid than a whole tablet |
| Add a catalyst | Rate increases (final amount of product unchanged) | Alternative pathway with lower Ea, so a larger fraction of collisions succeed | MnO2 speeds up H2O2 decomposition without being used up |
Common mistake
Describing a catalyst as 'giving particles more energy' or 'making the reaction more exothermic'.
Consequence: Both statements are factually wrong and lose the explain mark — a catalyst never adds energy to the system and never changes ΔE.
Fix: A catalyst lowers the activation energy of the pathway; the total energy released or absorbed (ΔE) stays exactly the same.
Examiner tip
Key takeaways
- All four factors speed up a reaction by increasing the frequency and/or success rate of collisions.
- A catalyst is the odd one out: it lowers Ea and isn't consumed, so it changes rate WITHOUT changing the total amount of product formed.
- Rate at an instant = gradient of the tangent to a volume/concentration-time graph at that point, not the average gradient across the whole graph.
Reversible Reactions and Equilibrium (Qualitative)
When a reaction can run both ways
Most reactions you meet earlier in the course go to completion — reactants turn into products and stop. Some reactions, especially in a sealed container, can run in reverse too: products can react back to re-form reactants.
- A reversible reaction is written with a double arrow, , showing both directions are possible.
- In a closed system, the forward rate starts high (lots of reactant particles available) and falls over time; the reverse rate starts at zero and rises as product builds up.
- Dynamic equilibrium is reached when these two rates become equal — from that point on, concentrations of reactants and products stay constant, even though both reactions are still happening.
- Nothing has 'stopped' at equilibrium — particles are still reacting in both directions, just at matching rates, so there's no net change you can observe.
Key terms
- Reversible reaction
- A reaction that can proceed in both the forward and reverse direction, shown using the ⇌ symbol.
- Dynamic equilibrium
- The state reached in a closed system when the forward and reverse reaction rates become equal, so concentrations (and other macroscopic properties) stay constant even though both reactions are still occurring.
- Closed system
- A system where no matter can enter or leave, allowing equilibrium to actually be reached and maintained.
Approaching dynamic equilibrium
The rates meet, not the concentrations reaching zero — that's the whole idea of dynamic equilibrium.
The Haber process
Beyond the syllabus — Le Chatelier's Principle and Kc
You may hear that changing concentration, pressure or temperature 'shifts' an equilibrium in a predictable direction, formalised as Le Chatelier's Principle, and that equilibrium can be quantified using an equilibrium constant, Kc. Both of these are treated formally at IB Diploma level, not in this MYP course — you only need the qualitative idea that a closed system can settle into a state where forward and reverse rates are equal and concentrations stop changing.
Common mistake
Believing 'equilibrium' means the reaction has stopped.
Consequence: Loses the mark for describing equilibrium as dynamic — a common wrong statement is 'the forward and reverse reactions both stop'.
Fix: State explicitly that both reactions are still occurring, just at equal and constant rates, which is why concentrations appear unchanging.
Key takeaways
- Reversible reactions (⇌) can run in both directions; dynamic equilibrium is reached in a closed system when forward and reverse rates become equal.
- At equilibrium, concentrations stay constant, but the reaction hasn't stopped — both directions are still happening at the same rate.
Quick Reference
Rates & Energy Changes — everything on one page
Formulas
- Negative = exothermic; positive = endothermic
- Checks an energy profile is internally consistent
- Instant rate = tangent gradient on a curved graph
Key facts
- Sign of ΔE for exothermic reactions
- Negative
- Sign of ΔE for endothermic reactions
- Positive
- Effect of a catalyst on ΔE
- No change — only Ea is lowered
- Effect of a catalyst on equilibrium yield
- No change — only rate of reaching it changes
- Conditions for an effective collision
- Energy ≥ Ea AND correct orientation
Mnemonics
- EXOthermic EXits heat, ENdothermic ENters heatExo pushes heat out to surroundings (warms up); endo pulls heat in from surroundings (cools down)
Don't confuse
- Activation energy (Ea) vs Overall energy change (ΔE): Ea = barrier height (always positive); ΔE = net products−reactants difference (either sign) — independent of each other
- Rate vs Position of equilibrium / yield: A catalyst changes only how fast equilibrium is reached, never how much product is present at equilibrium
- Reversible reaction vs Reaction at completion: Reversible uses ⇌ and can run both ways; completion means only products remain and no reverse arrow applies
Command terms
- Justify:
- Quote the exact number from the data as your evidence
- Deduce:
- Show the calculation/logic step before the conclusion
- Explain:
- Give the observation AND the underlying mechanism (bonds/collisions)
- Calculate:
- Check the sign as carefully as the arithmetic
Exam checklist
- Can you read a temperature-time or volume-time graph and pick out the PEAK value or the TANGENT gradient, not just the final reading?
- Can you calculate ΔE = E(products) − E(reactants) and get the sign right first time?
- Can you name all four factors that increase rate and explain EACH one using collision theory, not just 'more collisions'?
- Do you know why a catalyst changes rate but never changes ΔE or the amount of product at equilibrium?
- Can you explain why 'equilibrium' does not mean 'the reaction has stopped'?
