Waves Sound and Light
Every wave question you'll get on this topic reduces to one idea: energy travels, matter doesn't. Once that's locked in, the rest is bookkeeping — matching frequency to energy, matching medium to wave type, matching angle to the normal. The exam bank for this unit leans hard on data tables (EM spectrum values), applied scenarios (hospitals, tunnels, sonar) and 'explain using wave properties' questions — so these notes are built around calculation plus reasoning, not just definitions.
Overview — How This Topic Fits Together
A wave transfers energy from one place to another without transferring matter. Sound and light are the two waves you'll be tested on most, and they sit at opposite ends of a key divide: sound is a mechanical wave (needs a medium — solid, liquid or gas), light is an electromagnetic wave (travels through vacuum at ). Almost every question in this unit is really asking you to apply correctly, identify a wave's position in the EM spectrum, or track a ray of light across a boundary.
- The EM spectrum questions in the exam bank are data-heavy — you'll be given frequency/energy/wavelength tables and asked to spot the pattern, not just recall the order.
- Communication and technology questions test why a property (penetration, diffraction, straight-line travel) makes a wave suitable — or unsuitable — for a real application.
- Sound questions almost always hinge on echo timing or medium-dependence of speed.
- Reflection/refraction questions are ray-diagram plus Snell's law — examiners penalise angles measured from the surface instead of the normal every single time.

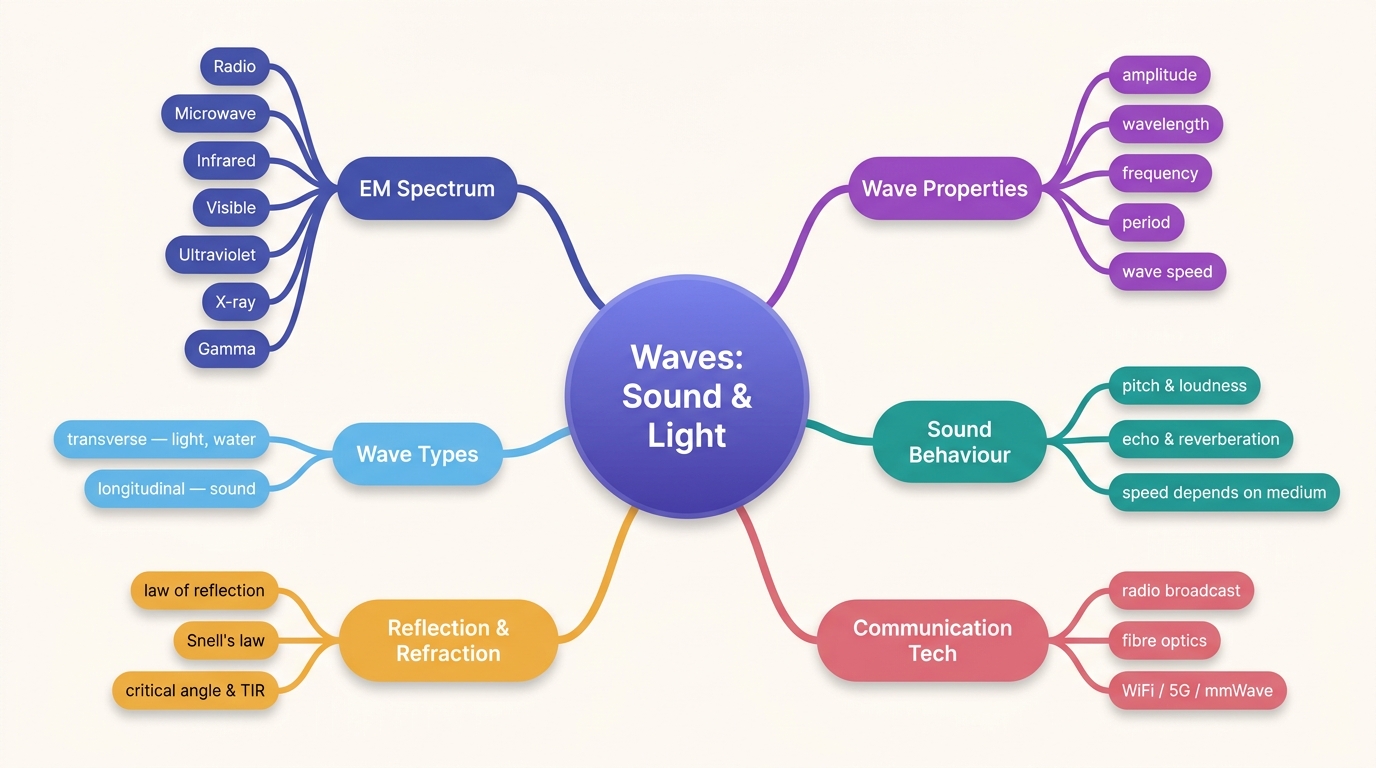

The shape of the chapter
Command terms this topic tests hardest
| Command term | What it demands | AO | Mark-earning move |
|---|---|---|---|
| State | Give a short factual answer with no supporting argument. | AO1 | One correct fact = full marks; extra unrequested explanation earns nothing. |
| Identify | Name or select the correct item from given information. | AO1 | Must use the exact term (e.g. 'gamma rays', not 'high energy rays'). |
| Explain | Give a reasoned account linking cause to effect. | AO2 | Needs a 'because...' chain — a bare fact with no linking word drops a mark. |
| Deduce | Reach a conclusion from data given in the question, showing the reasoning. | AO2/AO3 | Marks are for the working/logic, not just the final number. |
| Calculate | Obtain a numerical answer showing all working. | AO2 | Correct substitution earns a mark even if the final arithmetic slips — but no working shown caps you at the answer mark only. |
| Justify | Support a conclusion with a specific reason drawn from evidence. | AO3 | A conclusion with no evidence link scores zero, even if the conclusion is correct. |
| Discuss / Evaluate | Present more than one viewpoint and weigh them. | AO3 | One-sided answers cap at half marks — you must acknowledge a counterpoint. |
Key point
- Electromagnetic Spectrum and Its Uses
The electromagnetic spectrum is a continuous range of waves that all travel at in vacuum but differ in frequency and wavelength. Because is fixed at , frequency and wavelength are inversely related — this single fact drives almost every EM spectrum question you'll see.
- Order from lowest to highest frequency (and shortest to longest wavelength going the other way): radio, microwave, infrared, visible, ultraviolet, X-ray, gamma.
- Photon energy increases with frequency () — gamma rays carry the most energy per photon of any EM wave, radio the least.
- Ionizing radiation (UV, X-ray, gamma) carries enough energy per photon to strip electrons from atoms — this is why X-rays and gamma rays need shielding and dose limits, while radio and microwaves don't damage tissue the same way.
- X-rays are useful for imaging bone precisely because bone (dense, calcium-rich) absorbs them strongly while soft tissue lets them pass — the contrast in absorption is what creates the image.
Key terms
- Electromagnetic wave
- A transverse wave of oscillating electric and magnetic fields that requires no medium and travels at in a vacuum.Unlike sound, EM waves cross empty space — this is how sunlight reaches Earth.
- Photon
- A discrete packet of EM energy; its energy depends only on the wave's frequency.Higher frequency = more energetic photons, not 'brighter' photons.
- Ionizing radiation
- EM radiation with enough photon energy to remove electrons from atoms (UV, X-ray, gamma).The dividing line for 'dangerous' EM radiation in medical and safety contexts.
The electromagnetic spectrum
Frequency and photon energy increase left to right; wavelength increases right to left.
Core relationships
wave equation for EM waves in vacuum
- — speed of light in vacuum (m s^{-1} (= 3.0\times10^{8}))
- — frequency (Hz)
- — wavelength (m)
photon energy
- — energy of one photon (J)
- — Planck's constant (6.63\times10^{-34}\text{ J s})
- — frequency (Hz)
Higher frequency always means higher photon energy — this is the relationship every EM spectrum data table is testing.
Worked example
Deducing the missing energy value from a data trend
Worked example
From standing wave spacing to wave speed (microwave oven)
EM spectrum: uses and hazards
| Wave type | Approx. frequency | Common use | Hazard / note |
|---|---|---|---|
| Radio | – Hz | Broadcasting, emergency services comms | Non-ionizing; essentially harmless at normal exposure |
| Microwave | – Hz | Cooking, mobile phone signals, satellite links | Can heat tissue at high intensity (skin/eye heating) |
| Infrared | – Hz | Remote controls, thermal imaging, fibre-optic signals | Felt as heat; non-ionizing |
| Visible light | – Hz | Human vision, optical fibres, photography | Non-ionizing |
| Ultraviolet | – Hz | Sterilisation, vitamin D synthesis, UV curing | Ionizing; causes sunburn and skin damage |
| X-ray | – Hz | Medical imaging of bone, airport security scanning | Ionizing; strictly dose-limited |
| Gamma ray | Hz | Cancer radiotherapy, sterilising medical equipment | Highest photon energy; most ionizing, heavily shielded |
Mnemonic
Rico's Mother Insists Visiting Uncle Xavier's Garage
Radio, Microwave, Infrared, Visible, Ultraviolet, X-ray, Gamma — the EM spectrum in order of increasing frequency (and photon energy).
Common mistake
Saying wavelength and frequency both 'increase' or both 'decrease' together across the spectrum.
Consequence: Directly contradicts with fixed — examiners flag this as a fundamental misunderstanding worth losing the full mark, not just a slip.
Fix: Say it as one sentence every time: as frequency increases, wavelength decreases proportionally, because their product must stay equal to .
For 'identify the highest-energy wave' questions
mmWave scanners, 5G, and the ethics of exposure limits
Key takeaways
- EM spectrum order (low to high frequency): radio, microwave, infrared, visible, ultraviolet, X-ray, gamma.
- All EM waves travel at m s in vacuum; only and change, and they're inversely related.
- Photon energy rises with frequency — gamma rays have the most energy per photon, radio the least.
- Ionizing (UV, X-ray, gamma) vs non-ionizing (radio, microwave, infrared, visible) is the key hazard distinction examiners test.
- Light in Communication and Technology
Modern communication is built on choosing the right EM wave for the job. Radio waves diffract around obstacles and travel long distances through air, which is exactly why they suit broadcast and emergency-service radios — but that same reliance on line-of-sight-plus-diffraction is why thick obstacles like tunnels and mountains can still block them. Light (usually infrared) carried inside optical fibres uses total internal reflection to send signals with almost no loss over huge distances.
- Radio waves: long wavelength lets them diffract around buildings and hills, and they penetrate walls reasonably well — but thick rock, metal, or reinforced concrete (as in long tunnels) blocks or heavily attenuates the signal because too little of the wave diffracts through or around such a dense, extended barrier.
- Optical fibres: carry light pulses (usually infrared) along a glass core, trapped by total internal reflection at the core-cladding boundary — this is the backbone of broadband internet and telephone networks.
- Microwaves: short wavelength gives them a narrow, directional beam — ideal for satellite links and mobile phone masts, but they can't bend around obstacles the way radio waves do.
Total internal reflection inside an optical fibre
Each reflection occurs because the ray strikes the boundary at an angle greater than the critical angle.
Critical angle for total internal reflection
critical angle in terms of refractive index of the denser medium
- — critical angle (degrees)
- — refractive index of the medium light is travelling in (relative to the less dense medium outside)
Total internal reflection only happens going from a denser medium into a less dense one, at angles greater than .
Worked example
Finding the critical angle for a glass fibre core
Worked example
Explaining radio signal loss in a tunnel
Common mistake
Explaining tunnel signal loss with 'radio waves travel in straight lines so they can't turn corners' alone.
Consequence: This ignores diffraction entirely, which is the actual property being tested — answers that skip it typically only get partial credit.
Fix: Always name diffraction as the property that usually helps radio signals bend around obstacles, then explain why the tunnel's scale defeats it.
Fibre broadband vs copper cable
Key takeaways
- Radio waves diffract around obstacles, which is why they work for broadcast comms — but thick, extended barriers (tunnels, mountains) still block them.
- Optical fibres transmit light signals using total internal reflection, requiring the ray to strike the core-cladding boundary above the critical angle every time.
- Choice of EM wave for a technology always comes down to matching a specific wave property (diffraction, penetration, directionality) to the application's constraints.
- Wave Properties and Types
Every wave — mechanical or electromagnetic — is described by the same set of quantities, and every wave question ultimately checks whether you can read these off a diagram or apply correctly. Waves also split into two types based on how the medium (or field) oscillates relative to the direction the wave travels.
- Transverse waves: oscillation is perpendicular to the direction of travel — light, water waves, waves on a string.
- Longitudinal waves: oscillation is parallel to the direction of travel, creating compressions and rarefactions — sound is the standard example.
- Amplitude relates to the energy a wave carries (bigger amplitude = more energy); wavelength and frequency together fix the wave's speed through .
Quantities every wave has
- Amplitude
- Maximum displacement of a point on the wave from its rest (equilibrium) position.Determines the energy/loudness/brightness of the wave, not its speed.
- Wavelength ()
- Distance between two consecutive identical points on a wave (e.g. crest to crest).Measured in metres.
- Frequency ()
- Number of complete oscillations passing a point per second.Measured in hertz (Hz); determines pitch (sound) or colour (light).
- Period ()
- Time taken for one complete oscillation.The reciprocal of frequency: .
- Wave speed ()
- Distance the wave pattern travels per second.For a given medium, fixed by the medium's properties, not by the wave's frequency.
Transverse wave — labelled features
Three complete wavelengths of a transverse wave with amplitude 2 cm and wavelength 4 cm.
The wave equation and period
wave speed equation, applies to all waves
- — wave speed (m s^{-1})
- — frequency (Hz)
- — wavelength (m)
period-frequency relationship
- — period (s)
- — frequency (Hz)
Worked example
Reading wave speed from amplitude, wavelength and period
Transverse vs longitudinal waves
| Feature | Transverse | Longitudinal |
|---|---|---|
| Oscillation direction | Perpendicular to travel direction | Parallel to travel direction |
| Pattern shown | Crests and troughs | Compressions and rarefactions |
| Examples | Light, water waves, waves on a string | Sound, seismic P-waves |
| Needs a medium? | Not always (light needs none; water waves do) | Always (needs particles to compress) |
Easy mix-ups
| Concept A | Concept B | The distinction that matters |
|---|---|---|
| Frequency | Period | Frequency counts oscillations per second (Hz); period is the time for one oscillation (s) — they're reciprocals, , never equal in value unless Hz. |
| Amplitude | Wavelength | Amplitude is a vertical measurement (height, tied to energy); wavelength is a horizontal measurement (distance, tied to speed via ) — they answer completely different questions. |
Mnemonic
T-Trouble Travels sideways, L-ongitudinal Lines up
Transverse = oscillation Transverse (sideways) to travel; Longitudinal = oscillation runs Lengthways (parallel) to travel.
Key takeaways
- applies to every wave — mechanical or EM — and is the formula examiners return to most.
- Amplitude relates to energy carried; wavelength and frequency together fix wave speed — don't mix these roles up.
- Transverse = perpendicular oscillation (light, water); longitudinal = parallel oscillation with compressions/rarefactions (sound).
- Sound Waves and Their Behavior
Sound is a longitudinal mechanical wave — it must have particles to compress and rarefy, which is why sound cannot travel through a vacuum, unlike light. Its speed depends on the medium: sound travels fastest through solids (particles are closely packed and transmit vibrations quickly), slower through liquids, and slowest through gases like air.
- Pitch is determined by frequency: higher frequency = higher pitch.
- Loudness is determined by amplitude: bigger amplitude = louder sound (more energy carried).
- An echo is a reflected sound wave — timing an echo lets you calculate distance, provided you remember the sound travels there and back.
- Speed of sound in air at room temperature is roughly ; in water it's about ; in steel it can exceed .
Sound wave — compressions and rarefactions
Regions of high particle density (compressions) alternate with low density regions (rarefactions); the distance between two adjacent compressions is one wavelength.
Sound-specific application of the wave equation
same wave equation, applied with the speed of sound in the relevant medium
- — speed of sound in the medium (m s^{-1})
- — frequency (Hz)
- — wavelength (m)
distance to a reflecting surface from echo timing
- — distance to the reflecting surface (m)
- — speed of sound in the medium (m s^{-1})
- — total time for the sound to travel there and back (s)
The division by 2 accounts for the round trip — this is the step almost everyone forgets under exam pressure.
Worked example
Sonar depth-finding using echo timing
Common mistake
Forgetting to halve the total echo distance when calculating depth or distance to a barrier.
Consequence: Gives an answer exactly double the correct value — a very common one-mark loss on otherwise fully correct working.
Fix: Always write 'total distance = there + back, so depth = total distance ÷ 2' as an explicit line of working, not just in your head.
Common mistake
Assuming sound and light both travel through a vacuum.
Consequence: Sound absolutely cannot travel through a vacuum — this is a factual error, not a rounding slip, and loses full marks on 'explain why sound can't travel in space' style questions.
Fix: State clearly: sound is a mechanical wave and needs particles to compress and rarefy; space is (essentially) a vacuum, so there's nothing to carry the vibration.
When asked to compare speed of sound across media
Key takeaways
- Sound is a longitudinal mechanical wave — needs a medium, cannot cross a vacuum.
- Pitch ↔ frequency; loudness ↔ amplitude — keep these two pairings straight.
- Speed of sound is medium-dependent (fastest in solids, slowest in gases) — never assume it equals .
- Echo/sonar distance calculations always require halving the total round-trip distance.
- Reflection and Refraction of Light
Reflection bounces light back off a surface without it changing medium; refraction bends light as it crosses into a medium where its speed changes. Both are always measured from the normal — an imaginary line perpendicular to the surface at the point where the ray hits it, never from the surface itself.
- Law of reflection: angle of incidence = angle of reflection, both measured from the normal.
- Refraction: light bends towards the normal when entering a denser (higher refractive index) medium, and away from the normal when leaving it — because its speed decreases entering a denser medium.
- The refractive index describes how much a medium slows light down relative to vacuum: bigger means slower light and more bending.
Key terms
- Normal
- An imaginary line drawn perpendicular to a surface at the point of incidence.All angles (incidence, reflection, refraction) are measured from this line, never from the surface.
- Refractive index ()
- The ratio , comparing the speed of light in vacuum to its speed in a medium.Larger = light travels slower in that medium = more bending at a boundary.
- Critical angle ()
- The angle of incidence in the denser medium at which the refracted ray travels exactly along the boundary (refraction angle = 90°).Beyond this angle, refraction stops entirely and total internal reflection occurs instead.
Refraction of light at an air-glass boundary
The refracted ray bends towards the normal because glass is optically denser than air, slowing the light down.
Reflection and refraction equations
law of reflection
- — angle of incidence (degrees)
- — angle of reflection (degrees)
refractive index of a medium
- — refractive index
- — speed of light in vacuum (m s^{-1})
- — speed of light in the medium (m s^{-1})
Snell's law
- — refractive indices of the first and second media
- — angle of incidence in medium 1 (degrees)
- — angle of refraction in medium 2 (degrees)
Worked example
Applying Snell's law across an air-glass boundary
Easy mix-ups
| Concept A | Concept B | The distinction that matters |
|---|---|---|
| Reflection | Refraction | Reflection keeps the ray in the same medium (bounces back); refraction sends the ray into a new medium with a changed speed and direction. |
| Angle measured from the surface | Angle measured from the normal | Every reflection/refraction angle in physics is measured from the normal (perpendicular to the surface) — measuring from the surface itself gives the wrong angle even if the ray drawing is correct. |
Common mistake
Measuring the angle of incidence or refraction from the boundary surface instead of the normal.
Consequence: Produces an angle that's the complement of the correct one (i.e., minus the right answer) — an automatic mark loss even with otherwise perfect diagram construction.
Fix: Draw the dashed normal line first, before drawing any ray, and always label the angle between the ray and that dashed line.
Ray diagram marks
Key takeaways
- Law of reflection: , both from the normal.
- Refraction bends light towards the normal entering a denser medium, away from it leaving one — driven by a change in speed, captured by .
- Snell's law links the two media's refractive indices to the incidence/refraction angles.
- Beyond the critical angle, refraction stops and total internal reflection takes over — the principle behind optical fibres.
Quick Reference
Waves, Sound and Light — everything on one page
Formulas
- universal wave equation — sound, EM waves, any wave
- period-frequency reciprocal
- photon energy; J s
- law of reflection, angles from the normal
- refractive index
- Snell's law
- critical angle for total internal reflection
- echo/sonar distance — halve the round trip
Key facts
- Speed of light in vacuum
- m s
- Speed of sound in air (room temp)
- m s
- Speed of sound in water
- m s
- Planck's constant
- J s
Mnemonics
- Rico's Mother Insists Visiting Uncle Xavier's GarageEM spectrum order: Radio, Microwave, Infrared, Visible, Ultraviolet, X-ray, Gamma
- T-Trouble Travels sideways, L-ongitudinal Lines upTransverse oscillates sideways to travel direction; longitudinal oscillates along it
Don't confuse
- Frequency vs Period: Reciprocals: ; never equal unless Hz
- Reflection vs Refraction: Reflection stays in the same medium; refraction crosses into a new one and bends
- Ionizing EM waves vs Non-ionizing EM waves: UV, X-ray, gamma strip electrons (dangerous); radio, microwave, infrared, visible don't
Command terms
- State:
- One fact, no reasoning needed
- Explain:
- Must include a 'because...' causal link
- Deduce:
- Show working from given data, not recall
- Justify:
- Conclusion + specific supporting evidence
- Discuss/Evaluate:
- Present and weigh more than one side
Exam checklist
- Can you state the EM spectrum in order and link frequency to photon energy?
- Can you explain why radio waves fail in tunnels using diffraction, not just 'blocked'?
- Can you read amplitude, wavelength, frequency and period off a wave diagram?
- Can you calculate sonar/echo distance and remember to halve the round trip?
- Can you draw a correctly labelled ray diagram with the normal as a dashed line and apply Snell's law?
