Ecology and Environment
MYP Year 5 Biology — Ecology and Environment
Ecology is the unit where biology stops being about one organism under a microscope and starts being about systems under pressure — energy moving through chains, chemicals concentrating up them, and human decisions (a plantation, a fertiliser bag, a captive breeding budget) reshaping the whole thing. Every exam question here does the same move: gives you a real, messy scenario — DDT in a pond, algae on a lake, rhinos in a paddock — and asks you to apply one clean underlying mechanism to it. Learn the five mechanisms (energy flow, biomagnification, limiting factors, species-area relationships, conservation trade-offs) properly and the scenarios stop being scary.
Overview — The Shape of the Chapter
What this unit actually tests
Ecology sits on four pillars that never separate on paper: what an ecosystem is built from (biotic/abiotic factors, trophic levels), how energy and matter move through it (food webs, pyramids), how much variety of life exists and how it's protected (biodiversity, conservation), and how humans are currently breaking all three (habitat loss, pollution, climate change). Almost every exam item is a hybrid of at least two pillars — a DDT question is trophic levels and human impact; an island species-count question is biodiversity and data-processing.
- The command term decides the mark scheme more than the biology does — 'Discuss' and 'Explain' are graded completely differently even on the same fact.
- Real data (tables, species counts, concentration figures) appears constantly — you are expected to quote numbers, not just describe direction.
- Diagrams in this unit are almost always cause-and-effect chains (arrows matter) rather than static labelled structures.

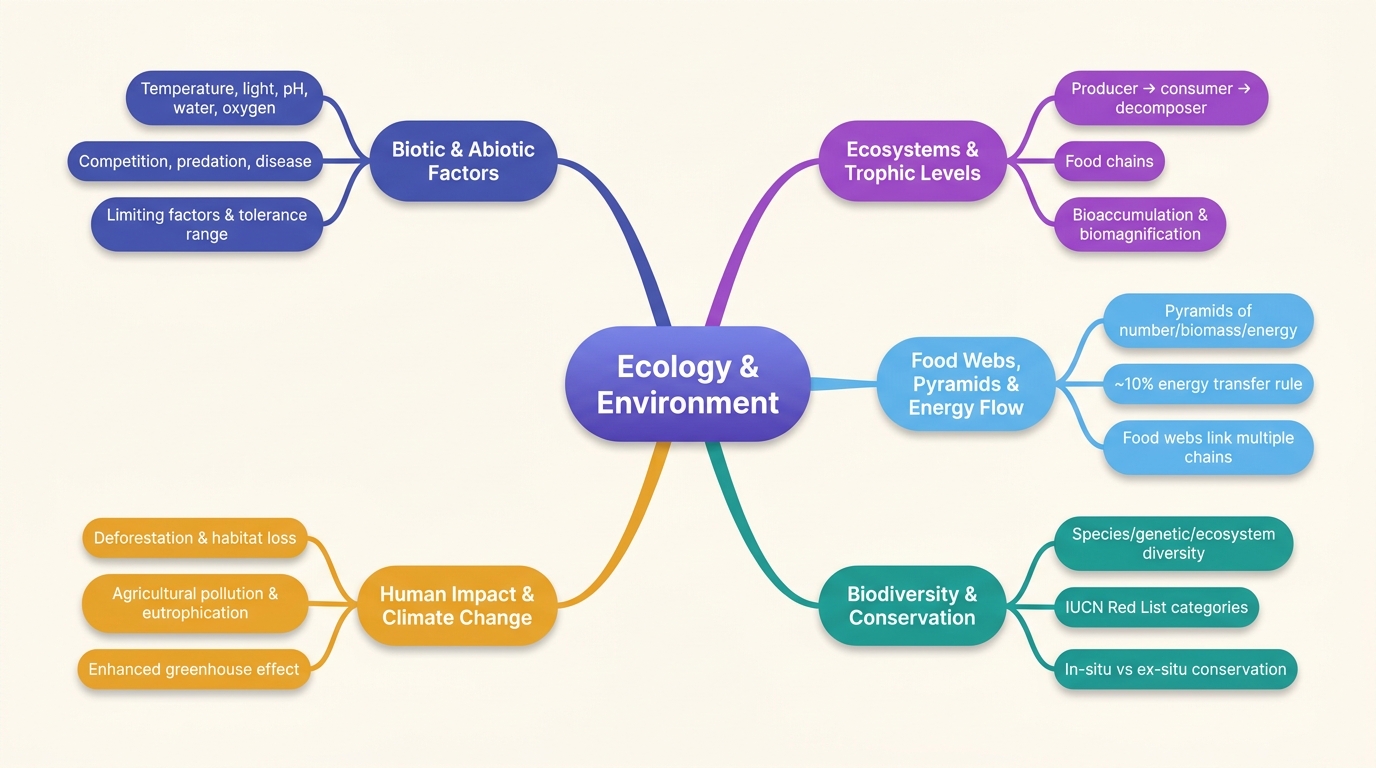

The shape of the chapter
Command terms that decide your mark in this unit
| Command term | What it demands | AO | Mark-earning move |
|---|---|---|---|
| Define | Give the precise general meaning, no example required | Criterion A | One clean sentence stating what the term IS, not what it does in this scenario. |
| Describe | Give a detailed account of a pattern using the data given | Criterion A/C | Quote actual figures or the direction/rate of a trend — 'it decreases' alone scores nothing. |
| Explain | Give reasons — the mechanism linking a cause to an effect | Criterion A | State the 'why', not a repeat of the 'what' already given in the stem. |
| Discuss | Present more than one viewpoint and reach a balanced conclusion | Criterion D | Cover at least two sides before any judgement — a one-sided opinion caps at half marks. |
| Deduce | Reach a conclusion from given data, showing the reasoning | Criterion C | Show the working/logic that produces the number — the final answer alone loses marks. |
| Construct | Build a diagram, graph or model following correct conventions | Criterion B/C | Label every stage and every arrow direction — an unlabelled or reversed arrow loses that specific mark. |
| Evaluate | Weigh strengths and limitations to judge value or validity | Criterion D | State a clear final judgement backed by at least one strength AND one limitation. |
| Identify | Select or name the specific relevant feature | Criterion A/C | Give only the named answer — extra explanation isn't required and isn't rewarded. |
Key point
Human Impact and Climate Change
How human activity destabilises ecosystems
Almost every human impact traces back to one of three actions: removing natural cover (deforestation, land conversion), adding substances that shouldn't be there (fertiliser, pesticide, plastic, CO), or extracting organisms faster than they reproduce (overfishing, poaching). Climate change is the largest-scale version of the second — greenhouse gases build up in the atmosphere and trap outgoing infrared radiation.
- The greenhouse effect itself is natural and necessary — without it Earth's average surface temperature would be around , too cold for most life.
- The enhanced (anthropogenic) greenhouse effect is the problem: burning fossil fuels and clearing forests raise CO/CH concentrations faster than natural sinks can absorb them, trapping extra heat.
- Consequences aren't just 'it gets hotter' — expect to explain sea-level rise (thermal expansion + ice melt), ocean acidification (CO dissolving as carbonic acid), and shifted/extreme weather patterns.
- Agricultural runoff is a separate but equally testable impact: nitrate/phosphate fertiliser washed into waterways triggers eutrophication, a cascade that kills aquatic life through oxygen depletion, not poisoning.
Core terms
- Greenhouse effect
- The natural process by which atmospheric gases (CO, CH, water vapour) absorb and re-radiate infrared radiation, keeping Earth's surface warm enough to support life.
- Enhanced greenhouse effect
- The intensification of the natural greenhouse effect caused by human-added greenhouse gases, leading to measurable global warming beyond natural variation.
- Eutrophication
- The over-enrichment of a body of water with nutrients (mainly nitrates and phosphates), triggering excessive algal/plant growth that ultimately depletes dissolved oxygen.
- Carbon footprint
- The total greenhouse gas emissions caused directly and indirectly by an individual, activity, product or organisation, usually expressed in CO-equivalent.
The enhanced greenhouse effect
Short-wave solar radiation passes through the atmosphere easily; long-wave infrared radiated back from Earth's surface is partly absorbed and re-emitted by greenhouse gas molecules, warming the lower atmosphere.
Eutrophication: from runoff to fish kill
Each arrow represents one causal step — examiners mark this diagram stage by stage, so a missing intermediate step (e.g. decomposer oxygen use) loses that specific mark even if the final outcome is correct.
'Greenhouse effect' vs 'global warming'
Writing 'the greenhouse effect causes global warming' as if the greenhouse effect itself is the problem.
Consequence: Loses the precision mark in Explain/Discuss questions — examiners are checking you know the effect is natural and beneficial; the enhanced/anthropogenic version is what's harmful.
Fix: Always specify 'enhanced greenhouse effect' or 'increased greenhouse gas concentrations from human activity' when linking to global warming.
Human activities and their direct ecological impact
| Activity | Direct mechanism | Main ecological consequence |
|---|---|---|
| Fossil fuel combustion | Releases CO2 and other greenhouse gases | Enhanced greenhouse effect, global warming, ocean acidification |
| Deforestation (e.g. for palm oil, agriculture) | Removes habitat and carbon sink; exposes soil | Habitat loss, biodiversity decline, soil erosion, reduced carbon absorption |
| Fertiliser/agricultural runoff | Adds nitrates and phosphates to waterways | Eutrophication, algal blooms, hypoxia, fish kills |
| Pesticide use | Introduces non-biodegradable toxins into food chains | Bioaccumulation and biomagnification, loss of top predators |
| Overfishing/poaching | Removes individuals faster than reproduction replaces them | Population collapse, trophic cascade, local extinction |
Marking a 'Construct an annotated diagram' question
The 2014 Toledo water crisis
Key takeaways
- Distinguish the natural greenhouse effect (essential) from the enhanced greenhouse effect (human-caused, harmful) in every answer that mentions warming.
- Eutrophication kills aquatic life through oxygen depletion, not through direct toxicity — the mechanism is decomposer respiration, not poison.
- Cause-and-effect diagrams are marked stage-by-stage: every arrow needs a labelled mechanism, not just a direction.
Ecosystems and Trophic Levels
Levels of organisation and who feeds on whom
An ecosystem is a community of interacting organisms plus the physical environment they live in. Within it, every organism sits at a trophic (feeding) level: producers convert light energy to chemical energy, consumers obtain energy by eating other organisms, and decomposers break down dead matter and waste, releasing nutrients back into the system.
- Producers (autotrophs, mainly photosynthetic plants/algae) form the base of every terrestrial and most aquatic chains.
- Primary consumers (herbivores) eat producers; secondary consumers (carnivores/omnivores) eat primary consumers; tertiary consumers sit at or near the top.
- Decomposers (bacteria, fungi) act at every level simultaneously, not as a single 'end' step — they recycle matter from producers, consumers and their waste.
- A key exam application of trophic structure: toxins that don't break down (like DDT) don't just pass through the chain — they build up, and the way they build up differs at the individual level versus the chain level.
Core terms
- Ecosystem
- A community of living organisms interacting with each other and with the non-living (abiotic) components of their environment.
- Trophic level
- An organism's position in a food chain, defined by the number of energy transfers between it and the original source of energy (usually the sun).
- Bioaccumulation
- The build-up of a substance (e.g. a pesticide) within the tissues of a single organism over its lifetime, because the substance is absorbed faster than it is excreted or broken down.
- Biomagnification
- The increase in concentration of a substance at each successive trophic level of a food chain, because each consumer eats many contaminated organisms from the level below.
DDT biomagnification through an aquatic food chain
Same toxin, same chain — but concentration rises roughly ten-fold at each step because each consumer eats many contaminated organisms from the level below.
Worked example
Constructing and explaining a DDT food chain (based on exam Q1)
Terms that get merged into one wrong idea
| Concept A | Concept B | The distinction that matters |
|---|---|---|
| Bioaccumulation | Biomagnification | Bioaccumulation happens inside ONE organism over its lifetime; biomagnification happens BETWEEN trophic levels as you move up a food chain. |
| Food chain | Food web | A food chain is a single linear sequence of who-eats-whom; a food web is the full network of interconnected chains showing that most organisms have more than one food source and predator. |
Arrow direction in food chains
Drawing the arrow from predator to prey (e.g. Osprey → Fish) because 'the osprey is doing the eating'.
Consequence: The arrow in a food chain always represents the direction of ENERGY FLOW, not the direction of feeding action — a reversed arrow makes the whole chain scientifically wrong even if the organisms and order are correct, and typically loses the construction mark.
Fix: Read the arrow as 'energy passes to' — Phytoplankton → Zooplankton means energy flows from phytoplankton to zooplankton.
Marking 'Define' for 1 mark
Yellowstone wolves and the trophic cascade
Key takeaways
- Trophic level = position in the chain by number of energy transfers from the sun, not by species identity.
- Bioaccumulation is a within-organism process; biomagnification is a between-level process — a full DDT explanation needs both, in that order.
- Food chain arrows always point in the direction of energy flow (prey to predator), never predator to prey.
Biodiversity and Conservation
What biodiversity actually measures, and why it's disappearing
Biodiversity operates at three levels examiners test separately: species diversity (number and variety of species in an area), genetic diversity (variation within a single species' gene pool), and ecosystem diversity (variety of habitats/ecosystems in a region). Losing any one weakens the others — low genetic diversity makes a species less able to survive disease or climate shifts, for example.
- The IUCN Red List ranks species by extinction risk: Least Concern → Near Threatened → Vulnerable → Endangered → Critically Endangered → Extinct in the Wild → Extinct.
- Habitat loss is the single largest driver of biodiversity decline globally — it removes the resources (food, shelter, breeding sites) a species' entire population depends on.
- Habitat fragmentation is a distinct, related problem: remaining habitat is split into disconnected patches, isolating populations, blocking gene flow, and increasing vulnerable 'edge' area.
- Conservation is generally split into in-situ (protecting species within their natural habitat — reserves, protected areas, anti-poaching enforcement) and ex-situ (removing individuals from the wild for protection — zoos, seed banks, captive breeding programmes).
Core terms
- Biodiversity
- The total variety of life in a given area, encompassing species diversity, genetic diversity within species, and ecosystem diversity.
- Species richness
- The number of different species present in a given area, used as one simple measure of biodiversity.
- Habitat loss
- The reduction in the total area of a natural habitat available to a species, most commonly through conversion of land to agriculture, urban development or logging.
- In-situ conservation
- Protecting a species within its natural habitat, e.g. national parks, marine protected areas, anti-poaching patrols.
- Ex-situ conservation
- Protecting a species outside its natural habitat, e.g. zoos, botanic gardens, seed banks, captive breeding programmes.
Species–area relationship
Species richness increases with island/habitat area, but at a decreasing rate — a power-law curve, not a straight line.
- — number of species (species richness)
- — area of the habitat/island
- — constants specific to the habitat type and taxon studied (z is typically 0.2–0.5)
Taking logs of both sides gives a straight line: log S = log c + z·log A. Plotting log S against log A lets you read z straight off the gradient — this is the standard way exams expect you to 'deduce' species counts beyond the given data range.
Worked example
Island area vs bird species richness (based on exam Q3)
Worked example
Discussing an ethical conservation dilemma (based on exam Q2)
In-situ vs ex-situ conservation
| Feature | In-situ conservation | Ex-situ conservation |
|---|---|---|
| Location | Within the species' natural habitat | Outside the natural habitat (zoo, seed bank, aquarium) |
| Example | National parks, marine protected areas, anti-poaching patrols | Captive breeding programmes, botanic gardens, frozen zoos |
| Main advantage | Preserves the whole ecosystem, not just one species; cheaper at scale | Can save a species even after its habitat is destroyed; precise control of breeding |
| Main limitation | Doesn't work if the habitat is already destroyed or too small | Small captive populations risk low genetic diversity; reintroduction is difficult and expensive |
| Cost pattern | Ongoing, land-dependent, often government/NGO funded | Very high per-individual cost (e.g. ~10 million USD/year for a rhino programme), often criticised as resource-inefficient |
Habitat loss vs habitat fragmentation
Using 'habitat loss' and 'habitat fragmentation' interchangeably when defining or explaining biodiversity decline.
Consequence: A 'State the definition of habitat loss' question wants the total-area-reduction concept specifically; describing fragmentation (patches becoming disconnected) instead misses the actual definition and loses the mark.
Fix: Habitat loss = total habitat area shrinks. Habitat fragmentation = remaining habitat is broken into isolated, disconnected patches. Both reduce biodiversity, but by different mechanisms (resource loss vs isolation/edge effects).
'Discuss' vs 'Evaluate' cost-benefit questions
Sumatran rhino: fewer than 80 left
Key point
Key takeaways
- Biodiversity has three levels (species, genetic, ecosystem) — losing genetic diversity within a species is still biodiversity loss even if the species survives.
- Species-area relationships are curved, not linear — use log-log gradients to predict richness for areas outside the data given.
- In-situ and ex-situ conservation solve different problems; most real programmes (like the Sumatran rhino) run both simultaneously rather than choosing one.
Biotic and Abiotic Factors
The two categories that define a habitat
Every ecosystem is shaped by biotic factors (the living components — other organisms, whether competing, predating, or spreading disease) and abiotic factors (the non-living, physical/chemical components — temperature, light, pH, water availability, dissolved oxygen, soil type). A species survives within a tolerance range for each abiotic factor; outside that range, it can't persist even if food and biotic conditions are perfect.
- A limiting factor is whichever single factor (biotic or abiotic) is in shortest supply relative to what the population needs — it caps population growth even if every other factor is abundant.
- Indicator species (bioindicators) are organisms whose presence, absence, or abundance reveals the state of an abiotic factor without needing to measure it directly in a lab.
- Dissolved oxygen concentration in water is one of the most commonly examined abiotic factors — it's affected by temperature, flow rate, and organic pollution (via decomposer respiration, as in eutrophication).
- Biotic and abiotic factors interact constantly: an abiotic change (e.g. falling oxygen) can eliminate a biotic relationship (a predator loses its prey) that never directly involved the abiotic factor at all.
Core terms
- Biotic factor
- A living component of an ecosystem that affects other organisms, e.g. competition, predation, disease, availability of food species.
- Abiotic factor
- A non-living, physical or chemical component of an ecosystem, e.g. temperature, light intensity, pH, dissolved oxygen, water availability.
- Limiting factor
- The single environmental factor (biotic or abiotic) that is in shortest supply and therefore restricts population growth or distribution, regardless of the abundance of all other factors.
- Indicator species
- A species whose presence, absence or abundance is used to assess the environmental quality (usually an abiotic condition) of a habitat, without direct chemical measurement.
Worked example
Macroinvertebrates as bioindicators of stream health (based on exam Q7)
Bioindicator macroinvertebrates and oxygen tolerance
| Organism | Oxygen tolerance | What its presence indicates |
|---|---|---|
| Mayfly nymph | Requires high dissolved O2 | Clean, well-oxygenated, low-pollution water |
| Stonefly nymph | Requires high dissolved O2 | Clean, well-oxygenated, low-pollution water |
| Caddisfly larva | Requires high dissolved O2 | Clean, well-oxygenated, low-pollution water |
| Leech | Tolerates low dissolved O2 | Organic pollution, reduced oxygen levels |
| Aquatic worm (e.g. Tubifex) | Tolerates very low dissolved O2 | Heavy organic pollution, significantly reduced oxygen |
Remembering the sensitive trio
M.A.C. needs Air-Conditioning — Mayfly, Caddisfly, stonefly all need clean, oxygen-rich (well-'aerated') water.
Helps you recall which three macroinvertebrates are pollution-SENSITIVE (indicate clean water) rather than pollution-tolerant, the exact discrimination exam questions rely on.
Bioindicator questions want the mechanism, not the label
Key takeaways
- Biotic factors are living influences (competition, predation, disease); abiotic factors are physical/chemical (temperature, light, pH, dissolved oxygen).
- A limiting factor caps population size regardless of how abundant every other resource is — identify the scarcest one, not the most obvious one.
- Bioindicator species let you infer an abiotic condition (like dissolved oxygen) from which species are present or absent, without needing lab measurements.
Food Webs, Pyramids, and Energy Flow
From single chains to whole networks — and where the energy goes
A food web links multiple food chains together, showing that most consumers eat more than one type of prey and are eaten by more than one predator. Energy flows through this network in one direction only (it is never recycled, unlike matter/nutrients), and a huge amount is lost at every single transfer.
- Only about 10% of the energy available at one trophic level is transferred to the next — the rest is lost as heat (respiration), used for movement, or leaves the organism as undigested waste/faeces.
- This is why food chains rarely exceed 4–5 trophic levels — there simply isn't enough usable energy left to support a fifth or sixth level of consumers.
- Ecological pyramids display this: pyramid of numbers (organism count per level), pyramid of biomass (total mass per level), pyramid of energy (energy available per level, always upright, always narrowing).
- Removing or damaging one trophic level in a food web doesn't just affect the level directly above and below it — because of interconnections, effects can cascade sideways through species that share prey or predators.
Energy transfer efficiency
Roughly 10% of energy at one trophic level reaches the next; the rest is lost as heat, in movement, or as undigested waste.
- — percentage of available energy passed up to the next trophic level
You may be asked to calculate this from given kJ or kcal values per level — always divide the HIGHER level's energy by the LOWER level's energy, not the reverse.
Pyramid of energy
Each level holds roughly 10% of the energy of the one below — the pyramid narrows because energy, unlike matter, is not recycled.
A freshwater pond food web
Arrows point from prey to predator (direction of energy flow); note how several species (e.g. the fish) have more than one food source and more than one predator.
Worked example
Species loss pattern across trophic levels under pesticide runoff (based on exam Q6)
Assuming every ecological pyramid is upright
Applying the 'always narrower at the top' rule to a pyramid of numbers without checking the organisms involved.
Consequence: Pyramids of numbers can be inverted — one large tree (1 producer) can support thousands of caterpillars (primary consumers) and dozens of birds (secondary consumers). Assuming this pyramid must be upright leads to a wrong sketch or wrong interpretation.
Fix: Only the pyramid of ENERGY is always upright, because energy loss at each transfer is a fixed biological rule. Pyramids of numbers and biomass can invert depending on organism size and reproduction rate.
Where the missing 90% of energy goes
R.U.M. — Respiration, Undigested waste, Movement
The three destinations for the ~90% of energy lost at each trophic transfer, instead of being passed on to the next consumer.
'Describe the pattern' means quote the data
Key takeaways
- Energy flows one-way through a food web and is never recycled — only about 10% passes to the next trophic level, lost mainly to respiration, movement and undigested waste.
- Pyramids of energy are always upright; pyramids of numbers and biomass can be inverted for specific organism combinations (e.g. one tree, many insects).
- When pesticide/toxin data shows species loss across trophic levels, always check whether the loss gets proportionally WORSE higher up the chain — that pattern signals biomagnification.
Quick Reference
Ecology and Environment — everything on one page
Formulas
- Species-area relationship; log-log plot gives gradient z.
- Roughly 10% per trophic transfer; rest lost to respiration, movement, undigested waste.
Key facts
- Approximate energy transfer efficiency per trophic level
- ~10%
- Typical maximum food chain length
- 4–5 trophic levels
- IUCN Red List risk order
- Least Concern → Near Threatened → Vulnerable → Endangered → Critically Endangered → Extinct in the Wild → Extinct
- Natural greenhouse effect average surface temp without it
- ≈ −18°C
Mnemonics
- M.A.C. needs Air-ConditioningMayfly, caddisfly, stonefly = pollution-sensitive, high-oxygen indicator species.
- R.U.M.Respiration, Undigested waste, Movement — the three sinks for energy lost at each trophic transfer.
Don't confuse
- Bioaccumulation vs Biomagnification: Within one organism over time vs between trophic levels along a chain.
- Food chain vs Food web: Single linear sequence vs full interconnected network of chains.
- Habitat loss vs Habitat fragmentation: Total area reduction vs remaining habitat split into disconnected patches.
- In-situ conservation vs Ex-situ conservation: Protects species within its natural habitat vs removes it to an artificial setting (zoo, seed bank).
- Greenhouse effect vs Enhanced greenhouse effect: Natural, essential warming vs human-intensified, harmful excess warming.
Command terms
- Describe:
- Quote actual figures/trend from the data given, not just a direction.
- Explain:
- State the mechanism/reason linking cause to effect.
- Discuss:
- Present at least two viewpoints before reaching a judgement.
- Deduce:
- Show the working/logic that produces your final answer.
- Construct:
- Label every stage and every arrow direction on a diagram.
Exam checklist
- Can I define bioaccumulation and biomagnification as two SEPARATE ideas?
- Do my food chain/web arrows point from prey to predator (energy flow direction)?
- Have I quoted actual numbers/percentages in any 'describe the pattern' answer?
- For 'Discuss', have I given at least two sides plus a final judgement?
- Do I know which type of pyramid (numbers/biomass/energy) can invert, and which never does?
- Have I distinguished habitat loss from habitat fragmentation, and in-situ from ex-situ conservation?
