IB Middle Years Programme · Physics MYP Year 5

Forces and Motion

Cover illustration for Forces and Motion (Physics MYP Year 5).
MYP · Physics MYP Year 5

Forces and Motion

34 min readStandardCore mechanics unit — tested across Criterion A (Knowing & Understanding) and Criterion C (Processing & Evaluating) tasks; almost every MYP Y5 physics paper has a multi-part structured question combining calculation with explanation from this topic.

Forces and Motion is where MYP physics stops being about definitions and starts being about reasoning with numbers and diagrams together. Every question here rewards the same three moves: pick the right formula, show the units, and explain the physical reason behind the number — examiners give separate marks for each. The topic splits into six connected ideas: what keeps things moving in circles, why weight isn't mass, why falling objects stop accelerating, what a force actually is, how forces combine, and how graphs encode speed and acceleration. Master the links between them and the calculations stop feeling separate.

Overview — The Big Picture

Why this topic hangs together

Everything in this unit traces back to one idea: forces change motion, and is the equation that quantifies it. Circular motion is just Newton's laws applied to something changing direction rather than speed. Weight is a force () so it obeys the same rules as any other force when you're checking whether motion is balanced or unbalanced. Friction and air resistance are the forces that make real-world motion messier than 'ideal' motion — they're why terminal velocity exists at all. And motion graphs are simply the visual record of what all these forces produced.

  • Mass is a property of matter; weight is a force caused by gravity acting on that mass — conflating the two costs marks on almost every planet/gravity question in the bank.
  • A net (unbalanced) force always produces acceleration — never assume 'moving' means 'force is being applied in the direction of motion'.
  • Circular motion at constant speed still involves acceleration, because velocity (a vector) is constantly changing direction.
  • Graphs are data, not decoration — gradient and area both carry specific physical meaning that examiners expect you to extract numerically.

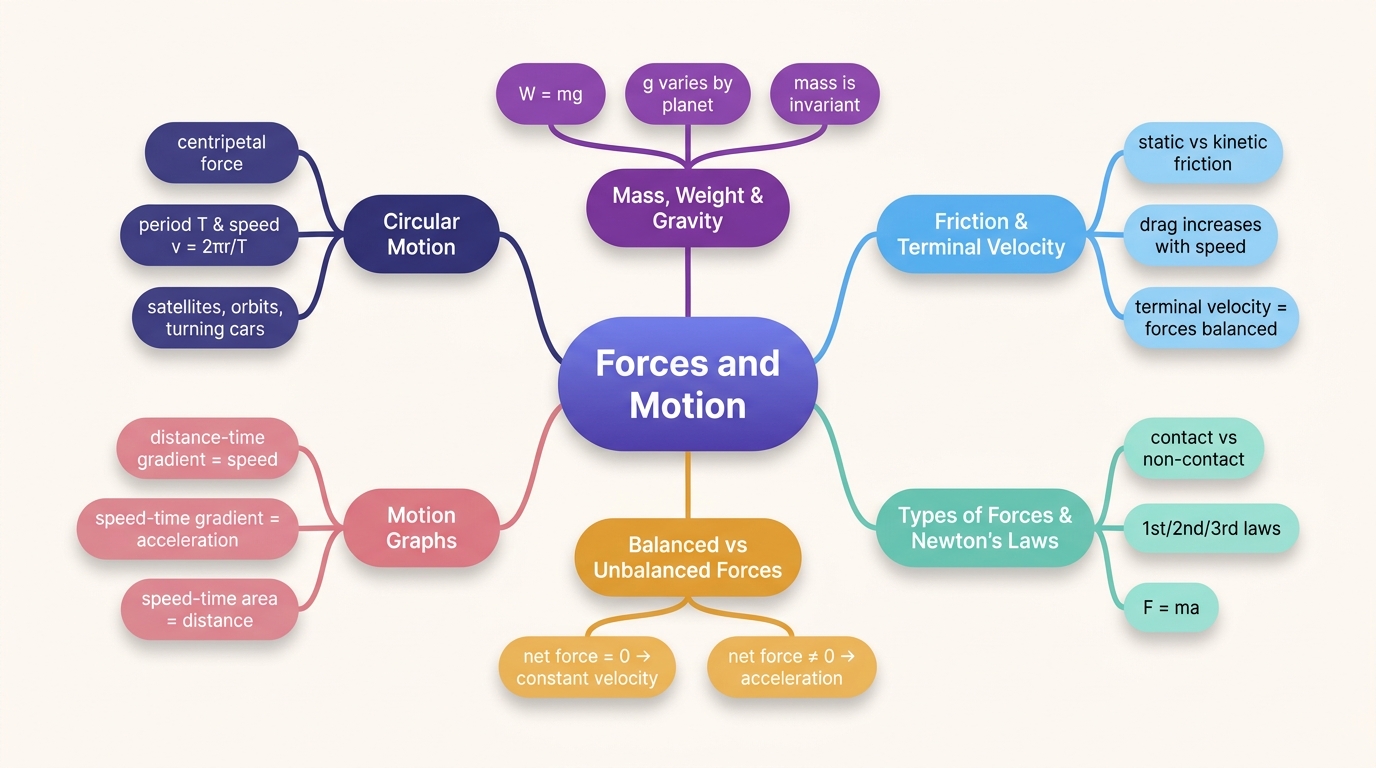

The shape of the chapter

Command terms this topic actually uses

Command termWhat it demandsAOMark-earning move
StateGive a short, precise answer with no explanation or working needed.AO1Write the exact formula or fact — extra words earn nothing but wasted time.
DefineGive the precise meaning of a term.AO1Must include the defining relationship (e.g. weight = force of gravity ON a mass), not just a synonym.
CalculateObtain a numerical answer, showing the relevant working.AO2Formula → substitution → answer with unit — each step usually carries its own mark.
Show thatDerive the given result, showing every step explicitly.AO2You MUST show the working even though you're given the answer — a bare final line scores zero.
DeduceReach a conclusion from the information given, showing reasoning.AO3State the pattern in the data AND the physical relationship it implies.
ExplainGive reasons supported by physics, not just a description.AO2Needs a 'because' — a description of what happens without the reason scores half marks at best.
DescribeGive a detailed account, e.g. of a graph's shape or a process.AO1/AO2Reference specific sections/values (e.g. 'from 6 s to 10 s the speed is constant') rather than vague trends.
DiscussPresent balanced viewpoints or implications (often ethical/environmental).AO4Needs at least one point FOR and one AGAINST/limitation to reach full marks.

Key point

If a question gives you , a mass, and asks for a force — it wants . If it gives you a force and a mass and asks about motion — it wants . Misreading which one is being asked for is the single most common lost mark in this entire topic.

Circular Motion

Moving in a circle at 'constant speed' isn't constant motion

An object going round in a circle at steady speed still accelerates, because velocity includes direction, and direction is changing every instant. By Newton's second law, an acceleration needs a net force — this force always points from the object toward the centre of the circle, which is why it's called the centripetal force. It is not a new, separate kind of force; it's just the name given to whatever real force (tension, gravity, friction, normal force) happens to be supplying the centre-directed pull.

  • Period : time for one complete revolution (s). Frequency (Hz) — how many revolutions per second.
  • The speed around the circle is — circumference divided by time for one lap.
  • Remove the centripetal force and the object doesn't fly outward — it flies off in a straight line, tangent to the circle, exactly as Newton's first law predicts.
  • Bigger radius or higher speed both demand a bigger centripetal force to keep the same curved path — that's why fast, tight turns need strong forces (tyres gripping the road, a stronger string).
Centripetal force
The net resultant force directed toward the centre of a circular path, responsible for continuously changing the direction of an object's velocity.Always points to the centre — never outward, never tangential.
Period (T)
The time taken to complete one full revolution of the circular path, measured in seconds.

Centripetal force and velocity in circular motion

The velocity is always tangent to the circle; the net force is always toward the centre — the two are perpendicular.

velocity (v) — tangent to circlecentripetal force (F) — towards centrecentre Oradius rdirection of motion

speed around a circular path = circumference ÷ period

— speed (m/s)
— radius of circle (m)
— period (time for one revolution) (s)

centripetal force needed to maintain circular motion

— mass of object (kg)
— speed (m/s)
— radius (m)

Extension formula — confirms that faster speed or smaller radius both demand a larger force.

Worked example

Orbital speed of a satellite

[2]
A small satellite orbits Earth in a circle of radius m, completing one orbit every s. Calculate its orbital speed.

Speed vs velocity in circular motion

Concept AConcept BThe distinction that matters
SpeedVelocitySpeed (a scalar) can stay perfectly constant around a circle; velocity (a vector) is changing every instant because direction changes — that changing velocity is exactly why an acceleration and a centripetal force must exist even at 'constant speed'.

Space debris and orbital mechanics

Every satellite and rocket stage in orbit is in circular (or elliptical) motion held there by gravity acting as the centripetal force — remove that force conceptually and the object would fly off tangentially, not fall straight down. This matters practically: thousands of defunct satellites now orbit Earth as debris, and proposed clean-up missions (launching nets from rockets to snag debris and drag it into the atmosphere to burn up) must match the orbital speed of the debris almost exactly before capture, otherwise the net and the debris collide destructively rather than connecting. The kerosene-fuelled rockets used for these missions also raise a genuine trade-off worth discussing: reducing collision risk in orbit versus the carbon emissions and resource extraction needed to manufacture and launch the capture hardware.

Common mistake

Treating 'centripetal force' as an extra force acting alongside gravity/tension/normal force, then adding it into a free-body diagram as a separate arrow.

Consequence: Double-counts a force that doesn't exist independently — examiners deduct marks for an extra, unexplained arrow on force diagrams.

Fix: Centripetal force is a role, not a new force. Identify which real force (tension in a string, gravity on a satellite, friction on tyres) is playing that role, and label the diagram with that real force's name.

Key takeaways

  • Constant speed around a circle still means accelerating, because velocity's direction is always changing.
  • The centripetal force always points toward the centre and is provided by a real force already present in the situation — never draw it as an extra force.
  • links speed, radius and period; shows force needed grows with speed squared and shrinks with larger radius.

Mass, Weight and Gravity

Same object, two completely different quantities

Mass is how much matter an object contains — measured in kilograms, unchanging no matter where the object goes. Weight is the force that gravity exerts on that mass, measured in newtons, and it changes depending on the local gravitational field strength . Every planet, moon, or star has its own value of , because depends on that body's mass and radius — which is exactly why an astronaut's weight drops dramatically on the Moon or Mars while their mass stays identical.

  • — weight (N) equals mass (kg) times gravitational field strength (N/kg).
  • on Earth ≈ 9.8 N/kg (equivalently 9.8 m/s²) — the two units are numerically identical because is simultaneously 'force per kg' and 'acceleration due to gravity'.
  • A spring scale actually measures weight, not mass directly — that's why the same object reads differently on the Moon even though nothing about the object itself changed.
  • Gravitational field strength can also be measured experimentally, e.g. from a pendulum's period, or from timing a projectile's flight under gravity alone.
Mass
The amount of matter in an object, measured in kilograms (kg); it is the same everywhere in the universe and does not depend on gravity.Measured with a balance, not a spring scale.
Weight
The force of gravity acting on an object's mass, , measured in newtons (N); it is a vector pointing toward the centre of the attracting body and varies with location.Measured with a spring scale (calibrated in N).
Gravitational field strength (g)
The gravitational force exerted per unit mass at a location, in N/kg; numerically equal to the free-fall acceleration in m/s² at that location.

weight = mass × gravitational field strength

— weight (N)
— mass (kg)
— gravitational field strength (N/kg (= m/s²))
Memorise

gravitational field strength from a simple pendulum's length and period

— pendulum length (m)
— period of one full swing (s)

Finding g from a pendulum: T² against L

Because rearranges to , the gradient of this straight-line graph equals .

Length, L (m)Period squared, T² (s²)(0.20, 0.80)(1.00, 4.00)gradient = 4π²/g

Worked example

Extracting g from the pendulum graph (Q1)

[3]
The graph of against passes through the origin and through and . Use the gradient to find .

Worked example

Weight of a book (Q2)

[2]
A student holds a 500 g book stationary above a desk. (a) State the definition of weight in physics. [1] (b) Calculate the weight of the book, taking . [1]

Worked example

Mars rover weight (Q6)

[2]
A Mars rover has a mass of 899 kg. The gravitational field strength on Mars is . (a) State the formula relating weight, mass and gravitational field strength. [1] (b) Calculate the weight of the rover on Mars, in newtons. [1]

Worked example

Finding g from a vertical launch (Q3)

[3]
A rock is launched vertically upward at and returns to the ground after s on Earth. Show that the acceleration due to gravity on Earth is approximately .

Worked example

Constant mass on the Moon (Q7)

[3]
A spring scale reads 49 N for a rock on Earth (). Predict the reading on the Moon, where is of Earth's value.

g and weight of a 1 kg mass across different worlds

Bodyg (N/kg)Weight of a 1 kg mass (N)
Mercury3.73.7
Venus8.88.8
Earth9.89.8
Mars3.73.7
Moon≈1.6≈1.6

Worked example

Deducing the F = mg relationship (Q8)

[3]
The gravitational force on a 1 kg mass is measured as 3.7 N on Mercury, 8.8 N on Venus, 9.8 N on Earth and 3.7 N on Mars. (a) Deduce the relationship between , and the planet's field strength . (b) Explain what represents, and why Mercury and Mars can share the same value despite being different sizes.

Mass vs Weight

Concept AConcept BThe distinction that matters
MassWeightMass never changes and is measured in kg with a balance; weight changes with location, is a force measured in N with a spring scale, and equals .

Common mistake

Writing an answer for weight in kilograms (e.g. '5 kg') instead of newtons, or plugging mass in grams straight into .

Consequence: Loses the final answer mark even if the method and substitution were otherwise correct — unit errors are penalised specifically on calculation questions.

Fix: Always convert mass to kilograms first, and always finish a weight calculation with the unit N, never kg.

One-mark 'state the formula' questions

When a question is worth just 1 mark and says 'state the formula', write the equation symbolically () rather than a sentence — it's faster and unambiguous, and matches exactly how the mark scheme is written.

Key point

changes with location; mass never does. Every 'why is weight different on Mars' question is really just asking you to explain that one sentence in context.

Key takeaways

  • is the single most tested equation in this topic — always keep mass in kg and weight in N.
  • Mass is invariant; gravitational field strength depends on the planet/moon and drives the change in weight.
  • can be measured experimentally — from a pendulum's – gradient, or from the symmetric rise/fall time of a vertical projectile.

Friction, Air Resistance and Terminal Velocity

The forces that make real motion messy

Friction opposes relative motion between two surfaces in contact; air resistance (a form of drag) opposes motion through a fluid like air. Both convert kinetic energy into heat, and both get bigger the faster something moves — which is exactly why a falling object doesn't keep accelerating forever.

  • Static friction resists the start of motion; kinetic friction resists motion already happening — static friction is usually slightly larger, which is why objects are harder to start moving than to keep moving.
  • Air resistance increases roughly with the square of speed, so as a falling object speeds up, the upward drag force grows rapidly.
  • Terminal velocity is reached when air resistance exactly equals weight — net force becomes zero, so acceleration becomes zero and speed becomes constant (Newton's first law in action, not a special new rule).
  • Raindrops, skydivers and falling leaves all reach a terminal velocity — the size, shape and mass of the object determine how large that final speed is.
Friction
A contact force that opposes relative sliding motion between two surfaces, acting parallel to the surfaces.
Air resistance (drag)
A resistive contact force exerted by air on an object moving through it, acting opposite to the direction of motion and increasing with speed.
Terminal velocity
The constant maximum speed reached by a falling object once air resistance has increased to exactly balance its weight, giving zero net force.

Forces on a skydiver through the fall

Weight stays constant throughout the fall; air resistance is what changes, and it's the relative size of the two arrows that tells you the motion.

weight (W)air resistanceaccelerating downwardconstant velocity — forces balanceddecelerating

Worked example

Net force during a skydive

[3]
A skydiver of mass 70 kg (weight = 686 N, using ) experiences an air resistance of 400 N at one instant during the fall. Calculate the net force and instantaneous acceleration at that moment.

Common mistake

Believing that at terminal velocity, all forces disappear or air resistance becomes zero.

Consequence: Leads to the wrong conclusion that the object should stop falling — loses marks on 'explain terminal velocity' questions.

Fix: At terminal velocity the forces are balanced, not absent — weight still pulls down and air resistance still pushes up, they're just equal in magnitude, giving zero NET force and therefore constant (not zero) velocity.

Describing a terminal-velocity scenario

When asked to 'describe' the motion of a falling object over time, name each phase explicitly in order: accelerating (net force down), still accelerating but at a decreasing rate (air resistance building), then constant velocity (forces balanced) — a vague answer like 'it falls fast then slows down' misses the specific force-balance vocabulary the mark scheme wants.

Key takeaways

  • Friction and air resistance both oppose motion and convert kinetic energy to heat; air resistance grows rapidly with speed.
  • Terminal velocity = weight and air resistance are balanced, giving zero net force and constant (not zero) velocity — not zero forces.
  • Acceleration during a fall decreases progressively as air resistance builds, even before terminal velocity is reached.

Types of Forces and Newton's Laws

Contact, non-contact, and the three rules that govern them all

Every force is either a contact force (requires touching — friction, normal force, tension, applied push/pull, air resistance) or a non-contact force (acts at a distance — gravity, magnetic force, electrostatic force). Newton's three laws describe how any force, of either kind, changes motion.

  1. First law: an object stays at rest or moves at constant velocity unless acted on by an unbalanced (net) force — this is 'inertia'.
  2. Second law: an unbalanced force produces acceleration, — bigger force or smaller mass means bigger acceleration.
  3. Third law: for every force one object exerts on a second object, the second exerts an equal and opposite force back on the first — the two forces act on DIFFERENT objects, so they never cancel each other out.
Force
A push or pull that can change an object's motion (speed and/or direction) or shape, measured in newtons (N).
Newton's first law
An object remains at rest or in uniform motion in a straight line unless acted upon by a net (unbalanced) external force.
Newton's second law
The acceleration of an object is directly proportional to the net force acting on it and inversely proportional to its mass: .
Newton's third law
For every action force one body exerts on another, there is an equal-magnitude, opposite-direction reaction force exerted back by the second body on the first.

net force = mass × acceleration

— net (resultant) force (N)
— mass (kg)
— acceleration (m/s²)
Memorise

Newton's third law pair — book on a table

These two forces are equal and opposite, but they act on DIFFERENT objects — they do not cancel each other out and are not the same as 'balanced forces on the book'.

book pushes down on table = Ftable pushes up on book = F (equal, opposite, different object)

Worked example

Applying F = ma

[2]
A supermarket trolley of mass 25 kg is pushed with a force of 50 N across a smooth floor (assume no friction). Calculate its acceleration.

Newton's three laws in order

I Am Reacting

I = Inertia (1st law — objects resist changes to motion), A = Acceleration (2nd law — ), Reacting = Reaction (3rd law — equal and opposite forces on different objects).

Newton's third law pair vs balanced forces

Concept AConcept BThe distinction that matters
Newton's third law pairBalanced forcesA third-law pair acts on TWO DIFFERENT objects (book pushes table, table pushes book) and can never cancel; balanced forces act on the SAME object (weight and normal force both on the book) and DO cancel to give zero net force.

Common mistake

Explaining why an object doesn't move by saying 'the action and reaction forces cancel out'.

Consequence: Confuses two entirely different concepts and typically scores zero on 'explain why the object is in equilibrium' questions.

Fix: To explain equilibrium, identify the forces acting ON THE SAME OBJECT (e.g. weight down, normal force up) and show they're equal — never invoke Newton's third law pair to explain balance on one object.

Key takeaways

  • Contact forces need touching (friction, tension, normal force); non-contact forces act at a distance (gravity, magnetic, electrostatic).
  • only uses the NET force — if multiple forces act, combine them first.
  • Newton's third law pairs act on different objects and never cancel; don't confuse them with balanced forces acting on one object.

Balanced vs Unbalanced Forces

Net force is the only thing that decides whether velocity changes

Add up every force acting on an object (as vectors, so opposing forces subtract) and you get the net (resultant) force. If it's zero, the object is in equilibrium — constant velocity, possibly zero — by Newton's first law. If it isn't zero, the object accelerates in the direction of the net force, by Newton's second law.

  • Balanced forces don't mean 'no forces' — a book resting on a table has weight AND normal force acting, they just happen to be equal and opposite.
  • Unbalanced forces don't have to be huge — even a tiny net force will eventually change velocity, given enough time.
  • Always define a positive direction before combining forces — mixing up which way is 'positive' is the most common sign error in the whole topic.
  • A constant-velocity car (forces balanced) still needs its engine running, because the resistive forces (friction, drag) are constantly acting and must be matched, not eliminated.
Net (resultant) force
The single force that has the same effect as all the individual forces acting on an object combined, found by adding forces as vectors.
Equilibrium
The state of an object when the net force acting on it is zero, so its velocity is constant (including zero, i.e. at rest).

net force = the vector sum of all individual forces acting on the object

— resultant/net force (N)

Balanced vs unbalanced forces on a car

Same type of forces, same directions — the only difference is whether the arrow lengths match.

driving force = 800 Nresistive forces = 800 Nnet force = 0 N, constant speeddriving force = 1000 Nresistive forces = 400 Nnet force = 600 N forward, car accelerates

Worked example

Finding acceleration from unbalanced forces

[3]
A car of mass 1200 kg has a driving force of 1000 N and resistive forces (friction + air resistance) totalling 400 N. Calculate the car's acceleration.

Common mistake

Adding opposing forces together instead of subtracting them (e.g. writing N as the net force).

Consequence: Gives a net force roughly double the correct value, and every subsequent acceleration/velocity answer built on it is wrong too.

Fix: Before combining any forces, sketch which way each one points and assign a sign — forces in the same direction add, forces in opposite directions subtract.

Show the free-body reasoning, not just the arithmetic

For 'calculate the net force' questions, briefly state which forces you're combining and their directions before the subtraction — mark schemes often award a method mark for identifying opposing forces correctly, separate from the mark for the correct final number.

Key takeaways

  • Net force is the vector sum of all forces acting on an object — direction matters, not just magnitude.
  • Zero net force means constant velocity (Newton's 1st law), not zero individual forces.
  • Non-zero net force causes acceleration in that force's direction, sized by (Newton's 2nd law).

Motion Graphs — Distance-Time and Speed-Time

Graphs encode speed and acceleration — you have to read them, not just look at them

On a distance-time graph, the gradient at any point gives the speed at that instant — a steeper line means faster, a flat line means stationary, and a curve means changing speed. On a speed-time graph, the gradient gives acceleration and, crucially, the AREA under the graph gives distance travelled — this is the single most tested graph-reading skill in the whole topic.

  • Distance-time graph: gradient = speed. A curve that steepens over time means the object is speeding up.
  • Speed-time graph: gradient = acceleration. A horizontal section means constant speed (zero acceleration), not zero speed.
  • Speed-time graph: area between the line and the time-axis = distance travelled — for non-rectangular shapes, split into triangles/rectangles and add the areas.
  • A common trap: a horizontal line on a SPEED-time graph means constant motion, but a horizontal line on a DISTANCE-time graph means the object has stopped — same shape, opposite meaning, depending which graph you're reading.
Gradient (of a motion graph)
The rate of change of the y-axis quantity with respect to time; on a distance-time graph this equals speed, on a speed-time graph this equals acceleration.
Area under a speed-time graph
The total distance travelled over the time interval considered, found geometrically from the shape enclosed between the graph line and the time-axis.

average speed = distance ÷ time

— speed (m/s)
— distance (m)
— time (s)

acceleration = change in speed ÷ time taken for that change

— acceleration (m/s²)
— change in speed (m/s)
— time interval (s)

Distance-time graph — reading the three standard shapes

Steepness of the line — not its height — tells you the speed; a flat section always means stationary on THIS graph.

Time, t (s)Distance, d (m)steep line = fast constant speedflat line = stationary (at rest)shallow line = slower constant speed

Speed-time graph — area gives distance

Splitting the shaded area into a triangle, rectangle and triangle is the standard method for total distance on a non-rectangular speed-time graph.

Time, t (s)Speed, v (m/s)acceleratingconstant speeddeceleratingarea = total distance travelled

Worked example

Total distance from a non-rectangular speed-time graph

[4]
A car's speed-time graph passes through (0,0), rises in a straight line to (6 s, 12 m/s), stays constant until (10 s, 12 m/s), then falls in a straight line to (14 s, 0 m/s). Calculate the total distance travelled.

Distance-time vs speed-time graphs at a glance

FeatureDistance-time graphSpeed-time graph
Gradient meansSpeedAcceleration
Flat (horizontal) line meansObject stationaryConstant speed (not stopped)
Curve getting steeper meansSpeeding upNot applicable — speed itself is the y-axis
Area under graph meansNot physically meaningfulDistance travelled

Common mistake

Reading the height of a speed-time graph line as the distance travelled, or reading the gradient of a distance-time graph as the acceleration.

Consequence: Confuses the two graph types entirely — a very common cause of full marks lost on 'describe the motion' or 'calculate the...' questions.

Fix: Always check which quantity is on the y-axis first. Distance on y-axis → gradient is speed. Speed on y-axis → gradient is acceleration AND area is distance.

Describing motion from a graph

When asked to 'describe' the motion shown, reference the actual time values on the axis for each phase (e.g. 'from 6 s to 10 s the speed is constant at 12 m/s') rather than a vague description like 'it speeds up then stays the same' — specific values earn the marks, general trends alone often don't.

Key takeaways

  • Distance-time gradient = speed; speed-time gradient = acceleration; speed-time area = distance.
  • A flat line means opposite things on the two graph types — always check the y-axis label before interpreting a graph.
  • For non-rectangular speed-time graphs, split the shape into triangles and rectangles and add the areas — never assume one single formula covers the whole shape.

Quick Reference

Forces and Motion — everything on one page

Formulas

  • Weight (N) = mass (kg) × gravitational field strength (N/kg)
  • Net force (N) = mass (kg) × acceleration (m/s²)
  • Circular motion: speed = circumference ÷ period
  • Centripetal force needed for circular motion
  • Finding g from a pendulum's length and period
  • Average speed from distance and time
  • Acceleration from change in speed and time
  • Net force = vector sum of all forces acting

Key facts

g on Earth
9.8 N/kg (≈ 9.8 m/s²)
g on Mars
≈ 3.7 N/kg
g on the Moon
≈ 1.6 N/kg (1/6 of Earth's)
Terminal velocity condition
air resistance = weight (net force = 0)

Mnemonics

  • I Am ReactingNewton's laws in order: Inertia (1st), Acceleration/F=ma (2nd), Reaction (3rd).

Don't confuse

  • Mass vs Weight: Mass (kg) is constant everywhere; weight (N) = mg and changes with location.
  • Speed vs Velocity: Speed is scalar and can be constant in a circle; velocity is a vector and always changes direction in circular motion.
  • Newton's third law pair vs Balanced forces: Third-law pairs act on different objects and never cancel; balanced forces act on the same object and do cancel.
  • Distance-time gradient vs Speed-time gradient: Distance-time gradient = speed; speed-time gradient = acceleration.

Command terms

State:
Formula or fact only, no working.
Calculate:
Show formula, substitution, and answer with unit.
Show that:
Full working required even though the answer is given.
Explain:
Must include the physical reason ('because...'), not just a description.
Describe:
Reference specific values/sections, not vague trends.
Deduce:
State the pattern in data AND the relationship it implies.

Exam checklist

  • Converted all masses to kg before using W=mg or F=ma?
  • Stated the direction alongside every force, velocity and acceleration value?
  • Checked which axis a graph's y-axis represents before reading its gradient?
  • For circular motion, identified which REAL force is providing the centripetal pull?
  • For terminal velocity, described forces as BALANCED, not absent?
  • For 'show that' questions, shown every line of working, not just the final number?
