MYP · Mathematics (Standard) MYP Year 5
Geometry and Measurement
MYP Mathematics Framework — Geometry and Measurement strand (Criteria A, C, D)
36 min readStandardMajor strand of MYP5 Mathematics — assessed through Criteria A (Knowing & Understanding) and C (Communicating), recurring across unit tests, the on-screen eAssessment and any end-of-year examination.
Geometry and Measurement in MYP5 looks like drawing exercises until a mark scheme demands an exact equation, a justified distance, or a named theorem. The examiners aren't grading your compass skills — they're grading whether you can turn a picture into an argument with numbers behind it.
Overview — The Shape of the Chapter
Six subtopics, one shared habit: every diagram in this strand is really a claim. A bearing claims a unique direction; a construction claims two points are equidistant; a circle theorem claims an angle relationship. The command terms , and are the exam's way of asking you to prove the claim, not just draw the picture.
- Bearings and scale drawings turn real-world direction and distance into exact, unambiguous numbers.
- Compound measures and unit conversions punish sloppy squaring/cubing more than any other MYP topic.
- Construction and loci — perpendicular bisectors and angle bisectors — is the most heavily examined subtopic in this bank; every 'justify whether a point lies on...' question lives here.
- Circle theorems and congruence/similarity both reward naming the exact rule used, not just quoting a number.

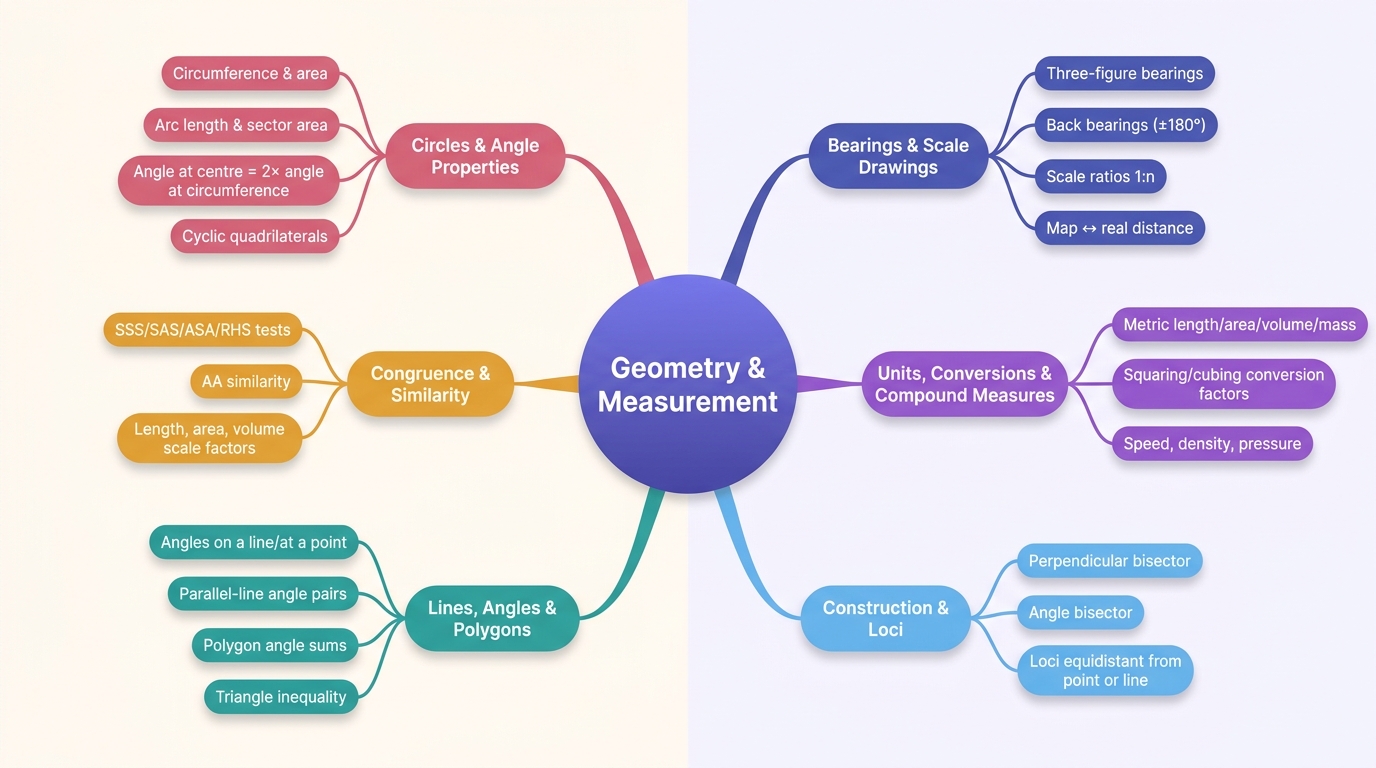

The shape of the chapter
Command terms this strand loves
| Command term | What it demands | AO | Mark-earning move |
|---|---|---|---|
| Deduce | Reach a conclusion from given information using logical steps — the working can be brief, but the conclusion must clearly follow. | AO2 | Mark sits on the correct final value/statement; showing the key step protects you if arithmetic slips. |
| Justify | Give valid reasons or evidence supporting a conclusion — a bare yes/no scores zero even if correct. | AO3 | Marks sit on the reasoning sentence, not the verdict — name the rule AND the number that proves it. |
| Construct | Produce a diagram using accepted geometric methods (compass, straightedge, protractor) with construction marks visible. | AO2 | Erasing construction arcs loses the method mark even if the final line is correctly placed. |
| Measure | Obtain a value from a diagram with a ruler or protractor and state it with units/precision. | AO1 | Tolerance is usually ±2 mm or ±2° — stating no units loses the mark even with an accurate reading. |
| State | Give a specific name, value or brief answer — no explanation required. | AO1 | One mark, no working needed, but no partial credit for a vague answer either. |
| Explain | Give a reasoned account of why or how, referencing the relevant geometric fact. | AO2 | Needs a 'because' clause tied to a named property, e.g. 'because every point on the perpendicular bisector is equidistant from A and B'. |
| Calculate | Obtain a numerical answer, showing method, from given data or a diagram. | AO1/AO2 | Method marks exist even if the final arithmetic is wrong — always show the substitution line. |
Key point
If a question says 'justify' or 'explain', the mark sits on the reasoning sentence that names the geometric fact (equidistant, angle sum, scale factor) — not on the number alone.
