IB Middle Years Programme · Biology MYP Year 5

Human Body Systems

Cover illustration for Human Body Systems (Biology MYP Year 5).
MYP · Biology MYP Year 5

Human Body Systems

MYP Year 5 Biology — Human Body Systems

42 min readStandardMajor unit — tested across unit assessments, Criterion A/D tasks, and the on-screen eAssessment; the immune system is the most heavily examined subtopic in recent papers

Every question on this unit is really asking the same thing: how does a system detect a change and respond to keep the body stable? Glands respond with hormones, the immune system responds to pathogens, the nervous system responds to stimuli — same logic, different tools. Examiners lean hard on data (antibody graphs, cytokine tables, HR/breathing figures), so the skill you actually need is reading a trend and explaining the mechanism behind it, not just naming parts.

Overview — How the Body Stays in Balance

Human body systems don't work in isolation — the organisation is cells → tissues → organs → organ systems → organism, and every system you study here exists to help maintain a stable internal environment (homeostasis) or to respond to a threat to it.

  • Control systems come in two flavours: chemical (endocrine — slow, long-lasting, travels in blood) and electrical (nervous — fast, short-lived, travels along neurons).
  • The immune system is really two systems layered together: a fast, non-specific innate response and a slower, highly specific adaptive response that 'remembers'.
  • Circulatory, respiratory, digestive and excretory systems are the body's logistics network — getting gases, nutrients, hormones and wastes to and from every cell.
  • Muscular and skeletal systems form one functional unit (the musculoskeletal system) — bones can't move themselves, and muscles have nothing to pull against without bone.

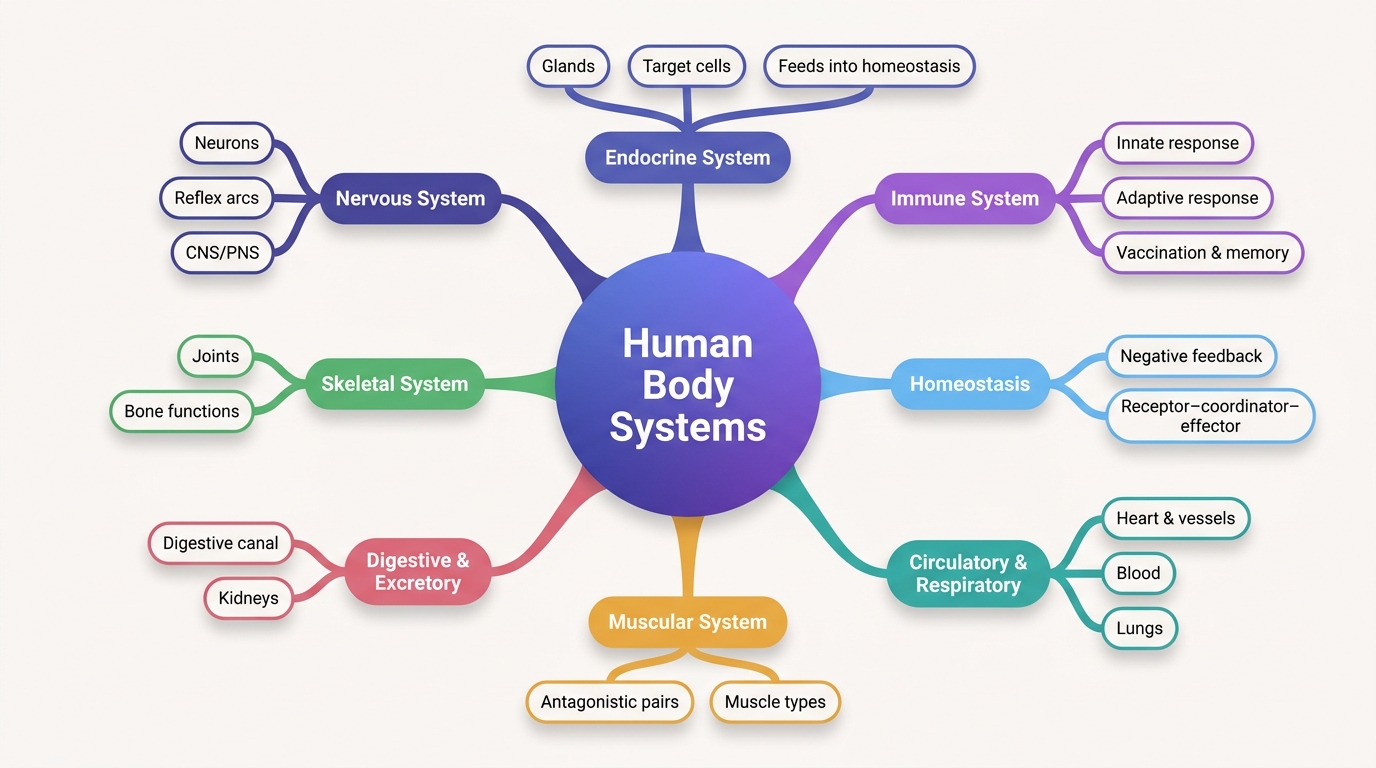

The shape of the chapter

Command terms this unit tests constantly

Command termWhat it demandsAOMark-earning move
State / Identifygive a brief answer or name, no reasoning requiredAO1one correct term = full marks; adding explanation wastes time but isn't penalised
Describegive a detailed account of what is shown — including the trend or pattern in dataAO2must quote actual figures/trend from the graph or table, not a vague 'it goes up'
Explaingive reasons — the mechanism behind a fact, the 'why' or 'how'AO3a mark is reserved specifically for the causal link — restating the fact scores zero for that mark
Discusspresent more than one side or factor and weigh themAO3/AO4an answer arguing only one side cannot reach top marks even if that side is well written
Comparestate both similarities AND differences between two thingsAO3listing only differences when asked to 'compare' loses marks

Key point

Almost every system in this unit exists to answer one question: what changed, and what corrects it? If you can name the receptor, the coordinator and the effector for any scenario, you can answer most 'explain' questions in this topic.

Endocrine System

The endocrine system is a network of glands that release hormones directly into the bloodstream. Hormones are chemical messengers — they travel everywhere in the blood but only affect cells with the matching receptor, called target cells.

  • Endocrine glands are ductless — they secrete straight into blood (contrast with exocrine glands like sweat or salivary glands, which release through a duct onto a surface).
  • Effects are slow to start but long-lasting compared to nerve signals — think minutes to hours, not milliseconds.
  • Key glands: pituitary (the 'master gland', controls other glands + growth hormone), thyroid (thyroxine — metabolic rate), adrenal glands (adrenaline — fight or flight), pancreas (insulin and glucagon — blood glucose).
  • Hormone control is usually by negative feedback: a hormone's own effect eventually switches off further release of that hormone — this is where endocrine and homeostasis overlap directly.
Hormone
A chemical messenger produced by an endocrine gland, released into the blood, and acting on specific target cells elsewhere in the body.
Target cell
A cell that has receptors matching a specific hormone, allowing it to respond to that hormone while other cells ignore it.
Endocrine gland
A ductless gland that secretes hormones directly into the bloodstream (e.g. pancreas, thyroid).

Major endocrine glands of the human body

Locations of the major hormone-secreting glands.

Pituitary glandThyroid glandAdrenal glandsPancreasOvaries/Testes

Key glands and their hormones

GlandHormoneMain effect
PituitaryGrowth hormoneStimulates growth of bones and muscles
ThyroidThyroxineSets the rate of metabolism (energy release from food)
AdrenalAdrenalineRaises heart rate, blood glucose, blood flow to muscles — 'fight or flight'
PancreasInsulinLowers blood glucose by prompting cells to take up and store glucose
PancreasGlucagonRaises blood glucose by triggering release of stored glucose from the liver

Worked example

Reading a blood glucose regulation graph

[3]
A student eats a meal at t = 0. Blood glucose rises sharply to a peak by 30 minutes, then falls steadily back to the normal resting level by 90 minutes. Explain the shape of this curve using insulin.

Frequently confused

Concept AConcept BThe distinction that matters
HormoneNeurotransmitterHormone travels in the blood to distant target cells and acts slowly/long-term; neurotransmitter crosses one synapse gap and acts almost instantly.
Endocrine glandExocrine glandEndocrine secretes hormones straight into blood (no duct); exocrine secretes through a duct onto a surface (e.g. sweat, saliva, digestive enzymes).

Common mistake

Students describe hormones as acting 'immediately' like nerve impulses, or say a hormone 'travels to' one specific organ.

Consequence: Loses the explanation mark for comparison questions between nervous and endocrine control — examiners specifically test the speed/duration contrast.

Fix: Hormones travel everywhere in the blood but only target cells WITH the matching receptor respond — always mention 'receptor' when explaining specificity.

Type 1 diabetes and insulin pumps

In Type 1 diabetes the pancreas can't produce insulin, so blood glucose stays high after meals instead of falling back to normal. Insulin pumps deliver measured doses continuously, essentially replacing the missing negative feedback loop with an artificial one controlled by a blood glucose sensor.

Key takeaways

  • Endocrine = ductless glands releasing hormones into blood; only cells with matching receptors (target cells) respond.
  • Insulin lowers blood glucose, glucagon raises it — opposite hormones from the same gland, classic negative feedback pair.
  • Hormonal control is slower and longer-lasting than nervous control — always contrast the two when asked.

Immune System and Diseases

Defence happens in layers. Physical barriers (skin, mucus, stomach acid) stop most pathogens before they get in. If they breach that, the innate immune response reacts fast but non-specifically — phagocytes engulf anything foreign. If the infection persists, the adaptive immune response kicks in: slower to start, but highly specific and able to 'remember' a pathogen for years.

  • Antigens are the identifying molecules on a pathogen's surface — every pathogen type (bacterium, virus, fungus) displays a differently shaped set.
  • Antibodies are Y-shaped proteins made by B-lymphocytes; each antibody's binding site has a shape complementary to one specific antigen — like a lock and key.
  • Macrophages phagocytose pathogens AND present chopped-up antigen fragments on their own surface, which activates helper T-cells — this is the bridge between innate and adaptive immunity.
  • Cytokines are chemical signals released by immune cells to coordinate the response — different cytokines peak at different times (e.g. IL-6 and TNF-α surge early, within 6–12 hours, driving inflammation; IFN-γ peaks later, around 24 hours, coordinating a more targeted antiviral response).
  • Memory B-cells and memory T-cells persist long after infection clears — on re-exposure they trigger a secondary response that is faster and larger than the first (primary) response.
Antigen
A molecule on the surface of a pathogen (or foreign cell) that the immune system recognises as non-self.
Antibody
A Y-shaped protein produced by plasma cells (differentiated B-cells) with a binding site complementary in shape to one specific antigen.
Phagocytosis
The process by which a white blood cell engulfs and digests a pathogen or foreign particle.
Vaccine
A preparation containing a weakened, killed, or partial form of a pathogen's antigens, given to trigger a primary immune response and memory cell formation without causing the disease.

Complementary shape of antibody binding sites

Antibody specificity is a shape-matching problem, not a chemical one.

Bacterium — antigenVirus — antigenFungus — antigenAntibody A/B/C — binding site

Bacterium vs virus vs fungus

FeatureBacteriumVirusFungus
StructureSingle cell, no nucleusNot a cell — protein coat + genetic materialCell(s) with a nucleus, often multicellular
ReproducesIndependently, by binary fissionOnly inside a host cellIndependently, by spores/budding
Treated withAntibioticsAntivirals (limited) — mostly immune response/vaccinationAntifungals

Key white blood cells and their roles

Cell typeRole
NeutrophilFirst responders — phagocytose pathogens rapidly (innate)
MacrophagePhagocytoses pathogens AND presents antigens to activate T-cells
B-lymphocyteRecognises antigen, differentiates into plasma cells that secrete antibodies
Plasma cellDifferentiated B-cell — mass-produces and secretes antibody
Helper T-cellActivated by antigen-presenting cells; activates B-cells and other immune cells
Memory cellLong-lived B- or T-cell that 'remembers' an antigen for a faster secondary response

Mnemonic

Never Let Monkeys Eat Bananas

Order of white blood cell types by typical abundance: Neutrophil, Lymphocyte, Monocyte, Eosinophil, Basophil.

Worked example

Matching antibodies to antigens by shape (Q1-style)

[3]
The diagram shows three pathogens — a bacterium, a virus, and a fungus — each displaying differently shaped surface antigens. Three antibodies (A, B, C), each with a distinct binding site, are also shown. (a) Match each antibody to the pathogen it binds. (b) Explain how the shape of an antibody's binding site determines which antigen it can bind, using the term 'complementary shape'.

Worked example

Macrophages do more than 'eat' pathogens (Q2-style)

[2]
During an infection, macrophages are among the first immune cells to respond. (a) State the process by which a macrophage engulfs and destroys a pathogen. (b) Explain one way a macrophage contributes to the immune response beyond directly destroying pathogens.

Worked example

Reading the shape of a primary immune response (Q3-style)

[2]
Three individuals exposed to the same novel pathogen had antibody concentration measured over 14 days (Individual 1: 0, 5, 20, 45, 50 AU at days 0, 3, 7, 10, 14). Identify the pattern of antibody concentration change shown by all three individuals.

Worked example

Why B-cells must differentiate first (Q4-style)

[2]
(a) Identify the white blood cell primarily responsible for producing antibodies. (b) Explain why this cell type must undergo differentiation before antibodies can be secreted.

Worked example

Vaccination, memory cells, and the ethics of mandates (Q5 + Q7-style)

[4]
Explain how memory B-cells and antibodies produced after MMR vaccination protect an individual on later measles exposure, then discuss one ethical issue arising from mandatory vaccination policy (given 85% community coverage vs the ~95% needed for herd immunity, and that infants/immunocompromised patients cannot be vaccinated).

Worked example

Extracting a rate from a non-linear antibody curve (Q8-style)

[4]
IgM and IgG concentrations were measured in Patient A (healthy) and Patient B (defective B-cell activation) over 21 days. Patient A IgM: 0, 10, 80, 50, 20, 5 (days 0, 3, 7, 10, 14, 21). Patient A IgG: 0, 0, 10, 60, 120, 150. Describe the pattern and calculate the average rate of IgG increase between days 7 and 14, then predict Patient B's curves.

Frequently confused

Concept AConcept BThe distinction that matters
AntigenAntibodyAntigen is ON the pathogen (identifies it as foreign); antibody is made BY the immune system to bind that antigen.
Active immunityPassive immunityActive = your own B-cells make antibodies and memory cells (via infection or vaccine), lasts long; passive = ready-made antibodies given directly (e.g. from mother via placenta), short-lived, no memory cells formed.
Primary responseSecondary responsePrimary = first exposure, slow lag then rise (needs B-cell activation/differentiation); secondary = later exposure, fast and much larger due to pre-existing memory cells.

Common mistake

Writing 'the antibody kills the pathogen' as the mechanism of immunity.

Consequence: Loses the explanation mark — antibodies don't kill directly; they bind/neutralise and tag the pathogen for destruction by phagocytes.

Fix: Use precise verbs: antibodies 'bind to', 'neutralise', or 'mark/tag for destruction' — never 'kill' or 'destroy' unless describing the phagocyte's action.

Data-based immune questions

Whenever a question gives you a table or graph (antibody levels, cytokine concentrations), the mark scheme almost always wants you to quote at least two actual numbers from it. 'Concentration increases' with no figures typically caps you at half marks for a 'describe' question.

Herd immunity thresholds

Measles needs roughly 95% vaccination coverage in a community to reliably stop outbreaks, because the virus is so contagious. At 85% coverage, unvaccinated infants (too young for the vaccine) and immunocompromised people who can't be vaccinated remain exposed — this is the real epidemiological basis for public vaccination-mandate debates.

Key takeaways

  • Innate response = fast, non-specific (phagocytes); adaptive response = slower, specific, and creates memory (B- and T-lymphocytes).
  • Antibody specificity is entirely about complementary 3D shape between binding site and antigen — no chemistry involved.
  • Primary response = lag then rise (B-cells must differentiate into plasma cells first); secondary response = fast and large because memory cells already exist.
  • Vaccination artificially triggers a primary response (+ memory cells) without full disease, so a real exposure later behaves like a secondary response.

Homeostasis and Regulation

Homeostasis is the maintenance of a stable internal environment despite external change — not zero change, but change kept within a narrow range around a set point.

  • Every homeostatic loop has the same three parts: a receptor (detects the change), a coordinator (processes the information — often the brain or an endocrine gland), and an effector (carries out the response, e.g. a muscle or gland).
  • Most homeostatic control is negative feedback — the response counteracts the original change and switches itself off once the set point is restored.
  • Thermoregulation: too hot → sweating + vasodilation (blood vessels near skin widen, more heat lost); too cold → shivering + vasoconstriction (blood vessels narrow, heat conserved).
  • Blood glucose regulation (endocrine section) and water balance (kidneys, excretory section) are both homeostasis in action — this topic threads through the whole unit.
Homeostasis
The maintenance of a stable internal environment (e.g. temperature, blood glucose, water balance) within a narrow range, despite changes in the external environment.
Negative feedback
A control mechanism in which the response counteracts and reduces the original change, returning the variable to its set point.
Set point
The target value a homeostatic system is regulated around (e.g. 37°C for human core body temperature).

Generic negative feedback loop

The same loop structure applies to temperature, glucose and water regulation.

StimulusReceptorCoordinatorEffectorResponse

Worked example

Tracing the thermoregulation feedback loop

[3]
During intense exercise, core body temperature rises above 37°C. Explain, using the terms receptor, coordinator and effector, how the body returns temperature to normal.

Frequently confused

Concept AConcept BThe distinction that matters
Negative feedbackPositive feedbackNegative feedback opposes and reduces the change (most homeostasis, e.g. temperature, glucose); positive feedback amplifies the change further (rarer, e.g. contractions intensifying during childbirth, blood clotting cascade).

Common mistake

Describing homeostasis as keeping a variable 'exactly constant' or 'never changing'.

Consequence: Loses the definition mark — examiners specifically credit 'maintained within a narrow range around a set point', not 'never changes'.

Fix: Always phrase it as 'kept within a stable range' rather than 'kept constant' or 'unchanging'.

Key point

If a question gives you ANY regulation scenario (glucose, temperature, water), the safe structure is always: name the receptor → name the coordinator → name the effector → explain why the response then switches off (negative feedback).

Key takeaways

  • Homeostasis = stability within a range around a set point, not zero change.
  • Every loop = receptor detects change → coordinator processes it → effector responds → variable returns to set point, switching the response off.
  • Negative feedback opposes change (the norm); positive feedback amplifies it (rare, specific examples only).

Circulatory and Respiratory Systems

The circulatory system is the transport network; the respiratory system is where gas exchange with the outside world happens. Together they move oxygen in and carbon dioxide out of every living cell — the deep mechanics of breathing itself are covered separately in the Respiratory section below.

  • Humans have a double circulatory system: blood passes through the heart twice per full circuit — once to the lungs (pulmonary circulation) and once to the body (systemic circulation).
  • Blood = plasma (liquid, carries dissolved substances) + red blood cells (carry oxygen via haemoglobin) + white blood cells (immunity) + platelets (clotting).
  • Three vessel types do different jobs: arteries carry blood away from the heart under high pressure (thick muscular walls); veins carry blood back to the heart under low pressure (thinner walls, valves to stop backflow); capillaries are one cell thick, allowing diffusion of gases/nutrients directly into tissue.
  • The heart itself is a double pump — the right side pumps deoxygenated blood to the lungs, the left side pumps oxygenated blood to the whole body; the left side has thicker, more muscular walls because it must generate much higher pressure.
Artery
A blood vessel carrying blood away from the heart, under high pressure, with thick muscular/elastic walls.
Vein
A blood vessel carrying blood back to the heart, under low pressure, with valves to prevent backflow.
Capillary
A microscopic, one-cell-thick blood vessel where exchange of gases, nutrients and wastes with tissue occurs.

The heart and double circulation

Blue = deoxygenated blood path to lungs; red = oxygenated blood path to body.

Right atriumRight ventricleLeft atriumLeft ventricleVena cavaPulmonary arteryPulmonary veinAorta

Cardiac output

Cardiac output equals heart rate multiplied by stroke volume.

— Cardiac output — volume of blood pumped per minute (mL/min or L/min)
— Heart rate (beats/min)
— Stroke volume — blood pumped per beat (mL/beat)
Memorise

Worked example

Calculating cardiac output at rest and during exercise

[3]
At rest, a person's heart rate is 72 bpm and stroke volume is 70 mL. During exercise, heart rate rises to 150 bpm and stroke volume rises to 100 mL. Calculate cardiac output in both cases and explain why it increases.

Arteries vs veins vs capillaries

FeatureArteryVeinCapillary
Direction of blood flowAway from heartTowards heartBetween arteries and veins, through tissue
Wall thicknessThick, muscular, elasticThin, less muscleOne cell thick
PressureHighLowVery low
Valves present?No (except heart valves)Yes — prevent backflowNo

Common mistake

Assuming 'arteries always carry oxygenated blood, veins always carry deoxygenated blood'.

Consequence: Marked wrong on any question involving the pulmonary vessels — the pulmonary artery carries DEoxygenated blood to the lungs, and the pulmonary vein carries OXYGENATED blood back.

Fix: Define artery/vein by DIRECTION relative to the heart (away from / towards), never by oxygen content — oxygen content is the exception that catches this question out.

Heart diagrams

When labelling or describing the heart, always include the DIRECTION of blood flow with arrows, not just chamber names — 'describe the pathway of blood' questions specifically credit correct sequencing (vena cava → right atrium → right ventricle → pulmonary artery → lungs → pulmonary vein → left atrium → left ventricle → aorta).

Pacemakers

An artificial pacemaker sends electrical impulses to the heart to keep it beating at a regular rate when the heart's own natural pacemaker (the sinoatrial node) malfunctions — essentially replacing the coordinator step in the heart's own control loop.

Key takeaways

  • Double circulation: blood passes through the heart twice per full loop — once to lungs, once to body.
  • Arteries = away from heart, high pressure, thick walls; veins = towards heart, low pressure, valves; capillaries = exchange site, one cell thick.
  • Pulmonary vessels are the exception to 'arteries = oxygenated' — always check direction relative to the heart, not colour convention.

Muscular System

Muscles can only do one thing mechanically: contract and pull. They cannot push. That single fact explains why almost every skeletal muscle is arranged in an antagonistic pair — one muscle contracts to move a joint one way, and its partner contracts to move it back.

  • Skeletal muscle: attached to bone by tendons, voluntary (conscious control), striated appearance, e.g. biceps.
  • Smooth muscle: found in the walls of internal organs (gut, blood vessels), involuntary, not striated.
  • Cardiac muscle: found only in the heart, involuntary, striated but able to contract rhythmically without external nerve stimulation.
  • In the arm, the biceps contracts to flex (bend) the elbow while the triceps relaxes; to extend (straighten) the arm, the triceps contracts while the biceps relaxes — this pairing is what 'antagonistic' means.
Tendon
Tough connective tissue that attaches muscle to bone, transmitting the force of contraction to move the skeleton.
Antagonistic muscle pair
Two muscles arranged so that one contracts to produce a movement while the other relaxes, and vice versa for the opposite movement.

Antagonistic muscle pair at the elbow

One muscle always relaxes as its antagonist contracts.

BicepsTricepsHumerusRadiusUlnaTendon

Three types of muscle

TypeControlAppearanceExample location
SkeletalVoluntaryStriatedBiceps, quadriceps
SmoothInvoluntaryNot striatedGut wall, blood vessel walls
CardiacInvoluntary (self-rhythmic)StriatedHeart wall only

Worked example

Explaining antagonistic pairs

[2]
Explain why both the biceps and triceps are needed to fully bend and straighten the arm, rather than just one muscle.

Frequently confused

Concept AConcept BThe distinction that matters
TendonLigamentTendon connects MUSCLE to BONE (transmits contraction force); ligament connects BONE to BONE (stabilises a joint).

Common mistake

Describing muscle action as 'pushing' a limb into position.

Consequence: Marked as a factual error on 'explain the movement' questions — costs the mechanism mark even if the overall direction described is correct.

Fix: Muscles only ever contract/pull — any 'straightening' or 'pushing' motion is actually the ANTAGONIST muscle contracting on the other side.

Sports injuries and physiotherapy

A torn hamstring (muscle/tendon damage) is treated very differently from a torn ACL (a ligament) — physiotherapy for a muscle injury focuses on gradually reloading contraction strength, while ligament injuries often need surgical reconstruction since ligaments have a poorer blood supply and heal more slowly.

Key takeaways

  • Muscles can only contract (pull), never push — this is why antagonistic pairs exist.
  • Skeletal = voluntary/striated; smooth = involuntary/non-striated (organs); cardiac = involuntary/striated (heart only).
  • Tendon = muscle-to-bone; ligament = bone-to-bone — a very commonly confused pair in exams.

Digestive and Excretory Systems

Digestion breaks large, insoluble food molecules into small, soluble ones that can be absorbed into the blood; excretion removes the waste products of the body's own metabolism. These are two very different processes that students frequently mix up with a third term, egestion.

  • Mechanical digestion (chewing, churning) increases surface area; chemical digestion (enzymes) breaks bonds in molecules.
  • Digestive canal pathway: mouth → oesophagus → stomach (acidic, pepsin breaks down protein) → small intestine (bile emulsifies fat, enzymes complete digestion, villi absorb nutrients) → large intestine (water reabsorption) → anus.
  • The kidneys are the main excretory organs — they filter blood, reabsorbing useful substances (glucose, most water) and excreting urea (from protein breakdown) and excess water/salts as urine.
  • The liver also has excretory roles — it breaks down excess amino acids (deamination) producing urea, and breaks down toxins/drugs for removal.
Digestion
The breakdown of large, insoluble food molecules into small, soluble molecules, using mechanical and chemical processes.
Excretion
The removal of waste products of the body's own metabolism (e.g. urea, CO₂) from the body.
Egestion
The removal of undigested food (faeces) that was never absorbed into the body — not a product of metabolism.

The human digestive canal

Food is broken down and absorbed in stages along one continuous tube.

MouthOesophagusStomachLiverPancreasSmall intestineLarge intestineAnus

Key digestive enzymes

EnzymeBreaks downProductsMain site of action
AmylaseStarchMaltoseMouth and small intestine
ProteaseProteinAmino acidsStomach and small intestine
LipaseFatFatty acids + glycerolSmall intestine

Worked example

Tracing a piece of bread through the digestive system

[3]
Explain what happens to a mouthful of bread as it passes from the mouth to the small intestine, referring to enzymes and pH.

Frequently confused

Concept AConcept BThe distinction that matters
EgestionExcretionEgestion removes undigested food (faeces) that was never inside the body's cells; excretion removes actual metabolic waste (e.g. urea, CO₂) produced by the body's own cells.

Common mistake

Calling the removal of faeces 'excretion'.

Consequence: Marked wrong on any question distinguishing the two terms — a very frequently tested MYP misconception.

Fix: Ask: did this substance ever get absorbed into the body? If no (faeces), it's egestion. If yes and it's now a waste product of metabolism (urea, CO₂), it's excretion.

Kidney dialysis

When kidneys fail, dialysis machines take over their excretory role artificially — filtering blood outside the body to remove urea and excess water/salts, replicating what a healthy nephron would do.

Key takeaways

  • Digestion breaks down food (mechanical + chemical); absorption moves the products into blood via the small intestine's villi.
  • Egestion (faeces, never absorbed) is NOT the same as excretion (metabolic waste like urea, from the kidneys and liver).
  • pH changes along the canal aren't incidental — they switch specific enzymes on/off (amylase off in the stomach, pepsin needs the acid).

Respiratory System

Breathing (ventilation) is the mechanical movement of air in and out of the lungs; respiration is the chemical process, happening inside every cell's mitochondria, that releases energy from glucose. Confusing the two costs marks constantly.

  • Air pathway: nose/mouth → trachea → bronchi → bronchioles → alveoli (tiny air sacs where gas exchange occurs).
  • Breathing mechanics: the diaphragm and intercostal muscles contract to increase chest volume, lowering pressure inside the lungs below atmospheric pressure so air flows in; relaxing these muscles decreases volume, raising pressure, pushing air out.
  • Alveoli are adapted for efficient gas exchange: huge total surface area, walls only one cell thick, moist lining (gases dissolve before diffusing), and a dense capillary network maintaining a steep concentration gradient.
  • Gas exchange is by diffusion down concentration gradients: O₂ moves from alveolar air (high concentration) into blood (low concentration); CO₂ moves the opposite way.
Ventilation
The physical/mechanical process of moving air into and out of the lungs (breathing).
Gas exchange
The diffusion of oxygen into the blood and carbon dioxide out of the blood across the alveolar walls.
Alveolus (pl. alveoli)
A tiny thin-walled air sac in the lungs, surrounded by capillaries, where gas exchange occurs.

Gas exchange at the alveolus

Diffusion always follows the concentration gradient, in both directions simultaneously.

AlveolusCapillaryRed blood cellsAlveolar wallO2CO2

Minute ventilation

Minute ventilation equals tidal volume multiplied by breathing rate.

— Minute ventilation — total air moved per minute (L/min)
— Tidal volume — air moved in one normal breath (L/breath)
— Breathing (respiratory) rate (breaths/min)

Worked example

Minute ventilation at rest vs exercise

[3]
At rest, tidal volume is 0.5 L and breathing rate is 12 breaths/min. During exercise, tidal volume rises to 2.5 L and breathing rate to 25 breaths/min. Calculate minute ventilation in both cases and explain the change.

Frequently confused

Concept AConcept BThe distinction that matters
Breathing (ventilation)RespirationBreathing is the physical movement of air in/out of lungs; respiration is the chemical release of energy from glucose inside cells (in mitochondria) — breathing supplies the O₂ that respiration uses.

Common mistake

Writing 'breathing in oxygen and out carbon dioxide' as the definition of respiration.

Consequence: Conflates two distinct processes — loses the definition mark, since respiration is the chemical energy-release reaction, not the physical gas movement.

Fix: State respiration as a chemical equation/process happening in cells (releasing energy from glucose); breathing is only the mechanism that supplies/removes the gases respiration needs.

Describing gas exchange

A full-mark 'describe gas exchange' answer names the diffusion gradient AND at least one alveolar adaptation (thin wall / moist / large surface area / good blood supply) — naming diffusion alone typically earns only half the available marks.

Key point

Breathing ≠ respiration. Breathing moves air; respiration releases energy from glucose in every living cell. Keep them in separate sentences in your answers.

Altitude training

Athletes train at high altitude, where oxygen concentration is lower, forcing the body to increase red blood cell production over weeks — when they return to sea level, the extra red blood cells temporarily boost oxygen-carrying capacity and performance.

Key takeaways

  • Air path: nose/mouth → trachea → bronchi → bronchioles → alveoli, where diffusion-based gas exchange occurs.
  • Alveolar adaptations for exchange: huge surface area, one-cell-thick walls, moist lining, rich capillary supply.
  • Breathing (mechanical) and respiration (chemical, in mitochondria) are NOT the same process — a top exam confusion.

Skeletal System

The skeleton isn't just a scaffold — it supports the body, protects soft organs, provides the leverage muscles pull against to create movement, and (in bone marrow) produces blood cells.

  • Joints are where two bones meet, and different joint shapes allow different ranges of movement — ball-and-socket joints (shoulder, hip) allow rotation in multiple planes; hinge joints (knee, elbow) allow movement in one plane only.
  • Cartilage covers the ends of bones at a joint, reducing friction and absorbing shock; synovial fluid inside the joint capsule further lubricates movement.
  • Ligaments hold bones together at the joint, stabilising it and preventing dislocation — don't confuse with tendons (muscle-to-bone).
Joint
A point where two or more bones meet, allowing a specific range of movement depending on its structure.
Ligament
Tough connective tissue that connects bone to bone, stabilising a joint.
Cartilage
Smooth, flexible connective tissue covering the ends of bones at a joint, reducing friction.

Ball-and-socket vs hinge joints

Joint shape directly determines the range of allowed movement.

Ball-and-socket joint (shoulder)Hinge joint (knee)CartilageLigamentSynovial fluid

Joint types and movement

Joint typeExample locationMovement allowed
Ball-and-socketShoulder, hipRotation in multiple directions/planes
HingeKnee, elbowBack-and-forth movement in one plane only
PivotNeck (top vertebra)Rotation around a single axis

Worked example

Why the shoulder moves more freely than the knee

[2]
Explain why the shoulder allows a much greater range of movement than the knee.

Frequently confused

Concept AConcept BThe distinction that matters
LigamentTendonLigament connects bone to bone (stabilises the joint); tendon connects muscle to bone (transmits contraction force) — same confusion tested in the Muscular section, from the opposite angle.

Common mistake

Labelling cartilage as 'bone' on a joint diagram, or omitting synovial fluid when describing what reduces friction.

Consequence: Loses a labelling mark on diagram questions and the 'friction reduction' explanation mark.

Fix: Cartilage and synovial fluid are two SEPARATE friction-reducing features — mention both when a question asks how a joint moves smoothly.

Hip replacement surgery

When cartilage wears away in arthritis, bone rubs directly on bone, causing pain and stiffness. Hip replacement surgery removes the damaged ball-and-socket joint and replaces it with an artificial one, restoring the original range of motion the joint shape provides.

Key takeaways

  • Skeleton functions: support, protection, movement (leverage for muscles), and blood cell production in marrow.
  • Joint shape determines range of movement — ball-and-socket = multi-directional; hinge = one plane only.
  • Cartilage + synovial fluid reduce friction at a joint; ligaments (bone-to-bone) stabilise it — don't confuse with tendons.

Nervous System

The nervous system is the body's fast, electrical control system — signals travel along neurons as electrical impulses and cross the tiny gap between neurons (a synapse) using chemical neurotransmitters.

  • Central nervous system (CNS) = brain + spinal cord — processes information and coordinates responses. Peripheral nervous system (PNS) = all the nerves connecting the CNS to the rest of the body.
  • A neuron has dendrites (receive signals), a cell body, and an axon (often myelin-coated, to speed up impulse transmission) that passes the signal on to the next cell.
  • A reflex action is a fast, automatic, involuntary response to a stimulus that bypasses conscious brain processing — the signal is processed by a relay neuron in the spinal cord, not the brain, which is exactly why it's so fast.
  • Sympathetic nervous system activity ('fight or flight' — raises heart rate, diverts blood to muscles) and parasympathetic activity ('rest and digest' — lowers heart rate, promotes digestion) are opposing branches of the autonomic (involuntary) nervous system.
Neuron
A specialised nerve cell that transmits electrical impulses; includes dendrites, a cell body, and an axon.
Synapse
The small gap between two neurons where an electrical impulse is converted to a chemical signal (neurotransmitter) to cross to the next cell.
Reflex action
A fast, automatic, involuntary response to a stimulus, coordinated by the spinal cord without conscious brain input.

The reflex arc

The relay neuron in the spinal cord is why a reflex is faster than a conscious decision.

ReceptorSensory neuronSpinal cordRelay neuronMotor neuronEffector

CNS vs PNS

FeatureCNSPNS
ComponentsBrain and spinal cordAll nerves outside the brain and spinal cord
Main roleProcesses information, makes decisions/coordinatesCarries signals between CNS and body (sensory in, motor out)
ProtectionSkull and vertebral columnNo bony protection — runs through the body

Worked example

Why a reflex is faster than a conscious reaction

[2]
Explain why pulling your hand away from a hot object happens before you consciously feel pain.

Frequently confused

Concept AConcept BThe distinction that matters
NeuronNerveA neuron is a single nerve cell; a nerve is a bundle of many neuron axons packaged together, running through the body.
Reflex actionVoluntary actionReflex = automatic, involuntary, processed by the spinal cord (fast); voluntary = consciously decided, processed by the brain (slower).

Common mistake

Stating that in a reflex, 'the impulse travels to the brain and back'.

Consequence: Directly contradicts the definition of a reflex and loses the explanation mark — the whole speed advantage of a reflex comes from bypassing the brain.

Fix: The relay neuron IN THE SPINAL CORD makes the decision in a reflex arc — the brain only becomes aware afterwards, via a separate pathway.

Labelling neuron/reflex diagrams

Always draw or describe arrows showing the DIRECTION of impulse travel (receptor → sensory → relay → motor → effector) — diagram questions frequently allocate a mark specifically for correct direction, separate from the labelling marks.

Myoelectric prosthetics

Modern prosthetic limbs can be controlled by detecting the electrical signals a person's own motor neurons still send to their remaining muscles, translating that nervous system activity into movement of the artificial hand or arm.

Key takeaways

  • CNS (brain + spinal cord) processes information; PNS carries signals between the CNS and the rest of the body.
  • A reflex arc is fast specifically because the relay neuron in the SPINAL CORD makes the response decision, not the brain.
  • Neuron = one cell; nerve = a bundle of many neurons — don't use the terms interchangeably in an answer.

Quick Reference

Human Body Systems — everything on one page

Formulas

  • Cardiac output = heart rate × stroke volume
  • Minute ventilation = tidal volume × breathing rate

Key facts

Resting heart rate (typical adult)
≈70–75 bpm
Resting breathing rate (typical adult)
≈12–15 breaths/min
Herd immunity threshold for measles
≈95% coverage
Normal core body temperature (human set point)
≈37°C

Mnemonics

  • Never Let Monkeys Eat BananasWhite blood cell order: Neutrophil, Lymphocyte, Monocyte, Eosinophil, Basophil

Don't confuse

  • Antigen vs Antibody: Antigen is ON the pathogen; antibody is made BY the immune system to bind it
  • Primary response vs Secondary response: Primary = slow lag then rise (first exposure); secondary = fast and large (memory cells already exist)
  • Egestion vs Excretion: Egestion = undigested food never absorbed (faeces); excretion = metabolic waste (urea, CO₂)
  • Breathing vs Respiration: Breathing = physical air movement; respiration = chemical energy release in cells
  • Tendon vs Ligament: Tendon = muscle to bone; ligament = bone to bone
  • Negative feedback vs Positive feedback: Negative opposes/reduces change (most homeostasis); positive amplifies it (rare, e.g. childbirth)

Command terms

State/Identify:
One correct fact, no reasoning needed
Describe:
Quote actual data/trend, no explanation of cause
Explain:
Give the causal mechanism — the 'why'
Discuss:
Present and weigh more than one side

Exam checklist

  • Can I name receptor → coordinator → effector for any homeostasis scenario?
  • Can I explain antibody specificity using 'complementary shape', not 'destroys'?
  • Do I know why the pulmonary artery is the exception to 'arteries carry oxygenated blood'?
  • Can I distinguish egestion from excretion with a concrete example?
  • Do I separate breathing (mechanical) from respiration (chemical) in every sentence?
  • Can I read a non-linear graph and calculate an AVERAGE rate over a stated interval, not the whole curve?
