Mensuration
Mensuration in MYP Year 5 is about turning a real object — a party hat, a water tank, a metal sphere — into numbers you can trust. Examiners don't care whether you can recite ; they care whether you can spot which formula the question wants, substitute without swapping for or for , and keep units honest all the way to the final line. Almost every dropped mark in this topic comes from one of three places: wrong formula, wrong quantity substituted, or units left inconsistent. Fix those three and this topic is close to free marks.
Overview — the shape of this topic
What mensuration actually tests
Mensuration questions look like geometry but are really substitution-and-units questions in disguise. You're given a formula (or expected to recall one), a real-world scenario, and some numbers — the mark scheme rewards correctly identifying WHICH number goes where, not just knowing the formula exists.
- 2D work: perimeter and area of standard shapes, plus sectors (fractions of a circle) and composite figures built from several shapes.
- 3D work: volume and surface area of prisms, cylinders, pyramids, cones and spheres — and composite solids that join two of these together.
- Density problems bolt mass onto volume via — same mensuration formulas, one extra multiplication.
- Every sub-topic gets tested through a manufacturing or engineering scenario (party hats, storage tanks, sheet metal) — read the context, it tells you which formula and which units are expected.

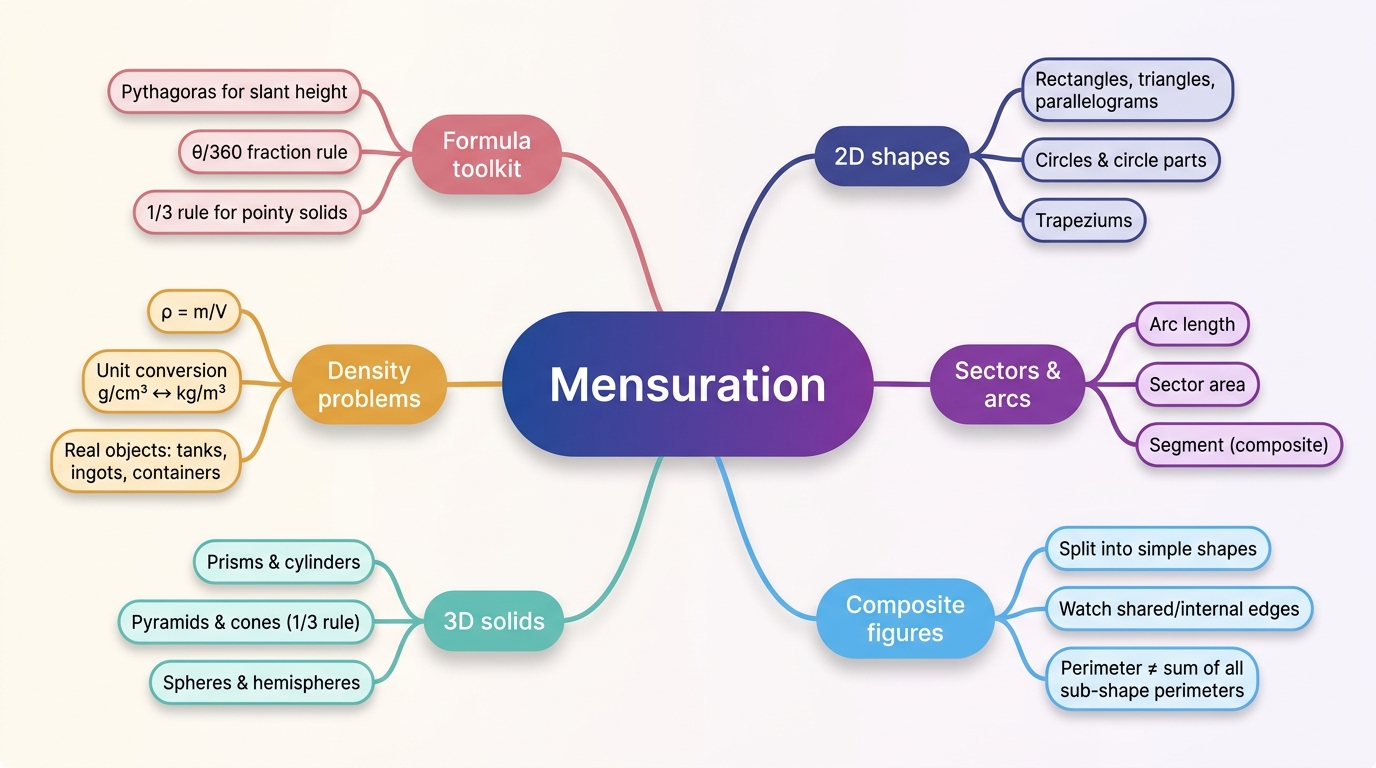

The shape of the chapter
Command terms this topic loves
| Command term | What it demands | AO | Mark-earning move |
|---|---|---|---|
| Calculate | Obtain a numerical answer, showing the operations used | AO1 | Full method mark needs correct substitution shown, even if the final rounding slips |
| Deduce | Draw a conclusion from given data or a pattern, not just from memory | AO2 | Must explicitly reference the table/graph given — quoting the 'known' formula from memory alone loses the mark |
| Show that | Prove a stated value/expression using full working | AO2 | Every algebraic line must appear — jumping straight to the given answer scores 0 |
| Explain | Give a reasoned justification using mathematical language | AO3 | A one-line definition isn't enough; must connect the geometric reason to the formula |
| Determine | Obtain an answer, sometimes needing a decision or comparison first | AO1/AO2 | Similar to 'calculate' but may require choosing between two possible methods first |
Key point
