IBDP · Physics HL

Nuclear and Quantum Physics

E: Nuclear and Quantum Physics (E1–E5)

42 min readAdvanced~14 hours SL content extended to ~28 hours at HL (roughly 10% of the HL course); guaranteed MCQ presence in Paper 1 and at least one data/calculation question in Paper 2 every session

This topic is where the course stops behaving classically. Light starts arriving in lumps, matter starts diffracting like a wave, and half-lives make 'when will it decay' an unanswerable question for any single nucleus. The good news: almost every calculation collapses into one of three equations — $E = h f$ , $E = Δ m c^{2}$ , $N = N_{0} e^{- λ t}$ — and the marks you lose are nearly always unit conversions, not physics. HL adds the wavefunction, tunnelling, confined particles and (via fusion) a whole stellar-astrophysics layer on top.

Overview

Why this topic is graded so harshly

Every sub-topic here has a signature graph or equation that the IB reuses year after year: the photoelectric $K E_{ma x}$ -vs- $f$ line, the exponential decay curve, the binding-energy-per-nucleon curve, and (HL) the Hertzsprung-Russell diagram. Examiners test whether you can read physical meaning off these shapes — gradient, intercept, peak position — not just plug numbers in.

Quantum physics: light and matter both show particle AND wave behaviour depending on the experiment you run.
Radioactive decay, fission and fusion all trace back to one idea: mass converts to energy, $E = Δ m c^{2}$ .
HL bolts on three extra layers: the wavefunction/uncertainty/tunnelling picture of quantum mechanics, the Bohr model of atomic energy levels, and stellar structure/evolution.

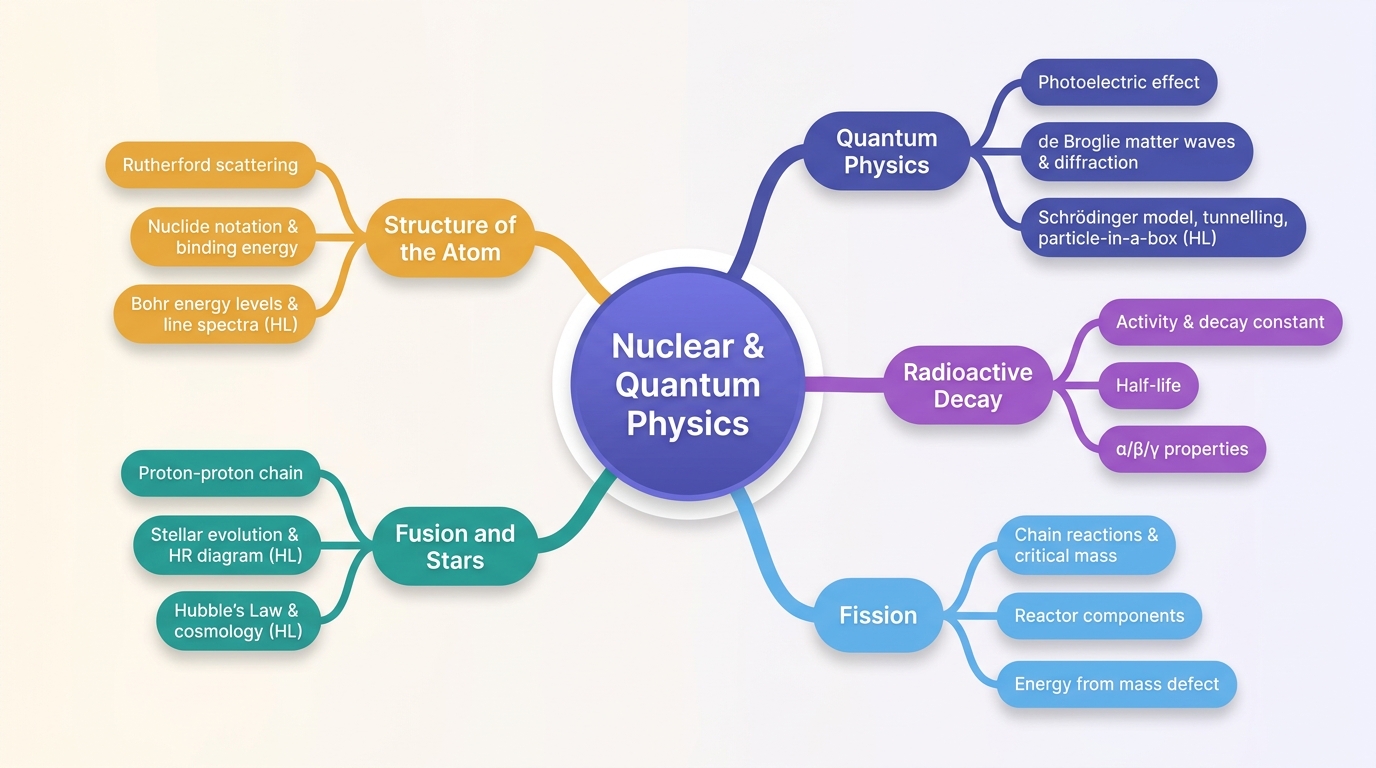

Mind map of Nuclear and Quantum Physics centred on Nuclear & Quantum Physics.

Command terms this topic loves to weaponise

Command term	What it demands	AO	Mark-earning move
Calculate	Find a numerical answer with working shown	AO2	Full substitution with units at every line; a correct bald answer with no working can still lose method marks.
Determine	Multi-step numerical answer, often needs an intermediate quantity first	AO2/AO3	Marks are awarded for each intermediate value — write down $E_{p h o t o n}$ , $ϕ$ , etc. explicitly even if not asked for.
Estimate	Approximate/order-of-magnitude answer using assumed or rounded data	AO2	No single correct value — mark scheme accepts a range; stating your assumption earns a mark on its own.
Deduce	Reach a stated conclusion using given data plus a physics principle	AO3	Must name the principle (e.g. conservation of nucleon number) — the numeric answer alone forfeits the reasoning mark.
Outline	Brief account of a process or sequence (reactor operation, stellar evolution)	AO1	Needs named stages/components in order — a vague description scores zero.
Sketch	Approximately correct graph showing the key features	AO2	Axes need quantity AND unit; intercepts/asymptote/gradient sign must be shown even if not to scale.
Compare	State similarities AND differences (e.g. fission vs fusion)	AO3	A one-sided answer (only differences) loses marks — the term demands both.

Key point

Almost every quantitative question in this topic reduces to

E = h f

E = Δ m c^{2}

, or

N = N_{0} e^{- λ t}

. The marks that actually vanish are unit slips — eV↔J, u↔kg, nm↔m — not conceptual mistakes. Convert units first, calculate second.
