Overview

Why the Cartesian plane exists

The Cartesian plane is just two number lines placed at right angles to each other, one flat (horizontal) and one upright (vertical), crossing at a fixed reference point. That single idea — describe any position using two numbers instead of a vague description — is what makes GPS, spreadsheets, pixel grids and street maps all work the same way.

  • The plane has exactly two axes: the -axis (horizontal) and the -axis (vertical).
  • They cross at the origin, a single fixed point with coordinates .
  • Any point on the plane is fixed by an ordered pair — two numbers whose order is not optional.
  • The two axes split the plane into four regions called quadrants, each with its own pattern of positive and negative coordinates.

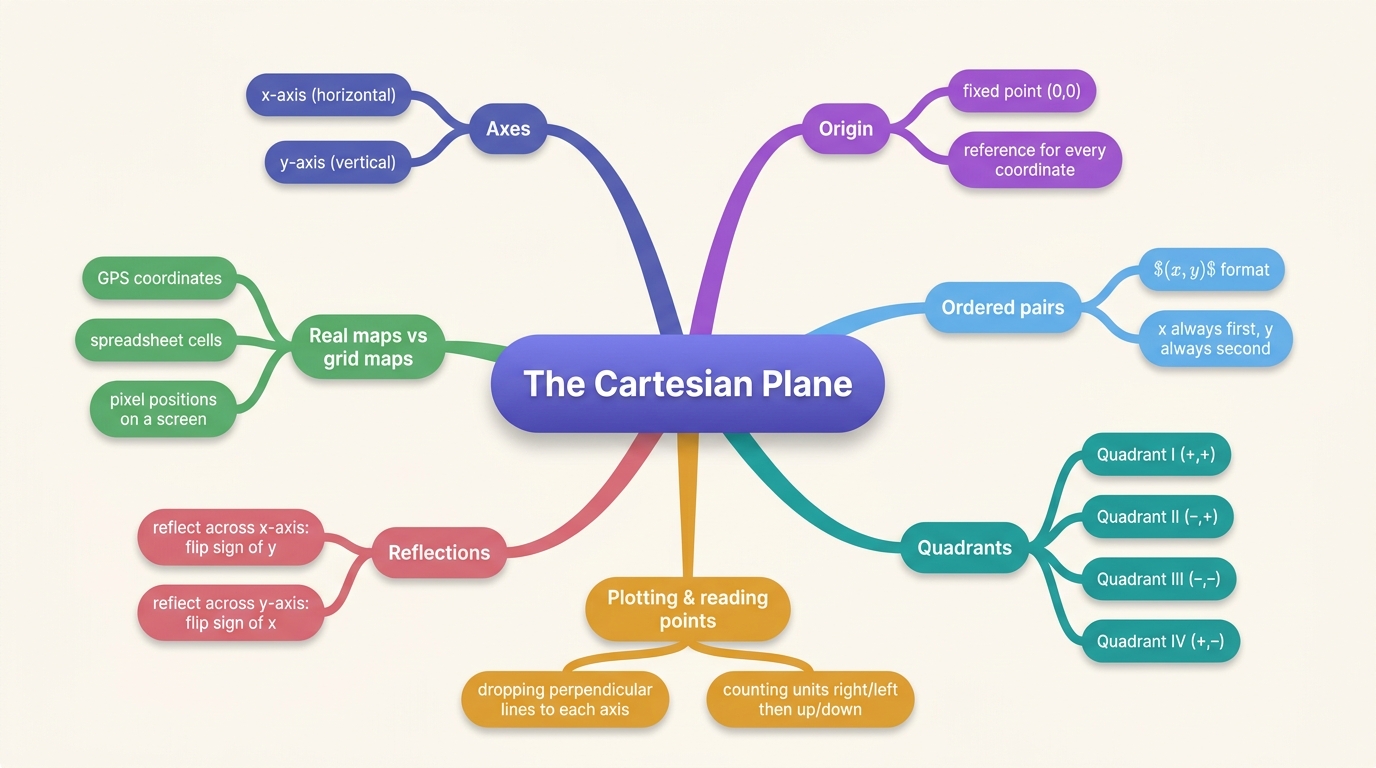

The shape of the chapter

Command terms you'll actually meet on this topic

Command termWhat it demandsAOMark-earning move
IdentifyGive one specific, correctly-named answer — no working or explanation expected.AO11 mark for the exact right name/point; a vague answer like 'the sideways line' scores nothing.
DescribeGive a detailed account that explains HOW or WHY, not just a bare fact.AO2Marks are for the explanation itself — simply restating the coordinate without saying what it tells you about position scores zero.
NameState the correct technical term only.AO11 mark for the exact term (e.g. 'origin'); an informal synonym may not be accepted by the mark scheme.
StateGive a short, precise answer with no justification required.AO1Mark awarded purely for the correct value/fact appearing clearly.
LabelWrite the correct name directly onto a diagram at the correct location.AO1Mark is lost if the correct word is written on the wrong axis or next to the wrong point.

Key point

In almost every mark scheme on this topic, the examiner is checking one thing above all: can you tell which number is and which is , and can you say what each one means (a distance, in a direction) rather than just repeating it back.

Understanding the Cartesian Plane

Axes, origin, and reading a location

Think of the plane as a set of instructions for finding a spot: start at the origin, walk sideways, then walk up or down. The -axis governs the sideways part (positive = right, negative = left); the -axis governs the vertical part (positive = up, negative = down). Nothing about a point's position is 'obvious' until both instructions are given — a lone number tells you nothing.

  • An ordered pair like is read as: 3 units along the -axis, then 2 units up parallel to the -axis.
  • The origin is not 'the middle of the picture' — it's a mathematically fixed point, wherever it happens to be drawn.
  • A point can sit exactly on an axis (e.g. or ) — it isn't automatically the origin, and it isn't inside any quadrant.
  • The four quadrants are numbered I to IV going anticlockwise, starting from the top-right region where both coordinates are positive.

Core vocabulary

x-axis
The horizontal number line on the Cartesian plane.Tells you how far left/right a point is from the origin.
y-axis
The vertical number line on the Cartesian plane.Tells you how far up/down a point is from the origin.
Origin
The fixed point where the -axis and -axis intersect.Every coordinate on the plane is measured starting from here.
Ordered pair
Two numbers written as that together fix one exact point on the plane.'Ordered' is the key word — and describe different points.
Quadrant
One of the four regions created when the axes divide the plane, numbered I–IV anticlockwise from the top-right.Each quadrant has its own fixed sign pattern for and .

The Cartesian Plane and Four Quadrants

Every quadrant has a fixed sign pattern — memorise the pattern, not just the picture.

x-axisy-axisOrigin (0,0)Quadrant I (+,+)Quadrant II (−,+)Quadrant III (−,−)Quadrant IV (+,−)Point (3,2)

Reflecting a Point Across the x-axis

Reflection across the x-axis: the x-coordinate is unchanged, only the sign of y flips.

x-axisy-axisA (2,3)A' (2,-3)

Notation you must be able to use

General notation for the location of a point.

— horizontal distance from the origin — positive means right, negative means left
— vertical distance from the origin — positive means up, negative means down
Memorise

Reflection of a point across the x-axis — the mirror line is horizontal.

Memorise

Reflection of a point across the y-axis — the mirror line is vertical.

Memorise

Worked example

Locating a point from a description

[3]
Two students disagree about a point that is 3 units right and 2 units down from the origin. Student A says the coordinates are . Student B says the coordinates are . Identify which student is correct, and describe what each coordinate tells you about the point's position.

Worked example

Reflecting points across the x-axis

[2]
Points , and are each reflected across the x-axis. Find the new coordinates.

Worked example

Reading coordinates directly off a plotted point

[2]
A point on a Cartesian plane sits 4 units along the x-axis and 3 units up the y-axis. State its coordinates, and explain how you would check a classmate's claim that the point is .

Sign pattern in each quadrant

Quadrantx-signy-signExample point
I
II−
III−−
IV
−

Cartesian grid map vs a real street map

FeatureCartesian grid mapReal street map
ScaleUniform unit squares — every step represents an equal distanceDistances vary with actual road length, curves and buildings
Reference pointFixed, exact origin No single fixed origin — usually landmarks or street names
PrecisionExact numeric coordinates pin down one pointDirections are descriptive, e.g. 'turn left after the shop'
Extra informationShows position onlyShows real features: road names, terrain, traffic, buildings

Don't mix these up

Concept AConcept BThe distinction that matters
x-coordinatey-coordinatex measures horizontal distance from the origin (left/right); y measures vertical distance (up/down) — the order in is fixed and never interchangeable.
OriginA point on an axisThe origin is uniquely ; a point like lies ON the y-axis but is NOT the origin.
Quadrant IQuadrant IVQuadrant I has both coordinates positive (upper right); Quadrant IV has x positive but y negative (lower right) — easy to confuse since both have positive x.

The order-swap error

Writing the y-value first, or reading the vertical movement before the horizontal one — e.g. describing as 'up 2, right 3' and writing or vice versa.

Consequence: Both numbers can be numerically correct and the answer still scores zero, because the ordered pair as a whole is marked as one unit — the mark scheme checks first, second, not 'the two right digits'.

Fix: Always name the horizontal movement before the vertical one, out loud if needed: 'along, then up' — never 'up, then along'.

Examiner tip

When a question uses the command term 'Describe' (e.g. 'Describe how the coordinates help someone find the café'), a bare answer like 'x=3, y=2' scores nothing extra beyond identification — you must state what each number physically represents (distance right of the origin, distance up from the origin) to pick up the AO2 mark.

Getting the order right

Along the hall, then up the stairs.

x-coordinate = move along the horizontal 'hall' first; y-coordinate = move up (or down) the 'stairs' second — matching the order you'd actually walk to reach a room.

You use this every day, not just in maths class

Every digital photo is stored as a grid of pixels addressed by a Cartesian-style ordered pair (column, row) — it's exactly why cropping tools in photo apps ask for two numbers, and why a GPS location is really just an -style pair of longitude and latitude, measured from a fixed reference origin.

Key takeaways

  • The Cartesian plane is two perpendicular number lines — the x-axis (horizontal) and y-axis (vertical) — crossing at the origin .
  • An ordered pair fixes one exact point: x is always first (horizontal), y always second (vertical) — never swap the order.
  • The plane splits into four quadrants numbered I–IV anticlockwise from the top-right, each with a fixed sign pattern for .
  • Reflecting a point across the x-axis flips the sign of y only: ; reflecting across the y-axis flips the sign of x only: .
  • Grid maps use exact numeric coordinates for precision; real street maps use landmarks and descriptive directions — same underlying idea, different level of precision.

Quick Reference

Cartesian Plane — everything on one page

Formulas

  • x = horizontal distance from origin, y = vertical distance from origin
  • reflection across the x-axis
  • reflection across the y-axis

Key facts

Origin coordinates
Number of quadrants
4, labelled I–IV anticlockwise from top-right
Order in an ordered pair
x always first, y always second

Mnemonics

  • Along the hall, then up the stairs.x (horizontal) is always named/read before y (vertical).

Don't confuse

  • x-coordinate vs y-coordinate: x = left/right distance from origin; y = up/down distance — order in is fixed.
  • Origin vs Point on an axis: Origin is uniquely ; a point like sits on an axis but isn't the origin.
  • Quadrant I vs Quadrant IV: Both have positive x; Quadrant I has positive y (upper right), Quadrant IV has negative y (lower right).

Command terms

Identify:
give one exact name/value, no explanation
Describe:
explain what the coordinate means, not just restate it
Name:
state the correct technical term only
State:
give a short precise fact, no justification
Label:
write the correct term at the correct spot on the diagram

Exam checklist

  • Did I write x before y in every ordered pair?
  • Did I explain what each coordinate means (direction + distance), not just repeat the numbers?
  • Did I check the sign — positive right/up, negative left/down?
  • For a reflection question, did I flip only the correct coordinate (y for x-axis reflection, x for y-axis reflection)?
  • Did I name the crossing point 'origin', not '(0,0)' as if that were its name?
