MYP Sciences Year 1 — Matter and Its Properties

26 min readFoundationalCore Year 1 unit — assessed mainly through MYP Criterion A (Knowing & Understanding) and Criterion B (Inquiring & Designing); underpins every later chemistry and physics unit

Almost every question your teacher writes on this unit comes down to one skill: can you sort something correctly, and prove it with evidence? Sort a substance into element/compound/mixture, sort a particle diagram into solid/liquid/gas, sort a change into physical/chemical — every single time the marks go to the student who points at the evidence (melting point, conductivity, gas produced, colour on litmus) rather than the one who guesses from the name. Nail the sorting logic and the whole unit falls into place.

Overview: How This Unit Fits Together

What this unit is really testing

Matter and Its Properties is built from six ideas that all connect back to one habit: classify first, using observable evidence, before you explain anything.

  • Composition tells you whether you're looking at an element, compound, or mixture.
  • Inside every atom, two numbers (atomic number, mass number) tell you exactly what it's made of.
  • Separation techniques un-mix mixtures by exploiting one physical difference at a time.
  • Acids and bases are classified by pH, and indicators are just the tool that makes pH visible as colour.
  • Particle theory explains solid/liquid/gas behaviour as arrangement + energy, nothing more mystical than that.
  • Physical vs chemical change always comes back to one test: has a genuinely new substance formed?

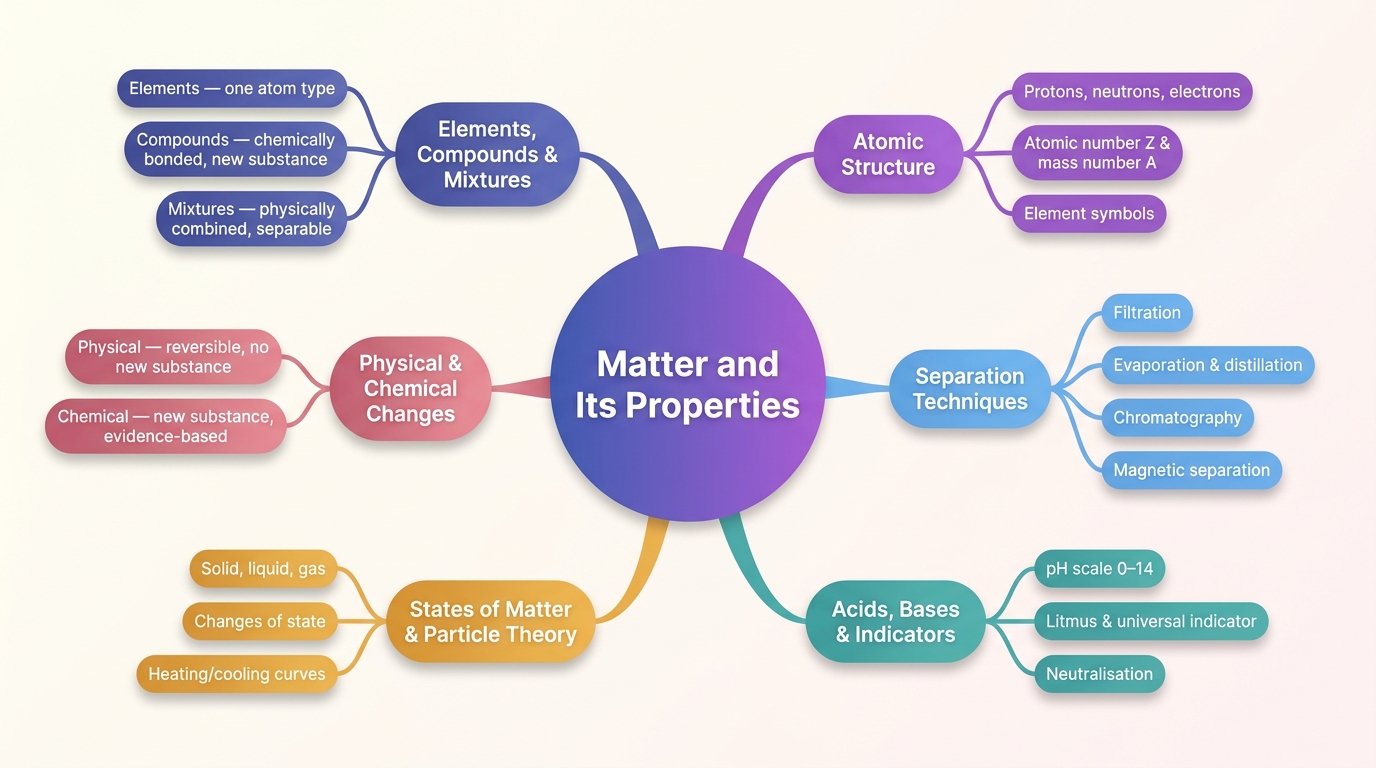

The shape of the chapter

Command terms this unit tests constantly

Command termWhat it demandsAOMark-earning move
IdentifySelect and name one specific item from the information givenKnowledge/recallOne correct word or example only — don't add extra description, especially if it contradicts your answer
DescribeState the observable features/details in full sentences, without saying whyKnowledge/recallNeeds a complete observational statement — a single word where a sentence is expected loses the mark
ExplainGive reasons or causes, showing understanding of why or howApplication/understandingMust contain a 'because' link — restating the observation without a reason scores zero on this term
CompareGive similarities AND differences between two or more thingsAnalysisListing only similarities (or only differences) forfeits half the marks
ClassifySort items into named groups/categories using a stated criterionAnalysisYou must name the category, not just list the items — sorting without labelling the groups loses marks

Key point

Matter is anything with mass and volume. Every task in this unit is really asking you to classify a sample correctly — by composition, by state, or by type of change — and back that classification up with actual evidence, not the substance's name alone.

  1. Elements, Compounds and Mixtures

Classifying matter by composition

Every sample of matter falls into exactly one of three composition categories. Examiners test whether you can tell which one from a description or a properties table — not whether you've memorised the word.

  • Element — made of only one type of atom. About 118 are known, each with its own symbol (H, He, Fe, Na...). Cannot be broken into anything simpler by chemical or physical means.
  • Compound — two or more elements chemically bonded in a fixed ratio, forming a genuinely new substance. Water () behaves nothing like the hydrogen gas or oxygen gas it's built from.
  • Mixture — two or more substances physically combined, no fixed ratio, no new bonds formed. Because nothing new is chemically created, the original substances can always be recovered by a physical separation technique.

Element symbols follow one strict rule examiners check over and over: the first letter is always capital, and a second letter (if there is one) is always lower case. That's why helium is written , never — capitalising the second letter would make it read as two separate one-letter elements squashed together.

Key terms

Element
A pure substance made of only one type of atom; cannot be broken down into simpler substances by chemical means.e.g. iron (Fe), oxygen (O)
Compound
Two or more elements chemically combined in a fixed ratio, forming a new substance with properties different from its elements.e.g. water (H2O), carbon dioxide (CO2)
Mixture
Two or more substances physically combined, in no fixed ratio, that can be separated by physical means.e.g. sand and iron filings, salt water
Chemical symbol
A one- or two-letter international abbreviation for an element's name; first letter always capital, second letter (if present) always lower case.

Element vs Compound vs Mixture

FeatureElementCompoundMixture
CompositionOne atom typeTwo+ elements chemically bondedTwo+ substances physically combined
Ratio of partsN/AFixed (e.g. H2O is always 2:1)Variable — any proportion
New properties formed?N/AYes, completely different from elementsNo — properties are just a combination of the parts
How to separateCannot be simplified furtherOnly by chemical reactionBy physical techniques (filtration, evaporation, etc.)
ExampleIron (Fe)Carbon dioxide (CO2)Air, sand + salt

Worked example

Identifying unknown substances from properties

[3]
Substance X: yellow solid, melting point 115°C, does not conduct electricity. Substance Y: black solid, melting point 3550°C, conducts electricity. Substance Z: silvery-grey solid, melting point 1538°C, conducts electricity. Known elements — Carbon (C): black solid, mp 3550°C, conducts; Sulfur (S): yellow solid, mp 115°C, does not conduct. Identify X, Y and Z.

Worked example

Comparing PVC, PET and HDPE

[4]
PET contains carbon, hydrogen, oxygen. HDPE contains carbon, hydrogen. PVC contains carbon, hydrogen, chlorine. (a) Identify the element in PVC but not PET/HDPE. (b) Explain why that element makes PVC more dangerous to burn than HDPE.

Wrong capitalisation of element symbols

Writing a symbol with both letters capitalised, e.g. 'CL' for chlorine instead of 'Cl', or 'HE' instead of 'He'.

Consequence: Examiners mark this as an incorrect symbol — a capitalised second letter can look like two separate one-letter elements bolted together, so the mark for correct notation is lost even if the right element was clearly intended.

Fix: Always write only the first letter of a two-letter symbol as capital: Cl, He, Na, Fe — check this every time you write a symbol in an answer.

'Identify' means one word

For 1-mark 'identify' questions (like naming which element has a two-letter symbol, or which element is Fe), give the single correct word or symbol only. Adding an explanation you're not sure about risks contradicting your correct answer and losing the mark entirely.

Why the same symbols work everywhere

A doctor in Tokyo, Cairo or São Paulo can all write 'Fe tablets' on a prescription and every pharmacist understands it instantly — because chemical symbols are internationally agreed, unlike element names which differ by language (iron/hierro/fer/eisen). That's exactly why a cleaning product label can list 'Cl' and expect it to be understood worldwide — though a shopper who doesn't know the symbol should always check the full word too, since misreading a hazard symbol can be dangerous.

Key takeaways

  • Element = one atom type; Compound = chemically bonded, new properties; Mixture = physically combined, separable back into its parts.
  • Symbol rule: first letter capital, second letter (if any) lower case — always.
  • A compound's properties are completely different from its starting elements; a mixture just keeps the properties of its parts.
  • To identify an unknown substance, match its full property set (not just one property) against known reference data.

  1. Atomic Structure (Introductory)

Inside the atom

Every atom is built from just three particles, and at Year 1 you only need to know where they sit and what two numbers reveal about them.

  • Protons — positive charge, in the nucleus. Number of protons = atomic number ().
  • Neutrons — no charge, also in the nucleus. Number of neutrons = mass number minus atomic number.
  • Electrons — negative charge, orbiting the nucleus in shells. In a neutral atom, number of electrons = number of protons.

The atomic number is the atom's identity card: change the number of protons and you change the element completely. Change the number of neutrons and it's still the same element, just a heavier version of it.

Key terms

Atomic number (Z)
The number of protons in an atom's nucleus; defines which element the atom is.
Mass number (A)
The total number of protons plus neutrons in an atom's nucleus.
Nucleus
The small, dense central core of an atom, containing all its protons and neutrons.

Structure of a carbon-12 atom

Carbon-12: atomic number 6 (6 protons), mass number 12 (6 protons + 6 neutrons), 6 electrons arranged in two shells (2, 4).

NucleusProton (+)Neutron (no charge)Electron (-)First electron shell (2 electrons)Second electron shell (4 electrons)

Finding the number of neutrons

Number of neutrons equals mass number minus atomic number

— number of neutrons
— mass number (protons + neutrons)
— atomic number (number of protons)
Memorise

For a neutral atom, number of electrons also equals Z.

Worked example

Neutrons in carbon, and comparing hydrogen with helium

[3]
Carbon has atomic number 6 and mass number 12. (a) Describe how to find the number of neutrons in carbon. (b) Hydrogen has 0 neutrons and helium has 2 neutrons. Describe one way these two elements are similar despite this difference.

Swapping atomic number and mass number

Using the mass number where the atomic number is needed (or vice versa) when finding neutrons, e.g. calculating $6 - 12$ instead of $12 - 6$.

Consequence: Gives a negative or nonsensical neutron count and loses both the method and answer marks in a 2-mark 'describe how to find neutrons' question.

Fix: Always write out first, substitute the larger number (mass number, A) first, then subtract the atomic number (Z) — the smaller number.

Key point

Atomic number = protons = electrons (in a neutral atom) = the number that defines which element it is. Mass number = protons + neutrons = the total 'weight' of that particular atom.

Key takeaways

  • Protons and neutrons live in the nucleus; electrons orbit in shells.
  • Atomic number (Z) = number of protons = the element's identity.
  • Mass number (A) = protons + neutrons; neutrons = A − Z.
  • Two elements can be 'similar' in ways other than particle count — look at state, appearance, and position in the periodic table too.

  1. Separation Techniques

Choosing the right technique

Every separation technique works by exploiting exactly one physical difference between the substances in a mixture — pick the technique by identifying what that difference is first.

  • Filtration — separates an insoluble solid from a liquid, using particle size (the solid is too big to pass through the filter paper's pores).
  • Evaporation — separates a dissolved solid from its solution by boiling off the liquid, leaving the solid behind. Recovers the solid but destroys/loses the liquid.
  • Distillation — separates a solvent from a solution (or two miscible liquids), using differences in boiling point; the vapour is condensed and collected, so nothing is lost.
  • Chromatography — separates substances (e.g. dyes in ink) based on differing solubility, so components travel different distances up the paper.
  • Magnetic separation — separates a magnetic material (iron, nickel, cobalt) from a non-magnetic one, using magnetism rather than particle size or solubility.

Fair testing matters just as much as choosing the right technique. If more than one variable changes between trials, you can never be sure which factor actually caused the result.

Simple distillation apparatus

The mixture is heated in the round-bottom flask; the substance with the lower boiling point vaporises first, travels through the condenser, cools back to liquid, and is collected separately from the flask.

Round-bottom flask (mixture)Heat sourceThermometerCondenserCold water inCold water outCollection flask (distillate)Clamp stand

Separation technique reference

TechniqueProperty exploitedBest for separating…Example
FiltrationParticle sizeInsoluble solid from a liquidSand from water
EvaporationBoiling point (liquid removed)Dissolved solid from a solutionSalt from salt water
DistillationDifference in boiling pointSolvent from solution, or two miscible liquidsPure water from salt water; ethanol from water
ChromatographySolubility differencesMixed dyes/pigments in a solutionSeparating colours in ink or food dye
Magnetic separationMagnetismMagnetic solid from a non-magnetic solidIron filings from sand

Worked example

Magnetic separation — identifying variables in a fair test

[2]
A student mixes iron filings with sand and uses a magnet to separate them, testing three masses of iron filings (10 g, 20 g, 30 g), measuring the mass of iron the magnet picks up each time. (a) Identify the independent variable and the dependent variable. (b) Describe one thing the student should keep the same to make this a fair test.

Using filtration for a soluble mixture

Suggesting filtration to separate a dissolved solid from a liquid (e.g. 'filter the salt water to get the salt').

Consequence: Filtration only removes insoluble particles — a dissolved solid passes straight through the filter paper with the liquid, so this method scores zero for the separation-method mark.

Fix: If the solid has dissolved (solution looks clear, no visible particles), you need evaporation or distillation, not filtration — reserve filtration for insoluble solid + liquid mixtures only.

Name variables with quantity and unit

When identifying an independent or dependent variable, name the exact quantity with its unit — 'mass of iron filings (g)', not just 'iron filings'. A vague answer that names the substance rather than the measured quantity often loses the identify mark even though it's 'roughly right'.

Key takeaways

  • Pick a separation technique by identifying which single physical property differs between the substances (size, solubility, boiling point, magnetism).
  • Filtration and magnetic separation only work on insoluble/undissolved mixtures — dissolved solids need evaporation or distillation.
  • In any investigation, the independent variable is what you deliberately change; the dependent variable is what you measure as a result.
  • A fair test requires every other variable that could affect the result to be controlled and kept identical across trials.

  1. Acids, Bases and Indicators

The pH scale and how we read it

Acids and bases sit at opposite ends of the same scale, and indicators are simply the tool that lets you see, by colour, where a solution falls.

  • Acids — pH below 7. Common examples: hydrochloric acid, sulfuric acid, vinegar (acetic acid). Turn blue litmus paper red.
  • Bases — pH above 7. A base that dissolves in water is also called an alkali. Common examples: sodium hydroxide, soap, baking soda solution. Turn red litmus paper blue.
  • Neutral — exactly pH 7. Pure water is the reference point.

Litmus paper only tells you the category — acid or base — shown as one of two colours. Universal indicator (or a digital pH meter) is needed for an actual pH number, shown as a spread of colours from red (very acidic) through green (neutral) to purple (very alkaline).

Key terms

Acid
A substance with pH below 7 that turns blue litmus red.
Base / Alkali
A substance with pH above 7 that turns red litmus blue; an alkali is a base that dissolves in water.
Indicator
A substance that changes colour depending on whether a solution is acidic, neutral, or basic.
pH scale
A numerical scale from 0 to 14 measuring how acidic or alkaline a solution is; 7 is neutral.
Neutralisation
The reaction between an acid and a base, producing a salt and water and moving the resulting pH closer to 7.

The pH scale with universal indicator colours

pH decreases (more acidic) to the left, increases (more alkaline) to the right; 7 is neutral.

0 (strong acid, red)7 (neutral, green)14 (strong alkali, purple)Acidic zoneNeutralAlkaline zoneLemon juice (~pH 2)Pure water (pH 7)Soap solution (~pH 9)Bleach (~pH 13)

Mnemonic

Alphabet trick: 'A' comes before 'B', and 'Red' comes before 'Blue' — Acid pairs with Red, Base pairs with Blue.

Helps you recall which litmus colour goes with acids and which goes with bases without mixing them up under exam pressure.

Worked example

Classifying a solution from indicator colour

[2]
A student adds universal indicator to an unknown solution and it turns orange. Identify whether the solution is acidic, neutral or alkaline, and estimate its approximate pH.

Treating litmus as a pH meter

Claiming litmus paper 'measures the exact pH' of a solution, e.g. 'litmus shows this is pH 4'.

Consequence: Litmus only ever shows two colours (red or blue), telling you acid vs base — it cannot give a number. Stating an exact pH from litmus is marked incorrect.

Fix: Use litmus only to say 'acid' or 'base'. If a pH value or approximate range is asked for, you need universal indicator or a pH meter instead.

Neutralisation in everyday life

Antacid tablets work by neutralising excess stomach acid (hydrochloric acid) to relieve heartburn — the base in the tablet reacts with the acid, raising the pH closer to neutral. Farmers test soil pH before planting, since crops like blueberries need acidic soil (pH 4.5-5.5) while most vegetables prefer closer to neutral — get the pH wrong and the whole crop fails to grow properly.

Key takeaways

  • pH below 7 = acid; pH above 7 = base/alkali; pH 7 = neutral.
  • Litmus only shows red or blue (acid vs base category); universal indicator shows a colour spectrum linked to an approximate pH number.
  • Neutralisation is an acid + base reaction producing a salt and water, moving pH toward 7.
  • Never state an exact pH value from litmus paper — only from universal indicator (approximate) or a pH meter (precise).

  1. States of Matter and Particle Theory

Particle arrangement explains everything

Solids, liquids and gases aren't three unrelated things to memorise separately — they're the same particles with different amounts of space between them and different amounts of energy.

  • Solid — particles packed closely in a fixed, ordered pattern, only vibrating in place. Fixed shape, fixed volume.
  • Liquid — particles still close together but free to slide past each other in a random arrangement. Takes the shape of its container but keeps a fixed volume.
  • Gas — particles far apart, moving fast in random directions, colliding constantly. No fixed shape and no fixed volume — expands to fill any container.

Changes between states have specific names, and mixing them up costs marks: melting (solid→liquid), freezing (liquid→solid), evaporation/boiling (liquid→gas), condensation (gas→liquid), sublimation (solid→gas, skipping liquid — e.g. dry ice), deposition (gas→solid, skipping liquid — e.g. frost forming on a cold window).

The two changes students forget

Sublimation
A solid changing directly into a gas, without passing through the liquid state.e.g. solid carbon dioxide (dry ice) turning straight into gas
Deposition
A gas changing directly into a solid, without passing through the liquid state.e.g. frost forming directly from water vapour in cold air

Solid vs Liquid vs Gas

PropertySolidLiquidGas
Particle arrangementFixed, ordered, close togetherRandom, close togetherRandom, far apart
Particle movementVibrate in place onlySlide past each otherMove fast in all directions
ShapeFixedTakes shape of containerFills entire container
VolumeFixedFixedNot fixed — expands
CompressibilityCannot be compressedBarely compressibleEasily compressed

Particle arrangement in solid, liquid and gas

Same particles, different spacing and energy — this single idea explains shape, volume and compressibility for all three states.

Solid — particles fixed, vibratingLiquid — particles close, slidingGas — particles far apart, fast-moving

Density — a physical property that explains particle spacing

Density equals mass divided by volume

— density (g/cm³)
— mass (g)
— volume (cm³)

Gases have much lower density than solids/liquids of the same substance because their particles are far apart — same mass spread over a much larger volume.

Worked example

Reading a heating curve

[5]
A block of ice is heated steadily from -20°C to 120°C. The temperature-time graph shows: a rising line from -20°C to 0°C over 4 minutes, a flat plateau at 0°C from 4 to 10 minutes, a rising line from 0°C to 100°C from 10 to 18 minutes, a flat plateau at 100°C from 18 to 28 minutes, then a rising line above 100°C. (a) Identify the melting point and boiling point from the graph. (b) Explain why temperature stays constant during the plateau at 0°C even though heating continues. (c) Calculate the rate of temperature increase during the first sloped section (solid warming).

Heating curve for water: solid to gas

Sloped sections show a single state warming up (temperature rising); flat plateaus show a state change happening (temperature constant).

Temperature (°C)Time (min)Solid warmingMelting (0°C plateau)Liquid warmingBoiling (100°C plateau)Gas warming

Thinking temperature keeps rising during boiling

Assuming that because a Bunsen burner is still heating the liquid, the temperature must still be increasing during boiling.

Consequence: Directly contradicts the flat plateau shown on every heating curve question and loses the explain mark, since the reasoning shows a misunderstanding of where the energy goes during a phase change.

Fix: Remember: during a phase change, added heat energy overcomes forces between particles rather than speeding the particles up — temperature only starts rising again once the change of state is complete.

Label every region of a heating curve fully

When labelling a heating/cooling curve, name both the state AND the process for each region — 'solid warming', 'melting (constant temperature)', not just 'solid' or 'flat part'. A vague label like 'the line goes flat' without naming the state change loses the mark.

Key point

Temperature only rises while heat energy is increasing the kinetic energy of moving particles. On a plateau, that same heat is instead breaking the forces holding particles together — that's why temperature stays constant even though heating never stops.

Key takeaways

  • Solid, liquid, gas differ only in particle spacing and particle energy — everything else (shape, volume, compressibility) follows from that.
  • State-change names: melting, freezing, evaporation/boiling, condensation, sublimation (solid→gas), deposition (gas→solid).
  • A heating curve's slopes show a single state warming; its plateaus show a state change at constant temperature.
  • Gradient of a temperature-time graph = rate of heating; always read it from two points on a straight (non-plateau) section.

  1. Physical and Chemical Changes

What actually changed?

The single question that decides physical vs chemical is: has a genuinely new substance formed, with different properties, or has the same substance simply changed appearance or state?

  • Physical change — no new substance formed; usually reversible; examples: melting, freezing, dissolving, cutting, bending, mixing colours.
  • Chemical change — new substance(s) formed with different properties; usually irreversible; evidence includes a colour change not explainable by simple mixing, gas produced (fizzing not caused by boiling), an unexplained temperature change, a precipitate (new solid) forming from two clear solutions, or a permanent change no physical method can undo.

Colour change alone is the trap examiners set most often. Mixing yellow and blue paint gives green through simple physical mixing — no new substance at all. Only trust colour change as evidence of a chemical reaction when it comes with another sign, or you can rule out a purely physical explanation like dilution or mixing.

Key terms

Physical change
A change in appearance, state, or shape where no new substance is formed and the change is usually reversible.
Chemical change
A change in which one or more new substances are formed with different properties from the starting substances; usually irreversible.
Evidence of a chemical change
Observable signs suggesting a new substance has formed: gas produced, precipitate formed, unexplained temperature change, permanent colour change, or a change that cannot be reversed physically.

Telling physical and chemical change apart

Concept AConcept BThe distinction that matters
Melting iceBurning a candle wickMelting only changes state — the water is still and reforms ice on freezing. Burning produces new substances (carbon dioxide, soot, water vapour) that cannot be turned back into wax and wick by cooling.
Dissolving sugar in teaRusting an iron nailDissolving is physical — evaporate the tea and the sugar crystals come back unchanged. Rusting is chemical — iron atoms have bonded with oxygen to form a genuinely new compound (iron oxide) that will never turn back into shiny iron on its own.
Mixing sand and waterMixing vinegar and baking sodaSand and water form a mixture — filter it and both substances return exactly as before. Vinegar and baking soda fizz (carbon dioxide gas is produced) — a brand-new substance appearing is the clear sign of a chemical change.

Worked example

Classifying a list of changes

[4]
Classify each of the following as a physical or chemical change, giving a reason: melting chocolate, burning paper, dissolving sugar in water, baking a cake.

Assuming any colour change means a chemical reaction

Classifying a change as chemical purely because the colour changed, e.g. saying mixing red and yellow paint 'must be chemical' since a new colour (orange) appears.

Consequence: Loses the classify/identify mark, because colour change by itself is not reliable evidence — physical mixing of colours (paints, dyes, diluting a solution) also changes colour with no new substance formed.

Fix: Only count colour change as chemical evidence when it's paired with another sign (gas produced, precipitate, temperature change) or you can rule out a simple physical explanation like mixing or dilution.

Cooking is both types of change at once

Toasting bread involves a physical change (moisture evaporating out, making it crisp) happening alongside a chemical change (the Maillard reaction — sugars and proteins reacting under heat to form new brown, flavourful compounds you can never turn back into pale, soft bread). Most cooking is exactly this mix, which is why 'baking a cake' can't simply be reversed by cooling it back down.

Key takeaways

  • The deciding test is always: has a new substance formed? Physical change = no; chemical change = yes.
  • Physical changes are usually reversible (state changes, dissolving, mixing); chemical changes are usually irreversible.
  • Reliable evidence of a chemical change: gas produced, precipitate formed, unexplained temperature change, permanent irreversible change — colour change alone is not enough.
  • Real processes (like cooking) often involve both physical and chemical changes happening together — learn to separate which part is which.

Quick Reference

Matter and Its Properties — everything on one page

Formulas

  • Neutrons = Mass number − Atomic number
  • Density = mass ÷ volume — explains why gases are far less dense than solids/liquids

Key facts

pH of pure water
7 (neutral)
Element symbol rule
1st letter capital, 2nd letter lower case
Melting point of ice
0°C
Boiling point of water
100°C

Mnemonics

  • 'A' before 'B', 'Red' before 'Blue' — Acid = Red, Base = BlueRecall which litmus colour matches acids vs bases

Don't confuse

  • Compound vs Mixture: Compound = chemically bonded, fixed ratio, new properties, separated only by chemical reaction; Mixture = physically combined, variable ratio, separated by physical techniques.
  • Physical change vs Chemical change: Physical = no new substance, usually reversible; Chemical = new substance formed, usually irreversible.
  • Atomic number vs Mass number: Atomic number = protons only, defines the element; Mass number = protons + neutrons, gives the atom's total mass.

Command terms

Identify:
One word/example only, no explanation
Describe:
Full sentence stating what is observed, no reasoning
Explain:
Must give the reason/cause, not just the observation
Compare:
State both a similarity AND a difference

Exam checklist

  • Can you classify a substance as element, compound or mixture from a properties table?
  • Can you calculate the number of neutrons from atomic number and mass number?
  • Can you match a separation technique to the exact physical property it exploits?
  • Can you read an approximate pH from indicator colour and classify it as acid/neutral/alkaline?
  • Can you label every region of a heating curve (2 slopes, 2 plateaus) with the correct state and process?
  • Can you justify physical vs chemical change using the 'new substance' test rather than colour alone?
