IB Middle Years Programme · Sciences MYP Year 2

Electricity and Magnetism

Cover illustration for Electricity and Magnetism (Sciences MYP Year 2).
MYP · Sciences MYP Year 2

Electricity and Magnetism

MYP Sciences Year 2 — Electricity and Magnetism unit

22 min readStandardCore Year 2 unit — assessed through Criterion A (Knowing & Understanding) and Criterion C (Processing & Evaluating) tasks; circuit-diagram and graph-reading questions recur every year

Everything in this unit is really one idea in different costumes: moving charge. Current electricity is charge moving continuously round a loop; static electricity is charge stuck in one place until it suddenly isn't; magnetism from an electromagnet is just what a moving charge does to the space around it. Once you see that link, series vs parallel, conductors vs insulators, and bar magnets vs solenoids stop being six separate topics to memorise.

Overview — the shape of this unit

Why these six topics sit in one unit

Circuits describe the path charge takes (series = one path, parallel = many). Conductors and insulators describe which materials let it take that path at all. Static electricity is charge with nowhere to go — a build-up, not a flow. Magnets and electromagnets show that a moving charge (a current) creates a magnetic field, which is exactly why a solenoid can be switched on and off like a temporary magnet.

  • Almost every exam question on this unit gives you data (a table, a graph, or an ammeter reading) and asks you to spot the pattern — series stays constant, parallel splits and recombines.
  • Command words matter more here than in most units: 'state' wants one fact, 'explain' wants the mechanism behind that fact.
  • Diagrams are marked literally — correct symbol, correct position (ammeter in series, voltmeter in parallel), correct direction of field lines.

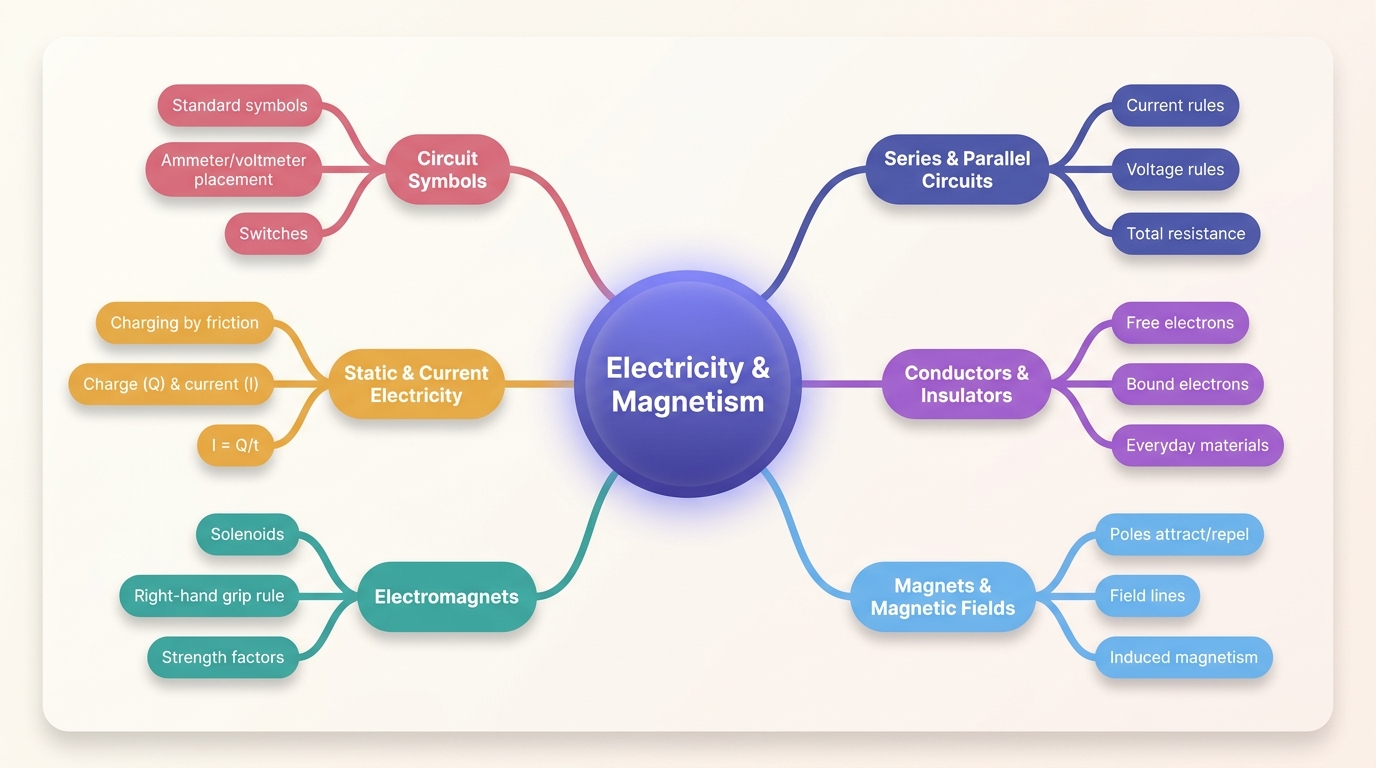

The shape of the chapter

Command words this unit tests hardest

Command termWhat it demandsAOMark-earning move
StateGive a specific fact, name, or value — no reasoning needed.AO1One correct word/value earns the mark; a paragraph earns no more than one word would.
DescribeGive a detailed account of what happens, including direction or trend.AO1/AO2For a 1-mark 'describe both cases' question, both cases must appear or the mark is capped at zero.
ExplainGive reasons — the mechanism causing the effect, not just the effect itself.AO2Restating the observation without saying why it happens scores zero on explain questions.
IdentifySelect and name the correct answer from the given context.AO1Vague answers ('a metal', 'a plastic') lose the mark — name the actual material or component.
CalculateProduce a numerical answer using a method.AO2Method mark is awarded for correct substitution even if the final number is wrong — always show the equation first.
CompareIdentify similarities and differences between two things explicitly.AO3Describing only one circuit/material and ignoring the other loses half the marks even if that description is perfect.

Key point

Every circuit question comes back to one idea: series has one path so current can't be different anywhere along it; parallel has multiple paths so current splits at junctions and the branch currents always add back to the total.

Series and Parallel Circuits

Two ways to wire the same components

In a series circuit every component sits on the same single loop, so charge has no choice but to pass through all of them one after another. In a parallel circuit the components sit on separate branches between the same two points, so charge has a choice of route at every junction.

  • Series current: identical at every point in the loop — an ammeter reads the same value wherever you place it.
  • Parallel current: splits at each junction into branch currents that add back up to the total before/after the split.
  • Series voltage: the supply voltage is shared out across the components — add up the voltage drops and you get the battery voltage back.
  • Parallel voltage: every branch gets the full supply voltage independently, because each branch connects the same two points.

Total resistance rules

Series resistances simply add — every extra bulb makes the whole loop harder to push charge through.

Memorise

Parallel resistances combine by reciprocals — adding a branch always makes it easier for charge to get through overall.

Memorise

Ohm's Law — links voltage, current and resistance for a component or a whole circuit.

Memorise

A steep I–V line means low resistance (lots of current for little voltage); a shallow line means high resistance.

Ammeter readings in series vs parallel

Series: one reading everywhere. Parallel: main-line reading equals the sum of the branch readings.

BatterySeries loop: 3 identical ammeters (A, B, C) all showing 0.2 AParallel circuit: main ammeter D showing 0.6 A before the splitBranch ammeter E showing 0.4 ABranch ammeter F showing 0.2 A

Worked example

Why brightness fades as you add bulbs in series

[4]
Using the pattern 10, 5, 3.3 (arbitrary brightness units) for 1, 2, 3 identical bulbs wired in series on the same battery, predict the brightness for 4 bulbs in series. Then state what happens if those same 3 bulbs are instead connected in parallel.

Worked example

Turning a current–voltage graph's gradient into resistance

[6]
Circuit X (two identical resistors in series) and Circuit Y (the same two resistors in parallel) are each connected to a variable supply and an I–V graph is plotted. Line X passes through (0, 0) and (12 V, 0.4 A). Line Y passes through (0, 0) and (12 V, 1.6 A). Find R_X and R_Y, find the current in Circuit X at 9 V, and explain why R_Y is smaller than R_X.

Series vs parallel at a glance

FeatureSeries circuitParallel circuit
Number of pathsOne single loopTwo or more separate branches
CurrentSame at every point on the loopSplits at junctions; branch currents sum to the main-line current
VoltageShared out across the componentsSame across every branch, equal to the supply voltage
Total resistanceAdds up — increases as you add componentsAlways less than the smallest branch resistance — decreases as you add branches
If one component failsWhole circuit stops (broken loop)Other branches keep working independently
Typical useRare in homes (e.g. some fairy lights)Standard for household lighting and sockets

Series vs parallel — the exact discriminators

Concept AConcept BThe distinction that matters
Current in seriesCurrent in parallelSeries gives the identical reading at every ammeter position; parallel readings shrink downstream of a junction but always add back to the main-line value.
Adding a bulb in seriesAdding a bulb in parallelSeries: total resistance rises, so every bulb dims. Parallel: total resistance falls, and existing bulbs keep the same brightness because each has its own full-voltage path.
Voltage across components in seriesVoltage across components in parallelSeries voltage is divided between components; parallel voltage is the full supply value across every branch.

Adding parallel resistances like series ones

Writing R_total = R1 + R2 for two 10 Ω resistors in parallel and getting 20 Ω.

Consequence: Gives a total resistance bigger than either individual resistor — physically impossible for a parallel circuit — so the answer is rejected even with tidy arithmetic.

Fix: Use the reciprocal rule: 1/R_total = 1/R1 + 1/R2, then flip at the end. Sanity check: parallel R_total must always be smaller than the smallest resistor present.

Examiner tip

When a graph question says 'state the resistance from the graph', it wants the reciprocal-of-gradient value with units (Ω) — skipping units loses the mark even with the correct number.

Key takeaways

  • Series: one path, current identical everywhere, resistance adds, one failure kills the whole circuit.
  • Parallel: multiple paths, current splits and recombines, resistance falls below the smallest branch, one failure leaves the rest running.
  • Home lighting uses parallel wiring precisely because each lamp keeps full brightness and keeps working even if a neighbouring bulb fails.

Conductors and Insulators

What actually decides whether charge can move

Metals are full of free (delocalised) electrons that aren't tied to any one atom — apply a voltage and they drift, giving a current. Insulators hold their electrons tightly bound to individual atoms, so there's nothing free to drift when a voltage is applied.

  • Good conductors: copper, aluminium, silver, graphite (an unusual non-metal conductor because of its layered structure).
  • Good insulators: rubber, most plastics, glass, dry wood, air (mostly).
  • Conductivity isn't all-or-nothing — some materials conduct poorly rather than not at all, which is why 'insulator' really means 'very poor conductor', not zero conductivity.
Conductor
A material that allows electric charge to flow through it easily, because it contains free (delocalised) electrons.e.g. copper wiring
Insulator
A material that resists the flow of electric charge because its electrons are tightly bound to their atoms.e.g. the plastic coating on that same wire

Everyday materials sorted

MaterialClassificationWhyEveryday use
CopperConductorFree electrons move easilyElectrical wiring
AluminiumConductorFree electrons, lighter than copperOverhead power cables
GraphiteConductor (non-metal)Delocalised electrons between carbon layersPencil 'lead', electrodes
RubberInsulatorElectrons tightly boundCable coating, protective gloves
PVC plasticInsulatorElectrons tightly boundPlug casings, wire coating
GlassInsulatorElectrons tightly boundInsulators on power poles
Dry woodPoor conductor / insulatorVery few free chargesHandle of a live-wire test tool

Beyond the syllabus — semiconductors

Materials like silicon sit between conductors and insulators — they barely conduct on their own, but small changes (heat, light, added impurities called 'doping') switch on conduction. This is how transistors and computer chips work, but the physics of semiconductors themselves isn't examined at this level.

Blaming pure water for electric shocks

Assuming pure water is a good electrical conductor because 'wet things are dangerous near electricity'.

Consequence: Loses the mark on questions asking what actually conducts — the expected answer is the dissolved ions/salts in tap water or sweat, not water molecules themselves.

Fix: State it precisely: pure water is a poor conductor; dissolved ions in tap water, sweat, or seawater are what make it dangerous.

Real-world application

Every mains cable is really two materials doing two different jobs: a copper (or aluminium) conductor core carrying the current, wrapped in PVC or rubber insulation stopping that current reaching your hand. Slice through a cable and you see the conductor-inside-insulator structure directly.

Examiner tip

If asked to 'identify' a conductor or insulator, name the actual material — 'a metal' or 'a plastic' without specifics is too vague to earn the identify mark in most schemes.

Key takeaways

  • Conductors have free electrons that drift under a voltage; insulators have electrons locked to their atoms.
  • 'Insulator' means very poor conductor, not zero conductivity — nothing is a perfect insulator.
  • Cable design (copper inside, plastic outside) is the everyday proof of this whole topic.

Magnets and Magnetic Fields

Poles, forces, and the field around them

Every magnet has two poles, north (N) and south (S). Like poles repel, unlike poles attract — this force acts at a distance through the magnetic field, the region of space around a magnet where its magnetic force can be detected.

  • Field lines run from N to S outside the magnet (and from S back to N inside it, forming closed loops).
  • Lines never cross — if they did, a compass placed at that point would have two different directions to point in, which is impossible.
  • Line spacing shows strength: closer together means a stronger field, further apart means weaker.
  • Some materials (iron, nickel, cobalt) can be magnetised by being placed in an external field — this is induced magnetism, and it's usually temporary.
Magnetic field
The region around a magnet (or current-carrying wire) in which a magnetic force acts on another magnet or magnetic material.
Magnetic domain
A small region within a magnetic material where atomic magnetic dipoles all line up in the same direction.
Induced magnetism
Temporary magnetism gained by a magnetic material when placed in an external magnetic field, usually lost once the field is removed.

Magnetic field lines around bar magnets

Field lines run N to S outside the magnet, never cross, and bunch closer together where the field is stronger.

N poleS poleField lines with arrowheads pointing N to SAttracting pair (N facing S)Repelling pair (N facing N)

Field lines crossing or pointing the wrong way

Drawing magnetic field lines that cross each other, or that point from S to N outside the magnet.

Consequence: Diagram marks lost immediately — crossing lines imply two field directions at one point, which is physically impossible.

Fix: Field lines always run from N to S outside the magnet, never cross, and sit closer together where the field is stronger.

Examiner tip

'Describe the field pattern' wants both direction (N to S, arrows shown) and spacing (density = strength) — a drawing with no direction arrows or spacing comment often loses a mark even if the shape is right.

Key takeaways

  • Like poles repel, unlike poles attract — this happens through the field, without contact.
  • Field lines: N to S outside the magnet, never crossing, closer together = stronger field.
  • Iron, nickel and cobalt can be induced into temporary magnets by an external field.

Electromagnets and Their Applications

Making a magnet with electricity

Any wire carrying a current has a magnetic field circling around it. Coil that wire into a loop, and the fields from every part of the loop add up on the inside; coil it many times (a solenoid) and you get a field pattern almost identical to a bar magnet — but one you can switch on and off.

  • Wrapping the coil around an iron (or other magnetically 'soft') core boosts the field strength massively, because the core itself becomes magnetised while the current flows.
  • Field strength increases with more current, and increases with more turns (loops) of wire in the coil.
  • Reversing the current direction reverses which end of the solenoid is north and which is south.
  • Unlike a permanent magnet, an electromagnet's field disappears the instant the current stops.

Solenoid with iron core and the right-hand grip rule

Current through the coiled wire creates a field just like a bar magnet's — reverse the current and the poles swap.

BatteryCoiled wire (solenoid)Iron coreN poleS poleField linesRight-hand grip rule inset: thumb = current direction, curled fingers = field direction

Worked example

Boosting a scrapyard crane's lifting electromagnet

[3]
A crane operator wants the electromagnet to lift heavier scrap metal without buying a new coil. Suggest two changes that would increase the electromagnet's strength, and explain why each works.

Mnemonic

Right hand, thumb for Current, curl for the Coil's field

Grip the wire with your right hand: thumb points along the direction of conventional current, and your curled fingers show the direction the magnetic field loops around the wire.

Using the wrong hand for the grip rule

Using the left hand for the grip rule, or reversing which way the thumb should point.

Consequence: Predicts the wrong magnetic pole or field direction, losing the mark on 'identify the north pole' style questions.

Fix: Right hand only: thumb points in the direction of conventional current flow; fingers curl in the direction of the magnetic field loops.

Key point

An electromagnet's strength depends on three things you can control — current, number of turns, and core material — and nothing else. Learn those three, not a formula.

Real-world application

Scrapyard cranes use a solenoid wound around an iron core, switched on to grab a car and switched off to drop it instantly — something a permanent bar magnet crane could never do, because it can't switch its field off.

Key takeaways

  • A current-carrying wire always has a circular magnetic field around it; coiling it into a solenoid makes a bar-magnet-like field.
  • Strength depends on current, number of turns, and whether there's an iron core.
  • Electromagnets, unlike permanent magnets, can be switched on/off and have their polarity reversed by reversing the current.

Static and Current Electricity

Charge sitting still vs charge on the move

Rubbing two insulating materials together can transfer electrons from one surface to the other — one ends up with extra electrons (negatively charged), the other loses electrons (positively charged). Because both materials are insulators, that charge imbalance can't flow away — it just sits there as static electricity until it finds a path to discharge, often suddenly.

  • Like charges repel, unlike charges attract — exactly the same rule as magnetic poles, but for electric charge.
  • Current electricity is different in kind, not just degree: it's a continuous flow of charge (electrons, in a conductor) all the way around a complete circuit.
  • Conventional current is defined as flowing from + to − around the circuit (the historical convention), even though the electrons that actually move travel − to +.
Static electricity
An imbalance of electric charge built up on the surface of an object (often by friction), which remains until it discharges.
Current electricity
A continuous flow of charge around a complete circuit.
Charge (Q)
A fundamental property of matter that causes it to experience and exert electric forces; measured in coulombs (C).
Ampere (A)
The unit of current; a current of 1 A means 1 coulomb of charge passes a point every second.

Linking charge, current and time

Current is the rate at which charge flows past a point.

— current (A)
— charge (C)
— time (s)
Memorise

Charging by friction

Friction transfers electrons from one surface to the other — charge isn't created, just redistributed.

Plastic rod (gains electrons → negative)Cloth (loses electrons → positive)Arrows showing electron transfer direction

Worked example

Calculating charge from a current

[3]
A charging cable delivers a steady current of 2 A into a phone battery for 5 minutes. Calculate the total charge delivered.

Calling static charge 'current that isn't moving'

Describing static electricity as a type of current that just happens to be stationary.

Consequence: Muddles the two definitions completely — a 'define' question expecting the imbalance/no-flow idea scores zero for this answer.

Fix: Static = charge built up and stored on a surface, no continuous flow. Current = charge continuously flowing around a complete circuit. They're different phenomena, not two speeds of the same thing.

Examiner tip

Calculate questions on I = Q/t always carry a method mark — write the equation first, substitute the numbers with units, then simplify. Even a wrong final answer keeps that method mark if the substitution line is correct.

Real-world application

Lightning is static electricity at a colossal scale: friction between ice particles inside storm clouds separates charge until the imbalance is enormous, then it discharges in one violent spark to the ground — the same physics as a doorknob shock, just millions of volts bigger.

Key takeaways

  • Static electricity is a charge imbalance built by friction, held in place until it discharges — no continuous flow.
  • Current electricity is charge flowing continuously round a complete circuit.
  • I = Q/t links current, charge and time — always convert time to seconds before substituting.

Electrical Circuits and Symbols

Reading and drawing circuits the way examiners expect

Circuit diagrams use standard symbols so any student, anywhere, can read them the same way — a drawing of an actual light bulb instead of the lamp symbol won't earn full marks. A switch is simply a controllable break in the wire: open it and the path is incomplete, so no current can flow anywhere in that loop; close it and the path is complete, so current flows immediately.

  • Ammeters measure current and must be connected in series (in the main wire, so all the current passes through them).
  • Voltmeters measure voltage (potential difference) and must be connected in parallel, across the component being measured.
  • A switch anywhere in the single loop of a series circuit controls the whole circuit; a switch on just one branch of a parallel circuit only controls that branch.

Standard circuit symbols

Symbol representsFunctionWhere you'll see it
CellSingle source of voltage/emfPowering a simple torch circuit
BatteryTwo or more cells joined togetherPowering multi-cell devices
SwitchOpens or closes the circuit pathTurning a circuit on/off
Lamp/bulbConverts electrical energy to light (and heat)Shows current is flowing
ResistorLimits/controls the currentProtecting components from too much current
Variable resistorAdjustable resistanceDimmer switches, volume controls
AmmeterMeasures current — connected in seriesIn the main loop or a branch
VoltmeterMeasures voltage — connected in parallelAcross a component
FuseBreaks the circuit if current is too highProtects wiring from overheating
Diode/LEDAllows current in one direction onlyIndicator lights, one-way current control

Standard circuit symbol reference chart

The symbols every circuit diagram in this unit is built from — memorise the shapes, not just the names.

CellBatteryOpen switchLampResistorVariable resistorAmmeter (circle with A)Voltmeter (circle with V)FuseDiode

Worked example

Switches, and why parallel currents add back up

[4]
A single-bulb circuit has an ammeter reading 0.5 A. State why this reading is the same everywhere in the loop. A second circuit has two identical bulbs in parallel; the main-branch ammeter reads 1.0 A and each bulb's own ammeter reads 0.5 A. Explain this, and state what happens to both readings if the main switch is opened.

Ammeter and voltmeter placed the wrong way round

Placing an ammeter in parallel across a component (like a voltmeter), or a voltmeter in series in the main wire.

Consequence: In a real circuit this creates a short circuit or blocks the current entirely; on a diagram-marking scheme it's an automatic loss of the connection mark.

Fix: Ammeter always in series (it must sit in the wire so all the current passes through it). Voltmeter always in parallel (connected across the component, not in the main line).

Examiner tip

For a 1-mark 'state what X controls' question, a two- or three-word answer ('whether current flows' / 'the circuit path') is enough — a full paragraph earns no extra credit and wastes exam time.

Key takeaways

  • Circuit diagrams use standard symbols everywhere — draw the symbol, not a picture of the real component.
  • Ammeter in series, voltmeter in parallel — reversing this loses connection marks even with a correct-looking diagram.
  • A switch is a controllable break: open = incomplete path = no current anywhere on that loop; closed = complete path = current flows immediately.

Quick Reference

Electricity & Magnetism — everything on one page

Formulas

  • Series resistances add
  • Parallel resistances combine by reciprocals
  • Ohm's Law
  • Current = charge ÷ time; convert time to seconds first

Key facts

Definition of 1 ampere
1 A = 1 coulomb of charge passing a point per second
Rule for like/unlike magnetic poles
like poles repel, unlike poles attract
What controls electromagnet strength
current, number of turns, core material
Effect of one bulb failing in series vs parallel
series: whole circuit stops; parallel: other branches keep working

Mnemonics

  • Right hand, thumb for Current, curl for the Coil's fieldGrip rule: thumb = current direction, curled fingers = magnetic field direction around a wire or solenoid

Don't confuse

  • Current in series vs Current in parallel: Series: identical everywhere. Parallel: splits at junctions, branch currents sum to the main-line value.
  • Conductor vs Insulator: Conductor has free electrons that drift under a voltage; insulator's electrons are bound to their atoms.
  • Static electricity vs Current electricity: Static = charge imbalance stuck on a surface, no flow. Current = charge continuously flowing round a complete circuit.

Command terms

State:
Give one fact/value, no reasoning — extra words earn nothing extra
Describe:
Give the full account including direction/trend — cover every case the question asks for
Explain:
Give the mechanism/cause behind the effect, not just the effect
Calculate:
Write the equation, substitute with units, then answer — method mark survives even a wrong final number
Compare:
Reference both items explicitly, side by side — describing only one loses half the marks

Exam checklist

  • Ammeter in series, voltmeter in parallel — every time, no exceptions.
  • Parallel R_total is always smaller than the smallest individual resistor — use this as a sanity check.
  • Field lines: N to S outside the magnet, never crossing, closer together = stronger field.
  • Convert time to seconds before using I = Q/t.
  • Right hand only for the grip rule: thumb = current, fingers = field.
