MYP Sciences Year 3: Cells and Living Systems

20 min readStandardCore MYP Sciences unit — assessed mainly under Criterion A (Knowing & Understanding) and Criterion D (Reflecting on the Impacts of Science)

Every question in this unit is testing the same underlying idea from a different angle: living things are built in layers, and at every layer the structure of a part exists because of the job it has to do. Miss that link and you'll describe cells and organs like a shopping list instead of explaining why they're built that way — which is exactly where the marks live.

Overview — The Shape of This Chapter

This whole topic zooms in and out on ONE idea at different scales: structure exists to serve function. A cell's shape, an organ's tissue mix, even a microscope's lens choice — all of it is answering 'what does this need to be able to do?'

  • Levels of organization (cell → tissue → organ → organ system) is the 'zoom lens' — know which magnification of biology a question is asking about before you answer it.
  • Specialized cells only make sense once you connect a structural feature to the function it enables — never describe one without the other, that's where paired marks live.
  • Plant and animal cells share almost everything; examiners test a short, fixed list of real differences (wall, chloroplast, vacuole size), not invented ones.
  • Unicellular organisms do every job in one cell; multicellular organisms trade that flexibility for division of labour — that trade-off is the exam angle.
  • Microscopes are just the measuring tool for all of the above — magnification questions are unit-conversion practice dressed up as biology.

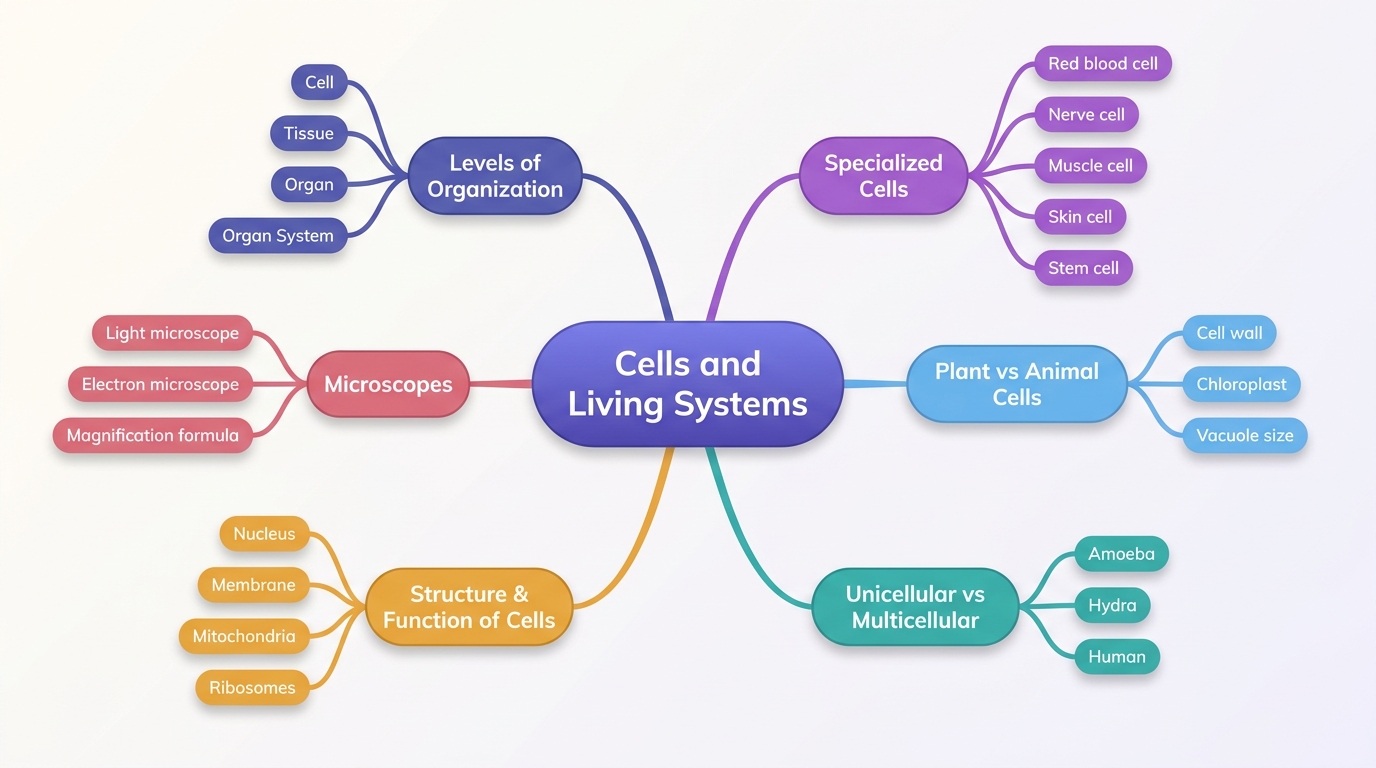

The shape of the chapter

Command terms that decide your mark

Command termWhat it demandsAOMark-earning move
IdentifyName or select the correct answer — no reasoning neededCriterion AA single correct word/phrase earns full marks (e.g. 'tissue'). Writing more doesn't add marks.
DescribeGive an accurate, detailed account of WHAT is there or happeningCriterion AState the feature/pattern itself — marks are lost if you slip into explaining WHY instead of WHAT.
ExplainGive reasons or a mechanism — the 'why' or 'how'Criterion A/CMust link cause to effect ('because...', 'so that...') — a bare description scores zero here.
CompareState similarities AND differencesCriterion CListing only differences (or only similarities) forfeits half the marks — you need both.
DistinguishState ONLY the difference between two commonly confused thingsCriterion CDon't waste time on similarities — only the point(s) of difference score.
ApplyUse a pattern/rule from the question on new, unseen dataCriterion CYour answer must be built FROM the new scenario, not a repeat of the given example.
EvaluateWeigh strengths and limitations to reach a judgementCriterion DOne-sided answers (all pros, no cons) are capped regardless of detail — you need both sides.

Key point

Every organelle, cell, tissue, organ and organism in this unit is built the same logical way: structure exists because of the job it does. If your answer names a feature without saying why it helps, you've only done half the question.

Levels of Biological Organization

The complexity ladder

Biological organization ranks how living things are built, from the smallest functional unit up. MYP Year 3 focuses on four core levels — cell, tissue, organ, organ system — with the whole organism sitting on top as the finished product built from all four.

  • Cell — the basic structural and functional unit of life; every level above is just cells arranged differently.
  • Tissue — a group of the SAME type of cell working together to do ONE job (e.g. muscle tissue, palisade tissue).
  • Organ — DIFFERENT tissues combined and working together for a shared overall function (e.g. the heart mixes muscle, connective and nerve tissue to pump blood).
  • Organ system — several organs working together on a bigger shared task (e.g. heart + blood vessels + blood = circulatory system).
  • The jump between levels always involves MORE THAN ONE of the level below combining — a tissue is never just one cell, an organ is never just one tissue.
Cell
The smallest unit that can carry out all the basic processes of life on its own.
Tissue
A group of the same type of specialised cell working together to perform one function.
Organ
A structure made of two or more different tissues working together for a shared overall function.
Organ system
A group of organs working together to carry out a major body function.
Organism
A whole living thing built from all four levels below it — not itself counted as one of the four levels.This is why Q3-style questions want exactly cell → tissue → organ → organ system, not five terms.

Levels of biological organization (muscle example)

Same building blocks, five different zoom levels — from one muscle cell to a whole human.

CellTissueOrganOrgan SystemOrganism

Order of the four levels

Cats Type On Screens

C–T–O–S = Cell, Tissue, Organ, System — the order from smallest to largest, exactly what a 'list the levels' question wants.

Worked example

Identify + describe (Q1 style)

[1]
The diagram shows a group of identical muscle cells working together. (a) Identify the level of biological organisation formed when these identical cells work together. [1] (b) Describe one characteristic that all these muscle cells share. [1]

Worked example

Explain organization from cell to organ (Q7 style)

[2]
The diagram shows a cross-section of a leaf, including a single palisade cell, a layer of palisade cells, and the whole leaf. Explain how the leaf demonstrates biological organization from the cellular level to the organ level. [2]

Worked example

Describe a pattern and apply it (Q5 style)

[1]
The table shows levels of organization in four organisms — Amoeba: cell only; Hydra: cell, tissue; Earthworm: cell, tissue, organ; Human: cell, tissue, organ, system. (a) Describe the pattern shown. [1] (b) A jellyfish is more complex than a Hydra but less complex than an Earthworm. Apply this to predict which levels of organization the jellyfish has. [2]

Frequently confused

Concept AConcept BThe distinction that matters
TissueOrganTissue = SAME cell type repeated for one job; organ = DIFFERENT tissue types combined for one overall function.
OrganOrgan systemOrgan = different tissues working together (one structure); organ system = different ORGANS working together (multiple structures, one big task).

Common mistake

Adding 'organism' (or 'population') into the list when a question asks for the four levels from cell to organ system.

Consequence: The answer contains an extra/wrong item, which typically loses the sequencing mark if the required slots are filled incorrectly.

Fix: Memorise the closed set for this topic: Cell → Tissue → Organ → Organ System. 'Organism' is the whole living thing built FROM these four levels — it isn't itself one of the four.

Examiner tip

For a 1-mark 'identify' question, a single word ('Tissue') earns full marks. Writing a paragraph doesn't add marks and wastes time you need for the harder explain/apply questions later in the paper.

Key takeaways

  • There are exactly four levels examined here: cell → tissue → organ → organ system, with organism as the finished whole.
  • Tissue = same cells, one job. Organ = different tissues, one shared function. Organ system = different organs, one big task.
  • 'Apply' questions about organization want you to place NEW data on the complexity ladder, not repeat the given examples.

Specialized Cells and Their Functions

Specialization means a cell develops a specific structure so it can do ONE job extremely well — usually at the cost of being able to do other jobs. This structure–function relationship is the single most-examined idea in this section, and almost every mark hinges on whether you can join a feature to a reason.

  • Unspecialised cells, like stem cells, can still become many different cell types — this process is called differentiation.
  • Once a cell differentiates, most of its structure is permanently reshaped around its one function.
  • You can predict almost any cell's job just by asking: what shape/organelle/feature would help THIS specific job?
Specialization
A cell developing a particular structure that makes it efficient at one specific function.
Differentiation
The process by which an unspecialised cell develops into a specific, specialised cell type.
Stem cell
An unspecialised cell that can still divide and develop into many different specialised cell types.

Specialized human cell types

Cell typeShapeNucleusFunction
Red blood cellBiconcave discAbsentCarries oxygen
Nerve cellLong with branches (axon + dendrites)PresentTransmits electrical signals
Muscle cellElongated and cylindricalPresentContracts to produce movement
Skin cellFlat and tightly packedPresentProtects underlying tissues
Sperm cellSmall, streamlined, with a tail (flagellum)Present (in the head)Swims to fertilise an egg
Root hair cellLong, thin, hair-like extensionPresentAbsorbs water and minerals from soil

Worked example

Link structure to function (Q2 style)

[2]
Using the table above, explain how the structure of the red blood cell relates to its function of carrying oxygen. [2]

Worked example

Structure, function and organization together (Q8 style)

(a) Describe two structural features of a muscle cell. [1] (b) Explain how each structural feature enables the muscle cell to contract. [2] (c) Using the terms specialization and organization, explain why a group of muscle cells working together is more effective than a single muscle cell working alone.

Worked example

Evaluate an ethical/technological issue (Q4 style)

A hospital can grow replacement organs from a patient's own stem cells. Each organ costs $500,000, and the hospital can treat at most 50 patients per year. (a) Describe one reason why limiting access to this technology only to patients who can pay could be considered unfair. [1] (b) Evaluate the use of a patient's own stem cells, rather than a donor's, to grow a replacement organ.

Growing organs from stem cells

Regenerative medicine already grows simple replacement tissues from a patient's own stem cells — lab-grown bladders and skin grafts for burn patients are in clinical use today. Full solid organs (kidneys, hearts) are still experimental and hugely expensive, which is exactly the access-and-fairness tension tested in Q4: the biology works, but scaling it up to everyone who needs it doesn't yet.

Common mistake

Answering a structure-function question by just repeating the function already given (e.g. 'red blood cells carry oxygen') instead of explaining HOW the structure enables it.

Consequence: Scores 0 on explain-type structure-function questions because it restates given information instead of building a new causal link.

Fix: Always name the STRUCTURAL feature first (shape/organelle/presence-absence), then join it to the function with 'so' or 'because'.

Examiner tip

When describing a cell type from a data table, use the exact wording given (e.g. 'biconcave disc', not 'round-ish') — vague paraphrasing of precise terms can cost the mark on stricter mark schemes.

Key takeaways

  • Never describe a cell's structure without linking it to its function — that link IS the mark.
  • Structure-function questions usually give TWO clues (shape + nucleus, or shape + organelle) — use both for full marks.
  • 'Evaluate' questions on stem cells/technology always need a genuine advantage AND limitation, not just one side.

Plant and Animal Cell Differences

Plant and animal cells share the core organelles — nucleus, cytoplasm, cell membrane, mitochondria, ribosomes — because both are still cells doing the same basic jobs of living. The exam differences are a short, fixed list: learn exactly these three and nothing else.

  • Cell wall — a rigid layer of cellulose OUTSIDE the cell membrane, in plant cells only; gives shape and structural support.
  • Chloroplast — contains chlorophyll and is the site of photosynthesis; found in green plant cells only, absent in animal cells.
  • Vacuole — plant cells have ONE large permanent central vacuole (stores water, maintains cell pressure/rigidity); animal cells have several small, temporary vacuoles.
  • Shape — plant cells tend to be regular/box-shaped, constrained by the wall; animal cells are irregular/rounded, since they have no wall.
Cell wall
A rigid outer layer made of cellulose that surrounds the cell membrane in plant cells, giving structural support and shape.
Chloroplast
An organelle containing chlorophyll where photosynthesis takes place; present only in plant cells (mainly green parts).
Vacuole
A fluid-filled sac; large and permanent in plant cells (storing water, maintaining cell shape), small and temporary in animal cells.
Cellulose
The tough carbohydrate that makes up the plant cell wall.

Plant cell vs animal cell

Same core organelles, three genuine differences: wall, chloroplast, vacuole size.

Cell wallCell membraneNucleusCytoplasmChloroplastLarge central vacuoleMitochondriaSmall vacuoles

Plant cell vs animal cell

FeaturePlant cellAnimal cell
Cell wallPresent (cellulose)Absent
ChloroplastPresent in green cellsAbsent
VacuoleOne large, permanentSeveral small, temporary
ShapeFixed, regular (box-like)Variable, irregular
MitochondriaPresentPresent

Frequently confused

Concept AConcept BThe distinction that matters
Cell wallCell membraneThe wall is a rigid, freely permeable OUTER layer for support (plants only); the membrane is a thin, selectively permeable boundary controlling what enters/leaves — every cell has one.
ChloroplastMitochondriaChloroplasts make food/glucose using light (photosynthesis, plants only); mitochondria release energy FROM food (respiration, in every cell, plant and animal).

Common mistake

Stating that animal cells 'have no vacuole' or that plant cells 'have no mitochondria'.

Consequence: Loses a mark for an absolute, incorrect comparison — both organelles exist in both cell types.

Fix: The real difference is size/number, not presence/absence: plant cells have one large permanent vacuole vs animal cells' small temporary ones; both cell types definitely have mitochondria, since both need energy from respiration.

Key takeaways

  • The only genuine plant-only structures are: cell wall, chloroplast, and a large permanent vacuole.
  • Mitochondria are present in BOTH plant and animal cells — a very common wrong-answer trap.
  • Never describe a difference as 'absent vs present' when it's really 'small vs large' — get the exact wording right.

Unicellular vs Multicellular Organisms

Unicellular organisms pack every single life process — feeding, respiration, excretion, response, reproduction — into ONE cell. Multicellular organisms solve the same problem differently: they divide the work between many specialised cells, gaining efficiency and size but losing the flexibility of a single all-purpose cell.

  • Unicellular examples: Amoeba, Paramecium, most bacteria — one cell IS the whole organism.
  • Multicellular examples: Hydra, earthworm, humans, plants — many cells, each specialised for a narrow job.
  • Trade-off: a unicellular organism reproduces fast and is structurally simple, but is limited in size and complexity; a multicellular organism can grow larger and do more, because different cells share the workload.
  • Complexity in multicellular organisms is really just MORE levels of organization being present — this links directly back to Section 1.
Unicellular
An organism made of a single cell that carries out every life process on its own.
Multicellular
An organism made of many cells that divide the work between specialised cell types, tissues, organs and systems.
Division of labour
Different cells in a multicellular organism specialising in different jobs, so the organism as a whole is more efficient than if every cell did everything.

Unicellular vs multicellular organisation

One cell doing every job vs many cells sharing the workload.

NucleusVacuolePseudopodiaStinging cellDigestive cellNerve cell

Key point

If a question describes 'one cell doing everything' vs 'many cells each doing one job', it's testing unicellular vs multicellular — even though the idea overlaps heavily with levels of organization.

Key takeaways

  • Unicellular = one cell = the whole organism, doing every life process itself.
  • Multicellular = many specialised cells sharing the workload, enabling greater size and complexity.
  • More levels of organization present in an organism is really just another way of saying 'more multicellular complexity'.

Structure and Function of Cells

This is the organelle-by-organelle version of the same rule from earlier sections: every visible structure inside a cell exists to perform a specific job that keeps the whole cell alive.

  • Cell membrane — controls what enters and leaves the cell (a selective boundary); also carries surface proteins (like MHC markers) that let other cells recognise it as 'self'.
  • Nucleus — contains DNA (genetic instructions); directs which proteins the cell makes and so controls the cell's activities.
  • Cytoplasm — jelly-like substance where most of the cell's chemical reactions happen.
  • Mitochondria — site of (aerobic) respiration; releases energy from glucose for the cell to use.
  • Ribosomes — build proteins by reading genetic instructions, found free in the cytoplasm or attached to membranes.
Organelle
A specialised structure inside a cell that carries out a specific function, e.g. the nucleus or mitochondria.
Nucleus
The organelle containing DNA that controls the cell's activities by directing protein production.
Cell membrane
The thin, selectively permeable boundary controlling movement of substances into and out of the cell.
Mitochondria
The organelle where aerobic respiration occurs, releasing energy from glucose for the cell to use.
Ribosome
The structure where proteins are built by reading genetic instructions.

Generic animal cell with major organelles

Every organelle here exists to do one job that keeps the whole cell alive.

Cell membraneCytoplasmNucleusMitochondriaRibosomes

Key point

The cell membrane isn't just a wall — its surface proteins are an identity tag. That's exactly why a transplanted organ's cells (with different MHC markers) get flagged as foreign by the immune system.

Worked example

Membrane surface proteins and organ rejection (Q6 style)

[2]
A patient receives a kidney transplant. The immune system detects the donor kidney's surface proteins (MHC molecules) as foreign, because they differ from the patient's own. Doctors prescribe immunosuppressant drugs to reduce the chance of rejection. (a) Describe how immune cells recognise the donor kidney's MHC molecules as foreign. [2] (b) Explain one advantage of using immunosuppressant drugs.

Common mistake

Writing 'the nucleus controls the cell' with no further detail.

Consequence: Vague answers like this score 0 on a 'describe function' question because they don't state WHAT is being controlled.

Fix: Always state that the nucleus contains DNA/genetic instructions that direct which proteins are made, and this is HOW it controls the cell's activities.

Examiner tip

'Explain' questions about organelles always need a mechanism, not just a name. 'Ribosomes make proteins' is describe-level; explain-level needs 'because they read the genetic code (from mRNA) to assemble amino acids into proteins.'

Key takeaways

  • Every organelle answer needs BOTH a name AND its mechanism ('what it does' plus 'how').
  • The cell membrane's surface proteins act as an identity marker — this single idea explains organ rejection.
  • Vague verbs ('controls', 'protects') without a mechanism score 0 on explain-level questions.

Microscopes and Cell Observation

Microscopes exist because most cells are far too small to see with the naked eye — a typical animal cell is only about 10–20 micrometres across, so roughly 5,000 could fit across a single millimetre. Everything examined in this section is really about two things: the tool used (light vs electron microscope) and the maths of magnification.

  • Light microscope — uses visible light and glass lenses; magnifies up to about ×1,500; can view living, moving cells; standard equipment in a school lab.
  • Electron microscope — uses beams of electrons instead of light; magnifies up to ×500,000+ and reveals much finer internal detail (organelle structure, even individual viruses); specimens must be dead and kept in a vacuum.
  • Resolution — not just magnification — is what actually lets you SEE fine detail; a blurry image enlarged is still blurry, so electron microscopes win on resolution, not just magnifying power.
  • Slide preparation: a thin section is cut and usually stained, since most cell contents are naturally colourless and need contrast to be visible.
Magnification
How many times larger an image appears compared to the actual size of the specimen.
Resolution
The ability to distinguish two very close points as separate — determines how much fine detail can actually be seen.
Electron microscope
A microscope that uses a beam of electrons instead of light, giving much higher magnification and resolution than a light microscope.

Light (compound) microscope

Know every labelled part — 'identify the part that focuses light onto the specimen' is a classic 1-mark question.

Eyepiece lensBody tubeObjective lensesStageStage clipsCondenserIris diaphragmLight sourceCoarse focus knobFine focus knobArmBase

magnification equals image size divided by actual size

— magnification (no unit — written as ×number)
— size of the image/drawing (mm or μm)
— actual (real) size of the specimen (same unit as I)
Memorise

Rearrange as needed: A = I ÷ M (find actual size) or I = M × A (find image size) — same triangle, three uses.

Worked example

Calculate magnification with a unit conversion

A student views a cheek cell under a microscope. The actual diameter of the cell is 20 μm. The drawn diameter in the student's diagram is 60 mm. Calculate the magnification of the diagram.

Common mistake

Attaching a unit to a magnification value (e.g. writing '×500 μm').

Consequence: Loses the accuracy mark — magnification is a ratio (I ÷ A), so units cancel out and it has no unit of its own.

Fix: Write magnification as ×500 (or 500) with no unit — units only belong to the image size and actual size measurements, never to the magnification value.

Examiner tip

Always write the formula (M = I ÷ A) and show your substitution BEFORE calculating. Method marks are awarded for showing the correct formula and setup, even if an arithmetic slip gives the wrong final number.

Electron microscopes and vaccine design

Electron microscopes magnifying up to ×500,000 let scientists photograph the actual surface spike proteins of viruses like SARS-CoV-2 — detail no light microscope (capped near ×1,500) could ever resolve. That image directly shaped which part of the virus vaccine designers targeted.

Key takeaways

  • Light microscopes: cheap, view living cells, magnify to about ×1,500. Electron microscopes: dead specimens only, magnify to ×500,000+, far higher resolution.
  • Magnification = Image size ÷ Actual size — always match units (usually mm and μm) before dividing.
  • Magnification itself has no unit; only image size and actual size carry units.

Quick Reference

Formulas

  • Magnification = Image size ÷ Actual size; rearrange to A = I/M or I = M × A. Convert units (mm ↔ μm) first.

Key facts

Typical animal cell diameter
10–20 μm
Light microscope max useful magnification
~×1,500
Electron microscope max magnification
~×500,000+
Unit conversion
1 mm = 1000 μm

Mnemonics

  • Cats Type On ScreensC–T–O–S = Cell, Tissue, Organ, System — order smallest to largest.

Don't confuse

  • Tissue vs Organ: Tissue = same cell type repeated; organ = different tissue types combined.
  • Cell wall vs Cell membrane: Wall = rigid outer support layer, plants only; membrane = selective boundary, every cell has one.
  • Unicellular vs Multicellular: One cell does every life process vs many specialised cells share the workload.

Command terms

Identify:
One correct word/phrase — full marks, no extra reasoning needed.
Describe:
State WHAT is there — no reasons, just accurate detail.
Explain:
Give the mechanism/reason — link cause to effect with 'because'/'so that'.
Compare:
Give BOTH similarities and differences.
Apply:
Use the given pattern on NEW data in the question.
Evaluate:
Give both a genuine advantage and a genuine limitation.

Exam checklist

  • Can you list all four levels of organization in order without skipping one?
  • For every named cell type, can you give ONE structural feature AND link it to its function?
  • Do you know the three genuine plant-vs-animal cell differences — and that both cell types have mitochondria?
  • Can you convert mm to μm confidently before using the magnification formula?
  • Do you know 'evaluate' questions need both an advantage and a limitation, not just one side?
