Overview — How This Chapter Fits Together

Energy is measured in joules (J) and comes in recognisable forms — kinetic, gravitational potential, chemical, thermal, and so on. The chapter has one non-negotiable rule underneath everything: energy cannot be created or destroyed, only transformed or transferred. Efficiency, heat transfer, and resource classification are all just consequences of applying that one rule to real devices.

  • A transformation changes the form of energy (chemical → electrical). A transfer moves the same form from one place/object to another (heat conducted along a metal rod).
  • Real devices always 'waste' some energy — almost always as heat and/or sound — which is why efficiency is never 100%.
  • Renewable vs non-renewable is about the rate of replenishment of the source, not how 'clean' it is.

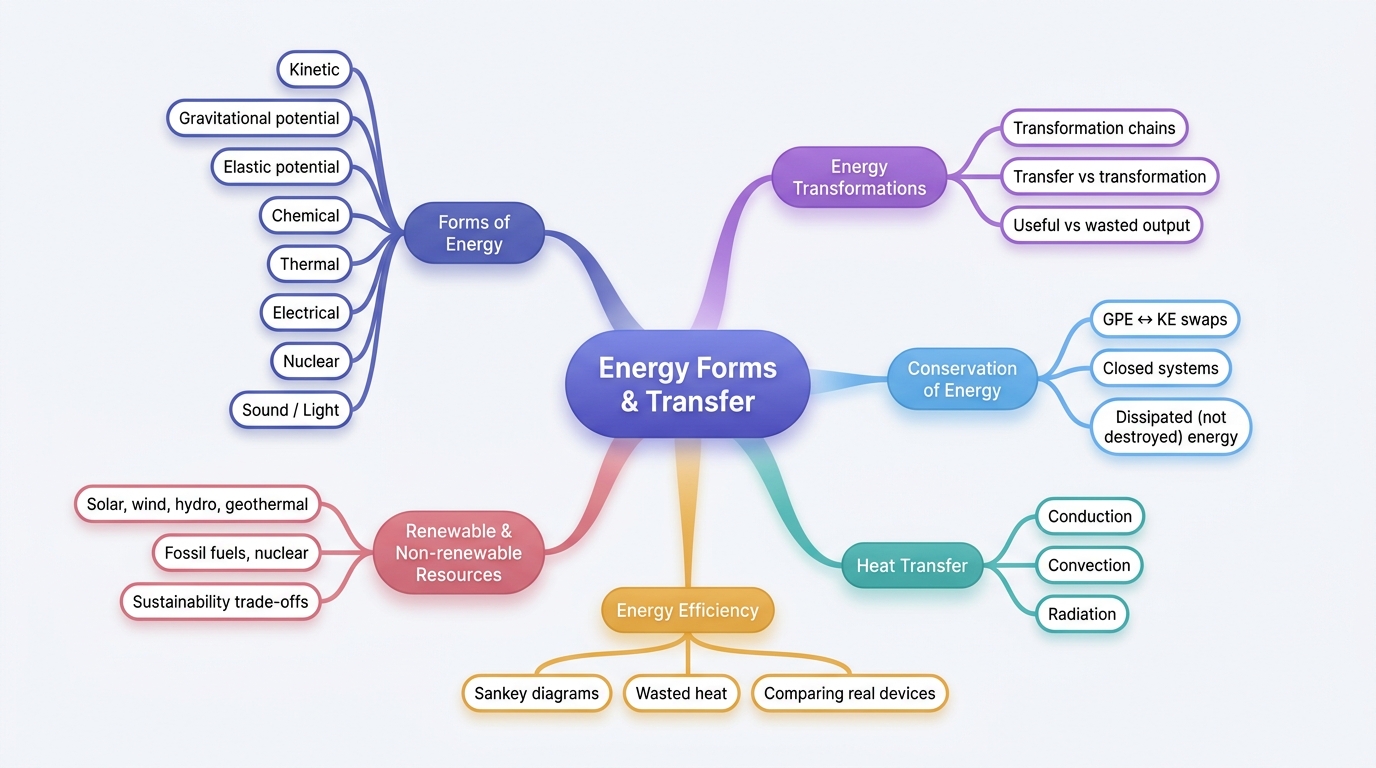

The shape of the chapter

Command terms this topic actually tests

Command termWhat it demandsAOMark-earning move
StateGive a short, precise answer with no supporting argument.AO1Q1 wants the law in your own words — the core idea ('cannot be created/destroyed, only transformed') must appear; padding without it scores 0/2.
DescribeGive a detailed, sequential account of what happens.AO2Q2 needs the sequence GPE → KE with the word 'converted' — naming only the start and end states without the link between them drops a mark.
ExplainGive reasons — the mechanism behind an observation.AO3Q3(b)/Q6(b) need the physical mechanism (reflection, friction, particle speed), not a restatement of the observation.
CalculateProduce a numerical answer with working shown.AO1Marks go for formula, correct substitution, AND final answer with unit — a right number with no unit still loses a mark.
IdentifySelect or name the correct item from given information.AO1Q8(a) wants one word/phrase (the independent variable) — explaining why is a different, separate mark.
CompareState similarities and/or differences, referencing both items.AO3Q7(c) needs both the GPE value and the KE value referenced explicitly, not two separate descriptions.

Key point

Energy is never created, destroyed, or 'used up' — it only changes form or location. When a device 'wastes' energy, that energy still exists; it's just spread into the surroundings as heat that can no longer do useful work.

Conservation of Energy

The Law of Conservation of Energy says the total energy of a closed system stays constant — energy only changes form (transformation) or moves location (transfer). In mechanics problems this usually means gravitational potential energy (GPE) trading with kinetic energy (KE) as an object falls, swings, or rolls.

  • In a frictionless system: exactly.
  • In a real system: some mechanical energy dissipates as heat and sound (friction, air resistance) — total energy is still conserved, but useful mechanical energy decreases.
  • Height () is always measured relative to a chosen reference point — usually the lowest point of the motion, where .
Law of Conservation of Energy
Energy cannot be created or destroyed, only transformed from one form to another or transferred from one place to another; the total energy in a closed system remains constant.This is the exact idea examiners want for Q1 — in your own words, but the core statement must be present.
Mechanical energy
The sum of GPE and KE in a system; conserved exactly only in the absence of friction and air resistance.
Dissipated energy
Energy spread into the surroundings, usually as heat or sound, that can no longer do useful mechanical work — commonly (and incorrectly) described by students as 'lost' or 'destroyed'.

Energy transformation in a swinging pendulum

As the pendulum swings from A to B, GPE converts to KE; total energy stays constant (ignoring air resistance).

A (top, v = 0)B (bottom, max speed)C (top, v = 0)GPE barKE bar

gravitational potential energy

— mass (kg)
— gravitational field strength (9.8 N/kg (or m/s²))
— height above the reference level (m)
Memorise

kinetic energy

— speed (m/s)
Memorise

conservation of mechanical energy in a real (frictional) system

When friction/air resistance is negligible, and exactly.

Worked example

Roller coaster — comparing GPE and KE (Q7)

[6]
A roller coaster car of mass 500 kg starts from rest at a height of 20 m. At the bottom of the drop, its measured speed is 10.8 m/s. (a) Calculate GPE at the top. (b) Calculate KE at the bottom. (c) Compare the two values.

Worked example

Fair-test design with a pendulum (Q8)

[2]
A student investigates how bob mass affects the number of swings in 10 seconds, testing 50 g, 100 g, 150 g and 200 g bobs while keeping string length and release angle constant. (a) Identify the independent variable. (b) Explain why string length and release angle must stay constant.

Common mistake

Writing 'energy is lost' or 'energy is destroyed' when explaining why a real system doesn't perfectly conserve mechanical energy (Q1, Q3b).

Consequence: This directly contradicts the law you're being asked to state — examiners deduct the mark for this exact phrasing even when the rest of the answer is otherwise sound.

Fix: Say 'energy is transformed/dissipated as heat and sound to the surroundings' — the total energy is still conserved, it's just no longer available as useful mechanical energy.

Answering 'describe the energy changes' questions

Q2-style questions need the linking word 'converted' explicitly joining the two forms named in the question. Writing 'GPE decreases, KE increases' without the word linking them as a transformation often scores only 1 of 2 marks — it reads as two separate observations, not a described change.

Key takeaways

  • Apply — total energy is always conserved, even when mechanical energy isn't.
  • Real pendulums and roller coasters always show KE < GPE predicted, because of friction and air resistance — expect this gap, don't try to explain it away.
  • Mass cancels out of pendulum/free-fall motion since both GPE and KE scale with — heavier objects don't fall or swing faster for the same height.

Heat Transfer: Conduction, Convection, Radiation

Thermal energy always moves from hotter to colder regions, and it does so by one of three mechanisms. All three are explained at the particle level: conduction and convection both involve particles, radiation doesn't need particles at all.

  • Conduction needs direct contact and a medium — best in solids, especially metals (free electrons carry energy quickly).
  • Convection needs a fluid (liquid or gas) that can physically move — driven by density differences, not by heat 'rising' on its own.
  • Radiation is the only mechanism that needs no medium at all — it's how the Sun's energy crosses the vacuum of space to reach Earth.
Conduction
Transfer of thermal energy through a material by direct particle collisions (vibration passed to neighbours) or free-electron drift in metals, without net movement of the material itself.
Convection
Transfer of thermal energy through a fluid by the bulk movement of the fluid itself — warmer, less dense fluid rises while cooler, denser fluid sinks, setting up a convection current.
Radiation
Transfer of thermal energy as electromagnetic waves (infrared), requiring no medium — the only heat transfer method that works through a vacuum.

Conduction, convection and radiation compared

Same energy, three completely different transfer mechanisms — only radiation crosses a vacuum.

ConductionConvectionRadiation

Conduction vs Convection vs Radiation

FeatureConductionConvectionRadiation
Medium neededSolid (mainly)Fluid (liquid/gas)None — works in a vacuum
MechanismParticle vibration / electron driftBulk fluid movement (density difference)Electromagnetic waves (infrared)
Typical exampleA metal spoon heating up in hot soupBoiling water, a room heated by a radiatorSunlight warming your skin
Relative speedSlow in most solids, fast in metalsFaster than conduction in the same fluidEffectively instantaneous (speed of light)

Frequently confused

Concept AConcept BThe distinction that matters
ConvectionRadiationConvection needs a fluid to physically move; radiation needs nothing to move at all — energy is carried directly by waves, which is why a vacuum flask (which already blocks conduction and convection) still needs a silvered surface to cut down radiation.

Why thermos flasks and double-glazing look the way they do

A thermos flask has a vacuum layer between its walls to block both conduction and convection (neither has a medium to work through), plus a silvered inner surface to reflect radiation back toward the drink. Double-glazed windows trap a thin layer of air — a poor conductor — between two panes to reduce conduction; the gap is kept too thin for a real convection current to form.

Surface colour and radiation

Dull and Dark = Drinks it in and Dishes it out

Dull, dark, matte surfaces are the best absorbers AND the best emitters of radiant heat; shiny, light surfaces are poor absorbers/emitters and good reflectors — this is why heat shields are shiny and household radiators are painted matte, not glossy.

Common mistake

Saying 'heat rises' as if heat itself moves upward on its own, instead of explaining the density mechanism behind convection.

Consequence: Describes the effect rather than the mechanism, so the explain mark is lost even if the observation is correct.

Fix: Say: heated fluid expands, becomes less dense, and is pushed upward by the denser, cooler fluid sinking around it — that's the actual convection current mechanism examiners want named.

Key takeaways

  • Match the mechanism to the medium: conduction/convection need particles and a substance; radiation needs neither.
  • Convection currents form because of density differences from heating, not because 'heat rises' by itself.
  • Dull, dark, matte surfaces absorb and emit radiation best; shiny, light surfaces reflect it and emit poorly.

Renewable and Non-Renewable Resources

Energy resources are classified by how quickly they're replenished compared to how quickly they're used — not by how clean or efficient they are. This distinction is exactly what examiners probe.

  • Renewable sources are replenished naturally on a human timescale: solar, wind, hydro, geothermal, biomass.
  • Non-renewable sources exist in a fixed, finite supply that's used up far faster than it forms: coal, oil, natural gas, and nuclear fuel (uranium).
Renewable resource
An energy source that is naturally replenished on a human timescale — faster than it's consumed — such as solar, wind, hydro, geothermal, or biomass.
Non-renewable resource
An energy source that exists in a fixed, finite supply and is used far faster than it forms — fossil fuels (coal, oil, natural gas) and nuclear fuel (uranium).

Energy flow through a solar water heater

Not all absorbed solar energy reaches the water — some is reflected or escapes to the surrounding air.

5000 kJ solar energy in1500 kJ lost3500 kJ delivered to water

Worked example

Solar water heater energy balance (Q3)

[6]
A family's solar panel absorbs 5000 kJ of solar energy on a sunny day and delivers 3500 kJ of heat to the water in the tank. (a) Calculate the energy not delivered to the water. (b) Explain why the solar water heater loses energy even though energy cannot be destroyed. (c) Justify replacing an electric water heater with the solar system.

Common Renewable vs Non-Renewable Resources

TypeResourceNote
RenewableSolarFree, but only available in daylight and depends on weather
RenewableWindNo emissions during operation, but intermittent and needs suitable sites
RenewableHydroelectricReliable output, but dams disrupt river ecosystems
RenewableGeothermalConstant supply, but only viable in certain geological locations
Non-renewableCoal / oil / natural gasCurrently cheap and reliable, but finite and releases /pollutants
Non-renewableNuclear (uranium)Low carbon emissions in operation, but finite fuel supply and radioactive waste

Common mistake

Classifying nuclear power as renewable because it 'doesn't burn fossil fuels', or assuming biomass is automatically 'clean'.

Consequence: Confuses renewable (replenishment rate) with 'low-carbon'/'clean' — these are different criteria and this exact mix-up is tested directly.

Fix: Renewable means naturally replenished faster than used (solar, wind, hydro, geothermal, biomass). Uranium is mined and finite, so nuclear is non-renewable — even though it produces little carbon dioxide during operation.

Key takeaways

  • Classification depends on replenishment RATE, not on cleanliness or efficiency.
  • Nuclear fuel is finite and mined — non-renewable — despite low operating carbon emissions.
  • 'Energy lost' from a solar panel or any device always has a physical destination (reflection, radiation, conduction to surroundings) — never true destruction.

Energy Efficiency and Real-Life Use

No real device converts 100% of its input energy into the useful output you actually want — some is always wasted, almost always as heat or sound. Efficiency measures how much of the input becomes useful output.

  • Efficiency is a ratio, not an absolute quantity — a device with a big useful output isn't necessarily the most efficient one.
  • A Sankey diagram shows energy flow with arrow widths drawn to scale — the wider the band, the more energy it represents.

percentage efficiency of a device

Memorise

Result must always be less than 100% for a real device — a value above 100% signals the fraction was flipped.

Sankey diagram for a filament light bulb

Band width is proportional to energy — the wasted-heat band is nine times wider than the useful-light band.

100 J electrical energy input10 J useful light output90 J wasted heat output

Worked example

Reading energy off a Sankey diagram

A Sankey diagram for a filament lamp shows an input band representing 100 J splitting into a narrow band (light) taking up one-tenth of the total width and a wide band (heat) taking up the remaining nine-tenths, drawn to scale. Determine the useful output energy and the efficiency of the lamp.

Worked example

Comparing efficiency across four devices (Q5)

[5]
Light bulb: 100 J in, 10 J useful out. Electric motor: 200 J in, 160 J useful out. Kettle: 500 J in, 400 J useful out. Solar panel: 300 J in, 90 J useful out. (a) Calculate the efficiency of each device. (b) Identify which device is most efficient.

Efficiency can never reach (or exceed) 100%

If a calculated efficiency comes out above 100%, the fraction has been flipped (input ÷ output instead of output ÷ input) — invert it and recheck, since no real device outputs more useful energy than it takes in.

Common mistake

Forgetting to multiply by 100 for a percentage, or leaving the answer as a decimal (e.g. 0.8) without a % sign.

Consequence: The working and value can be entirely correct, yet the final-answer mark is lost because the requested format (a percentage) wasn't given.

Fix: Always finish with and write the % symbol on the final line of working.

Key takeaways

  • Efficiency = useful output ÷ input × 100% — always compare within the SAME device, never raw outputs across different devices.
  • Sankey diagram band width is proportional to energy — read it as a fraction of the total input band, not an absolute measurement.
  • A calculated efficiency over 100% means the ratio was inverted, not that the device is genuinely superb.

Forms of Energy

Every physical process can be described using a handful of recognisable energy forms. Some are 'stores' (energy held, waiting to be released), others describe energy actively being transferred.

  • Store-type forms: gravitational potential, elastic potential, chemical, nuclear, thermal (internal).
  • Transfer-type forms: kinetic, electrical, sound, light/radiant — these describe energy actively moving.
Kinetic energy
Energy of motion; any moving object or particle has it, given by .
Gravitational potential energy
Energy stored due to an object's height above a reference level in a gravitational field, given by .
Elastic potential energy
Energy stored in a stretched or compressed object (spring, elastic band, bow) due to its deformation.
Chemical energy
Energy stored in the bonds between atoms and molecules, released or absorbed during chemical reactions (food, fuel, batteries).
Thermal (internal) energy
The total kinetic and potential energy of the randomly moving particles within a substance; closely related to (but not identical to) temperature.
Electrical energy
Energy carried by moving electric charge (electrons) through a circuit.
Nuclear energy
Energy stored in the nucleus of an atom, released during nuclear fission or fusion.
Sound energy
Energy carried by vibrating particles as a mechanical wave through a medium.
Light (radiant) energy
Energy carried by electromagnetic waves; able to travel through a vacuum, unlike sound.

Forms of Energy — Store or Transfer?

FormCategoryEveryday example
KineticTransfer-associated (motion)A rolling ball, wind, a moving car
Gravitational potentialStore (position in a field)Water behind a dam, a raised weight
Elastic potentialStore (deformation)A stretched bow, a compressed spring
ChemicalStore (bonds)Food, batteries, fuel
ThermalStore (particle motion)Hot water, a flame
ElectricalTransfer (moving charge)Current through a wire
NuclearStore (nucleus)Uranium fuel rods
SoundTransfer (wave, needs medium)A speaker, a shout
Light/radiantTransfer (wave, no medium needed)Sunlight, a light bulb's glow

Common mistake

Using 'potential energy' as a vague catch-all instead of specifying gravitational or elastic.

Consequence: A description like 'the ball has potential energy' when actually a spring is compressed (not something raised) loses precision marks in describe/explain answers.

Fix: Always name the specific store: gravitational potential energy (height-related) or elastic potential energy (stretch/compression-related) — never bare 'potential energy' alone.

Key takeaways

  • Split energy forms into 'stores' (chemical, GPE, elastic PE, nuclear, thermal) and 'active transfers' (kinetic, electrical, sound, light).
  • Always specify GRAVITATIONAL or ELASTIC when writing 'potential energy' — the bare term isn't specific enough for full marks.
  • Sound needs a medium to travel; light does not — that difference is a favourite quick-fire question.

Energy Transformations

Real devices rarely perform a single conversion — energy usually passes through a chain of forms before reaching its final useful (and wasted) destinations. Being able to name each link in the chain, in order, is the skill tested here.

  • Torch: chemical (battery) → electrical (circuit) → light (useful) + heat (wasted, from resistance).
  • Kettle: electrical → thermal (useful, heating the water) + sound (wasted, boiling noise).
  • Falling object hitting the ground: GPE → KE → sound + heat (on impact, non-elastic).

Energy transformation chain in a torch (flashlight)

Every device can be traced as store → transformer → useful output + wasted output.

Chemical energy (battery)Electrical energy (circuit/wire)Light energy (useful)Heat energy (wasted)

Worked example

Identifying GPE and KE extremes on a pendulum (Q6)

The pendulum is shown at three positions: A (highest point, left), B (lowest point), and C (highest point, right). (a) Identify the position(s) of maximum GPE. (b) Explain why KE is maximum at B.

Frequently confused

Concept AConcept BThe distinction that matters
Energy transferEnergy transformationTransfer = energy moves location or object but stays the SAME form (heat conducting from a flame into a pan); transformation = energy CHANGES form (chemical energy in fuel becoming thermal energy as it burns) — most real processes involve both happening together.

Describing any transformation chain in order

Store → Transformer → Useful + Wasted

For any device: identify the energy STORE it starts from, the device that TRANSFORMS it, then split the output into the USEFUL form (what the device is for) and the WASTED form (almost always heat and/or sound).

Key takeaways

  • Trace transformation chains link by link — store → transformer → useful output + wasted output — and name each form explicitly.
  • GPE depends only on height above the reference level, not on which side of a swing/motion the object is on.
  • Transfer (same form, new location) and transformation (form changes) usually happen together, but they answer different exam questions.

Quick Reference

Energy Forms and Transfer — everything on one page

Formulas

  • m in kg, g = 9.8 N/kg, h in m — h measured from the lowest point of motion
  • v in m/s — square v BEFORE multiplying by m and halving
  • total energy conserved; mechanical energy only conserved exactly when
  • never exceeds 100% for a real device — an answer over 100% means the fraction was inverted

Key facts

g used throughout this course
9.8 m/s² (or N/kg)
Solar water heater efficiency (Q3 data)
70% (3500 kJ ÷ 5000 kJ × 100)
Most/least efficient devices (Q5 data)
Motor & kettle tie at 80%; light bulb lowest at 10%

Mnemonics

  • Dull and Dark = Drinks it in and Dishes it outDull, dark, matte surfaces absorb and emit radiation best; shiny, light surfaces reflect and emit poorly.
  • Store → Transformer → Useful + WastedThe order to describe any energy transformation chain in a device.

Don't confuse

  • Convection vs Radiation: Convection needs a fluid to physically move; radiation needs nothing to move — it's carried by waves.
  • Energy transfer vs Energy transformation: Transfer keeps the same form, just changes location; transformation changes the form itself.
  • Renewable vs 'Clean'/low-carbon: Renewable is about replenishment RATE (solar, wind, hydro); 'clean' is about emissions — nuclear is low-carbon but non-renewable.

Command terms

State:
Give the core idea in one precise sentence — no reasoning needed.
Describe:
Give the full sequence of events, using linking words like 'converted'.
Explain:
Give the underlying mechanism (why), not just what was observed.
Calculate:
Show formula → substitution → answer with correct unit/percentage.
Identify:
Name the single correct item only — don't explain it.
Compare:
Reference both values/items explicitly, not two separate descriptions.

Exam checklist

  • Wrote GPE = mgh and KE = ½mv² with correct substitution and squared speed first
  • Used 'transformed/dissipated', never 'lost/destroyed', when describing energy that becomes unusable
  • Named the specific form of potential energy (gravitational or elastic), never bare 'potential energy'
  • Efficiency answer finishes with ×100% and includes the % sign
  • Checked BOTH high points (A and C) for maximum GPE on a pendulum, not just the release point
  • Classified resources by replenishment rate, not by how 'clean' they are
