Forces and Motion

MYP Year 3 Sciences: Forces and Motion

22 min readStandardCore mechanics unit — appears in almost every unit test/exam as data-analysis questions (friction investigations, graph reading) plus short calculation and explain questions on force diagrams

This topic is really one idea wearing six different outfits: what does the net force do to the object's motion? Every question — whether it's a box on carpet, a toy car on sandpaper, or a graph of a cyclist's journey — is testing whether you can find the net force (or read it off a graph) and then correctly predict speeding up, slowing down, staying at constant velocity, or staying still. Get that reasoning chain solid and every subtopic below becomes the same three steps repeated.

Overview — the shape of this topic

Why these six subtopics are really one argument

Forces don't need to be 'big' or 'obvious' to matter — a book sitting still on a table has real forces acting on it (weight and normal force), they're just balanced. The entire unit builds toward one skill: identify every force acting, work out the net (resultant) force, then use that net force to explain or predict the motion. Motion graphs and speed/velocity/acceleration give you the language to describe motion; force diagrams, friction, and balanced/unbalanced forces give you the reasoning to explain why it happens.

  • Friction and drag are the forces most exam questions hide inside real contexts — carpets, brake pads, wet roads.
  • Distance-time graphs turn motion into a shape you can read: gradient is speed, and the shape of the line tells the whole story.
  • Speed, velocity and acceleration are the vocabulary for how fast and how the speed is changing — mixing these up is the single most common vocabulary error in this unit.
  • Force diagrams are the working-out step: draw every force as an arrow, then combine them to get the net force.
  • Knowing the types of forces (contact vs non-contact) lets you correctly identify what's even acting before you can diagram it.
  • Balanced and unbalanced forces is the payoff — the rule that connects net force directly to constant velocity vs acceleration.

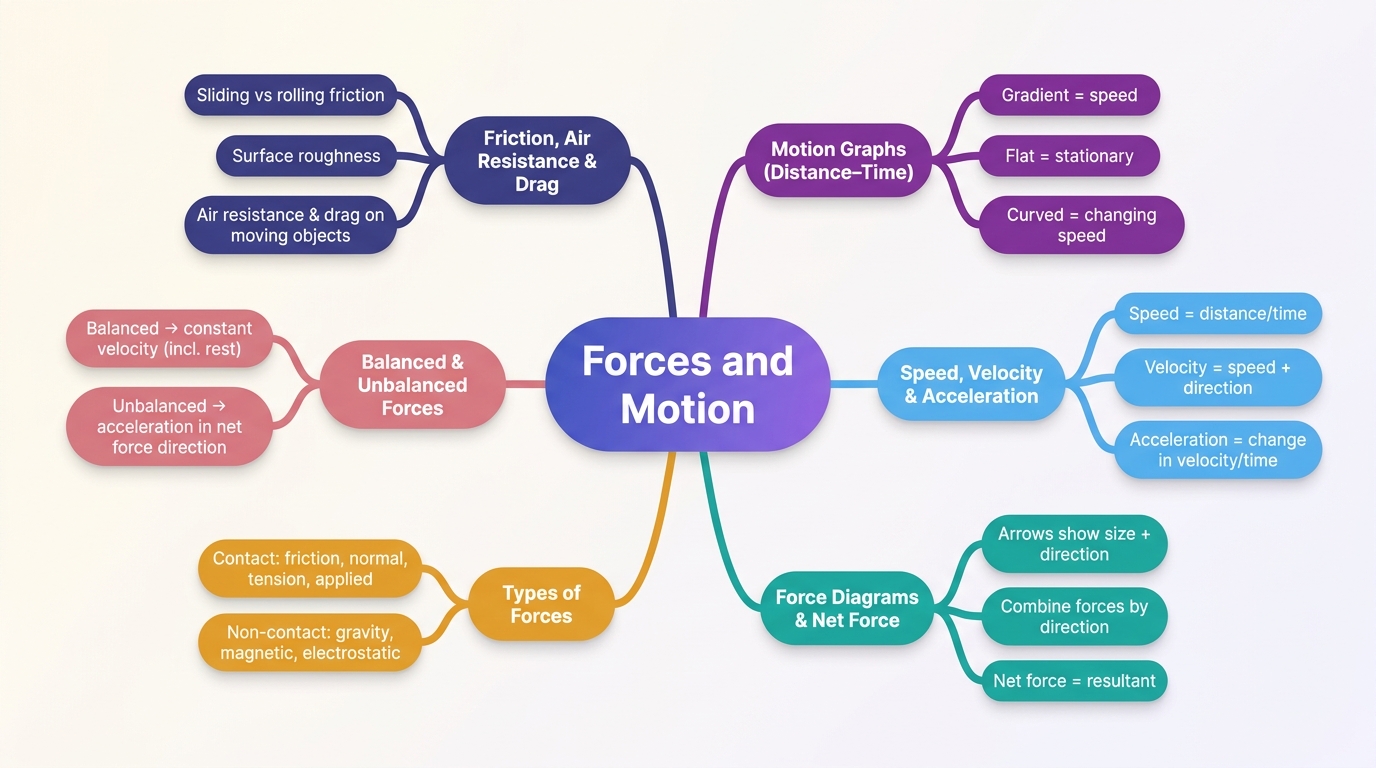

The shape of the chapter

Command terms this topic actually tests

Command termWhat it demandsAOMark-earning move
IdentifyGive a short, precise answer — a direction, a name, a value — with no explanation required.AO11 mark for the correct short answer alone; adding an explanation neither helps nor hurts.
DescribeState what is happening or the pattern shown, using specific details from the data, graph or diagram.AO1/AO2Marks awarded per distinct feature named (e.g. 'increases, then levels off'), not for one vague general comment.
ExplainGive reasons — the 'why' — linking a cause to its effect (e.g. link friction size to net force to speed change).AO2The causal link itself carries the mark; stating the fact alone without the link earns 0.
CalculateShow working using the correct formula and give a final numerical answer with the correct unit.AO2A method mark is often available for correct substitution even if the final arithmetic is wrong; missing units can cost the final mark.
AnalyseBreak down data or a relationship and comment on pattern, consistency, or significance — go beyond describing to interpreting.AO3Requires comparing actual values against an established trend, not just repeating the numbers given.

Key point

Every motion question here collapses to one chain: find every force → find the net force → if it's zero, velocity stays constant (including staying at rest); if it's not zero, the object accelerates in the direction of that net force.

Friction, Air Resistance and Drag

Friction opposes relative sliding — always

Friction is a contact force that acts between two touching surfaces, always in the direction that opposes the relative sliding motion (or attempted motion) between them — never in the direction you happen to be pushing. Its size depends mainly on how rough the two surfaces are and how hard they're pressed together (the normal force), not on how much surface area is in contact.

  • Sliding (kinetic) friction acts once an object is already moving across a surface — this is what most 'box sliding' questions test.
  • Rolling friction is much smaller than sliding friction for the same two surfaces, which is exactly why rollers, wheels and ball bearings reduce resistance.
  • Air resistance and drag are friction-like forces from a fluid (air or water); they increase with speed and with the object's cross-sectional area, and act opposite to the direction of travel.
  • A falling object reaches terminal velocity when air resistance grows large enough to exactly balance weight — net force becomes zero, so speed stops increasing even though gravity is still pulling down.

Key terms

Friction
A contact force between two touching surfaces that opposes relative sliding motion.Direction: always opposite to the way the object is moving or trying to move.
Air resistance / drag
A resistive force from air (or another fluid) acting opposite to an object's direction of motion, increasing with speed and surface area.
Terminal velocity
The constant maximum speed reached when air resistance/drag becomes equal in size to the driving force (e.g. weight for a falling object), making the net force zero.
Coefficient of friction
A number describing how 'grippy' a pair of surfaces is; higher value means a bigger friction force for the same normal force (e.g. sandpaper ≈ 0.8, ice ≈ 0.2).

Same push, different surface, different friction

Same applied force, smaller friction on the smoother floor — that's what changes the net force.

Applied force = 15 NFriction = 9 N (carpet)Friction = 3 N (wood floor)WeightNormal force

Net force when friction directly opposes an applied push

Net force equals the applied force minus the opposing friction force, when both act along the same line.

— resultant (net) force (N)
— force pushing/pulling the object (N)
— friction force opposing the motion (N)
Memorise

Only valid when the two forces act in exactly opposite directions along the same line — check the direction before subtracting.

Surface roughness vs typical stopping behaviour

Surface (rough → smooth)Typical friction sizeEffect on stopping distance/time
SandpaperHigh (μ ≈ 0.8)Shortest distance / shortest time — stops almost immediately
CarpetMedium (μ ≈ 0.4)Moderate distance/time
Tile / wood floorLowerLonger distance/time than carpet
IceVery low (μ ≈ 0.2)Longest distance / longest time — object slides furthest

Worked example

Same push, different floors — why speed differs

[3]
A box is pushed with the same force across a rough carpet and a smooth wooden floor. It moves slowly on the carpet and faster on the wood floor. (a) Identify the direction friction acts on the moving box. [1] (b) Explain why the box moves faster on the wood floor than on the carpet. [1] (c) A student places rollers under the box on the carpet. Describe how this changes the friction. [1]

Worked example

Is the polished-glass result believable?

[2]
A student pushes a toy car with the same force across sandpaper (15 cm), carpet (32 cm) and tile (68 cm) until it stops. A fourth surface, polished glass, is tested and the car travels 91 cm. Analyse whether this result is consistent with the pattern. [2]

Confusing friction size with surface area

Believing friction depends on how much surface area is touching (bigger box = more friction).

Consequence: Leads to wrong explanations in comparison questions — the explanation mark is lost because friction in this simple model depends on surface roughness and normal force, not contact area.

Fix: Explain friction differences using surface texture (rough vs smooth) and the size of the normal force, never contact area.

'Explain' needs the net-force link, not just a surface description

1-mark explain questions on friction (like Q1b) only score if you connect smaller friction → bigger net force → faster/greater acceleration. 'The wood floor is smoother' alone, without that causal chain, typically earns 0/1.

Key point

Friction's direction depends on which way the object is sliding (or trying to slide) — never on which way you're pushing it. Get the direction right before you even think about size.

Brake fade on long descents

Car brakes work by pressing brake pads against spinning discs, converting kinetic energy into heat via friction to slow the wheels. On long, steep hills, repeated hard braking heats the pads and discs so much that the friction coefficient between them drops — this is brake fade, a dangerous loss of stopping power, which is why trucks are told to use a lower gear and engine braking on long descents instead of riding the brakes continuously.

Key takeaways

  • Friction always opposes relative sliding motion — direction depends on the object's motion, never the push direction.
  • Rougher surfaces and bigger normal forces increase friction; contact area does not, in this model.
  • Rolling friction (rollers, wheels, bearings) is always smaller than sliding friction for the same surfaces.
  • Use F_net = F_applied − F_friction to link a friction change directly to a speed/acceleration change — that link is what earns explain marks.
  • Consistency-analysis questions require you to state the direction of the trend and show the new value fits it, not just declare 'yes/no'.

Motion Graphs — Distance–Time

Reading a distance-time graph like a story

A distance-time graph plots how far an object is from a fixed starting point against time. The steepness (gradient) of the line at any point is the object's speed — steeper means faster, flatter means slower, and perfectly horizontal means completely stationary. A straight line means constant speed; a curve means the speed itself is changing.

  • Gradient = speed: calculate it the same way you'd calculate gradient on any graph — rise over run, using distance and time values.
  • A flat (horizontal) section is the feature students misread most — it means zero speed, not 'moving slowly'.
  • A curved line that gets steeper means the object is accelerating (speeding up); a curve that flattens means it's decelerating.
  • The line can never point downward on a simple distance-from-start graph in this course (distance can't decrease below zero), but it can flatten toward a maximum if the object stops moving further away.

Distance-time graph with three distinct sections

Each straight section has its own gradient — that gradient is the speed during that section.

(0,0)(5,20)(8,20)(13,35)Time (s)Distance from home (m)

Speed from a distance-time graph

Speed is the gradient of a distance-time graph: change in distance divided by change in time over the same section.

— change in distance over a straight section (m)
— change in time over that same section (s)
Memorise

Worked example

Getting speed from each straight section of a distance-time graph

[4]
The graph shows a cyclist's distance from home over 13 seconds: rising from 0 to 20 m during 0–5 s, flat at 20 m during 5–8 s, then rising from 20 m to 35 m during 8–13 s. Calculate the cyclist's speed in each section and describe what is happening physically.

Misreading a flat line as 'slow motion'

Describing a horizontal section of a distance-time graph as the object 'moving slowly'.

Consequence: Loses the describe/interpret mark, since a flat line has gradient exactly zero — the object is completely stationary, not travelling slowly.

Fix: Check the actual gradient value for that section: if the line is perfectly horizontal, gradient = 0, so speed = 0, so the object is at rest.

Describe section-by-section, in order

When asked to Describe a distance-time graph, name each section's behaviour in sequence — 'speeds up, then stays still, then speeds up again more slowly' — marks are awarded per correctly identified section, not for one general comment about the whole shape.

Key takeaways

  • Gradient of a distance-time graph = speed; steeper = faster, flatter = slower, horizontal = zero speed (at rest).
  • A straight-line section means constant speed for that section; a curve means speed is changing within it.
  • Always calculate gradient using change in distance over change in time for the specific section you're asked about, not the whole graph.
  • Describe/Analyse questions want each section identified separately, in the order they occur.

Speed, Velocity and Acceleration

The vocabulary that separates 'how fast' from 'how the fastness is changing'

Speed tells you how much distance is covered per unit time — it's a scalar, just a size. Velocity is speed with a direction attached — a vector. Acceleration measures how quickly velocity itself is changing, which means acceleration exists whenever an object speeds up, slows down, or changes direction, even at constant speed (like a car going round a bend).

  • Average speed is calculated over a whole journey; instantaneous speed is the speed at one exact moment (the gradient at a single point on a curved distance-time graph).
  • A negative acceleration value simply means the velocity is decreasing in the chosen positive direction — it doesn't always mean 'slowing down' if the object is moving in the negative direction already.
  • Units matter for marks: speed and velocity in m/s, acceleration in m/s².

Key terms

Speed
The distance travelled per unit time; a scalar quantity (size only, no direction).
Velocity
The displacement per unit time in a specified direction; a vector quantity (size and direction).
Acceleration
The rate of change of velocity with time; occurs whenever speed or direction (or both) is changing.

Speed and acceleration equations

Speed equals distance travelled divided by time taken.

— speed (m/s)
— distance travelled (m)
— time taken (s)
Memorise

Acceleration equals the change in velocity divided by the time taken for that change.

— acceleration (m/s^2)
— final velocity (m/s)
— initial velocity (m/s)
— time taken for the change (s)
Memorise

Worked example

Finding acceleration from a velocity change

[2]
A cyclist speeds up from 2 m/s to 8 m/s in 3 seconds. Calculate the cyclist's acceleration.

Don't mix these up

Concept AConcept BThe distinction that matters
SpeedVelocitySpeed is scalar (size only); velocity is speed plus direction — the same numeric value can be 'the same speed' but a 'different velocity' if direction changes.
DistanceDisplacementDistance is total path length travelled (always adds up, always positive); displacement is the straight-line change in position from start to end, and can be zero if you return to the start.
AccelerationSpeeding upAcceleration means any change in velocity — including slowing down or changing direction at constant speed — not only speeding up.

Swapping initial and final velocity in the formula

Substituting u and v the wrong way round in a = (v − u)/t, e.g. writing (2 − 8)/3.

Consequence: Produces a negative acceleration for an object that is clearly speeding up, contradicting the described motion, and the sign confusion costs marks even when the magnitude is right.

Fix: Always identify which value is the starting velocity (u) and which is the final velocity (v) from the wording before substituting.

Key takeaways

  • Speed is scalar (size only); velocity adds direction; acceleration is the rate of change of velocity.
  • Acceleration exists for slowing down and for changing direction, not just for speeding up.
  • Use s = d/t for speed and a = (v − u)/t for acceleration; keep u (initial) and v (final) in the correct order.
  • Always give the correct unit — m/s for speed/velocity, m/s² for acceleration — the unit itself is often worth the final mark.

Force Diagrams and Net Force

Turning a real situation into arrows you can calculate with

A force diagram represents every force acting on an object as an arrow: the arrow's direction shows the force's direction, and its length shows (roughly) the force's relative size. Once every force is drawn, you combine forces acting along the same line by direction — forces in the same direction add, forces in opposite directions subtract — to find the net (resultant) force.

  • Always separate vertical forces (weight, normal force) from horizontal forces (applied force, friction) before combining — mixing them gives a meaningless answer.
  • If vertical forces are equal and opposite, they're balanced and don't affect horizontal motion at all — most force-diagram questions actually only need you to resolve the horizontal pair.
  • The net force always points in the direction of whichever individual force is bigger, when two forces act in opposite directions.

Force diagram for a pushed box

Vertical forces balance (weight = normal force); horizontal forces don't, giving a net force to the right.

Weight = 20 NNormal force = 20 NApplied force = 15 NFriction = 9 NNet force = 6 N (right)

Combining forces into a net force

Net force is the vector sum of every force acting on the object — add forces in the same direction, subtract forces in opposite directions.

— resultant force on the object (N)
— sum of all individual forces, accounting for direction (N)
Memorise

Resolve forces into perpendicular directions (usually horizontal and vertical) before summing.

Worked example

Reading net force off a force diagram

[3]
A box on a table is pushed with an applied force of 15 N to the right. Friction acts on the box with a magnitude of 9 N. The box's weight is 20 N down and the normal reaction is 20 N up. Use the force diagram to find the net force and describe what happens to the box's motion.

Adding all force arrows regardless of direction

Summing every magnitude on the diagram together (e.g. 20+20+15+9) to try to find 'the net force'.

Consequence: Produces a physically impossible net force value and loses the entire calculation mark.

Fix: Split forces into horizontal and vertical groups first, subtract opposing pairs within each group, then state the resulting net force with its direction.

Arrow proportions matter in diagram-drawing questions

Arrow length must be roughly proportional to force size, and arrows must start from the object (or its centre), not float away from it — diagrams with arbitrary lengths or disconnected arrows lose diagram marks even when the directions shown are correct.

Key point

Always resolve vertical and horizontal forces separately before combining anything — most force-diagram questions only need the horizontal pair once you've confirmed the vertical pair is balanced.

Key takeaways

  • A force diagram shows every force as an arrow: direction matters, and length should be roughly proportional to size.
  • Resolve vertical and horizontal forces separately, then combine opposing forces by subtraction within each direction.
  • Net force points in the direction of the bigger of two opposing forces.
  • A non-zero net force means acceleration in that direction; a zero net force in a direction means no change in motion in that direction.

Types of Forces

Contact forces need touching; non-contact forces don't

Before you can draw a force diagram correctly, you need to know what forces are actually present. Contact forces only exist while two objects are physically touching — remove the contact and the force disappears immediately. Non-contact forces act across a gap, with no touching needed at all.

  • Contact forces: friction (resists sliding), normal/reaction force (surface pushing back perpendicular to itself), tension (pulling force through a rope/string/cable), applied force (a direct push or pull), air resistance/drag (fluid resistance while moving through it).
  • Non-contact forces: gravity/weight (pulls masses toward each other), magnetic force (acts between magnets and magnetic materials), electrostatic force (acts between charged objects).
  • A single object can experience several forces of both types at once — a falling parachutist has weight (non-contact) and air resistance/drag (contact) acting simultaneously.

Key contact and non-contact forces

Normal (reaction) force
The contact force a surface exerts perpendicular to itself, pushing back against an object resting or pressing on it.
Tension
The pulling contact force transmitted through a stretched rope, string, cable or spring.
Applied force
A direct push or pull force exerted on an object by direct contact, e.g. a hand pushing a trolley.
Weight (gravity)
The non-contact force of attraction between an object's mass and the Earth's mass, always directed toward the Earth's centre.
Magnetic force
A non-contact force acting between magnets or between a magnet and a magnetic material such as iron.
Electrostatic force
A non-contact force acting between electrically charged objects, either attractive or repulsive.

Contact forces vs non-contact forces

If the objects aren't touching and the force still acts, it's non-contact.

Applied forceFrictionTensionGravityMagnetic forceElectrostatic force

Contact vs non-contact forces

ForceContact or non-contactTypical example
FrictionContactBox sliding across a floor
Normal (reaction) forceContactBox resting on a table
TensionContactRope pulling a sled
Applied forceContactHand pushing a shopping trolley
Air resistance / dragContactParachute slowing a falling skydiver
Weight (gravity)Non-contactApple falling from a tree
Magnetic forceNon-contactFridge magnet attracting a metal can
Electrostatic forceNon-contactCharged balloon sticking to a wall

Remembering the three non-contact forces

GEM

Gravity, Electrostatic, Magnetic — the three forces on this course that act across a gap without any touching.

Maglev trains and near-zero friction

Maglev trains use magnetic force — a non-contact force — to lift the train above the track, almost completely eliminating rolling friction between train and rail. That's exactly why maglev trains can reach speeds over 600 km/h using far less energy per kilometre than a wheeled train fighting constant friction.

Calling weight and mass the same thing

Treating 'mass' and 'weight' as interchangeable terms when identifying forces on a diagram.

Consequence: Leads to wrong units (kg instead of N) on force diagrams and loses marks for correctly labelling the gravity force arrow.

Fix: Mass is the amount of matter (kg); weight is the force of gravity acting on that mass (N) — always label the force arrow 'weight', not 'mass'.

Key takeaways

  • Contact forces require touching (friction, normal force, tension, applied force, air resistance/drag); non-contact forces act across a gap (gravity, magnetic, electrostatic — 'GEM').
  • An object can have multiple contact and non-contact forces acting on it at the same time.
  • Correctly identifying which forces are present is the essential first step before drawing any force diagram.

Balanced and Unbalanced Forces

The rule that ties the whole topic together

Forces are balanced when their vector sum (net force) is zero — this does not mean no forces are acting, just that they cancel out. When forces are balanced, the object's velocity stays exactly the same: if it was at rest, it stays at rest; if it was moving, it keeps moving at the same speed in the same direction. When forces are unbalanced (net force ≠ 0), the object accelerates in the direction of that net force — it speeds up, slows down, or changes direction.

  • A book resting on a table is balanced: weight down and normal force up, both nonzero, equal and opposite — that's why it doesn't move.
  • A car braking to a stop is unbalanced: friction/braking force is bigger than any forward driving force, so net force points backward and the car decelerates.
  • 'More friction' does not automatically mean 'slows down' — it only slows an object down if friction is bigger than whatever force is driving it forward.

Balanced vs unbalanced forces in a tug-of-war

Same setup, different force sizes — one stays still, one accelerates.

500 N left500 N rightNet force = 0 N400 N left600 N rightNet force = 200 N right

Don't mix these up

Concept AConcept BThe distinction that matters
Balanced forcesZero forcesBalanced forces means multiple nonzero forces are acting whose vector sum is zero — it does not mean no forces are present. A resting book has weight AND normal force, both nonzero, just equal and opposite.
More frictionSlows downFriction only slows an object down if it's bigger than the driving/applied force; if friction is smaller than the applied force, the object still speeds up, just more gently.

Worked example

Net force decides speeding up, constant, or slowing down

[6]
A 2 kg block is pulled across three surfaces with the same applied force of 10 N on every surface. Friction force: Wood = 4 N, Carpet = 8 N, Ice = 2 N. (a) Calculate the net force on the block on each surface using F_net = F_applied − F_friction. [2] (b) Explain whether the block speeds up, moves at constant speed, or slows down on each surface. [2] (c) Analyse how the friction value affects the size of the acceleration across the three surfaces. [2]

Assuming more friction always means slowing down

Concluding an object 'slows down' purely because its surface has 'more friction' than another surface being compared, without checking the applied force.

Consequence: Wrong direction/description in explain questions whenever friction is still smaller than the applied force — the object actually keeps speeding up, just more gently.

Fix: Always calculate or compare F_net = F_applied − F_friction first; only conclude 'slows down' if friction is genuinely bigger than the applied force.

'Analyse' wants numbers compared, not data restated

Analyse questions (2+ marks) want you to rank or compare the actual values (e.g. net force sizes across surfaces) and state the relationship between them — that's what separates Analyse from Describe here. Simply re-listing the friction values in words earns little to no credit.

Seatbelts and unbalanced forces in a crash

In a collision, the car's frame experiences a huge unbalanced (decelerating) force from the impact — but without a seatbelt your body keeps moving at the pre-crash speed, because nothing has yet unbalanced the forces acting on you. The seatbelt's job is to provide that unbalancing force on your body directly, ideally before the windscreen does it instead.

Key takeaways

  • Balanced forces (net force = 0) mean constant velocity — including staying completely at rest — not 'no forces present'.
  • Unbalanced forces (net force ≠ 0) cause acceleration in the direction of the net force.
  • 'More friction' only causes slowing down if it exceeds the driving/applied force — otherwise the object still speeds up, just less strongly.
  • For a fixed mass, ranking net force sizes directly ranks acceleration sizes — this is the core Analyse move examiners test.

Quick Reference

Forces and Motion — everything on one page

Formulas

  • Speed = distance ÷ time
  • Acceleration = change in velocity ÷ time
  • Net force when two forces directly oppose along the same line
  • General rule: sum all forces, accounting for direction

Key facts

Unit of speed/velocity
m/s
Unit of acceleration
m/s²
Unit of force
N
Non-contact forces
Gravity, Electrostatic, Magnetic
Contact forces
Friction, Normal force, Tension, Applied force, Air resistance/drag

Mnemonics

  • GEMGravity, Electrostatic, Magnetic — the three non-contact forces

Don't confuse

  • Speed vs Velocity: Speed is scalar (size only); velocity adds direction
  • Balanced forces vs Zero forces: Balanced means nonzero forces cancelling out, not no forces at all
  • Distance vs Displacement: Distance is total path length; displacement is straight-line change in position

Command terms

Identify:
Short precise answer, no explanation needed
Describe:
State the pattern using specific details, section by section
Explain:
Give the causal 'why' link — bare facts alone earn 0
Calculate:
Show substitution + final answer with correct unit
Analyse:
Compare actual values/trend and state the relationship

Exam checklist

  • Direction of friction always opposes the object's own motion, never the applied push direction
  • Flat line on a distance-time graph = zero speed (at rest), not 'slow'
  • u = initial velocity, v = final velocity — check the order before substituting into acceleration formula
  • Resolve force diagrams into horizontal and vertical components before combining forces
  • Net force ≠ 0 → acceleration in that direction; net force = 0 → constant velocity (including rest)
  • 'More friction' only means slowing down if it exceeds the applied/driving force
