MYP Year 3 Sciences — Waves, Sound and Light (Physics strand)

24 min readStandardCore physics strand — recurring across unit tests, data-based tasks (Criterion A/C) and on-screen assessments

Every question your teacher writes on this topic is really testing one thing: can you tell which wave property is changing, and can you say what that change does? Colour is coded by wavelength, pitch by frequency, loudness by amplitude, brightness by amplitude too — mix those up and you lose marks even when your physics instinct was right. These notes are built around the exact command terms (describe, explain, analyse, predict) that examiners actually use, because half the marks lost on this topic are lost to answering the wrong type of question, not to wrong physics.

Overview — How This Topic Fits Together

A wave transfers energy from one place to another without transferring matter — the medium (or the electromagnetic field, for light) just wobbles in place while the disturbance moves through it. This topic has two halves that keep getting confused with each other: light waves (transverse, no medium needed, travel at m/s in a vacuum) and sound waves (longitudinal, need a medium, travel much slower — about 340 m/s in air).

  • Colour and pitch both depend on frequency/wavelength — colour for light, pitch for sound.
  • Brightness and loudness both depend on amplitude — how big the vibration or oscillation is.
  • Reflection and refraction are what happen when a wave meets a boundary — bounce back, or bend and carry on into a new medium.
  • The technology section is really just 'which part of the EM spectrum, or which wave property, is being exploited' applied to real devices.

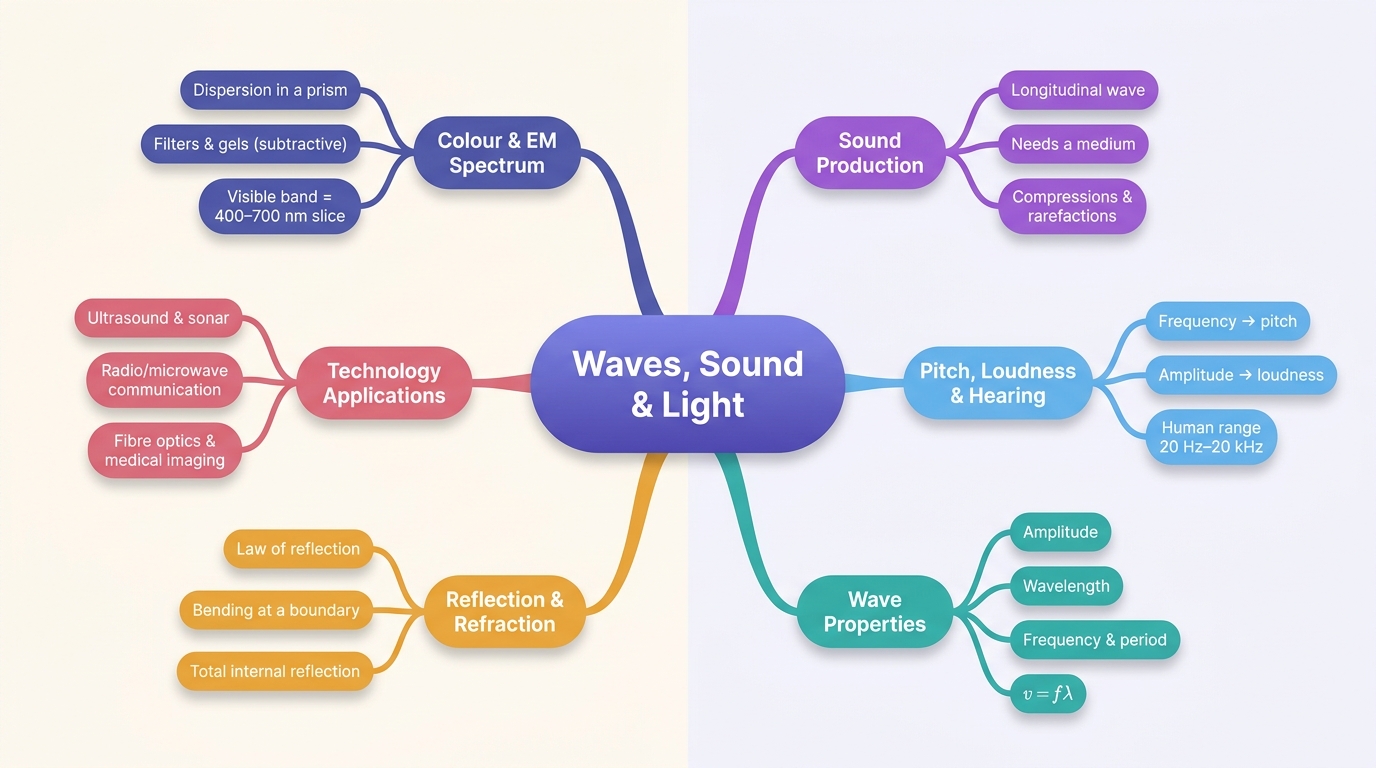

The shape of the chapter

Command terms this topic actually uses

Command termWhat it demandsAOMark-earning move
DescribeGive a detailed, accurate account — usually the trend in data or what physically happensKnowing & understandingMust state the actual pattern with real values, not just 'there is a difference'.
ExplainGive reasons or causes, using correct topic vocabularyUnderstanding & applyingZero credit if you only restate the description — the 'why' is the mark.
IdentifyName or pick out the correct variable/feature from a scenarioKnowing & understandingA short phrase is enough; extra explanation earns nothing extra.
StateGive a short, precise answer with no justification requiredKnowing & understandingOne fact only — padding costs time, not marks.
AnalyseBreak down data to find and interpret a relationshipProcessing & evaluatingMust go beyond description — needs 'as X increases, Y…' phrasing.
PredictUse an established pattern to state an outcome not directly givenProcessing & evaluatingAnswer must follow logically from the trend already found, not be a guess.

Key point

Every wave in this topic obeys . Colour is coded by wavelength/frequency of light, pitch by frequency of sound, loudness/brightness by amplitude. Confusing which property controls which perception is the single biggest source of lost marks here.

  1. Colour and the Electromagnetic Spectrum

Visible light is a tiny slice (roughly 400–700 nm) of the full electromagnetic spectrum, which stretches from long, low-energy radio waves to short, high-energy gamma rays. All EM waves travel at m/s in a vacuum — what changes is wavelength and frequency, and those changes are what give each region its different properties and uses.

  • Colour is determined by wavelength: red is the longest visible wavelength (~700 nm, lowest visible frequency), violet the shortest (~400 nm, highest visible frequency).
  • A prism splits white light into a spectrum through dispersion — each wavelength refracts by a slightly different amount because glass slows different wavelengths by different amounts.
  • Coloured filters and gels work by subtraction, not addition: they absorb every wavelength except the one(s) they let through.
  • 'Pure' spectral colour means light of a single wavelength — light from a filter/gel is almost always a narrow band or mixture of wavelengths clustered around one hue, which is why it isn't 'pure'.
Electromagnetic spectrum
The complete range of electromagnetic waves, from radio waves (longest wavelength, lowest frequency) to gamma rays (shortest wavelength, highest frequency), all travelling at the same speed in a vacuum.
Visible light
The narrow band of the EM spectrum, about 400–700 nm, that the human eye can detect as colour.
Dispersion
The splitting of white light into its component colours because each wavelength refracts by a different amount passing through a medium such as glass.
Spectral colour
A colour made of a single wavelength of light. Most everyday coloured light (including filtered/gel light) is a mixture of wavelengths, not a pure spectral colour.
Filter / gel
A material that transmits only certain wavelengths of white light and absorbs the rest — it removes colours rather than creating new ones.

The electromagnetic spectrum

Radio waves have the longest wavelength and lowest frequency; gamma rays the shortest wavelength and highest frequency. Visible light is the thin coloured strip in between.

Radio wavesMicrowavesInfraredVisible lightUltravioletX-raysGamma raysIncreasing frequencyDecreasing wavelength

Dispersion of white light through a glass prism

Each colour refracts by a slightly different amount because it has a slightly different refractive index in glass — violet bends most, red bends least.

Incident white light rayNormalGlass prismRedOrangeYellowGreenBlueVioletAngle of incidence

The wave equation for electromagnetic waves in a vacuum

— speed of light in a vacuum ($3\times10^{8}$ m/s)
— frequency (Hz)
— wavelength (m)
Memorise

Worked example

Analysing prism dispersion data

[4]
White light enters a glass prism at 45° and separates into colours. The exit angles measured are: Red 42.3°, Orange 42.0°, Yellow 41.7°, Green 41.3°, Blue 40.9°, Violet 40.5°. Analyse the data to describe the relationship between wavelength and exit angle, and explain why the pattern occurs.

Common mistake

Describing a coloured filter or gel as 'adding' or 'making' the colour that comes out (e.g. 'the gel makes the light green').

Consequence: Loses the explain mark on questions like the theatre-gel or filter tasks, which specifically test whether you know filters subtract wavelengths rather than create them.

Fix: Say it as subtraction: the filter/gel absorbs every wavelength except green, which it transmits. White light already contains green — the filter just removes everything else.

Examiner tip

For 'explain why the light produced is not a pure spectral colour', you must say the transmitted light is a narrow band or mixture of wavelengths clustered around that hue, not a single wavelength — 'it just looks green' scores zero.

Remembering the visible spectrum order

Richard Of York Gave Battle In Vain

Gives Red, Orange, Yellow, Green, Blue, Indigo, Violet from longest wavelength (~700 nm, lowest frequency) to shortest wavelength (~400 nm, highest frequency) — the same order colours exit a prism, least bent to most bent.

Thermal imaging in search and rescue

Firefighters use infrared cameras because every object above absolute zero emits IR radiation proportional to its temperature — a person's body heat (~37°C) glows brightly against cooler smoke and walls. The limitation examiners test for: IR cameras can't see through solid glass or thick walls, and dense smoke can still scatter enough IR to blur the image, so a thermal camera can locate a warm shape but not guarantee it can 'see' through every obstacle in a building.

Key takeaways

  • Colour is coded by wavelength: red = longest visible wavelength, violet = shortest.
  • A prism disperses white light because each wavelength refracts by a different amount — violet bends most, red bends least.
  • Filters and gels subtract wavelengths from white light; they never add colour.
  • Coloured light from a filter is a mixture/band of wavelengths, not one pure spectral colour.
  • Infrared sits just beyond visible red and is exploited by thermal cameras to detect body heat.

  1. Sound Waves and Vibrations

Sound is produced by a vibrating source — a guitar string, a vocal cord, a speaker cone — that pushes and pulls on the particles of the surrounding medium. Unlike light, sound is a longitudinal wave: the particles of the medium vibrate back and forth parallel to the direction the energy travels, not up and down across it.

  • Sound needs a medium (solid, liquid or gas) to travel — it cannot cross a vacuum, because there are no particles to pass the vibration along.
  • A compression is where particles are squeezed close together (higher pressure); a rarefaction is where they're spread apart (lower pressure).
  • Speed of sound depends on the medium: fastest in solids (particles closely packed), slower in liquids, slowest in gases like air (≈340 m/s).
Vibration
A repeated back-and-forth motion of a source that pushes and pulls on the surrounding medium, creating a sound wave.
Compression
A region in a longitudinal sound wave where particles are pushed close together, momentarily raising the local pressure.
Rarefaction
A region in a longitudinal sound wave where particles are spread further apart, momentarily lowering the local pressure.
Medium
The material through which a sound wave travels by passing vibrations from particle to particle; sound cannot travel through a vacuum.

A longitudinal sound wave shown as compressions and rarefactions

The coils themselves move left-right, parallel to the wave's travel direction — that's what makes it longitudinal, not transverse.

CompressionRarefactionWavelengthDirection of energy transfer

The general wave equation, applies to sound just as it does to light

— wave speed (m/s)
— frequency (Hz)
— wavelength (m)
Memorise

Worked example

Finding wavelength from frequency

[2]
A tuning fork vibrates at 256 Hz. The speed of sound in air is 340 m/s. Calculate the wavelength of the sound wave produced.

Common mistake

Thinking sound particles move sideways like a transverse wave, because the textbook graph of pressure/displacement against distance looks like a sine curve.

Consequence: Leads to describing sound as transverse in written answers, contradicting the mark scheme's requirement for 'longitudinal'.

Fix: That sine-curve graph plots pressure (or displacement) against distance/time — it's a graph, not a picture of the wave. The actual air particles oscillate back and forth parallel to the direction of travel, creating compressions and rarefactions.

Key takeaways

  • Sound is a longitudinal wave: particle vibration is parallel to the direction of energy transfer.
  • Sound needs a medium — it cannot travel through a vacuum.
  • Compressions = squeezed-together particles (high pressure); rarefactions = spread-out particles (low pressure).
  • The wave equation applies to sound exactly as it does to light, just with a much smaller speed.

  1. Pitch, Loudness and Hearing

Two separate wave properties give sound its character: frequency, which the ear perceives as pitch, and amplitude, which the ear perceives as loudness. These are independent of each other — a sound can be high-pitched and quiet, or low-pitched and loud, in any combination.

  • Human hearing typically spans about 20 Hz to 20,000 Hz (20 kHz); sounds below this are infrasound, above it ultrasound — both inaudible to humans but usable by technology (and some animals).
  • The ear converts vibrations into nerve signals in three stages: the outer ear funnels sound to the eardrum, the middle ear (tiny bones) amplifies the vibration, the inner ear (cochlea) converts it into electrical signals for the brain.
  • Loudness is measured in decibels (dB), a scale of sound intensity — prolonged exposure above about 85 dB risks hearing damage.

Pitch vs. loudness

PropertyWave feature it depends onUnitPerceived as when increasedEveryday example
PitchFrequencyHertz (Hz)Higher, 'squeakier' soundA whistle (high f) vs. a bass drum (low f)
LoudnessAmplitudeDecibels (dB)Louder soundShouting (large amplitude) vs. whispering (small amplitude)

Comparing pitch and loudness on waveform graphs

Frequency changes how squeezed the wave is along the time axis (pitch); amplitude changes how tall it is (loudness). These vary independently.

High pitch — short periodLow pitch — long periodLoud — large amplitudeQuiet — small amplitudeTime (s)Displacement

Worked example

Comparing two waveforms

[3]
Two sound waves are recorded on an oscilloscope. Wave A has a larger amplitude and longer period than Wave B. Compare the pitch and loudness of the two sounds.

Examiner tip

For 'compare pitch and loudness' questions, write two separate sentences — one for frequency/pitch, one for amplitude/loudness. Blending both into one vague sentence ('Wave A sounds different') loses the comparison marks even if the underlying physics is correct.

Key takeaways

  • Pitch depends on frequency; loudness depends on amplitude — they vary independently.
  • Human hearing range is roughly 20 Hz to 20 kHz; infrasound is below it, ultrasound above it.
  • The ear converts vibrations to electrical signals via outer, middle and inner ear structures.
  • Loudness is measured in decibels; prolonged exposure above ~85 dB risks hearing damage.

  1. Uses of Light and Sound in Technology

Almost every technology in this section works by exploiting one wave property — a particular part of the EM spectrum, or the echo-timing of a sound/ultrasound pulse. Recognising which property is being used is what these exam questions are really testing.

  • Radio and microwaves carry information (broadcasting, Wi-Fi, phone signals) because they pass through walls and the atmosphere with little absorption.
  • Infrared is used for remote controls, short-range wireless links, and thermal imaging, since warm objects emit it naturally.
  • Ultraviolet, X-rays and gamma rays carry increasing amounts of energy — useful for sterilising, medical imaging and cancer treatment, but also increasingly hazardous to living tissue.
  • Ultrasound (sound above 20 kHz) and sonar work by timing echoes: send a pulse, measure how long it takes to bounce back, and calculate distance.

The EM spectrum: uses and hazards

RegionWavelength rangeTypical useKey hazard / note
Radio waves
1 m
Broadcasting, Wi-Fi, satellite communicationLongest wavelength, lowest energy; passes through walls easily
Microwaves1 mm – 1 mMicrowave ovens, mobile phones, radarAbsorbed by water molecules — this is how microwave ovens heat food
Infrared (IR)700 nm – 1 mmTV remotes, thermal imaging, short-range wireless linksEmitted by all warm objects — used to detect body heat
Visible light400–700 nmHuman vision, photography, fibre-optic communicationOnly band the human eye can detect directly
Ultraviolet (UV)10–400 nmSterilising equipment, vitamin D synthesis, security markingCan damage skin cells and eyes with prolonged exposure
X-rays0.01–10 nmMedical imaging (bones), airport security scannersCan damage living tissue at high doses; exposure kept minimal
Gamma rays< 0.01 nmCancer radiotherapy, sterilising medical equipmentHighest energy, most penetrating, most damaging to cells

Distance to a reflecting object from an echo/sonar/ultrasound pulse

— one-way distance to the reflecting surface (m)
— wave speed in the medium (m/s)
— total round-trip time (there and back) (s)
Memorise

The ÷2 accounts for the pulse travelling there AND back before it's detected.

Worked example

Sonar echo calculation

[3]
A fishing boat's sonar sends an ultrasound pulse that reflects off a shoal of fish and returns after 0.08 s. The speed of sound in water is 1500 m/s. Calculate the depth of the shoal.

Common mistake

Forgetting to halve the total distance in an echo/sonar/ultrasound calculation.

Consequence: Doubles the calculated depth/distance — a very common one-mark loss on this exact question type.

Fix: Always ask: did the pulse travel there-and-back, or just one-way? If there-and-back, divide by 2 before giving the final answer.

Ultrasound in medicine and fibre optics in communication

Hospital ultrasound scanners send pulses above 20 kHz into the body; different tissues reflect the pulse differently, and timing the echoes builds up an image — the exact same maths as a fishing boat's sonar or a bat's echolocation. Fibre-optic cables use total internal reflection of visible/infrared light to carry broadband and phone signals over huge distances with almost no signal loss.

Key takeaways

  • Each EM region is used because of its wavelength/energy: radio and microwaves for communication, IR for heat detection, UV/X-ray/gamma for imaging and treatment with increasing hazard.
  • Ultrasound and sonar work by timing an echo and using — always check whether a given time is one-way or round-trip.
  • Fibre optics rely on total internal reflection to carry light-encoded signals with minimal loss.

  1. Properties of Waves

Every wave — transverse or longitudinal — can be fully described using four measurements: amplitude, wavelength, frequency and period. These four are linked by the wave equation, and reading them correctly off a graph is the skill examiners test most often in this subtopic.

  • In a transverse wave, particles vibrate perpendicular to the direction of energy transfer — light, water ripples, a shaken rope.
  • In a longitudinal wave, particles vibrate parallel to the direction of energy transfer — sound.
  • Period and frequency are reciprocals of each other: a wave with a short period repeats quickly, so it has a high frequency.
Amplitude
The maximum displacement of a point on the wave from its rest (equilibrium) position; determines the energy carried and is perceived as loudness (sound) or brightness (light).
Wavelength
The distance between two consecutive identical points on a wave, e.g. crest to crest.
Frequency
The number of complete wave cycles passing a fixed point per second, measured in hertz (Hz).
Period
The time taken for one complete wave cycle; the reciprocal of frequency, .

Transverse wave: displacement against distance

Amplitude is a vertical measurement from the midline; wavelength is a horizontal measurement between repeats of the pattern — read them off the graph, not off each other.

Amplitude = 2 cmWavelength = 4 mCrestTroughDistance (m)Displacement (cm)

Wave speed equals frequency times wavelength

Memorise

Period is the reciprocal of frequency

— period (s)
— frequency (Hz)
Memorise

Worked example

Reading wavelength off a graph to find frequency

[3]
A displacement-distance graph shows a transverse wave with amplitude 2 cm and wavelength 4 m, repeating twice across an 8 m distance. If the wave travels at 20 m/s, calculate its frequency.

Wave properties that get muddled

Concept AConcept BThe distinction that matters
Transverse waveLongitudinal waveParticles vibrate perpendicular to the direction of energy transfer in a transverse wave (light, water); parallel to it in a longitudinal wave (sound), creating compressions/rarefactions instead of crests/troughs.
FrequencyPeriodFrequency counts cycles per second (Hz); period is the time for one cycle (s). They're reciprocals — a high frequency always means a short period, never the other way round.
WavelengthAmplitudeWavelength is a horizontal/spatial measurement (distance between repeats); amplitude is a vertical measurement (distance from the rest position). Mixing these up on a graph is the most common labelling error.

Common mistake

Reading the total width of a repeating wave graph as the wavelength, instead of the distance for one full cycle.

Consequence: Gives a wavelength that's a whole multiple too large, which then produces a frequency that's too small in any calculation.

Fix: Count how many complete waves are actually drawn across the graph first, then divide the total distance by that number of cycles to get λ.

Key takeaways

  • Amplitude, wavelength, frequency and period fully describe a wave; they connect via and .
  • Transverse waves vibrate perpendicular to travel direction; longitudinal waves vibrate parallel to it.
  • Read wavelength as the repeat distance of one full cycle on a graph, and amplitude as the vertical distance from the midline — never confuse the two axes.

  1. Reflection and Refraction of Light

When light meets a boundary between two materials, it can reflect (bounce back) or refract (bend and continue into the new material) — often some of each happens at once. Both are described relative to the normal, an imaginary perpendicular line drawn at the point where the ray meets the surface — never relative to the surface itself.

  • Law of reflection: angle of incidence = angle of reflection, both measured from the normal.
  • Refraction happens because light changes speed crossing into a different medium: it slows down and bends toward the normal entering a denser medium (like glass), and speeds up and bends away from the normal leaving it.
  • Total internal reflection occurs when light travelling in a denser medium hits a boundary at a shallow enough angle that it reflects entirely instead of refracting out — the basis of fibre optics (see Section 4).
Normal
An imaginary line drawn perpendicular to a surface at the point where a ray strikes it; all angles of incidence, reflection and refraction are measured from this line, never from the surface.
Angle of incidence
The angle between the incident ray and the normal.
Angle of reflection
The angle between the reflected ray and the normal.
Refraction
The bending of light as it crosses a boundary between two media of different density, caused by a change in the light's speed.
Refractive index (qualitative)
A measure of how much a material slows down and bends light; a denser optical material such as glass has a higher refractive index than air, so it bends light more.

Refraction of light entering a denser medium

Light slows down entering the denser glass, so it bends toward the normal — angle of refraction is smaller than angle of incidence.

Incident rayNormalAngle of incidenceRefracted rayAngle of refractionAirGlassBoundary

Law of reflection: angle of incidence equals angle of reflection, both measured from the normal

Memorise

Beyond the syllabus — Snell's Law (numerical refraction)

  • At this level you only need the qualitative rule: light bends toward the normal entering a denser medium, and away from the normal leaving it, because of a change in speed.
  • The numerical version, , calculates the exact refraction angle using refractive indices — this is DP Physics/Chemistry territory, not examined at MYP Year 3, but useful context if you're curious why the prism data in Section 1 behaves the way it does.

Worked example

Applying the law of reflection

[2]
A ray of light strikes a plane mirror at an angle of 35° to the mirror surface. Calculate the angle of reflection, measured from the normal.

Reflection vs refraction

Concept AConcept BThe distinction that matters
ReflectionRefractionReflection bounces a wave back off a boundary with no change of medium (angle in = angle out); refraction lets the wave cross into a new medium but bends it because its speed changes.

Common mistake

Measuring the angle of incidence/reflection from the mirror surface or boundary line instead of from the normal.

Consequence: Produces an answer off by exactly (90° − true angle) — mark schemes explicitly flag this as measuring from the wrong reference line.

Fix: Always draw the normal first (a dashed perpendicular line at the point of contact), then measure every angle from that line, not the surface.

Examiner tip

For 'explain why violet exits on the opposite side of the spectrum from red', use both key words the mark scheme wants: refraction (the bending mechanism) and wavelength (the cause — shorter wavelength bends more). A description that avoids naming the cause won't get full marks.

Key point

Reflection never changes a wave's speed or medium (angle in = angle out); refraction only happens when a wave crosses into a different medium and changes speed — that speed change is what causes the bending.

Key takeaways

  • All angles (incidence, reflection, refraction) are measured from the normal, never the surface.
  • Law of reflection: angle of incidence = angle of reflection.
  • Refraction bends light toward the normal entering a denser medium, away from it leaving a denser medium — caused by a change in speed.
  • Total internal reflection (denser medium, shallow angle) underlies fibre-optic communication.

Quick Reference

Waves, Sound & Light — everything on one page

Formulas

  • General wave equation — applies to sound and light alike
  • Speed of light in a vacuum, for EM waves
  • Period is the reciprocal of frequency
  • Law of reflection, both angles from the normal
  • Echo/sonar/ultrasound distance — remember the ÷2 for round trip

Key facts

Speed of light in a vacuum
m/s
Speed of sound in air
≈340 m/s
Human hearing range
20 Hz – 20,000 Hz
Visible light wavelength range
≈400–700 nm

Mnemonics

  • Richard Of York Gave Battle In VainVisible spectrum order Red→Violet, longest to shortest wavelength

Don't confuse

  • Pitch vs Loudness: Pitch = frequency; loudness = amplitude — independent of each other
  • Transverse wave vs Longitudinal wave: Perpendicular particle motion (light) vs. parallel particle motion (sound)
  • Reflection vs Refraction: Bounces back, no medium change vs. bends while crossing into a new medium
  • Wavelength vs Amplitude: Horizontal repeat distance vs. vertical displacement from rest

Command terms

Describe:
State the actual trend/pattern with real values
Explain:
Give the cause, using correct vocabulary — not just a repeat of the description
Analyse:
Interpret data to state a relationship: 'as X increases, Y…'
Identify/State:
Short, precise fact — no justification needed or rewarded

Exam checklist

  • Measured every reflection/refraction angle from the normal, not the surface?
  • Kept pitch (frequency) and loudness (amplitude) as separate comparisons?
  • Halved the distance in every echo/sonar/ultrasound calculation?
  • Described filters/gels as subtracting wavelengths, not adding colour?
  • Read wavelength as one full repeat on a graph, not the whole graph width?
