Atomic Structure and the Periodic Table

Cover illustration for Atomic Structure and the Periodic Table (Chemistry MYP Year 5).
MYP · Chemistry MYP Year 5

Atomic Structure and the Periodic Table

MYP Sciences Year 5 — Atomic Structure and the Periodic Table

24 min readAdvancedCore content strand of MYP Year 5 Chemistry, assessed through MYP Sciences Criterion A (Knowing & Understanding) and Criterion C (Processing & Evaluating); regularly tested via periodic trend data analysis, electron configuration deduction, and isotope/relative atomic mass calculations.

Most students try to memorise the periodic table like a phone book. Don't. Every fact examiners ask for here — melting points, ionisation energies, why lead poisons bones, why sulfur is the odd one out in Period 3 — traces back to just two ideas: how many protons are pulling on the electrons, and how many shells are in the way. Learn to read the table as a map of electron configuration, and 'explain the trend' questions stop being memory tests and start being logic problems you can actually solve under exam pressure.

Overview

Why the periodic table is the ultimate cheat sheet

The periodic table isn't a list you memorise — it's a map of electron configuration. Every trend examiners ask about (radius, ionisation energy, reactivity, melting point) traces back to one thing: how strongly the nucleus holds onto its outer electrons. Get that idea locked in and half your 'explain the trend' marks are already banked.

  • Mendeleev built it from patterns in mass and reactivity before anyone knew what a proton was — modern tables are ordered by atomic number (Z), not mass, which is why tellurium (Z=52) sits before iodine (Z=53) despite being heavier.
  • Vertical columns = groups (18 of them): same number of valence electrons, similar chemistry.
  • Horizontal rows = periods (7 of them): same highest occupied shell, properties change gradually left to right.
  • Four 'chapters' get tested here: where an element sits (groups/periods), how properties change around the table (trends), what's inside the atom (subatomic structure), and how electrons are arranged (shells/configurations) — isotopes glue the last two together.

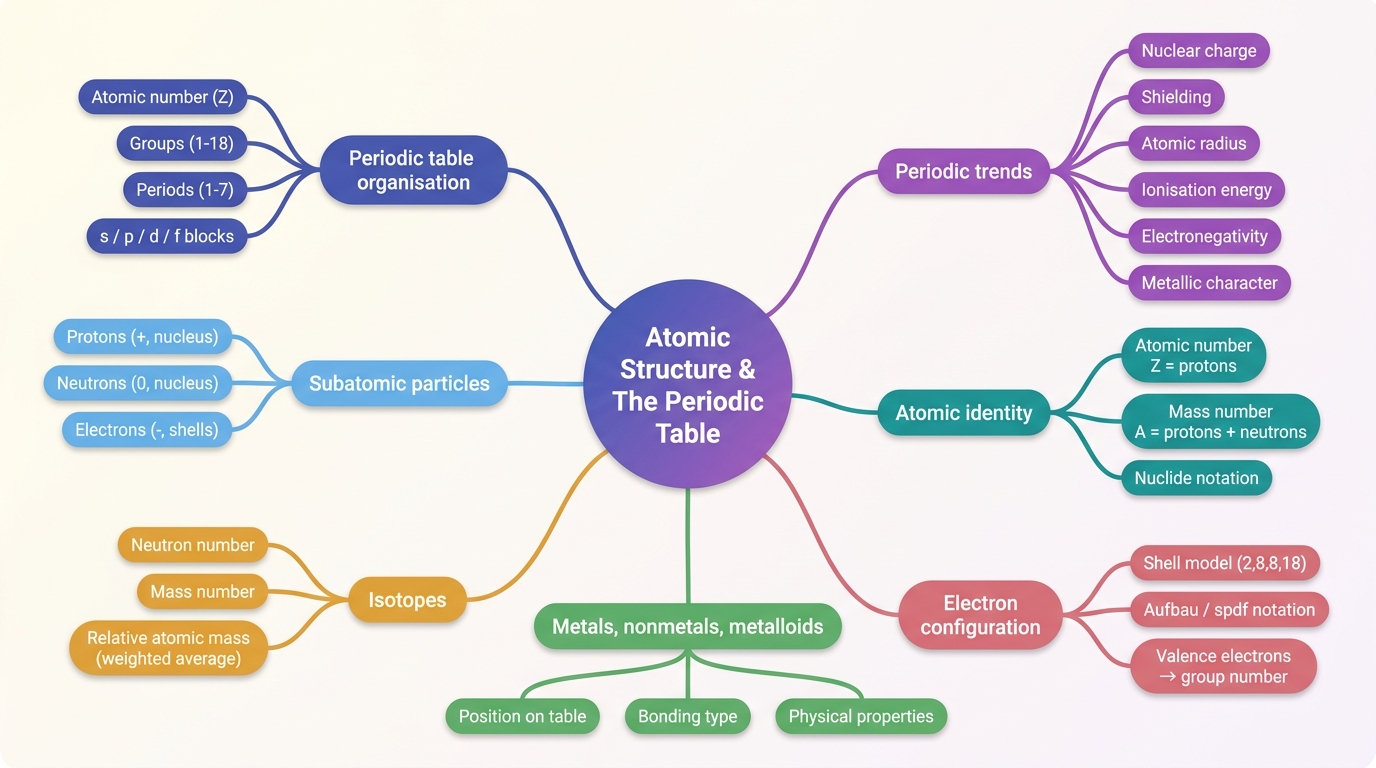

The shape of the chapter

Command terms this topic actually tests

Command termWhat it demandsAOMark-earning move
Stategive a short factual answer, no explanation requiredAO11 mark for the correct fact/name only — adding reasoning here wastes time, not marks
Describegive a detailed account of a pattern/trend without explaining whyAO1/AO2marks need direction + pattern (e.g. 'decreases then increases') — a bare 'it changes' scores zero
Deducereach a conclusion using data/information given in the questionAO2must reference the actual numbers/pattern given, not general theory — examiners check you used THIS data
Explaingive reasons using a model or theory (shielding, nuclear charge, structure)AO2needs a causal link word (because/as/since) — repeating the trend without a cause loses the explain marks
Justifygive reasons that support a specific placement or conclusionAO3must tie explicitly back to the claim being justified, not just restate a fact
Evaluateweigh strengths and limitations to reach a judgementAO3one-sided answers cap at half marks — examiners want the 'however'

Key point

Position on the periodic table is a direct readout of electron configuration — group number tells you valence electrons, period number tells you the outer shell. Every trend question is really asking you to explain that link.

Periodic Table Groups and Periods

Rows, columns and the logic behind them

Mendeleev's 1869 table sorted elements by atomic mass and left gaps where properties didn't fit — his boldest move was predicting elements that hadn't been discovered yet. The modern table (fixed by Moseley in 1913) orders elements by atomic number, which is why it's called the Periodic Law: properties repeat periodically when elements are arranged by increasing atomic number.

  • Group (vertical column, 1-18): same number of valence electrons, so similar chemical behaviour — every Group 1 metal forms a +1 ion, every Group 17 halogen forms a -1 ion.
  • Period (horizontal row, 1-7): same highest occupied shell; for main-group elements, period number = number of occupied shells.
  • Block (s, p, d, f): tells you which subshell the last electron entered — Groups 1-2 are s-block, Groups 13-18 are p-block, Groups 3-12 (transition metals) are d-block, lanthanides/actinides are f-block.
  • Named families worth knowing by name, not just number: Group 1 alkali metals, Group 2 alkaline earth metals, Group 17 halogens, Group 18 noble gases.
Periodic Law
the properties of elements repeat periodically when the elements are arranged in order of increasing atomic number.
Group
a vertical column of the periodic table; elements share the same number of valence electrons.
Period
a horizontal row of the periodic table; elements share the same number of occupied electron shells.
Block
a region of the table (s, p, d, f) named after the type of subshell being filled by the outermost electron(s).
Valence electron
an electron in the outermost occupied shell, responsible for most chemical bonding behaviour.

The periodic table by block

Block position tells you which subshell an element's outermost electron occupies.

Group 1Group 2Group 17Group 18s-blockp-blockd-blockf-block

Mendeleev's prediction that made chemistry a science

In 1871 Mendeleev left a gap below aluminium and predicted 'eka-aluminium' would have atomic mass ~68, density ~5.9 g/cm³, and a low melting point, forming an oxide E₂O₃. When gallium was discovered in 1875, its measured properties (atomic mass 69.7, density 5.904 g/cm³, melting point 29.8 °C, oxide Ga₂O₃) matched so closely that it converted sceptics overnight — the periodic table stopped being a filing system and became a predictive model.

Worked example

Using periodic law to check a prediction (Q7-style)

[3]
Explain why the close match between Mendeleev's predicted and gallium's experimental properties is strong evidence that the periodic table reflects a real underlying pattern, rather than being a coincidental sorting of known elements.

Worked example

Tungsten's position and its melting point (Q3-style)

[3]
Tungsten (W), Group 6 Period 6, has a melting point of 3422 °C — the highest of all metals. (a) State how tungsten's position accounts for this. (b) Evaluate one limitation of using the periodic table alone to select materials for heat shields.

Group number ≠ number of valence electrons for every group

Assuming Group number always equals valence electron count (true using the modern 1-18 numbering only for Groups 1, 2, and 13-18 — for p-block groups you must subtract 10).

Consequence: Applying 'valence electrons = group number' directly to Group 17 gives 17 electrons, which is wrong — the correct value is 7. This loses the mark whenever a question links group number to valence electrons.

Fix: For p-block groups (13-18), subtract 10 from the group number to get valence electrons (Group 17 → 17 − 10 = 7). For d-block (transition metals, Groups 3-12), this simple rule doesn't apply at all — don't force it there.

Key takeaways

  • Groups = columns = same valence electron count = similar chemistry; Periods = rows = same number of occupied shells.
  • The modern table is ordered by atomic number (Z), not atomic mass — this fixes anomalies like Te sitting before I.
  • s, p, d, f block position directly tells you which subshell the outermost electron occupies.
  • Mendeleev's gallium prediction is the classic example of the periodic table as a predictive model, not just a filing system.

Structure of the Atom

What's actually inside

Every atom is built from three particles, and the periodic table is really just a sorted list of how many of each an atom has. Get the three particles and their locations locked in — this is the foundation every later calculation (isotopes, ions, configurations) rests on.

  • Nucleus: tiny, dense centre holding protons (+1 charge, mass ≈1 u) and neutrons (0 charge, mass ≈1 u) — accounts for almost all the atom's mass.
  • Electron shells: surround the nucleus, hold electrons (−1 charge, negligible mass ≈1/1836 u) — account for almost all the atom's volume.
  • Atomic number (Z) = number of protons = defines the element (change Z, change the element).
  • Mass number (A) = protons + neutrons (NOT electrons — electrons barely add mass).
  • Neutral atom: protons = electrons, so overall charge is zero; an ion has protons ≠ electrons.
Atomic number (Z)
the number of protons in the nucleus of an atom; defines the element.
Mass number (A)
the total number of protons and neutrons in the nucleus of an atom.
Nuclide
a specific type of atom characterised by a fixed number of protons and neutrons, written as .
Ion
an atom (or group of atoms) that has lost or gained electrons, giving it an overall positive or negative charge.

Rutherford-Bohr model of a sodium atom

Electron arrangement 2,8,1 for sodium — 1 valence electron in shell 3 is why sodium forms a +1 ion and sits in Group 1.

Nucleus (11 protons, 12 neutrons)Shell 1 (2 electrons)Shell 2 (8 electrons)Shell 3 (1 electron, valence)

Nuclide notation and the two whole-number rules

Nuclide notation: A = mass number (top), Z = atomic number (bottom), X = element symbol.

— mass number = protons + neutrons
— atomic number = number of protons
Memorise

Mass number equals atomic number plus number of neutrons.

— number of neutrons

Mass number vs relative atomic mass

Treating the mass number (A) shown in nuclide notation as identical to the relative atomic mass (Ar) printed on the periodic table.

Consequence: Using 35 (the mass number of the most common chlorine isotope) instead of 35.45 (Ar of chlorine, a weighted average across isotopes) in a calculation gives an answer close in size but marked wrong — examiners check you understand WHY they differ.

Fix: Mass number (A) is always a whole number and belongs to one specific isotope. Relative atomic mass (Ar) is a decimal, weighted-average value across ALL naturally occurring isotopes of that element — use Ar for mole/mass calculations, use A only for identifying a specific isotope.

Key takeaways

  • Protons fix the element (atomic number); neutrons can vary (isotopes); electrons balance protons in a neutral atom.
  • Mass number = protons + neutrons; relative atomic mass is a separate, weighted-average decimal value.
  • Almost all mass sits in the nucleus; almost all volume is empty space occupied by the electron shells.

Isotopes and Relative Atomic Mass

Same element, different mass

Isotopes are the reason the periodic table's mass values are ugly decimals instead of clean whole numbers — chlorine's 35.45 isn't a typo, it's an average across two isotopes that exist in fixed natural proportions.

  • Isotopes: atoms of the same element (same Z, same protons) with different numbers of neutrons, so different mass numbers.
  • Chemically near-identical (same electron configuration, same reactivity); physically different (different mass, some isotopes radioactive).
  • Relative atomic mass (Ar) is NOT a simple average of the mass numbers — it's a weighted average, using each isotope's natural abundance (%) as the weighting.
Isotope
atoms of the same element with the same number of protons but a different number of neutrons, giving a different mass number.
Relative atomic mass (Ar)
the weighted average mass of the naturally occurring isotopes of an element, relative to the mass of a carbon-12 atom.
Natural abundance
the percentage of atoms of an element in a natural sample that are a particular isotope.

Weighted average calculation

Relative atomic mass = sum of (each isotope's mass number × its percentage abundance), divided by 100.

— relative atomic mass (dimensionless, relative to carbon-12)
Memorise

Mass spectrum of chlorine

The relative peak heights ARE the abundances used directly in the weighted-average calculation for Ar.

m/z = 35 (75.77%)m/z = 37 (24.23%)

Worked example

Calculating Ar of chlorine from isotopic data

[3]
Chlorine has two isotopes: Cl-35 (75.77% abundance) and Cl-37 (24.23% abundance). Calculate the relative atomic mass of chlorine to 2 decimal places.

Ar close to a whole number ≠ only one isotope

Don't assume that because Ar(Cl) = 35.45 is 'close to 35', chlorine is 'mostly one isotope with a tiny bit of contamination'. Describe it properly as a weighted average of two isotopes present in a fixed natural ratio, or you'll lose the terminology mark.

Key takeaways

  • Isotopes share atomic number (protons) but differ in neutron number and mass number.
  • Relative atomic mass is a weighted average using isotopic abundance, never a simple average of mass numbers.
  • The periodic table's decimal masses exist BECAUSE isotopes occur in fixed natural proportions.

Electronic Configuration and Shell Model

From shells to subshells

The simple shell model (2, 8, 8...) gets you through most of MYP chemistry, but exam questions push further into spdf notation — the same information, written with more precision about exactly which subshell each electron sits in.

  • Shell model: electrons fill shells in order; maximum capacity is (shell 1: 2, shell 2: 8, shell 3: 8 for main-group filling order, though it can technically hold 18 once d-orbitals fill later).
  • Each shell (except shell 1) splits into subshells labelled s, p, d, f, each with a fixed maximum: s holds 2 electrons, p holds 6, d holds 10, f holds 14.
  • Electrons fill the lowest-energy subshell available first (Aufbau principle) — this is why 4s fills before 3d, even though 3 < 4: the order follows energy, not shell number.
  • Valence electrons = electrons in the outermost occupied shell — these determine group number and almost all chemical behaviour.
Shell
a principal energy level (n = 1, 2, 3...) that an electron can occupy around the nucleus.
Subshell
a division within a shell (s, p, d, f), each holding a fixed maximum number of electrons and having its own energy level.
Orbital
a region within a subshell that can hold a maximum of 2 electrons.
Aufbau principle
electrons fill the lowest-energy available subshell first, before moving to a higher-energy one.
Valence shell
the outermost occupied electron shell, whose electrons determine the group number and chemical reactivity.

Shell capacity

Maximum number of electrons a shell can hold, where n is the shell (principal quantum) number.

— shell number (1, 2, 3...)
Memorise

Filling order (Aufbau diagonal rule)

Follow the diagonal arrows, not the shell numbers — this is why 4s fills before 3d.

1s2s2p3s3p4s3d4p5s4d5p6s

Remembering the Aufbau filling order

Draw the diagonal, don't trust the row number

List subshells in columns s, p, d, f with rows n = 1 to 7 stacked beneath each other, then draw a diagonal arrow sweeping from top-left downward — reading off the arrow gives 1s, 2s, 2p, 3s, 3p, 4s, 3d, 4p... directly, without needing to memorise the sequence by rote.

Worked example

Chlorine's configuration, group and period (Q2-style)

[5]
Chlorine has atomic number 17. (a) Write its complete electron configuration in spdf notation. (b) Deduce its group and period, justifying each with a specific feature of the configuration.

Confusing shell/period number with valence electron count

Reading off the highest n value and using it for BOTH the period AND assuming it equals the valence electron count.

Consequence: For chlorine, n=3 correctly gives Period 3, but valence electrons are 7 (from 3s²3p⁵), not 3 — mixing these up in the same answer contradicts your own working and costs the justification mark.

Fix: Keep the two questions separate: 'which shell number is highest?' → period; 'how many electrons are IN that highest shell (adding across all its subshells)?' → group (count valence electrons directly).

The periodic table's real limitation (Q3(b)-style)

When asked to evaluate a limitation of using periodic position/trends alone, don't just repeat the trend — name a SPECIFIC thing the table can't tell you: it shows general bonding trends but not exact experimental values, doesn't account for irregular d-block behaviour (transition metal trends are far less smooth than s/p-block trends because d-electron shielding is uneven), and can't replace real lab/materials data for engineering decisions.

Key takeaways

  • spdf notation shows exactly which subshell each electron occupies, filled in Aufbau (diagonal) order, not simple shell-number order.
  • Period = highest occupied principal shell number; Group = number of valence electrons in that outer shell.
  • 4s fills before 3d — energy order, not shell number order, governs filling.
  • Justification questions require you to reference the actual configuration you derived, not just state the known group/period from memory.

Quick Reference

Atomic Structure & Periodic Table — quick reference

Formulas

  • nuclide notation: A = mass number, Z = atomic number
  • mass number = protons + neutrons
  • weighted-average relative atomic mass
  • maximum electrons in shell n
  • definition of first ionisation energy

Key facts

Number of groups
18
Number of periods
7
Shell 1 max electrons
2
Shell 2 max electrons
8
Cl electron configuration
1s² 2s² 2p⁶ 3s² 3p⁵

Mnemonics

  • FONClF > O > N > Cl, decreasing electronegativity anchor points
  • Draw the diagonalAufbau filling order 1s, 2s, 2p, 3s, 3p, 4s, 3d... follows diagonal arrows across an s/p/d/f grid, not shell-number order

Don't confuse

  • Atomic radius vs Ionic radius: neutral atom vs charged ion — cations shrink, anions grow, relative to the neutral atom
  • Ionisation energy vs Electronegativity: energy to REMOVE an electron (kJ/mol) vs strength of ATTRACTING shared electrons in a bond (no units)
  • Mass number (A) vs Relative atomic mass (Ar): whole number for ONE isotope vs weighted-average decimal across ALL natural isotopes

Command terms

Deduce:
use the given data/pattern explicitly — don't just quote theory
Explain:
state the trend AND give the causal mechanism (shielding/nuclear charge)
Justify:
tie your reasoning explicitly back to the specific placement/claim
Evaluate:
give a limitation as well as a strength — one-sided answers cap marks

Exam checklist

  • Can you state group number, period number and block just from an electron configuration?
  • Can you explain (not just describe) why atomic radius decreases across a period?
  • Can you spot the 'big jump' in successive ionisation energies and convert it to a group number?
  • Can you calculate Ar from isotopic abundance data without averaging mass numbers directly?
  • Can you write a complete spdf electron configuration and justify group/period from it?
