Energy Forms and Transfer

Cover illustration for Energy Forms and Transfer (Sciences MYP Year 2).
MYP · Sciences MYP Year 2

Energy Forms and Transfer

18 min readStandardCentral strand of MYP Sciences Year 2 — recurs across Criterion A (Knowing & Understanding) and Criterion C (Processing & Evaluating) tasks; almost every unit test includes at least one conservation-of-energy 'state' question and one efficiency or transformation calculation.

Every question in this unit — bouncing balls, swinging pendulums, lamps, power stations — is really asking the same thing: where did the energy go, and how much of it stayed useful? Get comfortable with 'transformed, not destroyed' as your default explanation, and the rest of this topic falls into place fast.

Overview: How This Topic Fits Together

Energy shows up in this course in nine recognisable forms, moves between objects by transfer, and changes identity by transformation — but the one rule that never breaks is that the total amount stays fixed. Almost every exam question here is really testing whether you can track energy through a process and name exactly where it ended up, rather than saying it 'disappeared'.

  • Conservation of energy is the law underneath everything else in this unit — it's why 'lost' energy is banned vocabulary in your answers.
  • Heat moves by conduction, convection, or radiation depending entirely on what medium is available.
  • Resources (renewable vs non-renewable) are classified purely by how fast nature replaces them, not by how clean they are.
  • Efficiency measures how much of the energy you put into a device comes out in the form you actually wanted.

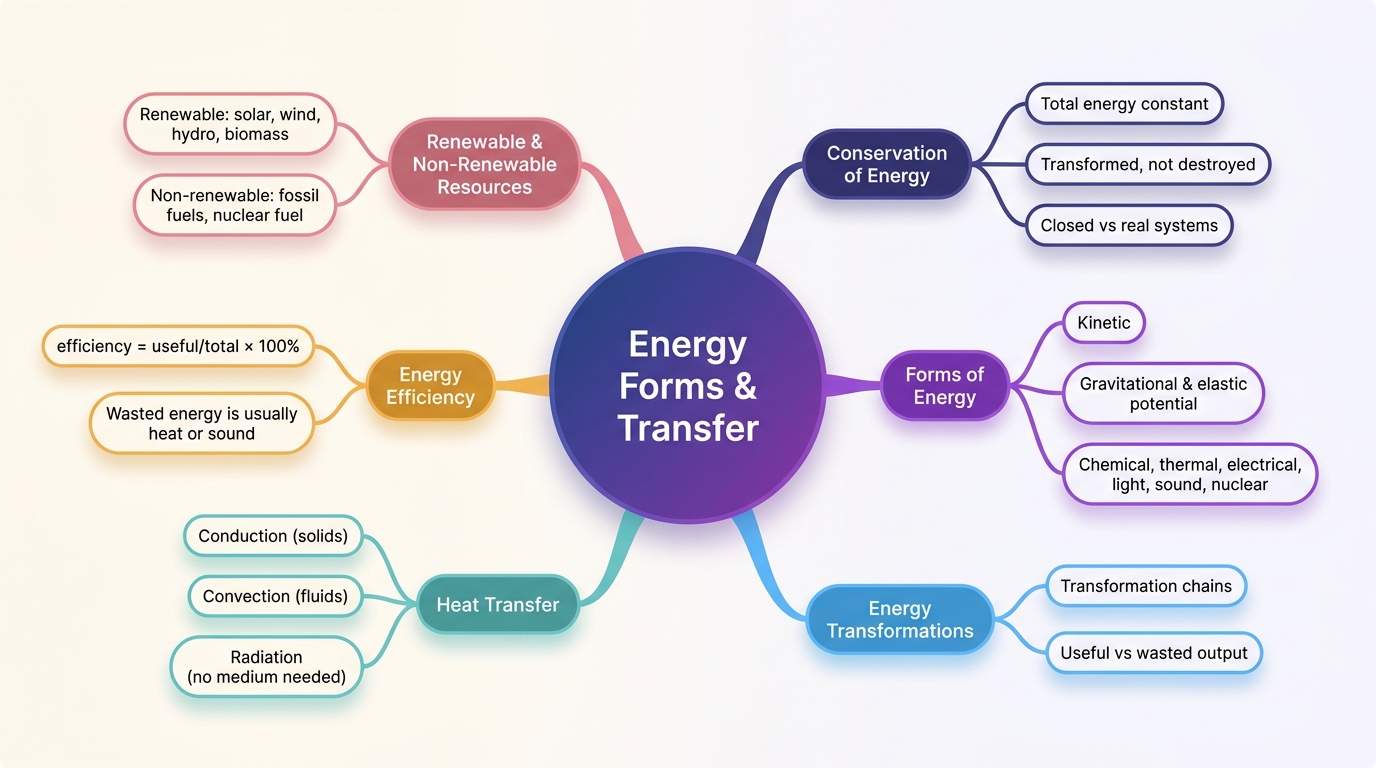

The shape of the chapter

Command terms this topic actually uses

Command termWhat it demandsAOMark-earning move
StateGive a precise, recallable statement — a law or definition — with no explanation or working required.AO11 mark is for the exact correct structure of the law (energy cannot be created or destroyed, only transformed/transferred); a vague paraphrase like 'energy stays the same' often loses the mark.
IdentifyName or select a specific quantity, variable, or position from given data or a diagram.AO11 mark for the single correct answer — no justification needed, but the wrong item scores zero even with good reasoning attached.
ExplainState what happens AND give the reason or mechanism linking cause to effect.AO2Marks split as observation + causal reasoning; answers that only describe (no 'because'/mechanism) usually cap at half marks.
CompareMake an explicit statement of similarity and/or difference — both things being compared must appear in the answer.AO2Full marks need both sides referenced in the same sentence; describing only one side scores half marks at most.
CalculateUse a formula, show substitution/working, and give a final numerical answer with the correct unit.AO1/AO2Method marks are awarded even if the final number is wrong (error carried forward); no working shown means no method mark, even with a correct final answer.

Key point

Energy is never created, destroyed, or 'used up' — it only moves between objects (transfer) or changes form (transformation). Whatever the scenario, total energy before = total energy after; only the split between useful and wasted forms changes.

Conservation of Energy

Every energy question in this topic — bouncing balls, swinging pendulums, falling objects — comes back to one rule: the total amount of energy in a closed system never changes. What changes is the FORM the energy takes, and how much of it stays useful to whatever motion you're tracking.

  • A 'closed system' has nothing (matter or energy) entering or leaving during the process studied — real setups (a bouncing ball, a swinging pendulum) are never perfectly closed, which is exactly why height and speed decrease over time.
  • Energy that seems to disappear (sound when a ball hits the floor, heat from friction at a swing's pivot) hasn't vanished — it has transformed into a form that's harder to measure and no longer useful for the motion you're following.
  • This is why these questions almost never ask you to calculate a 'loss' — they ask you to identify where the missing energy actually went.
Law of Conservation of Energy
Energy cannot be created or destroyed. It can only be transferred from one object to another or transformed from one form into another; the total energy of a closed system stays constant.the single most-quoted 'state' answer in this topic — examiners want this exact structure, not a paraphrase
Closed system
A set of objects and their surroundings across which no energy or matter enters or leaves during the process being studied.a bouncing ball + Earth + air + floor together form a closed system, even though the ball alone does not

Gravitational potential energy stored as an object is raised.

— mass (kg)
— gravitational field strength (N/kg (≈9.8))
— height above a reference point (m)
Memorise

Mostly used qualitatively at this level — you're expected to reason 'height doubled so GPE doubled', not always substitute numbers.

Kinetic energy of a moving object.

— mass (kg)
— speed (m/s)
Memorise

In an ideal (friction-free) system the sum of all energy forms present stays fixed at every point of the motion — real systems lose useful mechanical energy to heat and sound instead.

Pendulum energy conversion: A → B → C

GPE is maximum at both turning points (A and C); KE is maximum at the lowest point (B).

PivotStringBallPosition APosition BPosition CGPEKE

Worked example

Bouncing basketball — state, explain, compare

[5]
A student drops a basketball from a height of 2.0 m. It bounces and rises to only 1.2 m. (a) State the Law of Conservation of Energy. [1] (b) Explain why the basketball does not return to its original height of 2.0 m. [2] (c) The student cannot measure the sound and heat produced during the bounce. Compare whether this makes the Law of Conservation of Energy valid or invalid. [2]

Worked example

Ball released from a shelf — compare total energy at two positions

A ball is released from rest on a shelf 2 m above the ground, shown at three positions: A (on the shelf, 2 m high), B (falling, 1 m high), C (just about to hit the ground). (a) State the law of conservation of energy. [1] (b) Identify the type of energy the ball has at position A and at position C. [1] (c) Compare the total energy at position A with the total energy at position C.

Worked example

Pendulum — where is GPE greatest, where is KE greatest

The diagram shows a pendulum swinging between three positions. Position A is the highest point on the left, position B is the lowest point in the middle, and position C is the highest point on the right. (a) Identify the position(s) where gravitational potential energy is greatest. [1] (b) Identify the position where kinetic energy is greatest. [1]

Common mistake

Describing energy as 'lost', 'used up' or 'gone' when a ball loses height or a swing slows down.

Consequence: On explain/describe questions this typically caps the answer at half marks — examiners want the specific form the energy converted into, not an admission that some energy disappeared.

Fix: Always finish the sentence with 'transformed into ___ energy' — name sound, thermal, or another specific form; never leave it as a vague loss.

'State' vs 'explain' on the same law

When a question says 'state the law of conservation of energy', write the one-sentence law and stop — extra explanation about the specific scenario earns no additional marks and wastes time. Save scenario-specific reasoning for the explain or compare part that usually follows straight after.

Key takeaways

  • Total energy in a closed system is always constant — only its form (and how useful it is) changes.
  • 'Missing' energy in real experiments (bouncing balls, swinging pendulums) has gone into sound and heat, not out of existence.
  • GPE is maximum at the highest/slowest points of a motion; KE is maximum at the lowest/fastest point — their sum stays fixed if friction and air resistance are ignored.

Heat Transfer: Conduction, Convection, Radiation

Heat (thermal energy) always flows from hotter to colder regions until they reach the same temperature, and it does so by three distinct mechanisms depending entirely on what material it's moving through.

  • Conduction needs a solid (or touching particles) — energy passes particle-to-particle through vibration and collision, without the particles themselves changing position.
  • Convection needs a fluid (liquid or gas) — heated regions physically rise (because they expand and become less dense) while cooler, denser fluid sinks to replace them, setting up a circulating current.
  • Radiation needs no medium at all — it travels as electromagnetic (infrared) waves and works even through the vacuum of space, which is the only way the Sun's energy reaches Earth.
Conduction
Transfer of thermal energy through a material by direct particle-to-particle vibration and collision, without the particles changing position.metals conduct fast because free electrons carry energy quickly through the lattice
Convection
Transfer of thermal energy through a fluid by the bulk movement of heated (less dense) fluid rising and cooler (denser) fluid sinking.only happens in liquids and gases — never in solids
Radiation
Transfer of thermal energy by electromagnetic (infrared) waves, requiring no medium or particles at all.the only heat transfer method that works through a vacuum

Heat transfer in a pan of water on a stove

All three mechanisms usually act together in one everyday scene — identify which arrow is which.

ConductionConvectionRadiationStove burnerPanWaterHandle

Conduction vs Convection vs Radiation

FeatureConductionConvectionRadiation
Medium requiredSolid (particles touching)Fluid (liquid or gas)None — works in a vacuum
How energy movesParticle-to-particle vibration/collision; particles stay in placeBulk movement of heated fluid (rising/sinking currents)Electromagnetic (infrared) waves
Typical speedFast in metals, slow in insulatorsModerate — depends on density differencesVery fast (speed of light)
Everyday exampleMetal spoon heating in hot soupRoom heater warming a whole room via air currentsFeeling the Sun's or a fire's warmth from a distance

Why thermos flasks and houses fight all three at once

A vacuum flask has a double-walled vacuum gap (blocks conduction and convection since there's no material to carry heat) plus a shiny silvered inner surface (reflects radiation back in). House insulation copies the same trick — double-glazed windows trap a thin layer of still air (a poor conductor, and too thin to convect properly), while loft insulation traps air pockets to stop convection currents carrying heat straight up through the roof.

Common mistake

Assuming radiation needs warm air or some kind of medium to 'carry' the heat, or claiming convection can happen in solids.

Consequence: Loses the mark on identify-the-mechanism questions — radiation-and-space questions specifically test whether you know radiation crosses a vacuum.

Fix: Fix the rule as: solids → conduction only; fluids → conduction and convection; anything, including empty space → radiation.

Key takeaways

  • Match the mechanism to the material: solid = conduction, fluid = convection (plus some conduction), any medium or none = radiation.
  • Convection currents exist because heated fluid expands, becomes less dense, and rises — density difference is the real driver, not 'heat rising' on its own.
  • Radiation is the only mechanism that crosses a vacuum, which is why the Sun can warm Earth across empty space.

Renewable and Non-Renewable Resources

Every form of energy we use for electricity or fuel ultimately comes from a resource, and those resources split into two categories based on how fast nature replaces them compared to how fast we use them.

  • Renewable resources are replenished naturally at a rate comparable to (or faster than) how quickly we use them — solar, wind, hydroelectric, geothermal, biomass.
  • Non-renewable resources exist in fixed, finite quantities and take millions of years to form (or don't reform at all) — fossil fuels (coal, oil, natural gas) and the uranium used in nuclear power.
  • 'Renewable' is not the same as 'clean' or 'zero-impact' — burning biomass still releases CO₂, and building turbines or dams has environmental costs too; the split is purely about how fast the resource itself is replaced, nothing else.
Fossil fuel
A non-renewable energy resource (coal, oil, natural gas) formed over millions of years from the compressed remains of ancient organisms; releases stored chemical energy as thermal energy when burned.burning is a chemical → thermal energy transformation, and also releases CO₂ that took millions of years to lock away
Nuclear fuel
Uranium (or a similar radioactive material) used in nuclear power stations; classified as non-renewable because Earth's supply is finite, even though its energy release doesn't depend on combustion.commonly and wrongly assumed to be renewable just because it doesn't burn fossil carbon

Renewable vs non-renewable at a glance

Resource typeExamplesFormation timeKey limitation
RenewableSolar, wind, hydroelectric, geothermal, biomassContinuously replenished (days–years)Output often depends on weather/location; needs large land or water area
Non-renewableCoal, oil, natural gas, nuclear (uranium)Millions of years (fossil fuels); fixed deposit (uranium)Finite supply; fossil fuels release greenhouse gases and pollutants on combustion

Reading an energy mix

A country's electricity 'energy mix' — a chart of percentage coal, gas, nuclear, wind, solar, hydro — is a standard way this topic is examined in reports and questions. Practise sorting each slice into renewable vs non-renewable before answering anything about it.

Common mistake

Classifying nuclear power as renewable because 'it doesn't produce CO₂' or 'it's clean energy'.

Consequence: A straightforward classify error that examiners specifically test — clean/low-carbon is a separate property from renewable/non-renewable, and mixing them up loses the identify mark.

Fix: Ask only one question to classify a resource: 'does nature replace this as fast as (or faster than) we use it?' Uranium: no → non-renewable, regardless of how clean its emissions are.

Key takeaways

  • Classify by replenishment rate only: renewable = replaced about as fast as used; non-renewable = finite, takes millions of years (or never reforms).
  • Nuclear fuel is non-renewable even though it isn't a fossil fuel and emits no CO₂ during generation.
  • 'Renewable' does not automatically mean 'no environmental impact' — every energy resource has some cost or footprint.

Energy Efficiency and Real-Life Use

No real energy transformation is 100% useful — every device wastes some input energy, almost always as heat or sound, which is why 'efficiency' measures the fraction of input energy that actually ends up doing the job you wanted.

  • Efficiency compares USEFUL output energy to TOTAL input energy — wasted energy (friction heat, sound, unwanted light) is never zero in a real device.
  • Efficiency is always less than 100% for any real machine because of unavoidable friction, resistance, and sound losses; you don't need the deeper physics behind this at this level, just the concept and the calculation.
  • Higher efficiency doesn't mean more total energy in — it means a larger share of the same input ends up useful rather than wasted.

Percentage of input energy converted into the form you actually want.

— energy transformed into the wanted form (e.g. light from a lamp) (J)
— all energy supplied to the device (J)
Memorise

Denominator is always the TOTAL input, never the wasted energy or a single wasted category.

Worked example

Lamp efficiency — input, outputs, and missing category

[5]
A lamp receives 200 J of electrical energy. It produces 120 J of light energy and 60 J of thermal energy (heat). The rest is released as sound energy. (a) Identify the amount of useful light energy the lamp produces. [1] (b) Calculate the amount of energy released as sound. Show your working. [2] (c) Use the efficiency formula to calculate how well the lamp converts energy into useful light.

Efficiency's denominator is always TOTAL input

Whatever numbers a question gives, efficiency's denominator is the full energy supplied to the device — never the sum of the 'other' outputs, and never just one wasted category. Check units match (both in joules, or both in watts) before dividing.

Key takeaways

  • Efficiency = useful output ÷ total input × 100%; wasted energy is never destroyed, just transformed into a less useful form (usually heat or sound).
  • All outputs must sum to the total input — use this to calculate any 'missing' output category, exactly as with the lamp's sound energy.
  • A device can never be 100% efficient — real-world friction, resistance, and sound losses are unavoidable.

Forms of Energy

Physicists group all the different 'flavours' of energy into a manageable list of forms — knowing this list, and matching each real-world example to its correct form, is exactly what identify-type questions in this topic are testing.

Kinetic energy
Energy an object has because it is moving; increases with mass and with the square of speed.
Gravitational potential energy (GPE)
Energy an object has because of its height/position within a gravitational field; increases with height and mass.
Elastic potential energy
Energy stored in an object stretched, compressed, or twisted from its natural shape — e.g. a stretched spring or bent bow.
Chemical energy
Energy stored in the bonds between atoms/molecules, released during chemical reactions such as combustion or digestion.
Thermal energy (heat)
The total kinetic energy of the randomly moving particles within a substance; flows from hotter to colder regions.
Electrical energy
Energy carried by moving electric charge (current) through a circuit or field.
Light energy
Energy carried by the visible part of the electromagnetic spectrum.
Sound energy
Energy carried by mechanical vibrations travelling as a wave through a medium; cannot travel through a vacuum.
Nuclear energy
Energy stored within the nucleus of an atom, released during nuclear fission or fusion reactions.

Forms of energy — everyday examples

Form of energyEveryday example holding this form
KineticA moving car, a thrown ball, wind
Gravitational potentialA book on a high shelf, water behind a dam
Elastic potentialA stretched bungee cord, a compressed spring, a drawn bow
ChemicalFood, batteries, petrol/fuel
ThermalA cup of hot tea, the inside of an oven
ElectricalCurrent flowing through household wiring
LightSunlight, a torch beam, an LED bulb
SoundA ringing bell, a speaker playing music
NuclearUranium fuel in a reactor, the Sun's core (fusion)

Mnemonic

Kevin's Great Elephant Chews Thick Electric Lightbulbs, Sounding Noisy

K = Kinetic, G = Gravitational potential, E = Elastic potential, C = Chemical, T = Thermal, E = Electrical, L = Light, S = Sound, N = Nuclear — the nine forms of energy examined at this level, in one memorable sentence.

Frequently confused

Concept AConcept BThe distinction that matters
Kinetic energyGravitational potential energyKE depends on an object's SPEED (it's moving now); GPE depends on its HEIGHT/position (it's stored, ready to convert into motion if released) — a ball held still on a shelf has GPE but zero KE.
Heat (thermal energy)TemperatureHeat is a form of ENERGY (joules) — the total kinetic energy of all particles in a substance; temperature is a MEASURE (°C/K) of the average kinetic energy per particle — a bathtub of warm water holds far more heat energy than a cup of boiling water, despite its lower temperature.

Common mistake

Using 'heat' and 'temperature' interchangeably, e.g. saying 'the water has more heat' when meaning 'higher temperature'.

Consequence: Costs marks on identify/describe questions that specifically test this distinction — examiners treat these as two different quantities with different units (J vs °C).

Fix: Say 'thermal energy' (joules) when discussing energy transferred or stored, and 'temperature' (°C) only when discussing how hot something measures — never swap the two words.

Key takeaways

  • There are nine commonly examined forms of energy — know one everyday example for each so identify questions are instant recall, not guesswork.
  • KE depends on motion (speed); GPE depends on position (height) — an object can have one, the other, both, or neither.
  • Heat (thermal energy, joules) and temperature (°C) are different quantities — don't use them interchangeably in answers.

Energy Transformations

Devices exist to turn one form of energy into another that's more useful to us — but every real transformation chain also leaks some energy into forms we don't want, which is why tracking the FULL chain (useful + wasted) is what transformation questions actually test.

  • A transformation chain names every input and every output form, in order — e.g. a torch: chemical (battery) → electrical → light (useful) + thermal (wasted).
  • The independent variable in an experiment is the one YOU choose and change (e.g. drop height); the dependent variable is the one you measure as a result (e.g. bounce height).
  • Where a relationship between two variables is directly proportional, the ratio (output ÷ input) stays constant across every data pair — checking that ratio is how you both identify the relationship AND predict untested values.

Energy transformation chains in everyday devices

Every chain must account for wasted outputs too, not just the useful one.

Chemical energyElectrical energyLight energyThermal energyKinetic energySound energyTorchToasterSolar panelCar engine

Worked example

Drop height vs bounce height — spotting proportionality and predicting

Students dropped a tennis ball from different heights onto a concrete floor and recorded the bounce height each time. Drop height (m): 0.50, 0.80, 1.00, 1.20. Bounce height (m): 0.35, 0.56, 0.70, 0.84. (a) Identify the relationship between drop height and bounce height shown in the data. [1] (b) Calculate the predicted bounce height when the ball is dropped from 1.50 m. Show your working.

Worked example

Independent vs dependent variable

A student drops the same ball from different heights onto the same surface and records how high it bounces each time. (a) Identify the independent variable. [1] (b) Identify the dependent variable. [1]

Worked example

Playground swing — friction and total energy

A child swings back and forth on a playground swing. At the highest point, the child has maximum potential energy; as the child descends, this converts to kinetic energy. Friction at the pivot gradually slows the swing. (a) Identify one reason why friction is useful to a playground designer. [1] (b) Explain what would happen to the swing's total energy over time due to friction. [2]

Common mistake

Saying a slowing swing or a bouncing ball violates the law of conservation of energy because it 'has less energy' at the end.

Consequence: This directly contradicts the core law tested throughout the unit and loses marks on any conservation-linked explain/compare question.

Fix: Distinguish USEFUL mechanical energy (which does decrease) from TOTAL energy (which never changes) — friction and collisions convert the former into heat and sound, they don't destroy the latter.

Key takeaways

  • Every transformation chain must be traceable from input form to every single output form, useful and wasted alike.
  • A directly proportional relationship shows up as a constant ratio between two variables — confirm it across several data pairs before using it to predict.
  • Independent variable = what you deliberately change; dependent variable = what you measure as a result of that change.

Quick Reference

Energy Forms and Transfer — everything on one page

Formulas

  • GPE increases with height and mass
  • KE increases with speed squared
  • denominator is always TOTAL input energy

Key facts

Number of examined energy forms
9 (kinetic, GPE, elastic PE, chemical, thermal, electrical, light, sound, nuclear)
Efficiency of any real device
always less than 100%
Heat transfer mechanism needing no medium
radiation only

Mnemonics

  • Kevin's Great Elephant Chews Thick Electric Lightbulbs, Sounding Noisy9 forms of energy: Kinetic, Gravitational potential, Elastic potential, Chemical, Thermal, Electrical, Light, Sound, Nuclear

Don't confuse

  • Kinetic energy vs Gravitational potential energy: KE = moving now (speed); GPE = stored now (height)
  • Heat vs Temperature: Heat = total energy (J); temperature = average particle KE (°C)
  • Renewable vs Non-renewable: Replaced as fast as used vs finite/millions of years to form — not the same split as clean vs polluting

Command terms

State:
exact one-line law/definition, no working
Identify:
single correct item, no justification
Explain:
observation + causal mechanism, both required
Compare:
reference BOTH quantities/things explicitly
Calculate:
show formula, substitution, and answer with unit

Exam checklist

  • Named the specific energy form the 'missing' energy went into — never just 'lost'
  • Used TOTAL input energy as the efficiency denominator
  • Distinguished GPE (height/position) from KE (speed/motion) rather than guessing
  • Classified renewable/non-renewable by replenishment rate, not by 'cleanliness'
  • Matched heat transfer mechanism to the medium: solid → conduction, fluid → convection, any/none → radiation
  • Identified independent variable as what was deliberately changed, dependent as what was measured
