Matter and Its Properties
MYP Sciences Year 2 — Matter and Its Properties (MYP has no fixed numerical syllabus codes like DP; content maps to the MYP Sciences framework strands: scientific knowledge of matter, separation techniques, particle theory, and physical/chemical change)
Every question in this topic is really asking one thing: can you tell substances apart using evidence, not appearance? A yellow powder that decomposes when heated and a yellow powder that doesn't are completely different categories of matter — the colour tells you nothing. Examiners build almost every question here around a table of data, a diagram of particles, or a graph, and expect you to read the evidence rather than guess from what something looks like.
Overview — The Shape of This Topic
This topic builds outward from the smallest scale to the observable one. You start with the atom (what a single particle of an element actually is), zoom out to how atoms combine or mix to form elements, compounds and mixtures, then use the physical differences between substances to separate them apart again. Acids and bases are a special, heavily-tested category of compounds identified by indicators. Finally, particle theory explains why matter behaves as solid, liquid or gas, and physical vs chemical change asks you to judge, from evidence, whether a new substance has actually been formed.
- Every classification question (element/compound/mixture, physical/chemical change) is decided by a test, not a look — decomposition by heat, new properties forming, reversibility.
- Chemical symbols are an international language: one capital letter, optionally one lowercase letter, never shared between two elements.
- Separation techniques are chosen by matching the technique to the specific physical property difference between the substances (solubility, particle size, boiling point, density, magnetism).

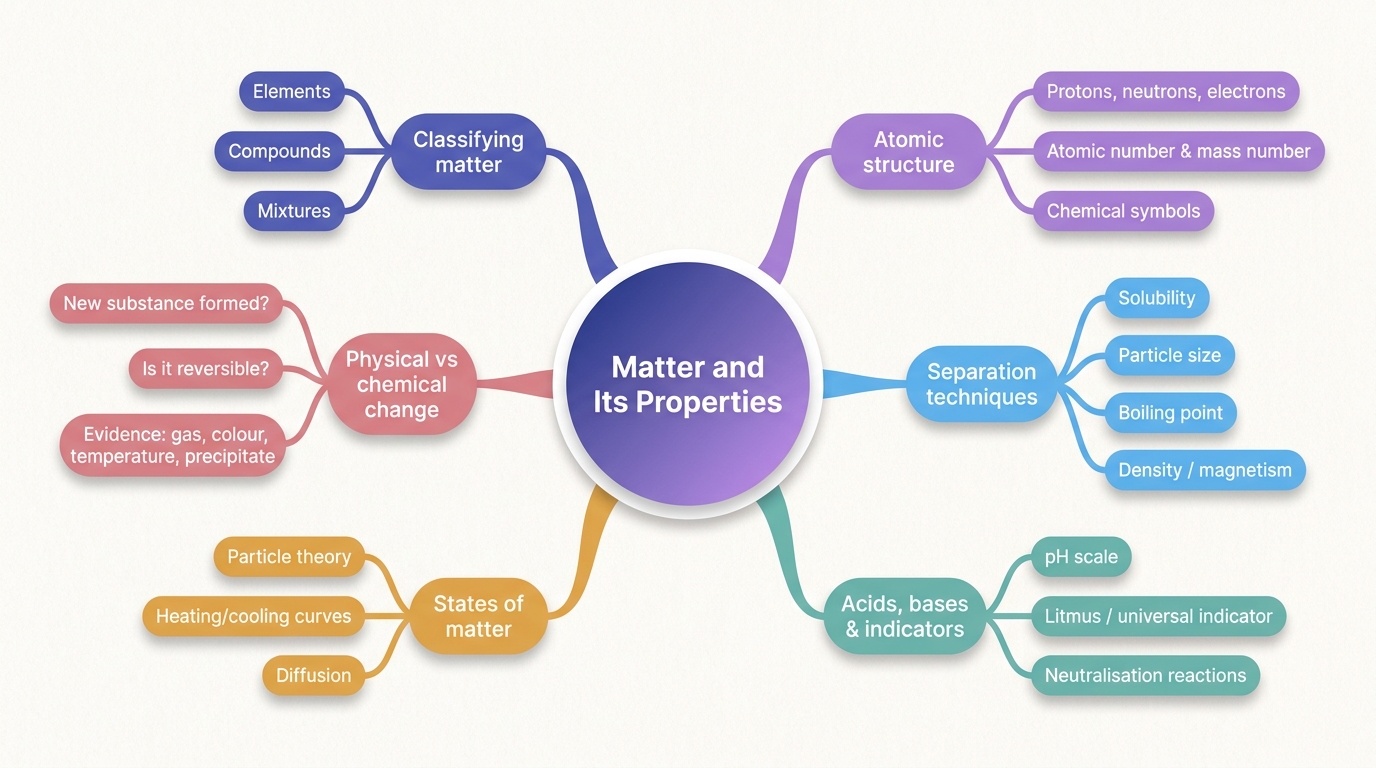

The shape of the chapter
Command terms that decide your marks in this topic
| Command term | What it demands | AO | Mark-earning move |
|---|---|---|---|
| State | Give a short, precise answer — a word, phrase or single fact. | Criterion A | One correct fact scores the mark; adding reasoning wastes time but never loses marks. |
| Identify | Pick out the correct item from data given (a table, diagram or list). | Criterion A | You must point to something specific in the stimulus — 'the element' is not enough, name W or Y. |
| Describe | Give a detailed, accurate account of what is observed or how something works. | Criterion A/C | Needs more than one word but no explanation of why — sequence and detail earn the marks. |
| Explain | Give reasons — link a cause to an effect. | Criterion C | A fact alone gets half marks; you must add 'because...' linking it to particle theory or a definition. |
| Compare | Give both similarities AND differences between two things. | Criterion C | Stating only a difference (or only a similarity) caps you at half the available marks. |
| Distinguish | Explain the difference between two easily confused things. | Criterion C | One clean discriminating feature scores full marks; a long description of both without contrast does not. |
| Deduce | Reach a conclusion using evidence given, not prior knowledge alone. | Criterion C | You must reference the specific data point (e.g. 'decomposed by heat') that led to your conclusion. |
| Justify | Give reasons that support a stated claim or conclusion. | Criterion C | The claim must already be stated (yours or given) — you supply the supporting evidence, not a new claim. |
Key point
Elements, Compounds and Mixtures
All matter falls into one of three categories, and the categories are defined by what happens when you try to break the substance apart — not by how it looks. An element is chemically 'as simple as it gets'; a compound is two or more elements locked together in a fixed ratio by chemical bonds; a mixture is anything physically combined with no fixed ratio and no new chemical bonds formed.
- Elements are represented by a unique chemical symbol, agreed internationally (IUPAC) so that scientists in different countries read exactly the same data — this is why means lead and means mercury everywhere, regardless of the local language.
- A compound's properties are usually completely different from the elements that formed it: sodium (explosive metal) + chlorine (toxic gas) → sodium chloride (table salt) — a genuinely new substance.
- A mixture keeps the individual properties of its parts and can, in principle, always be separated by a physical method — no chemical reaction is needed to pull it apart again.
- Element
- A pure substance made of only one type of atom; cannot be broken down into simpler substances by chemical means.e.g. oxygen (O), iron (Fe), gold (Au)
- Compound
- A pure substance formed when two or more elements chemically combine in a fixed ratio; can be broken down into simpler substances (its elements) by chemical means such as heat or electrolysis.
- Mixture
- Two or more substances (elements and/or compounds) physically combined in no fixed ratio, with each substance keeping its own properties; separable by physical methods.
- Atom
- The smallest particle of an element that still has the chemical properties of that element.
- Molecule
- Two or more atoms chemically bonded together — can be the same element (e.g. ) or different elements (e.g. ).
Particle-level view: element vs compound vs mixture
The test is always the same: one colour of circle in a fixed pattern = element; two colours always joined in a fixed ratio = compound; colours scattered with no fixed ratio = mixture.
Elements vs compounds vs mixtures
| Feature | Element | Compound | Mixture |
|---|---|---|---|
| Made of | One type of atom only | Two or more types of atom, chemically bonded | Two or more substances, physically combined |
| Broken down by chemical means? | No | Yes — into simpler substances/elements | No chemical bonds to break; separate by physical means only |
| Fixed ratio of components? | n/a (single atom type) | Yes — always the same fixed ratio (e.g. is always 2:1) | No — ratio can vary freely |
| Properties of the result | n/a | New properties, different from the original elements | Each component keeps its own original properties |
| Example | Oxygen (), Iron () | Water (), Carbon dioxide () | Air, salt water, sand + iron filings |
Worked example
Deciding element or compound from a data table
Compound vs mixture — the one question to ask
| Concept A | Concept B | The distinction that matters |
|---|---|---|
| Compound | Mixture | Ask: 'Is there a fixed ratio, and would breaking it apart need a chemical reaction?' Fixed ratio + chemical bonds broken = compound. Any ratio + physically separable = mixture. |
| Alloy (e.g. brass) | Compound | An alloy looks like one uniform solid but is a mixture of metals with no fixed ratio and no new chemical bonds — it can (in principle) be separated by physical means, unlike a true compound. |
"It looks uniform, so it must be a compound"
Students assume that because a mixture (like an alloy, or salt fully dissolved in water) looks smooth and uniform, it must be a compound with fixed chemical bonds.
Consequence: This loses the classification mark because uniform appearance is irrelevant — the test is whether the substances are chemically bonded in a fixed ratio, not whether you can see separate bits.
Fix: Ask 'could I get the original substances back using only a physical method (evaporating, filtering, using a magnet)?' If yes, it's a mixture, however uniform it looks.
Why chemical symbols matter for pollution monitoring
Key takeaways
- Element, compound, mixture are defined by chemical bonding behaviour and fixed ratio — never by appearance.
- The one test that separates element from compound: can it be broken into simpler substances by chemical means?
- Mixtures are always physically separable and each component keeps its own properties.
- Chemical symbols are internationally standardised — one capital letter, at most one lowercase letter, never shared.
Atomic Structure (Introductory)
Every element is defined by its atom — specifically by the number of protons in its nucleus. Get that number and you know exactly which element you're looking at, no matter what compound or mixture it happens to be part of.
- The nucleus (protons + neutrons) sits at the centre and carries essentially all the mass; electrons orbit in shells around it and carry essentially none of the mass but all of the negative charge.
- Atomic number () = number of protons = number of electrons in a neutral atom. It is the element's 'ID number' — change it and you change the element.
- Mass number () = protons + neutrons in that particular atom. Two atoms of the same element can have different mass numbers (isotopes) because the neutron count can vary.
- Proton
- Positively charged particle found in the nucleus; its count defines the element (atomic number).
- Neutron
- Uncharged particle found in the nucleus, contributing to mass but not charge.
- Electron
- Negatively charged particle occupying shells/energy levels around the nucleus; balances proton charge in a neutral atom.
- Atomic number (Z)
- The number of protons in an atom's nucleus; unique to each element.
- Mass number (A)
- The total number of protons and neutrons in an atom's nucleus.
- Isotope
- Atoms of the same element (same ) with different numbers of neutrons, and therefore different mass numbers.
A simple atomic model (carbon)
Nucleus mass + charge, shells for arrangement only — electrons carry the charge that balances the protons.
Mass number relation
Mass number equals the number of protons plus the number of neutrons.
- — mass number (no unit (count))
- — atomic number (number of protons) (no unit (count))
- — number of neutrons (no unit (count))
Rearrange to find neutrons: — the single most common calculation question in this section.
Worked example
Why symbols follow strict rules
Mnemonic
One Capital Only (OCO)
Every element symbol has exactly one capital letter — the first — and any following letter is always lowercase: Na (sodium), not NA or na.
Capitalising the second letter of a symbol
Writing element symbols with two capital letters, e.g. 'CO' for cobalt instead of 'Co', or 'HE' for helium instead of 'He'.
Consequence: 'CO' actually means the compound carbon monoxide (carbon + oxygen), not the element cobalt — this isn't a small typo, it changes the chemical meaning entirely and is marked wrong.
Fix: Always write the second letter lowercase — train your hand to write it small even under exam time pressure.
Symbols are case-sensitive on the mark scheme
Reading food labels with element symbols
Key takeaways
- Atomic number (protons) identifies the element; mass number = protons + neutrons.
- — rearrange to find neutrons when only and are given.
- Chemical symbols: one capital letter, optional one lowercase letter, never duplicated between elements.
- Case matters — 'Co' (cobalt) and 'CO' (carbon monoxide) are not interchangeable.
Separation Techniques
Every separation technique exploits exactly ONE physical property difference between the substances in a mixture. The examiner-favourite skill is matching the correct technique to the correct property — not just naming techniques.
- Filtration: separates an insoluble solid from a liquid, using particle size (the solid can't pass through the filter paper's tiny pores).
- Evaporation: separates a dissolved solid from its solvent by boiling the solvent away, exploiting the difference in boiling point/volatility — but the solvent is lost as vapour.
- Distillation: separates a liquid from a solution (or two miscible liquids) using difference in boiling point, and — unlike evaporation — recovers the liquid too, via condensation.
- Chromatography: separates dissolved substances based on how strongly each one is attracted to the paper (stationary phase) versus the solvent (mobile phase), producing different distances travelled.
- Filtration
- Separates an insoluble solid (residue) from a liquid (filtrate) using filter paper, based on particle size.
- Evaporation
- Separates a dissolved solid from a solution by heating until all the solvent has boiled off, leaving the solid behind.
- Distillation
- Separates a liquid from a mixture (or two miscible liquids of different boiling points) by boiling and then condensing the vapour to collect the pure liquid.
- Chromatography
- Separates substances dissolved in the same solvent based on differing solubility/attraction to the paper, producing distinct spots at different distances.
- Decantation
- Carefully pouring off a liquid from a settled solid (sediment) without disturbing it.
- Magnetic separation
- Uses a magnet to remove a magnetic solid (e.g. iron filings) from a non-magnetic mixture.
Simple distillation apparatus
The thermometer bulb sits level with the side-arm — it must read the temperature of the vapour leaving, not the liquid boiling below.
Worked example
Choosing and ordering separation techniques
Two pairs students constantly mix up
| Concept A | Concept B | The distinction that matters |
|---|---|---|
| Filtration | Sieving | Filtration separates a dissolved/insoluble solid from a liquid using filter paper and fine pores; sieving separates solid particles of visibly different sizes from each other (no liquid involved), using a mesh. |
| Evaporation | Distillation | Evaporation boils the solvent away and loses it as vapour — you keep the solid. Distillation condenses that vapour back into a liquid — you recover BOTH the solid (if left behind) and the pure liquid. |
"Filter it to separate the salt from the water"
Suggesting filtration when the goal is to recover a substance that is dissolved (not suspended) in a liquid.
Consequence: Loses the full method mark, because dissolved particles are far smaller than filter paper pores and pass straight through — filtration removes zero salt.
Fix: Ask first: 'is it dissolved, or just floating/suspended?' Dissolved → evaporation/distillation. Suspended/insoluble → filtration.
Sequence marks are awarded step-by-step
Distillation and chromatography beyond the classroom
Key takeaways
- Match the technique to the property difference: particle size → filtration/sieving; solubility & volatility → evaporation; boiling point → distillation; attraction to paper → chromatography.
- Filtration never separates a dissolved solid — that needs evaporation or distillation.
- Distillation recovers the liquid; evaporation destroys/loses it as vapour.
- Method questions are marked step-by-step — describe every stage in the correct order.
Acids, Bases and Indicators
Acids and bases are identified by testing, not by taste or appearance — indicators change colour depending on where a solution sits on the pH scale, and that colour is your evidence.
- pH scale runs 0 (strongly acidic) to 14 (strongly alkaline/basic), with 7 as neutral (pure water).
- A base that dissolves in water is specifically called an alkali — all alkalis are bases, but not all bases dissolve in water (e.g. some metal oxides are bases but insoluble).
- Neutralisation: acid + base → salt + water — the acid's excess character is cancelled by the base.
- Acid
- A substance that produces ions in water and turns blue litmus red; has a pH below 7.
- Base
- A substance that can neutralise an acid, forming a salt and water; has a pH above 7.
- Alkali
- A base that dissolves in water; turns red litmus blue.
- Indicator
- A substance that changes colour depending on whether the solution is acidic, neutral or alkaline (e.g. litmus, universal indicator, phenolphthalein).
- pH scale
- A numerical scale (0–14) measuring how acidic or alkaline a solution is; 7 is neutral.
- Neutralisation
- A reaction between an acid and a base producing a salt and water, moving the pH toward 7.
The pH scale and indicator colours
Colour direction: red/orange = acidic end, green = neutral (pH 7), blue/purple = alkaline end — memorise the direction, not just the colours.
Neutralisation word equation
An acid reacting with a base always produces a salt and water, moving the solution's pH toward 7.
The specific salt formed takes its name from the acid used (e.g. hydrochloric acid → a chloride salt; sulfuric acid → a sulfate salt).
Worked example
Reading soil test results from indicator colour
Mnemonic
Blue Litmus + Acid = Red (BLAR)
An acid turns BLUE litmus RED. By elimination, a base/alkali turns RED litmus BLUE — if litmus doesn't change colour at all, the solution is neutral.
Reversing the pH colour direction
Assuming darker/more intense colours always mean 'more acidic', regardless of which colour it actually is.
Consequence: This causes students to label a strongly alkaline purple solution as strongly acidic — a complete reversal that scores zero on the classification mark, even though the colour was read correctly.
Fix: Anchor to the two ends of the scale by memory (red = acid end, purple = alkaline end) rather than judging by intensity.
Neutralisation you use every day
Key takeaways
- Acids have pH < 7, bases have pH > 7, neutral is exactly pH 7.
- Alkali = a base that dissolves in water; not every base is an alkali.
- Indicator colour direction: red/orange = acidic, green = neutral, blue/purple = alkaline.
- Neutralisation: acid + base → salt + water, moving pH toward 7.
States of Matter and Particle Theory
Particle theory explains solid, liquid and gas as three different balances between particle energy (motion) and the forces holding particles together — nothing about the particles themselves changes, only their spacing, arrangement and motion.
- Particles are always in constant motion; the amount of energy they have (linked to temperature) determines how far apart and how ordered they can be.
- Heating a substance doesn't always raise its temperature — during a change of state, all the extra energy goes into breaking/weakening bonds between particles instead.
- Diffusion (particles of a gas or liquid spontaneously spreading to fill available space) is direct evidence that particles are moving and colliding randomly, even with nothing pushing them.
- Melting / Freezing
- Solid ⇌ liquid change of state, occurring at the melting point (same temperature both directions).
- Boiling / Condensation
- Liquid ⇌ gas change of state at the boiling point (throughout the liquid, unlike evaporation).
- Evaporation
- Liquid → gas change occurring only at the surface, at any temperature below the boiling point.
- Sublimation / Deposition
- Solid ⇌ gas change of state with no liquid stage in between (e.g. solid , 'dry ice').
- Diffusion
- The net movement of particles from a region of higher concentration to lower concentration due to random particle motion.
- Density
- The mass of a substance per unit volume; reflects how tightly packed its particles are.
Particle arrangement in solid, liquid and gas
Same particles, three different spacings and motions — nothing about the particles themselves has changed.
Heating curve of a pure substance
The flat sections are the whole point of this graph — temperature stalls while energy goes into breaking bonds, not raising kinetic energy.
Density
Density equals mass divided by volume.
- — density ($g/cm^3$ or $kg/m^3$)
- — mass ($g$ or $kg$)
- — volume ($cm^3$ or $m^3$)
Solids are usually densest (tightly packed particles), gases least dense (widely spaced particles) — density differences are also exploited in separation (e.g. oil floating on water).
Properties of the three states of matter
| Property | Solid | Liquid | Gas |
|---|---|---|---|
| Shape | Fixed, own shape | Takes shape of its container | Fills entire container, no fixed shape |
| Volume | Fixed | Fixed | Not fixed — expands to fill available space |
| Compressibility | Cannot be compressed — particles touching | Very slightly compressible | Easily compressed — large gaps between particles |
| Particle arrangement | Regular, tightly packed | Close together but disordered | Far apart, random |
| Particle energy | Lowest — vibrate in fixed position | Medium — slide past each other | Highest — move fast and freely |
Worked example
Extracting melting/boiling point and reasoning from a heating curve
Evaporation vs boiling — the discriminator examiners test
| Concept A | Concept B | The distinction that matters |
|---|---|---|
| Evaporation | Boiling | Evaporation happens only at the surface, at any temperature, and is slower; boiling happens throughout the whole liquid, only at the boiling point, and is fast/visible as bubbles. |
Thinking evaporation only happens at boiling point
Assuming a puddle can only dry up (evaporate) if it reaches 100 °C.
Consequence: This misses that evaporation is a surface-only process happening at ANY temperature — puddles dry on a cool day precisely because of this, which is exactly the kind of everyday-example question examiners use to test the distinction.
Fix: Link the key word to the mechanism: evaporation = surface only, any temperature; boiling = throughout the liquid, fixed temperature only.
Sublimation on stage — and in the freezer
Key takeaways
- Particle theory: same particles, different spacing/arrangement/motion explain solid, liquid, gas.
- A heating curve's flat sections mark changes of state — temperature stalls while bonds are broken, not because heating stopped.
- : solids > liquids > gases in typical density, reflecting particle packing.
- Evaporation (surface, any temperature) is not the same process as boiling (throughout, fixed temperature).
Physical and Chemical Changes
The one question that decides this category: has a genuinely new substance, with new properties, been formed? If yes, it's chemical. If the substance is still fundamentally the same thing (just reshaped, moved, or changed state), it's physical.
- Physical changes are usually easy to reverse (freezing water, cutting paper, dissolving sugar) and no new substance forms — the same particles, just rearranged in space or state.
- Chemical changes usually can't be reversed by simple physical means, and produce a new substance with genuinely different properties (rusting iron, burning wood, baking a cake).
- Evidence for a chemical change: colour change, gas produced (bubbles), a precipitate (new solid) forming, or an unexplained temperature change — but none of these alone is 100% proof; the strongest evidence is always a new substance with new properties.
- Physical change
- A change in appearance, state or size where no new substance is formed; usually reversible.
- Chemical change
- A change in which one or more new substances are formed with different properties from the starting materials; usually not reversible by simple physical means.
- Reversible
- Can be undone by a simple physical process (e.g. re-freezing melted ice).
- Exothermic
- A change that releases energy (often as heat or light) to the surroundings.
- Endothermic
- A change that absorbs energy from the surroundings, often felt as a drop in temperature.
Evidence of a chemical change
Each of these is a clue, not proof on its own — the clincher is always a genuinely new substance with new properties.
Worked example
Judging chemical vs physical change from evidence
Physical vs chemical change — the fastest check
| Concept A | Concept B | The distinction that matters |
|---|---|---|
| Physical change | Chemical change | Ask: 'Is it still fundamentally the same substance, just rearranged/in a different state?' Yes = physical (dissolving, melting, cutting). No, a genuinely new substance exists = chemical (rusting, burning, baking). |
Treating a state change or dissolving as chemical
Calling melting ice, boiling water, or sugar dissolving in tea a 'chemical change' because 'something visibly happened' or bubbles/fizz were seen (e.g. in a fizzy drink opening).
Consequence: Loses the classification mark — melting/boiling/dissolving are all physical changes: the water is still water, the sugar is still sugar (just spread through the liquid), and no new substance has formed.
Fix: Always check: can I reverse this by a simple physical method (evaporating the water back, cooling the liquid back to solid)? If yes, it's physical, however dramatic it looks.
Name the evidence, don't just assert the answer
Chemical change you can't undo with a spoon
Key takeaways
- The decisive test: has a new substance with new properties been formed?
- Physical changes (melting, dissolving, cutting) are usually reversible and involve the same substance throughout.
- Colour change, gas, precipitate and temperature change are evidence, not proof, of a chemical change — a new substance is the strongest evidence.
- Mass 'appearing' in a reaction usually means a reactant (often a gas from the air) wasn't accounted for — mass is still conserved overall.
Quick Reference
Matter and Its Properties — everything on one page
Formulas
- Mass number = protons + neutrons; rearrange for neutrons:
- Density = mass ÷ volume; solids > liquids > gases typically
- Neutralisation always produces a salt and water
Key facts
- Neutral pH
- 7
- Water's melting point
- 0 °C
- Water's boiling point
- 100 °C
- Order of density (typical)
- solid > liquid > gas
Mnemonics
- One Capital Only (OCO)Element symbols: one capital first letter, any second letter always lowercase
- Blue Litmus + Acid = Red (BLAR)Acid turns blue litmus red; by elimination base turns red litmus blue
Don't confuse
- Compound vs Mixture: Fixed ratio + chemical bonds = compound; any ratio + physically separable = mixture
- Filtration vs Evaporation: Filtration removes insoluble solids; evaporation recovers a dissolved solid by boiling off the solvent
- Evaporation vs Boiling: Evaporation: surface only, any temperature. Boiling: throughout the liquid, fixed temperature only
- Physical change vs Chemical change: Same substance rearranged = physical; genuinely new substance formed = chemical
Command terms
- State/Identify:
- Give the fact directly from the data — no reasoning needed
- Explain:
- Fact + 'because' linking to a definition or particle theory
- Compare:
- Give at least one similarity AND one difference
- Deduce:
- Conclusion must be traceable to a specific piece of given data
- Justify:
- Supply evidence supporting an already-stated claim
Exam checklist
- Classify element/compound/mixture using decomposition behaviour, never appearance.
- Write chemical symbols with exactly one capital letter, second letter lowercase if needed.
- Match separation technique to the correct property difference (size, solubility, boiling point, density).
- Read pH/indicator colour in the correct direction: red/orange = acid, blue/purple = alkaline.
- On a heating curve, read plateaus as melting/boiling points and explain WHY temperature stalls.
- Justify physical vs chemical change using evidence of a genuinely new substance, not just 'something happened'.
