IB Middle Years Programme · Sciences MYP Year 3

Chemical Reactions and the Periodic Table

Cover illustration for Chemical Reactions and the Periodic Table (Sciences MYP Year 3).
MYP · Sciences MYP Year 3

Chemical Reactions and the Periodic Table

MYP Sciences Year 3 — Chemical Reactions and the Periodic Table

24 min readStandardCore MYP Year 3 unit — assessed through investigations, data-response tasks and unit tests across Criteria A–D (no fixed % weighting as in DP)

This unit is really two things stitched together: a map of the elements (the periodic table) and the rules for how substances change into new ones (chemical reactions). Every exam question you'll see is one of three moves — read a property off the table, predict how reactive something is, or spot the evidence that a reaction actually happened. Get comfortable naming specific evidence and specific metals, because vague answers ('it changed', 'it's a metal thing') are exactly where marks get dropped.

Overview — How This Topic Fits Together

The periodic table isn't just a poster on the wall — it's a prediction machine. Once you know where an element sits, you can predict its physical properties (metal or non-metal?), how it will react (reactivity series), and what kind of reaction it's likely to undergo. The skill examiners actually test is linking these three ideas: position → properties → reactivity → observable evidence.

  • Metals and non-metals differ in structure (electron behaviour) — that structure explains every physical property question you'll get.
  • The periodic table organises elements by proton number into periods (rows) and groups (columns) — position predicts behaviour.
  • The reactivity series ranks metals by how easily they lose electrons — this decides what reacts with what, and how metals are extracted.
  • Reactions fall into a handful of recognisable types (synthesis, decomposition, displacement, combustion) — spotting the type from an equation is a core skill.
  • A chemical change always leaves evidence — gas, colour, precipitate, temperature, light/odour — but that evidence must be linked to a new substance, not just assumed.

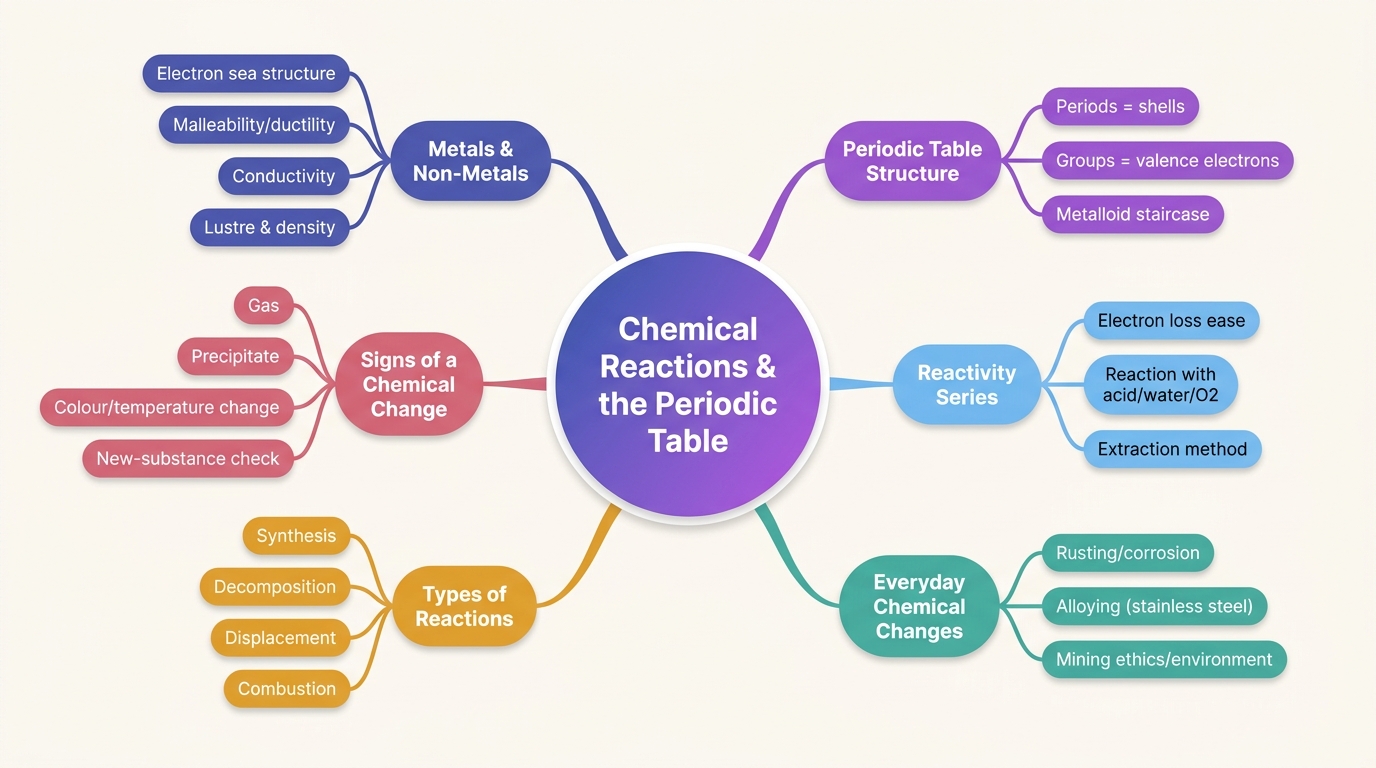

The shape of the chapter

Command terms this topic loves to test

Command termWhat it demandsAOMark-earning move
State / IdentifyGive a short, precise answer — a name, term or single fact, no reasoning required.MYP Criterion AAward 1 mark for the correct word/name only — extra explanation earns nothing but wastes time.
DescribeGive a detailed account with relevant facts, but no explanation of why.MYP Criterion A/BMarks go for accurate observations or trends (e.g. 'bubbles decrease from Mg to Cu'), not for cause.
ExplainGive reasons or a mechanism — the 'why' or 'how', usually linking cause to effect.MYP Criterion ANo mark without the causal link — 'rust forms because iron is exposed' is incomplete without stating oxygen/water reacting with iron.
AnalyseBreak an issue into parts and show relationships between them — often cost vs benefit, or trend vs cause.MYP Criterion DOne-sided answers (only costs, only benefits) cap at half marks — both sides must be weighed.
EvaluateWeigh strengths and weaknesses to reach a justified judgement.MYP Criterion DA judgement with no reasoning ('stainless steel is better') scores zero — the weighing is the mark.

Key point

Almost every mark in this unit is lost the same way: naming the category correctly but forgetting the mechanism. 'It's a chemical change' isn't enough — you need the new substance and the evidence. 'Metals conduct electricity' isn't enough — you need free/delocalised electrons that can move.

Metals and Non-Metals

Why metals behave the way they do

Metal atoms hold onto their outer electrons loosely. In a solid metal, those outer electrons detach from individual atoms and roam freely through the whole structure — a 'sea' of electrons surrounding a lattice of positive metal ions. Every classic metallic property traces back to this one structural fact.

  • Conductivity (heat and electricity): the free electrons carry charge/energy through the structure — this is why metal wires conduct and plastic rods don't.
  • Malleability (hammered into sheets) and ductility (drawn into wires): the layers of positive ions can slide over each other without breaking bonds, because the electron sea holds them together from all directions.
  • Lustre: free electrons reflect light, giving the shiny 'metallic' look when freshly cut or polished.
  • Sonority and high tensile strength: the strong, non-directional metallic bonding across the whole lattice resists deformation — this is why bells ring and steel beams hold load.

Non-metals mostly have covalent structures — electrons are shared and fixed between specific atoms, not free to roam. That single difference explains why non-metals are typically brittle, dull, poor conductors (graphite is the odd one out — its layered structure gives it free electrons too), and often exist as gases or brittle solids at room temperature.

Property vocabulary you must use precisely

Malleable
Can be hammered or rolled into thin sheets without shattering.Gold leaf, aluminium foil, car body panels.
Ductile
Can be drawn out into a thin wire without breaking.Copper wiring, gold bonding wires in microchips.
Conductivity
Ability to allow heat or electric current to pass through, due to mobile/free electrons.Copper and silver are the best electrical conductors.
Lustre
A shiny appearance when the surface is polished or freshly cut.Tarnished metal loses lustre due to a surface oxide layer, not loss of metallic bonding.
Brittle
Breaks or shatters when hammered or bent rather than deforming — typical of non-metallic solids.Sulfur and phosphorus crumble; metals bend instead.
Density
Mass per unit volume; metals are generally dense (packed lattice), non-metals generally less dense.Exceptions exist — lithium/sodium/potassium are metals that float on water.

Metallic bonding — the electron sea model

Free electrons explain conductivity; sliding ion layers explain malleability and ductility.

Positive metal ion (cation)Delocalised (free) electronElectron 'sea'Layer sliding under force (malleability)

Metals vs Non-Metals — physical and chemical properties

PropertyMetalsNon-Metals
StructureLattice of ions + free electron seaCovalent (molecular or giant covalent)
ConductivityGood conductors of heat and electricityPoor conductors (insulators) — graphite is an exception
Malleability/DuctilityMalleable and ductileBrittle when solid; shatter rather than bend
LustreShiny when polished/cutDull appearance
State at room temperatureMostly solid (mercury is liquid)Solid, liquid (bromine) or gas (O₂, N₂, Cl₂)
Density/melting pointGenerally high (exceptions: Na, K are soft/low mp)Generally lower
Reaction with acids/oxygenMany react to form salts/oxides, losing electronsDo not typically react with dilute acids to give H₂

Comparing materials quantitatively — strength-to-weight ratio

Divide tensile strength by density — a bigger number means more strength for every unit of mass, exactly what a lightweight structure needs.

— Maximum stress the material can bear before breaking (MPa)
— Mass per unit volume of the material (g/cm³)
Memorise

Get the ratio the right way up — strength ÷ density, not density ÷ strength. Inverting it makes the 'best' material look worst.

Worked example

Choosing a bike frame material by strength-to-weight ratio

[4]
Aluminium (density 2.70 g/cm³, tensile strength 310 MPa, cost 2.50 USD/kg), Steel (7.85 g/cm³, 520 MPa, 0.80 USD/kg) and Titanium (4.51 g/cm³, 900 MPa, 15.00 USD/kg) are candidates for a racing bike frame. Which has the best strength-to-weight ratio, and is it the best overall choice?

Worked example

Properties in action — malleability and conductivity

[4]
(a) State the scientific term for a metal's ability to be hammered into thin sheets. [1] (b) Identify a metal with this property and one use depending on it. [1] (c) A wire connects a battery to a bulb which lights; a plastic rod in the same circuit leaves the bulb off. State the property of metals responsible for conduction and explain the difference. [1+2]

Common mistake

Using 'malleable' and 'ductile' interchangeably, e.g. describing copper wire as 'malleable' when the question is about drawing it into wire.

Consequence: On a 1-mark 'state the term' question, the wrong term scores zero even though the student clearly understands metals are workable.

Fix: Malleable = sheets (think 'mallet' hammering flat). Ductile = wires (think 'duct' — long and thin, like ductwork).

Aluminium: two properties, one product

Aircraft fuselages and drink cans both exploit the SAME two aluminium properties together: low density keeps mass down (fuel efficiency in planes, easy transport for cans) while its thin, self-forming aluminium oxide layer resists corrosion in humid/salty air without needing paint. But recycling aluminium cans has a real limitation: printed inks, plastic linings, and mixing with other alloys during collection contaminate the scrap, forcing 'downcycling' into lower-grade products or extra energy-intensive purification — recycling isn't the free lunch it's often assumed to be.

Key takeaways

  • Every metallic property (conductivity, malleability, ductility, lustre) traces back to free-moving delocalised electrons in the metallic lattice.
  • Non-metals are typically covalent — electrons are fixed — giving brittleness, dullness, and poor conductivity (graphite is the standout exception).
  • Quantitative comparisons (like strength-to-weight ratio) must be interpreted, not just calculated — the 'best' number isn't always the best real-world choice once cost or other factors are added.
  • Naming a property is only half the mark — always link it to a specific metal and a specific use.

The Periodic Table (Introductory)

The periodic table sorts every known element by increasing atomic (proton) number into a grid where position tells you everything about behaviour before you even look at the element's name.

  • Periods (horizontal rows, 1–7): moving left to right along a period adds electrons to the same outer shell — the period number tells you how many electron shells an atom has.
  • Groups (vertical columns, 1–18): elements in the same group share the same number of valence (outer shell) electrons, which is why they show similar chemical behaviour — Group 1 metals all react vigorously with water, Group 17 (halogens) are all reactive non-metals, Group 18 (noble gases) are all unreactive.
  • A zig-zag 'staircase' line runs roughly from boron to astatine, dividing metals (left/below) from non-metals (right/above).
  • Metalloids sit along that staircase (e.g. boron, silicon, germanium, arsenic, antimony, tellurium) and show a blend of properties — many are semiconductors, conducting electricity poorly compared to metals but far better than non-metals.
Period
A horizontal row of the periodic table; period number = number of electron shells.
Group
A vertical column of the periodic table; elements share the same number of valence electrons and similar chemical properties.
Valence electrons
The electrons in the outermost shell of an atom, primarily responsible for chemical bonding and reactivity.
Metalloid
An element with intermediate properties between metals and non-metals, typically found along the staircase line; often a semiconductor.Silicon in computer chips is the classic example.

Layout of the periodic table

Position predicts property — left/lower is metallic, right/upper is non-metallic, with metalloids straddling the staircase.

Group 1 (Alkali metals)Group 2Group 17 (Halogens)Group 18 (Noble gases)Metalloid staircaseMetals (shaded blue)Non-metals (shaded yellow)Metalloids (shaded green)

Common mistake

Confusing 'group' with 'period' — e.g. answering a 'which group is chlorine in?' question by giving its row number instead of its column number.

Consequence: On an identify/state question worth 1 mark, giving the period number when a group is asked (or vice versa) scores zero even if the reasoning about reactivity is otherwise correct.

Fix: Groups go UP and DOWN (like the legs of a table — tall columns). Periods go ACROSS (like a period at the end of a sentence — a single line).

Examiner tip

'Identify the group/period' questions want a bare number and/or element name, nothing else — writing a paragraph about reactivity when only 1 mark is available wastes time without earning extra credit.

Frequently confused

Concept AConcept BThe distinction that matters
MetalMetalloidMetals conduct well and are malleable; metalloids conduct poorly/moderately (semiconductors) and are usually brittle — test both conductivity strength and whether it bends or shatters.

Key takeaways

  • Period number = number of electron shells; group number relates to valence electrons and predicts chemical similarity.
  • The staircase line is the quickest way to sort metal / metalloid / non-metal by eye.
  • Group 1, 17 and 18 are the three columns MYP exams reference most often — know their general behaviour by name.

Reactivity and Chemical Properties

Reactivity for metals is fundamentally about how easily an atom gives up its outer electrons to form a positive ion. The more readily a metal loses electrons, the higher up the reactivity series it sits, and the more vigorously it reacts with acids, water and oxygen.

  • Metal + acid → salt + hydrogen gas — the metal displaces hydrogen from the acid by losing electrons to form the metal cation, while H⁺ ions gain those electrons and combine into H₂ gas.
  • Highly reactive metals (K, Na, Ca) even react with cold water; moderately reactive metals (Mg, Zn, Fe) react with acids but not cold water; unreactive metals (Cu, Ag, Au) barely react with either.
  • The reactivity series also decides extraction method: highly reactive metals need electrolysis (too hard to reduce from their compounds any other way); moderately reactive metals are extracted by heating with carbon; very unreactive metals can be found as native (uncombined) metal.

The reactivity series and extraction methods

Position in the ladder predicts both how vigorously a metal reacts and how it must be extracted from its ore.

Potassium (K)Sodium (Na)Calcium (Ca)Magnesium (Mg)Aluminium (Al)Carbon (reference)Zinc (Zn)Iron (Fe)Hydrogen (reference)Copper (Cu)Silver (Ag)Gold (Au)Extracted by electrolysisExtracted by heating with carbonFound native / unreactive

Key word/symbol equations for metal reactivity

Magnesium + hydrochloric acid → magnesium chloride + hydrogen gas

General pattern: metal + acid → salt + hydrogen.

Magnesium + oxygen → magnesium oxide

General pattern: metal + oxygen → metal oxide.

A more reactive metal (zinc) displaces a less reactive metal (copper) from its compound.

This only works if the free metal is HIGHER in the reactivity series than the metal in the compound.

Worked example

Reading a reactivity investigation (bubbles-per-minute data)

[6]
Equal masses of magnesium, zinc, iron and copper are added to separate beakers of 50 mL, 1 mol/L HCl at 25°C. Bubbles per minute recorded: Mg = 45, Zn = 25, Fe = 8, Cu = 0. (a) Identify the independent and dependent variables. (b) State one controlled variable and explain why it matters. (c) Describe the trend and explain why Mg reacts faster than Zn. (d) Analyse why copper produces zero bubbles.

Worked example

Mining rare metals: reactivity, extraction and ethics

[6]
Smartphones contain tantalum and lithium. (a) Describe an environmental cost of mining these metals. (b) Explain an ethical issue linked to tantalum mining in conflict regions. (c) Evaluate the claim that smartphones' social benefits outweigh these costs.

Common mistake

Describing metal reactions with acid as the metal 'wanting' or 'needing' electrons.

Consequence: This reverses the actual mechanism and loses the explain mark, since metals react by LOSING electrons (being oxidised) — it's the H⁺ ions that gain electrons to form H₂.

Fix: Say it as: 'the metal loses electrons to form a positive ion; hydrogen ions gain those electrons to form H₂ gas.'

Key takeaways

  • Reactivity = ease of electron loss; this single idea explains reaction speed with acid, water, and oxygen, and even extraction method.
  • Bubble-count/rate investigations are testing your ability to name IV/DV, justify a controlled variable, and explain the trend mechanistically, not just describe numbers.
  • The reactivity series links directly to real-world ethics — reactive metals like lithium require energy-intensive/water-intensive extraction, which carries genuine environmental and social costs.

Everyday Chemical Changes

Rusting is the everyday chemical change examiners return to again and again, because it perfectly combines reactivity, oxidation and material science into one real scenario: bridges, cars, and ships.

  • Rusting: iron reacts with oxygen and water/moisture in the air to form hydrated iron(III) oxide, Fe₂O₃·xH₂O — a flaky, weaker substance that exposes fresh iron underneath, so rusting is self-continuing once started.
  • Stainless steel resists rusting because it's an alloy containing chromium (typically 10–11%+); the chromium reacts with oxygen to form a thin, tough, self-repairing chromium oxide (Cr₂O₃) layer that seals the surface and blocks further oxygen/moisture contact — this is called passivation.
  • Other everyday chemical changes: cooking (proteins denature, sugars caramelise), digestion (enzymes break down food into new molecules), batteries discharging (chemical energy → electrical energy via redox reactions).

Worked example

Carbon steel vs stainless steel for a pedestrian bridge

[5]
Carbon steel costs 500,000 USD to build a bridge but rusts over time; stainless steel costs 800,000 USD and resists rust. (a) Explain why carbon steel rusts but stainless steel does not. (b) Analyse the economic trade-off between the two options.

Fighting corrosion in the real world

Engineers don't just pick expensive alloys — they use cheaper corrosion-prevention tricks constantly. Galvanising coats steel nails and car bodies in a thin zinc layer that corrodes first (sacrificial protection) while also acting as a physical barrier. Ships and large bridges (like the Golden Gate Bridge's continuous repainting program) rely on paint barriers to keep oxygen and moisture off exposed steel. Chrome-plating on taps and bike parts gives a cheap, thin corrosion-resistant surface without the cost of solid stainless steel.

Common mistake

Treating rusting as a physical change because the metal 'still looks like metal' or because it happens slowly.

Consequence: This misses the core chemical-change criterion — a new substance (iron oxide) with different properties (flaky, weaker, different colour) has formed — and loses the mark for identifying/explaining it as a chemical change.

Fix: Ask: has a new substance with different chemical properties formed, and is it hard to reverse by simple physical means (like re-melting)? For rust, yes on both counts — it's chemical.

Key point

Physical change: no new substance, usually reversible (melting, dissolving, cutting). Chemical change: new substance(s) with different properties form, usually irreversible by simple physical means, often shown by gas/colour/precipitate/temperature evidence.

Key takeaways

  • Rusting is iron + oxygen + water forming iron oxide — a genuine chemical change, not surface weathering.
  • Stainless steel resists rust via a self-repairing chromium oxide passivation layer, not because it lacks iron.
  • Economic 'analyse' questions on materials expect lifetime cost (maintenance, replacement) weighed against upfront cost, not just a price comparison.

Types of Chemical Reactions

Almost every reaction you'll be asked to classify falls into one of five patterns. Spot the pattern by counting reactants and products and checking whether elements or compounds are swapping partners.

Synthesis (combination)
Two or more substances combine to form a single new product: A + B → AB.e.g. 4Fe + 3O₂ → 2Fe₂O₃ (rusting)
Decomposition
A single compound breaks down into two or more simpler substances: AB → A + B.e.g. CaCO₃ → CaO + CO₂ on heating (limestone)
Single displacement
A free element displaces another element from a compound because it is more reactive: A + BC → AC + B.e.g. Zn + CuSO₄ → ZnSO₄ + Cu
Double displacement (precipitation)
Two compounds swap ions/partners, often forming an insoluble precipitate: AB + CD → AD + CB.e.g. AgNO₃ + NaCl → AgCl (precipitate) + NaNO₃
Combustion
A fuel reacts with oxygen, releasing energy, typically producing carbon dioxide and water for hydrocarbon fuels.e.g. CH₄ + 2O₂ → CO₂ + 2H₂O

Reaction types at a glance

TypeGeneral formExampleEveryday occurrence
SynthesisA + B → AB4Fe + 3O₂ → 2Fe₂O₃Rusting of iron structures
DecompositionAB → A + BCaCO₃ → CaO + CO₂Baking with baking powder, limestone heating in cement production
Single displacementA + BC → AC + BZn + CuSO₄ → ZnSO₄ + CuMetal displacement/extraction reactions
Double displacementAB + CD → AD + CBAgNO₃ + NaCl → AgCl + NaNO₃Precipitation reactions, water testing
CombustionFuel + O₂ → CO₂ + H₂O (+ energy)CH₄ + 2O₂ → CO₂ + 2H₂OBurning natural gas, car engines

Worked example

Classifying reactions from their equations

[3]
Classify each reaction as synthesis, decomposition, or single displacement, and justify from the equation: (i) 4Fe + 3O₂ → 2Fe₂O₃ (ii) 2H₂O₂ → 2H₂O + O₂ (iii) Zn + CuSO₄ → ZnSO₄ + Cu

Frequently confused

Concept AConcept BThe distinction that matters
SynthesisDecompositionSynthesis: many reactants → one product (combining). Decomposition: one reactant → many products (breaking apart) — they are exact opposites, check which direction the arrow's 'crowd' is on.
Single displacementDouble displacementSingle: one free element swaps into a compound, replacing a less reactive element. Double: two compounds swap ions/partners, no free element involved — often forming a precipitate.
Physical changeChemical changePhysical: same substance, different form, generally reversible by physical means (melting, dissolving). Chemical: new substance(s) with different properties, generally not reversible by simple physical means.

Key takeaways

  • Classify reaction type by counting reactants/products and checking whether elements or compounds are swapping — don't guess from 'how complicated' the equation looks.
  • Single vs double displacement is the most commonly confused pair — always check for a free element doing the displacing.
  • Rusting (synthesis), baking soda/vinegar-style reactions (decomposition after ion swap), and combustion are the three real-world reactions examiners return to most often.

Signs of a Chemical Change

You can't usually see atoms rearranging directly, so chemists look for observable evidence. Five signs turn up again and again — but every one of them can also occur during a purely physical process, so the real test is always: has a NEW substance with different properties actually formed?

  • Gas production — bubbles or fizzing, e.g. metal + acid releasing hydrogen.
  • Precipitate formation — a solid suddenly appears from mixing two solutions, e.g. silver chloride forming a white cloudy solid.
  • Colour change — e.g. iron turning reddish-brown as it rusts.
  • Temperature change — exothermic reactions release heat (feels warmer), endothermic reactions absorb heat (feels colder).
  • Light or odour given off — combustion producing a flame/light; some reactions release a distinct smell.

Spotting the signs in the lab

Each tube shows a different piece of evidence for a chemical reaction taking place.

Gas produced (bubbles rising)Precipitate formed (cloudy solid settling)Temperature change (thermometer reading rise)

Remembering the five signs

BLAST

Bubbles (gas), Light (given off, e.g. combustion), Aroma (odour change), Solid (precipitate forms), Temperature (change, hot or cold).

Worked example

Physical or chemical? Applying the 'new substance' test

[4]
Classify each as a physical or chemical change, giving your reasoning: (i) ice melting into water (ii) sugar dissolving in tea (iii) vinegar + baking soda fizzing (iv) burning paper.

Examiner tip

'Identify the signs of a chemical change' wants named, specific evidence — 'gas bubbles were produced' or 'a white precipitate formed' — not a vague 'something happened' or 'there was a reaction'. Generic answers without specific observable evidence lose the mark.

Key point

Signs SUGGEST a chemical change but don't PROVE it — mixing coloured dyes changes colour with no new substance, and dissolving salt changes temperature with no new substance. Always confirm a new substance has genuinely formed before calling it chemical.

Key takeaways

  • Five signs to name specifically: gas, precipitate, colour change, temperature change, light/odour — use the mnemonic BLAST to recall them under pressure.
  • Every sign can occur physically too — the deciding test is always whether a genuinely new substance with different properties has formed.
  • Dissolving is the classic trap scenario examiners use to check you understand the 'new substance' criterion, not just pattern-matching signs.

Quick Reference

Chemical Reactions & the Periodic Table — everything on one page

Formulas

  • Bigger ratio = more strength per unit mass; don't invert it.
  • General: metal + acid → salt + hydrogen.
  • General: metal + oxygen → metal oxide.
  • Single displacement: more reactive metal (Zn) displaces less reactive metal (Cu).

Key facts

Reactivity series (most to least reactive)
K, Na, Ca, Mg, Al, Zn, Fe, (H), Cu, Ag, Au
Groups in the periodic table
18
Periods in the periodic table
7
Rust formula
Fe₂O₃·xH₂O (hydrated iron(III) oxide)
Stainless steel's protective layer
Chromium oxide (Cr₂O₃), self-repairing passivation layer

Mnemonics

  • BLASTBubbles, Light, Aroma, Solid (precipitate), Temperature — the five signs of a chemical change.
  • Mallet = sheets, Duct = wireMalleable → hammered into sheets; ductile → drawn into wires.

Don't confuse

  • Group vs Period: Group = vertical column (valence electrons/similar properties); period = horizontal row (number of electron shells).
  • Synthesis vs Decomposition: Synthesis combines reactants into one product; decomposition splits one reactant into many products — opposite directions.
  • Single displacement vs Double displacement: Single: a free element replaces an element in a compound. Double: two compounds swap ions, no free element involved.
  • Physical change vs Chemical change: Physical: same substance, reversible by physical means. Chemical: new substance formed, generally irreversible.

Command terms

State / Identify:
Give the exact word/name only — 1 mark, no explanation.
Describe:
Give an accurate account of a trend or observation — no cause needed.
Explain:
Give the causal mechanism linking cause to effect — no mark without the 'why'.
Analyse / Evaluate:
Weigh both sides (cost vs benefit, trend vs cause) and reach a justified conclusion.

Exam checklist

  • Classifying a reaction: count reactants/products, check for a free element displacing another.
  • Physical vs chemical: can the original substance be physically recovered? If yes, physical.
  • Metal property question: name the specific property (malleable/ductile/conductive) AND link it to a specific metal and use.
  • Reactivity question: explain in terms of ease of electron loss, not 'wanting' electrons.
  • Cost/material trade-off question: state both sides (performance AND cost/lifetime) before concluding.
